Activiti学习笔记三-开发部署bpmn流程文件

        之前我们学习了Activiti的开发环境的搭建，下面我们开始学习如何在搭建的开发环境中进行Activiti的开发。为了进行一些简单的测试，我们采用Maven工程，然后采用spring-test和junit集成进行测试验证。
第一步：创建Maven工程，加载依赖包，具体的pom.xml文件如下：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.dfbhaiou.demo</groupId>
  <artifactId>activiti</artifactId>
  <version>0.0.1-SNAPSHOT</version>


  <!-- 设定除中央仓库(repo1.maven.org/maven2/)外的其他仓库,按设定顺序进行查找. -->
	<properties>
		<jackson.version>2.2.3</jackson.version>
		<activiti.version>5.18.0</activiti.version>
	</properties>
	<repositories>
		<repository>
			<id>oschina</id>
			<name>oschina repository</name>
			<url>http://maven.oschina.net/content/groups/public/</url>
		</repository>
		<repository>
			<id>oschina-thirdparty</id>
			<name>oschina thirdparty repository</name>
			<url>http://maven.oschina.net/content/repositories/thirdparty/</url>
		</repository>
		<repository>
			<id>central</id>
			<name>Central Repository</name>
			<url>http://repo.maven.apache.org/maven2</url>
		</repository>
		<repository>
			<id>org.springframework.maven.milestone</id>
			<name>Spring Framework Maven Milestone Repository</name>
			<url>http://maven.springframework.org/milestone</url>
		</repository>
		<repository>
			<id>Activiti</id>
			<url>https://maven.alfresco.com/nexus/content/groups/public</url>
		</repository>
	</repositories>

	<dependencies>

	<dependency>
  		<groupId>org.activiti</groupId>
  		<artifactId>activiti-engine</artifactId>
  		<version>${activiti.version}</version>
  	</dependency>
  	<dependency>
  		<groupId>org.activiti</groupId>
  		<artifactId>activiti-spring</artifactId>
  		<version>${activiti.version}</version>
  	</dependency>
  	<dependency>
  		<groupId>mysql</groupId>
  		<artifactId>mysql-connector-java</artifactId>
  		<version>5.1.29</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-core</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-beans</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-test</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>commons-dbcp</groupId>
  		<artifactId>commons-dbcp</artifactId>
  		<version>1.4</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-context</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-context-support</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-tx</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.springframework</groupId>
  		<artifactId>spring-orm</artifactId>
  		<version>3.2.2.RELEASE</version>
  	</dependency>
  	<dependency>
  		<groupId>org.mybatis</groupId>
  		<artifactId>mybatis</artifactId>
  		<version>3.2.5</version>
  	</dependency>
  	  	<dependency>
  		<groupId>junit</groupId>
  		<artifactId>junit</artifactId>
  		<version>4.11</version>
  	</dependency>
  	  	<dependency>
  	  		<groupId>org.slf4j</groupId>
  	  		<artifactId>slf4j-api</artifactId>
  	  		<version>1.7.6</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.activiti</groupId>
  	  		<artifactId>activiti-bpmn-model</artifactId>
  	  		<version>${activiti.version}</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.activiti</groupId>
  	  		<artifactId>activiti-bpmn-converter</artifactId>
  	  		<version>${activiti.version}</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.activiti</groupId>
  	  		<artifactId>activiti-process-validation</artifactId>
  	  		<version>${activiti.version}</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>joda-time</groupId>
  	  		<artifactId>joda-time</artifactId>
  	  		<version>2.1</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.slf4j</groupId>
  	  		<artifactId>jcl-over-slf4j</artifactId>
  	  		<version>1.7.6</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.slf4j</groupId>
  	  		<artifactId>slf4j-log4j12</artifactId>
  	  		<version>1.7.6</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>org.apache.commons</groupId>
  	  		<artifactId>commons-lang3</artifactId>
  	  		<version>3.1</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>javax.annotation</groupId>
  	  		<artifactId>javax.annotation-api</artifactId>
  	  		<version>1.2</version>
  	  	</dependency>
  	  	<dependency>
  	  		<groupId>commons-io</groupId>
  	  		<artifactId>commons-io</artifactId>
  	  		<version>2.4</version>
  	  	</dependency>

		<dependency>
			<groupId>c3p0</groupId>
			<artifactId>c3p0</artifactId>
			<version>0.9.1</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.6</version>
		</dependency>

		<!-- jackson -->
		<!-- JSON begin -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-core</artifactId>
			<version>${jackson.version}</version>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-annotations</artifactId>
			<version>${jackson.version}</version>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
			<version>${jackson.version}</version>
		</dependency>
		<!-- JSON end -->

	</dependencies>
	<build>
		<finalName>gtjTelManager</finalName>
		<plugins>
			<plugin>
				<artifactId>maven-compiler-plugin</artifactId>
				<configuration>
					<source>1.6</source>
					<target>1.6</target>
					<encoding>utf-8</encoding>
				</configuration>
			</plugin>
			<plugin>
				<artifactId>maven-assembly-plugin</artifactId>
				<configuration>
					<descriptorRefs>
						<descriptorRef>jar-with-dependencies</descriptorRef>
					</descriptorRefs>
				</configuration>
			</plugin>
		</plugins>

		<!-- 将资源包和src下的*.hbm.xml和*.xml打包 -->
		<resources>
			<resource>
				<directory>src/main/resources</directory>
			</resource>
			<resource>
				<directory>src/main/java</directory>
				<includes>
					<include>**/*.xml</include>
				</includes>
			</resource>
		</resources>
	</build>
</project>

第二步：配置数据库和activiti（数据库使用activiti-explorer工程的）

数据库的配置文件和activiti的配置文件可以使用activiti-explorer项目下的activiti-standalone-context.xml和db.properties。因为activiti-explorer项目使用的dbcp连接池，而我个人喜好使用c3p0的连接池，所以做了少许的改动，spring的配置文件如下：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN" "http://www.springframework.org/dtd/spring-beans-2.0.dtd">
<beans>

	<bean id="dataSource-dhcp" class="org.apache.commons.dbcp.BasicDataSource">
		<property name="driverClassName" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/activiti" />
		<property name="username" value="root" />
		<property name="password" value="123456" />
		<property name="defaultAutoCommit" value="false" />
	</bean>

	<!-- 配置数据源 start -->
	<bean id="placeholderConfig"
		class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="location">
			<value>classpath:init.properties</value>
		</property>
	</bean>

	<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
		<property name="driverClass">
			<value>${datasource.driverClassName}</value>
		</property>
		<property name="jdbcUrl">
			<value>${datasource.url}</value>
		</property>
		<property name="user">
			<value>${datasource.username}</value>
		</property>
		<property name="password">
			<value>${datasource.password}</value>
		</property>
		<property name="acquireIncrement">
			<value>${c3p0.acquireIncrement}</value>
		</property>
		<property name="initialPoolSize">
			<value>${c3p0.initialPoolSize}</value>
		</property>
		<property name="minPoolSize">
			<value>${c3p0.minPoolSize}</value>
		</property>
		<property name="maxPoolSize">
			<value>${c3p0.maxPoolSize}</value>
		</property>
		<property name="maxIdleTime">
			<value>${c3p0.maxIdleTime}</value>
		</property>
		<property name="idleConnectionTestPeriod">
			<value>${c3p0.idleConnectionTestPeriod}</value>
		</property>
		<property name="maxStatements">
			<value>${c3p0.maxStatements}</value>
		</property>
		<property name="numHelperThreads">
			<value>${c3p0.numHelperThreads}</value>
		</property>
	</bean>

	<bean id="processEngineConfiguration"
		class="org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration">
		<property name="dataSource" ref="dataSource" />
		<property name="databaseType" value="mysql"/>
		<property name="databaseSchemaUpdate" value="true" />
		<property name="jobExecutorActivate" value="false" />
	</bean>

	<bean id="processEngine" class="org.activiti.spring.ProcessEngineFactoryBean">
		<property name="processEngineConfiguration" ref="processEngineConfiguration" />
	</bean>

	<bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService" />
	<bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService" />
	<bean id="taskService" factory-bean="processEngine" factory-method="getTaskService" />
	<bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService" />
	<bean id="managementService" factory-bean="processEngine" factory-method="getManagementService" />

	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource" />
	</bean>
</beans>

配置好这些后，我们就可以开始编写测试类了。

测试类如下：

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:spring-activiti.xml"})
@TransactionConfiguration(transactionManager="transactionManager", defaultRollback=false)
@Transactional
public class ActivitiTestCase extends AbstractTransactionalJUnit4SpringContextTests{
    @Test
    public void test(){
    	System.out.println ("test");
    }
}

运行上面的单元测试代码，如果在控制台输出ｔｅｓｔ，那代表我们前面的配置都ＯＫ了。

下面我们就开始使用学习二中安装的插件画流程图并部署。

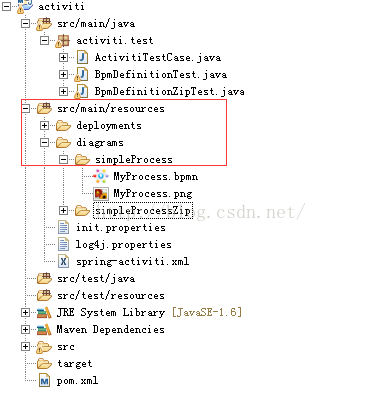

第一步：新建如下结构的目录

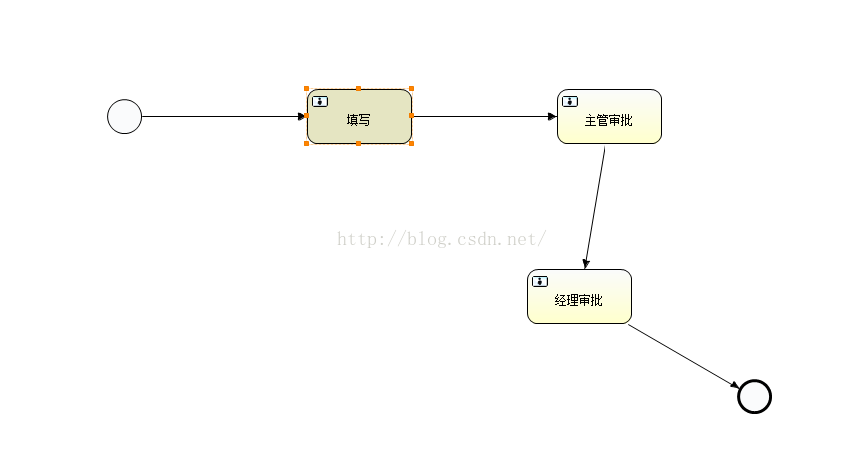

建好后，新建一个 activiti Diagram文件，如上图所示的MyProcess.bpmn，建好后，使用Activiti Diagram Editor打开MyProcess.bpmn文件，然后设计一个简单的流程：员工填写年度报告，提交后由主管进行审批，审批通过后，在由经理审批。流程有开始和结束节点，设计好的流程如下；

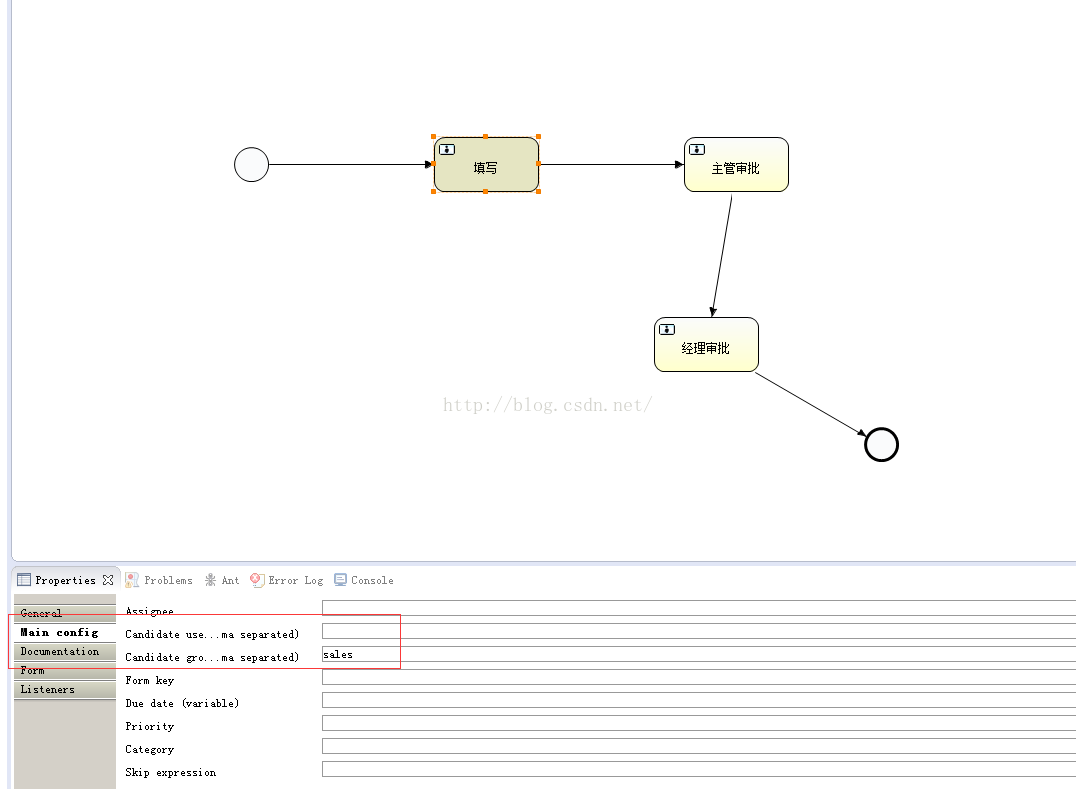

填写：由sales来进行操作

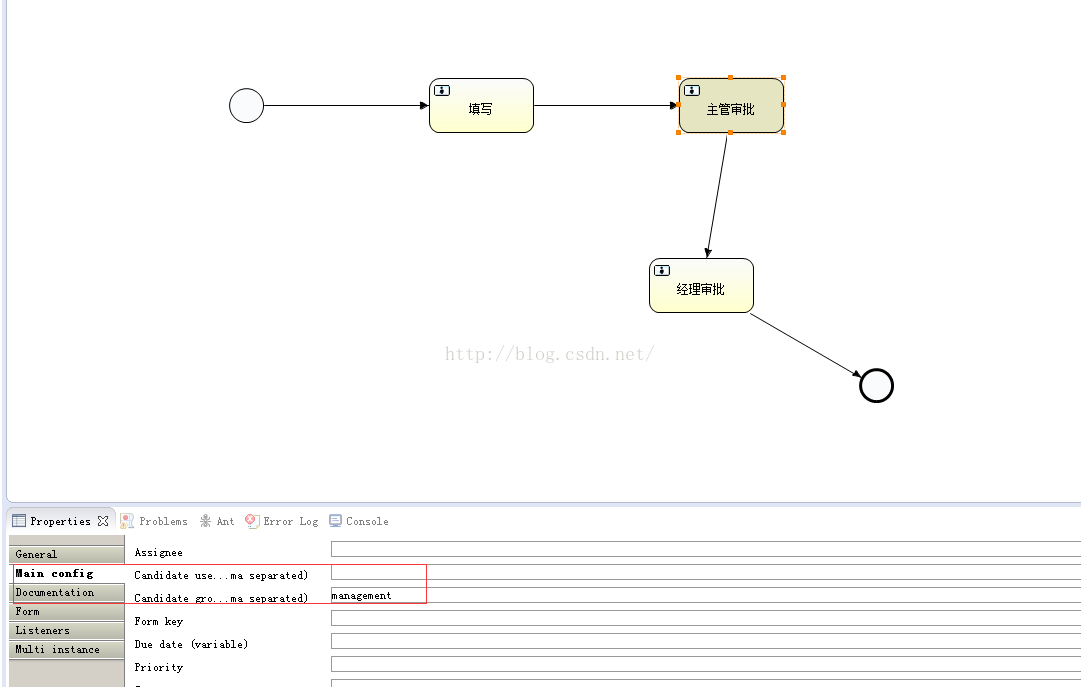

主管审批和经理审批：由management来进行操作

设计好流程后，如果没有生成对应的流程图片，打开window=>Preferences=>activiti

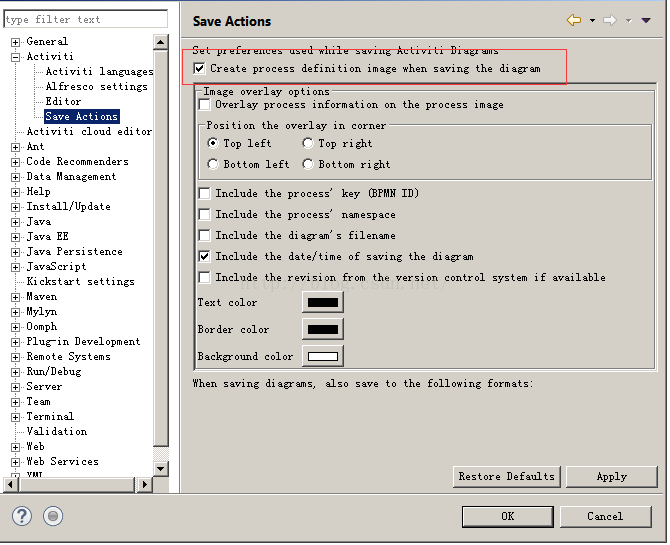

勾选Save Actions中的Create Process definition image选项：如下图：

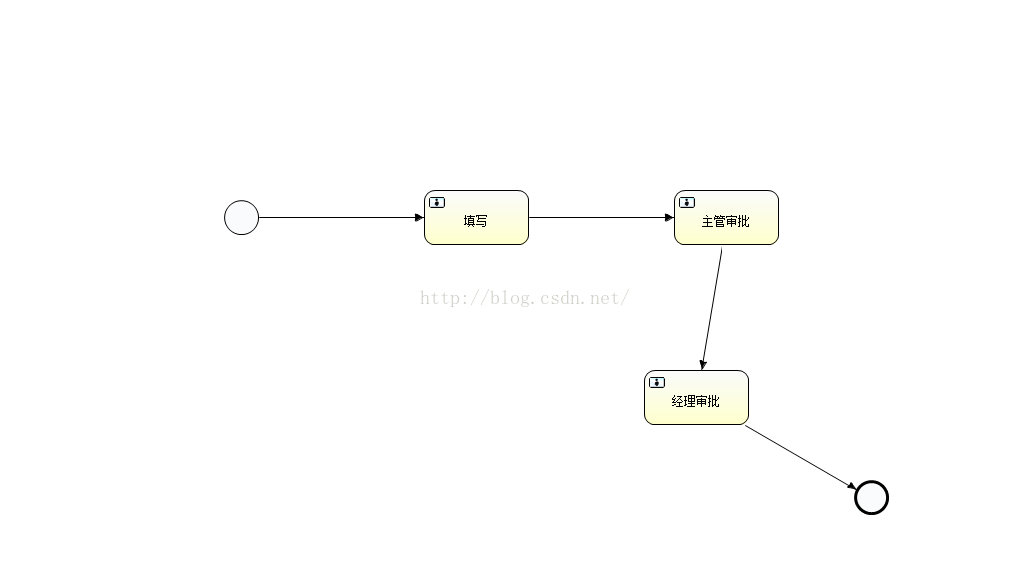

保存后，过一会就会在同目录下生成一个图片：

流程设计好后，下面就是部署了，有2种方式，我们这里采用代码的方式进行部署并测试。代码部署方式如下：

<span style="font-family:Microsoft YaHei;font-size:18px;">public class BpmDefinitionTest extends ActivitiTestCase{

	@Resource
	private RepositoryService repositoryService;
	@Resource
	private RuntimeService runtimeService;
	@Resource
	private TaskService taskService;
	@Resource
	private HistoryService historyService;

	@Test
	public void testDeploy(){
		String filePath="/diagrams/simpleProcess/MyProcess.bpmn";
		try {
			InputStream is = Class.class.getClass().getResource(filePath).openStream();

			/*//读取bpmn文件，并发布
			Deployment deployment=repositoryService.createDeployment().addInputStream("bpmn20.xml",is).deploy();

			ProcessDefinition processDefinition = repositoryService.createProcessDefin.itionQuery().deploymentId(deployment.getId()).singleResult();

			Long businessKey=new Double(1000000*Math.random()).longValue();

			//启动流程
			runtimeService.startProcessInstanceById(processDefinition.getId(),businessKey.toString());

			//查询任务实例
			List<Task> taskList=taskService.createTaskQuery().processDefinitionId(processDefinition.getId()).list();
			for(Task task:taskList){
				System.out.println("task name is " + task.getName() + " ,task key is " + task.getTaskDefinitionKey());
			}*/

			// 部署流程定义
			repositoryService.createDeployment().addInputStream("bpmn20.xml",is).deploy();

			// 启动流程实例
			String procId = runtimeService.startProcessInstanceByKey("myProcess").getId();

			/******************第一个任务开始******************************/
			List<Task> taskList = taskService.createTaskQuery().taskCandidateGroup("sales").list();
			for (Task task : taskList) {

	            System.out.println("Following task is available for sales group: " + task.getName());

	            // 认领任务这里由foozie认领，因为fozzie是sales组的成员
	            taskService.claim(task.getId(), "gonzo");
	        }

			//查看fozzie是否能够获取该任务
			taskList = taskService.createTaskQuery().taskAssignee("gonzo").list();
			System.out.println("fozzie当前的任务数:" + taskList.size());
			for(Task task : taskList){
				System.out.println("the task name is :" + task.getName());
				 // 执行(完成)任务
				taskService.complete(task.getId());
			}
			System.out.println("gonzo当前的任务数:" +  taskService.createTaskQuery().taskAssignee("gonzo").count());

			/******************第一个任务结束******************************/


			/******************第二个任务开始******************************/
			taskList = taskService.createTaskQuery().taskCandidateGroup("management").list();
			for(Task task : taskList){
				 System.out.println("Following task is available for management group: " + task.getName());
				 taskService.claim(task.getId(), "kermit");
			}

			//查看kermit是否能够获取改任务
			taskList = taskService.createTaskQuery().taskAssignee("kermit").list();
			System.out.println("kermit当前任务数：" + taskList.size());
			for(Task task : taskList){
				System.out.println("the task name is :" + task.getName());
				taskService.complete(task.getId());
			}
			System.out.println("kermit当前任务数：" +  taskService.createTaskQuery().taskAssignee("kermit").count());

			/******************第二个任务结束******************************/


			/******************第三个任务开始******************************/
			//获取第三个任务
			taskList = taskService.createTaskQuery().taskCandidateGroup("management").list();
			for(Task task : taskList){
				 System.out.println("Following task is available for management group: " + task.getName());
				 taskService.claim(task.getId(), "gonzo");
			}
			//查看gonzo是否能够获取改任务
			taskList = taskService.createTaskQuery().taskAssignee("gonzo").list();
			System.out.println("gonzo当前任务数：" + taskList.size());
			for(Task task : taskList){
				System.out.println("the task name is :" + task.getName());
				taskService.complete(task.getId());
			}
			System.out.println("gonzo当前任务数：" +  taskService.createTaskQuery().taskAssignee("gonzo").count());

			/******************第三个任务结束******************************/

			 HistoricProcessInstance historicProcessInstance = historyService.createHistoricProcessInstanceQuery()

                     .processInstanceId(procId).singleResult();
			 System.out.println("流程结束时间：" + historicProcessInstance.getEndTime());

		} catch (IOException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}
}<strong>
</strong></span>

这里只是简单的使用了activiti的几个api，具体的过程为：部署流程，然后启动流程实例，之后对应节点的用户组用户签收任务并处理直至流程结束。

部署bpmn并测试就到这里了，下一章我们将学习如何部署含有图片的流程实例。
