ClickHouse TTL move & move part/partition操作源码走读

初识CK源码，有所纰漏请大家指正

首先在MergeTreeData::MergeTreeData()初始化background_moves_assignee
然后BackgroundJobsAssignee::start()启动任务调度，处理DataProcessing、Moving两种枚举类型的操作
DataProcessing：包括merge操作
Moving：包括ttl move操作、move part/partition操作
本文主要走读Moving部分代码逻辑

switch (type)
{
    case Type::DataProcessing:
        succeed = data.scheduleDataProcessingJob(*this);
        break;
    case Type::Moving:
        succeed = data.scheduleDataMovingJob(*this);
        break;
}

一、选择一些part进行move

auto moving_tagger = selectPartsForMove();
if (moving_tagger->parts_to_move.empty())
    return false;

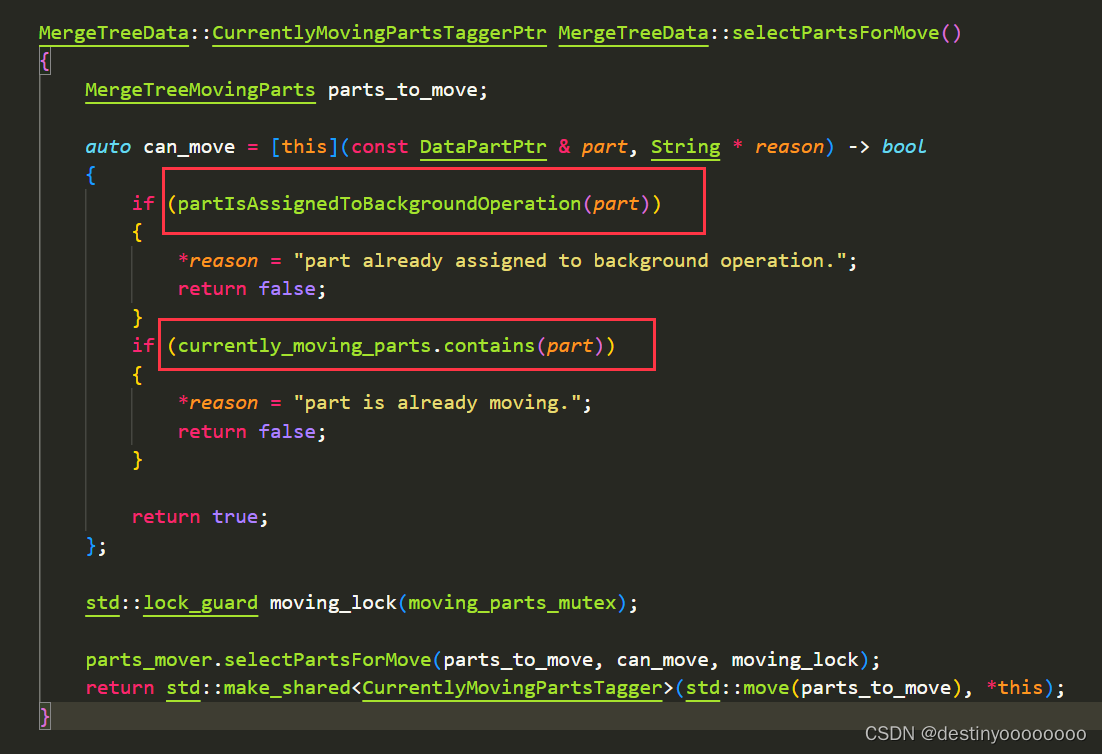

排除正在merge和正在moving的part

获取数据表的数据分区 getDataPartsVectorForInternalUsage({DataPartState::Active})

然后拿到存储策略和volume等相关信息，判断磁盘剩余空间和ttl策略等信息

遍历数据表的所有数据分区：

• 如果can_move函数判断该数据分区可以移动，则继续后续操作；否则跳过；
• 根据数据分区的TTL信息选择最适合的TTL规则(ttl_entry)；
• 如果存在适合的TTL规则，则根据规则选择目标位置(destination)并尝试预留空间(reservation)；
• 如果成功预留了空间(reservation)，则将该数据分区和预留的空间添加到parts_to_move中，并更新计数器和总大小；
• 否则，如果找到了该磁盘在need_to_move中的条目(to_insert)，则将该数据分区添加到to_insert中。

std::unordered_map<DiskPtr, LargestPartsWithRequiredSize> need_to_move;
const auto policy = data->getStoragePolicy();
const auto & volumes = policy->getVolumes();
if (!volumes.empty())
{
    /// Do not check last volume
    for (size_t i = 0; i != volumes.size() - 1; ++i)
    {
        for (const auto & disk : volumes[i]->getDisks())
        {
            UInt64 required_maximum_available_space = disk->getTotalSpace() * policy->getMoveFactor();
            UInt64 unreserved_space = disk->getUnreservedSpace();

            if (unreserved_space < required_maximum_available_space && !disk->isBroken())
                need_to_move.emplace(disk, required_maximum_available_space - unreserved_space);
        }
    }
}
time_t time_of_move = time(nullptr);
auto metadata_snapshot = data->getInMemoryMetadataPtr();
if (need_to_move.empty() && !metadata_snapshot->hasAnyMoveTTL())
    return false;
for (const auto & part : data_parts)
{
    String reason;
    /// Don't report message to log, because logging is excessive.
    if (!can_move(part, &reason))
        continue;
    auto ttl_entry = selectTTLDescriptionForTTLInfos(metadata_snapshot->getMoveTTLs(), part->ttl_infos.moves_ttl, time_of_move, true);
    auto to_insert = need_to_move.find(part->volume->getDisk());
    ReservationPtr reservation;
    if (ttl_entry)
    {
        auto destination = data->getDestinationForMoveTTL(*ttl_entry);
        if (destination && !data->isPartInTTLDestination(*ttl_entry, *part))
            reservation = data->tryReserveSpace(part->getBytesOnDisk(), data->getDestinationForMoveTTL(*ttl_entry));
    }
    if (reservation) /// Found reservation by TTL rule.
    {
        parts_to_move.emplace_back(part, std::move(reservation));
        /// If table TTL rule satisfies on this part, won't apply policy rules on it.
        /// In order to not over-move, we need to "release" required space on this disk,
        /// possibly to zero.
        if (to_insert != need_to_move.end())
        {
            to_insert->second.decreaseRequiredSizeAndRemoveRedundantParts(part->getBytesOnDisk());
        }
        ++parts_to_move_by_ttl_rules;
        parts_to_move_total_size_bytes += part->getBytesOnDisk();
    }
    else
    {
        if (to_insert != need_to_move.end())
            to_insert->second.add(part);
    }
}

遍历need_to_move的所有条目：

• 获取最小卷索引(min_volume_index)。
• 遍历累积的数据分区(accumulatedParts)：
  • 根据最小卷索引尝试预留空间(reservation)；
  • 如果成功预留了空间，则将该数据分区和预留的空间添加到parts_to_move中，并更新计数器和总大小。

for (auto && move : need_to_move)
{
    auto min_volume_index = policy->getVolumeIndexByDisk(move.first) + 1;
    for (auto && part : move.second.getAccumulatedParts())
    {
        auto reservation = policy->reserve(part->getBytesOnDisk(), min_volume_index);
        if (!reservation)
        {
            break;
        }
        parts_to_move.emplace_back(part, std::move(reservation));
        ++parts_to_move_by_policy_rules;
        parts_to_move_total_size_bytes += part->getBytesOnDisk();
    }
}

至此，就已经拿到需要进行move的part了

二、进行part的move

assignee.scheduleMoveTask(std::make_shared<ExecutableLambdaAdapter>(
    [this, moving_tagger] () mutable
    {
        return moveParts(moving_tagger);
    }, moves_assignee_trigger, getStorageID()));

数据move分为是否支持和配置zero-copy和普通模式的区别，但类似的都是先进行clonePart和swapClonedPart

clonePart这里是先对原part进行复制，然后通过swapClonedPart改变新旧数据块状态

try
{
    auto disk = moving_part.reserved_space->getDisk();
    if (supportsReplication() && disk->supportZeroCopyReplication() && settings->allow_remote_fs_zero_copy_replication)
    {
        if (auto lock = tryCreateZeroCopyExclusiveLock(moving_part.part->name, disk); lock)
        {
            cloned_part = parts_mover.clonePart(moving_part);
            parts_mover.swapClonedPart(cloned_part);
        }
        else
        {
            LOG_DEBUG(log, "Move of part {} postponed, because zero copy mode enabled and someone other moving this part right now", moving_part.part->name);
            result = false;
            continue;
        }
    }
    else /// Ordinary move as it should be
    {
        cloned_part = parts_mover.clonePart(moving_part);
        parts_mover.swapClonedPart(cloned_part);
    }
    write_part_log({});
}
catch (...)
{
    write_part_log(ExecutionStatus::fromCurrentException());
    if (cloned_part)
        cloned_part->remove();
    throw;
}

至此，ttl move操作已经完成；可以了解到ttl实际上是对原数据进行clone，然后进行新旧数据块的状态切换
