上一篇总结了redis sentinel(哨兵方案)的配置流程,本篇就redis整合ssm框架进行说明。目前,大多数公司用redis主要做缓存用,对于那些不常变动的数据来说,我们将其缓存在redis中,可以大大减少数据库的压力。
一、Spring集成redis
1.在resource目录下创建spring-redis.xml文件,内容如下:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:p="http://www.springframework.org/schema/p"
xsi:schemaLocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.1.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd">
<bean id="jedisPoolConfig" class="redis.clients.jedis.JedisPoolConfig">
<property name="maxIdle" value="2000" />
<property name="maxTotal" value="20000" />
<property name="minEvictableIdleTimeMillis" value="300000"></property>
<property name="numTestsPerEvictionRun" value="3"></property>
<property name="timeBetweenEvictionRunsMillis" value="60000"></property>
<property name="maxWaitMillis" value="20000" />
<property name="testOnBorrow" value="false" />
</bean>
<bean id="sentinelConfig"
class="org.springframework.data.redis.connection.RedisSentinelConfiguration">
<property name="master">
<bean class="org.springframework.data.redis.connection.RedisNode">
<property name="name" value="mymaster"></property>
</bean>
</property>
<property name="sentinels">
<set>
<bean class="org.springframework.data.redis.connection.RedisNode">
<constructor-arg name="host" value="192.168.12.90" />
<constructor-arg name="port" value="7505" />
</bean>
<bean class="org.springframework.data.redis.connection.RedisNode">
<constructor-arg name="host" value="192.168.12.90" />
<constructor-arg name="port" value="7506" />
</bean>
</set>
</property>
</bean>
<!-- 在此将sentinel配置集成到redis连接池中 -->
<bean id="jedisConnectionFactory"
class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
<property name="timeout" value="20000"></property>
<property name="poolConfig" ref="jedisPoolConfig"></property>
<constructor-arg name="sentinelConfig" ref="sentinelConfig"></constructor-arg>
</bean>
<bean id="stringRedisTemplate" class="org.springframework.data.redis.core.StringRedisTemplate">
<property name="connectionFactory" ref="jedisConnectionFactory" />
</bean>
</beans>
在上述配置中,我们用jedis 池化管理方案,将sentinel纳入配置中去,这样就不用代码中用JedisSentinelPool了,直接用JedisPool就ok了。别忘了,将此文件加入web.xml中:
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-mybatis.xml,classpath:spring-redis.xml</param-value>
</context-param>
2.测试
新建测试类,内容如下:
package com.dg;
import java.util.Collection;
import java.util.List;
import java.util.Map;
import java.util.Set;
import javax.annotation.Resource;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.data.redis.connection.RedisSentinelConnection;
import org.springframework.data.redis.connection.RedisServer;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;
import com.alibaba.fastjson.JSONObject;
import com.dg.bean.User;
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = { "classpath:spring-redis.xml" })
public class SpringRedis {
@Resource(name = "stringRedisTemplate")
private StringRedisTemplate stringRedisTemplate;
/**
* redis 读写测试
*/
@Test
public void testSpringRedis() {
try {
// ApplicationContext context = new
// ClassPathXmlApplicationContext("spring-redis.xml");
// StringRedisTemplate stringRedisTemplate =
// context.getBean("stringRedisTemplate",
// StringRedisTemplate.class);
// String读写
stringRedisTemplate.delete("myStr");
stringRedisTemplate.opsForValue().set("myStr", "http://yjmyzz.cnblogs.com/");
System.out.println(stringRedisTemplate.opsForValue().get("myStr"));
System.out.println("---------------");
// List读写
stringRedisTemplate.delete("myList");
stringRedisTemplate.opsForList().rightPush("myList", "A");
stringRedisTemplate.opsForList().rightPush("myList", "B");
stringRedisTemplate.opsForList().leftPush("myList", "0");
List<String> listCache = stringRedisTemplate.opsForList().range("myList", 0, -1);
for (String s : listCache) {
System.out.println(s);
}
System.out.println("---------------");
// Set读写
stringRedisTemplate.delete("mySet");
stringRedisTemplate.opsForSet().add("mySet", "A");
stringRedisTemplate.opsForSet().add("mySet", "B");
stringRedisTemplate.opsForSet().add("mySet", "C");
Set<String> setCache = stringRedisTemplate.opsForSet().members("mySet");
for (String s : setCache) {
System.out.println(s);
}
System.out.println("---------------");
// Hash读写
stringRedisTemplate.delete("myHash");
stringRedisTemplate.opsForHash().put("myHash", "PEK", "北京");
stringRedisTemplate.opsForHash().put("myHash", "SHA", "上海虹桥");
stringRedisTemplate.opsForHash().put("myHash", "PVG", "浦东");
Map<Object, Object> hashCache = stringRedisTemplate.opsForHash().entries("myHash");
for (Map.Entry<Object, Object> entry : hashCache.entrySet()) {
System.out.println(entry.getKey() + " - " + entry.getValue());
}
System.out.println("---------------");
} catch (Exception e) {
e.printStackTrace();
}
}
/**
* redis 得到所有的master and slave 信息
*/
@Test
public void testGetAllMasterAndSlave() {
RedisSentinelConnection conn = stringRedisTemplate.getConnectionFactory().getSentinelConnection();
for (RedisServer master : conn.masters()) {
System.out.println("master => " + master);// 打印master信息
Collection<RedisServer> slaves = conn.slaves(master);
// 打印该master下的所有slave信息
for (RedisServer slave : slaves) {
System.out.println("slaves of " + master + " => " + slave);
}
System.out.println("--------------");
}
}
/*
* 测试redis 缓存object 和 list 类型数据(方案:用json将object和list序列化)
*/
@Test
public void testRedisCacheObjectAndList() {
User user1 = new User("zhangsan", "123456", "222888@qq.com", "15824812342", 'M', 22);
// // fastJson 序列化
// String jsonStr = JSONObject.toJSONString(user1);
// System.out.println(">>>>>>>>>>>>>>>>" + jsonStr);
// // fastJson 反序列化
// user1 = JSONObject.parseObject(jsonStr, User.class);
// System.out.println(">>>>>>>>>>>>>>>>>>" + user1);
stringRedisTemplate.delete("user1");
// 将object 用 json 序列化后保存redis
stringRedisTemplate.opsForValue().set("user1", JSONObject.toJSONString(user1));
user1 = JSONObject.parseObject(stringRedisTemplate.opsForValue().get("user1"), User.class);
System.out.println("-----------------------" + user1);
}
}
/**测试redis客户端*/
@Test
public void testRedis(){
Jedis jedis = new Jedis("192.168.12.90", 6379);
jedis.set("name", "mrdg");
jedis.set("age", "24");
System.out.println("name:"+jedis.get("name"));
System.out.println("age:"+jedis.get("age"));
System.out.println("tel:"+jedis.get("Tel"));
System.out.println("no:"+jedis.get("No"));
}
/**测试redis集群方案*/
@Test
public void testCluster(){
Set<HostAndPort> jedisClusterNodes = new HashSet<HostAndPort>();
//Jedis Cluster will attempt to discover cluster nodes automatically
jedisClusterNodes.add(new HostAndPort("192.168.12.90", 7001));
JedisCluster jc = new JedisCluster(jedisClusterNodes);
jc.set("foo", "bar");
String value = jc.get("foo");
System.out.println(value);
try {
jc.close();
} catch (Exception e) {
e.printStackTrace();
}
}

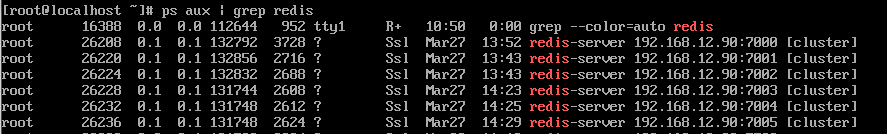

上面的测试类,cluster方案集群环境为(详见http://blog.csdn.net/donggang1992/article/details/50981954):
sentinel方案环境为(详见http://blog.csdn.net/donggang1992/article/details/50981341):
二、mybatis集成redis进行缓存配置
1.mybatis开启缓存支持
在spring-mabatis.xml中添加下列内容:
<!-- spring和MyBatis完美整合,不需要mybatis的配置映射文件 -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
<!-- 自动扫描mapping.xml文件 -->
<property name="mapperLocations" value="classpath:com/dg/mapping/*.xml"></property>
<!-- 开启缓存支持 -->
<property name="configurationProperties">
<props>
<prop key="cacheEnabled">true</prop>
<!-- 查询时,关闭关联对象即时加载以提高性能 -->
<prop key="lazyLoadingEnabled">false</prop>
<!-- 设置关联对象加载的形态,此处为按需加载字段(加载字段由SQL指定),不会加载关联表的所有字段,以提高性能 -->
<prop key="aggressiveLazyLoading">true</prop>
<!-- 对于未知的SQL查询,允许返回不同的结果集以达到通用的效果 -->
<prop key="multipleResultSetsEnabled">true</prop>
<!-- 允许使用列标签代替列名 -->
<prop key="useColumnLabel">true</prop>
<!-- 允许使用自定义的主键值(比如由程序生成的UUID 32位编码作为键值),数据表的PK生成策略将被覆盖 -->
<prop key="useGeneratedKeys">true</prop>
<!-- 给予被嵌套的resultMap以字段-属性的映射支持 -->
<prop key="autoMappingBehavior">FULL</prop>
<!-- 对于批量更新操作缓存SQL以提高性能 -->
<prop key="defaultExecutorType">BATCH</prop>
<!-- 数据库超过25000秒仍未响应则超时 -->
<prop key="defaultStatementTimeout">25000</prop>
</props>
</property>
</bean>

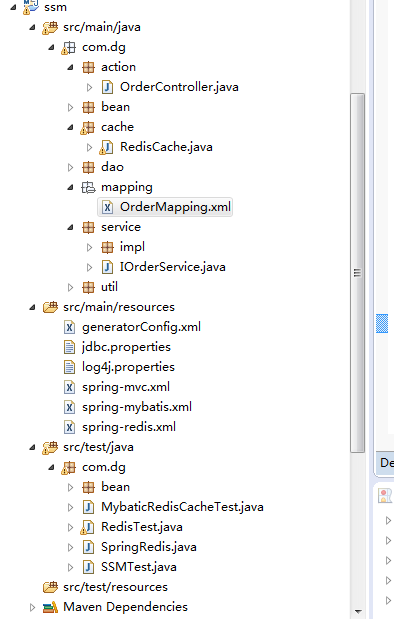

2.新建cache包,并创建RedisCache类
RedisCache类的内容为:
package com.dg.cache;
import java.util.Set;
import java.util.concurrent.locks.ReadWriteLock;
import java.util.concurrent.locks.ReentrantReadWriteLock;
import org.apache.commons.codec.digest.DigestUtils;
import org.apache.ibatis.cache.Cache;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.dg.util.SerializeUtil;
import redis.clients.jedis.Jedis;
import redis.clients.jedis.JedisPool;
import redis.clients.jedis.JedisPoolConfig;
/*
* 使用第三方缓存服务器,处理二级缓存
*/
public class RedisCache implements Cache {
private static Logger logger = LoggerFactory.getLogger(RedisCache.class);
/** The ReadWriteLock. */
private final ReadWriteLock readWriteLock = new ReentrantReadWriteLock();
private String id;
private JedisPool jedisPool;
private static final int DB_INDEX = 1;
private final String COMMON_CACHE_KEY = "COM:";
private static final String UTF8 = "utf-8";
private ApplicationContext context;
/**
* 按照一定规则标识key
*/
private String getKey(Object key) {
StringBuilder accum = new StringBuilder();
accum.append(COMMON_CACHE_KEY);
accum.append(this.id).append(":");
accum.append(DigestUtils.md5Hex(String.valueOf(key)));
return accum.toString();
}
/**
* redis key规则前缀
*/
private String getKeys() {
return COMMON_CACHE_KEY + this.id + ":*";
}
public RedisCache() {
}
public RedisCache(final String id) {
if (id == null) {
throw new IllegalArgumentException("必须传入ID");
}
context = new ClassPathXmlApplicationContext("spring-redis.xml");
JedisPoolConfig jedisPoolConfig = (JedisPoolConfig) context.getBean("jedisPoolConfig");
jedisPool = new JedisPool(jedisPoolConfig, "192.168.12.90", 7504);
logger.debug(">>>>>>>>>>>>>>>>>>>>>MybatisRedisCache:id=" + id);
this.id = id;
}
@Override
public String getId() {
return this.id;
}
@Override
public int getSize() {
Jedis jedis = null;
int result = 0;
boolean borrowOrOprSuccess = true;
try {
jedis = jedisPool.getResource();
jedis.select(DB_INDEX);
Set<byte[]> keys = jedis.keys(getKeys().getBytes(UTF8));
if (null != keys && !keys.isEmpty()) {
result = keys.size();
}
logger.debug(this.id + "---->>>>总缓存数:" + result);
} catch (Exception e) {
borrowOrOprSuccess = false;
if (jedis != null)
jedisPool.returnBrokenResource(jedis);
} finally {
if (borrowOrOprSuccess)
jedisPool.returnResource(jedis);
}
return result;
}
@Override
public void putObject(Object key, Object value) {
Jedis jedis = null;
boolean borrowOrOprSuccess = true;
try {
jedis = jedisPool.getResource();
jedis.select(DB_INDEX);
byte[] keys = getKey(key).getBytes(UTF8);
jedis.set(keys, SerializeUtil.serialize(value));
logger.debug("添加缓存--------" + this.id);
// getSize();
} catch (Exception e) {
borrowOrOprSuccess = false;
if (jedis != null)
jedisPool.returnBrokenResource(jedis);
} finally {
if (borrowOrOprSuccess)
jedisPool.returnResource(jedis);
}
}
@Override
public Object getObject(Object key) {
Jedis jedis = null;
Object value = null;
boolean borrowOrOprSuccess = true;
try {
jedis = jedisPool.getResource();
jedis.select(DB_INDEX);
value = SerializeUtil.unserialize(jedis.get(getKey(key).getBytes(UTF8)));
logger.debug("从缓存中获取-----" + this.id);
// getSize();
} catch (Exception e) {
borrowOrOprSuccess = false;
if (jedis != null)
jedisPool.returnBrokenResource(jedis);
} finally {
if (borrowOrOprSuccess)
jedisPool.returnResource(jedis);
}
return value;
}
@Override
public Object removeObject(Object key) {
Jedis jedis = null;
Object value = null;
boolean borrowOrOprSuccess = true;
try {
jedis = jedisPool.getResource();
jedis.select(DB_INDEX);
value = jedis.del(getKey(key).getBytes(UTF8));
logger.debug("LRU算法从缓存中移除-----" + this.id);
// getSize();
} catch (Exception e) {
borrowOrOprSuccess = false;
if (jedis != null)
jedisPool.returnBrokenResource(jedis);
} finally {
if (borrowOrOprSuccess)
jedisPool.returnResource(jedis);
}
return value;
}
@Override
public void clear() {
Jedis jedis = null;
boolean borrowOrOprSuccess = true;
try {
jedis = jedisPool.getResource();
jedis.select(DB_INDEX);
// 如果有删除操作,会影响到整个表中的数据,因此要清空一个mapper的缓存(一个mapper的不同数据操作对应不同的key)
Set<byte[]> keys = jedis.keys(getKeys().getBytes(UTF8));
logger.debug("出现CUD操作,清空对应Mapper缓存======>" + keys.size());
for (byte[] key : keys) {
jedis.del(key);
}
// 下面是网上流传的方法,极大的降低系统性能,没起到加入缓存应有的作用,这是不可取的。
// jedis.flushDB();
// jedis.flushAll();
} catch (Exception e) {
borrowOrOprSuccess = false;
if (jedis != null)
jedisPool.returnBrokenResource(jedis);
} finally {
if (borrowOrOprSuccess)
jedisPool.returnResource(jedis);
}
}
@Override
public ReadWriteLock getReadWriteLock() {
return readWriteLock;
}
}
然后,在mapper文件中添加下列一行使对应的表添加缓存支持:
<cache eviction="LRU" type="com.dg.cache.RedisCache" />
我是以订单表数据作为缓存目标的(通常我们只是对不常变动的数据进行缓存,如登陆用户信息、系统业务配置信息等,这里我用订单表只是作为范例),应用结构如下:
3.测试

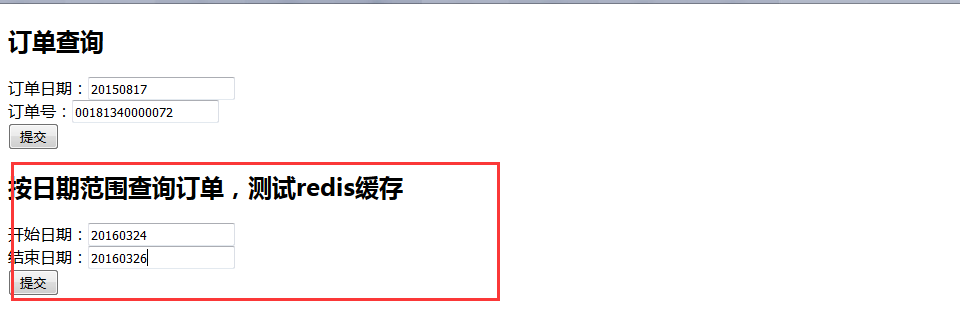

测试缓存的话,我们建一个页面,然后查询日期范围的订单列表,如下效果:

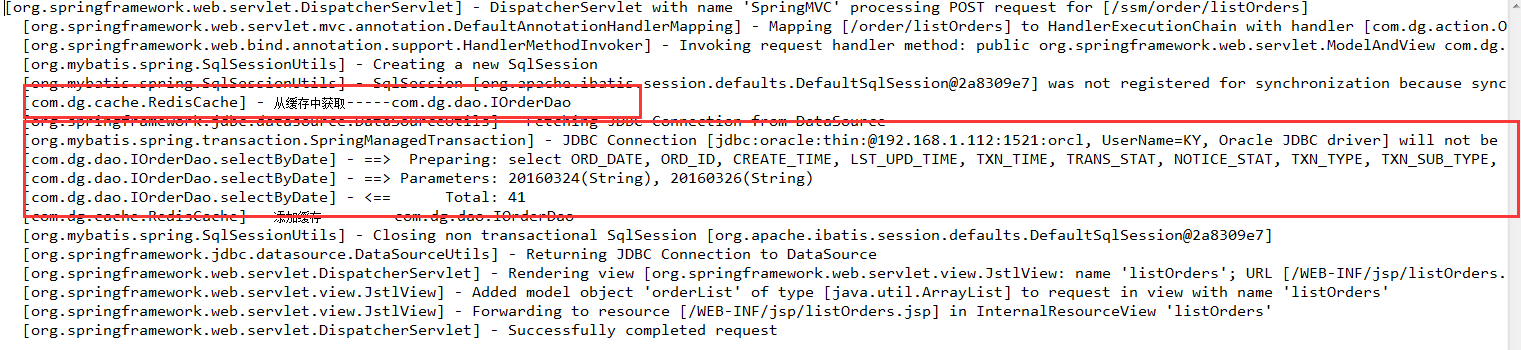

看输出的日志:

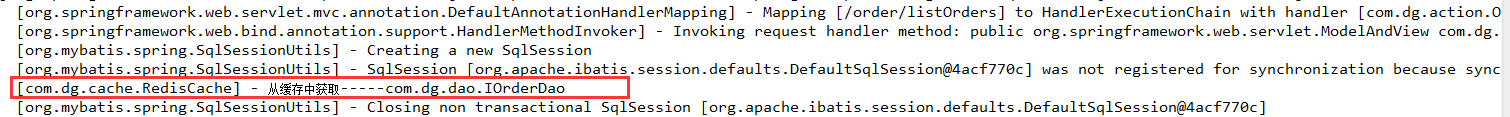

可以看出,初次查询的时候,有sql语句,将订单列表查询出之后放入了缓存中去;返回来在执行刚才的查询动作时,只有下面的输出,说明第二次没再查库,而是直接从redis缓存中去取。

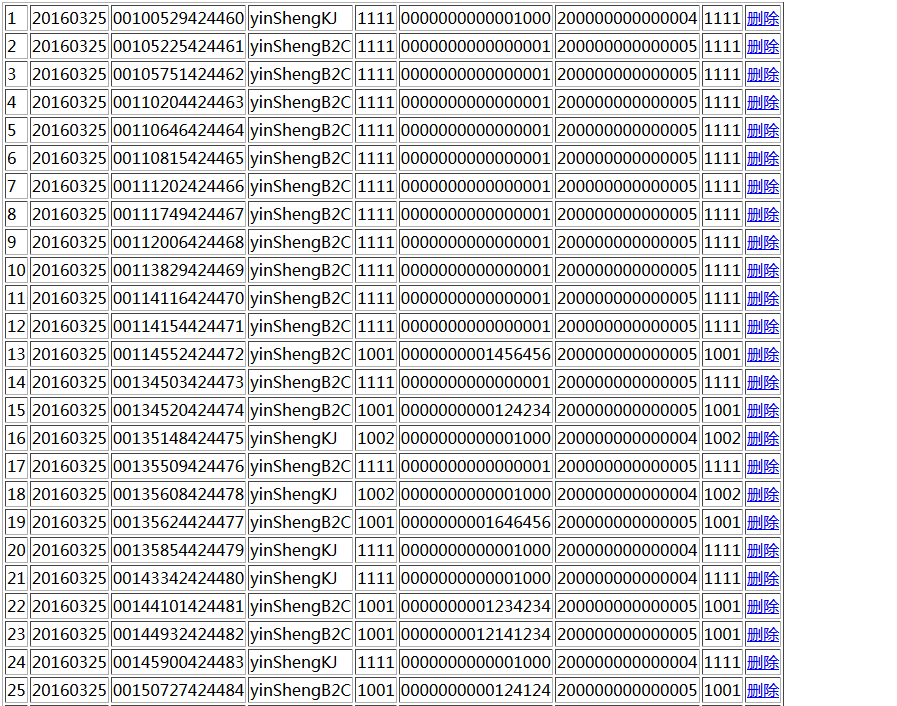

结果列表为:
以上只是简单介绍了redis和ssm的整合过程,如果需要完整的代码,到http://download.csdn.net/detail/donggang1992/9481612 下载。
