Java POI excel单元格背景色(填充)、字体颜色(对齐)、边框(颜色)、行高、列宽设置


需要的Maven环境配置

    <!-- https://mvnrepository.com/artifact/org.apache.poi/poi -->
    <dependency>
      <groupId>org.apache.poi</groupId>
      <artifactId>poi</artifactId>
      <version>5.2.2</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.apache.poi/poi-ooxml -->
    <dependency>
      <groupId>org.apache.poi</groupId>
      <artifactId>poi-ooxml</artifactId>
      <version>5.2.2</version>
    </dependency>

部分需要注意的问题,通过注释的方式写在代码里面了,看代码的时候需要注意下注释

1、Excel Cell单元格背景色+颜色名称对照关系

    /**
     * 设置单元格背景颜色
     * <pre>
     *     像素、磅、点、缇等各种单位换算参考链接
     *          https://blog.csdn.net/tanghuan/article/details/113539369
     *     Excel Cell设置背景颜色参考链接
     *          https://blog.csdn.net/weixin_43845227/article/details/123580523
     *     Excel POI Cell背景颜色对照关系表参考链接
     *          https://blog.csdn.net/lenovo96166/article/details/102765781
     *          https://www.cnblogs.com/quchunhui/p/14378115.html
     *     Excel Cell POI Width宽度设置公式参考链接(拟合方程)
     *          https://blog.csdn.net/duqian42707/article/details/51491312
     *          https://blog.csdn.net/aosica321/article/details/72320050
     * </pre>
     */
    public static void setBackgroundColorCellStyle() throws IOException {
        HSSFWorkbook workbook = new HSSFWorkbook();
        HSSFSheet sheet = workbook.createSheet("excel样式设置");

        int rowIndex = 0;
        for (IndexedColors color : IndexedColors.values()) {
            short colorIndex = color.getIndex();

            HSSFCellStyle cell1Style = workbook.createCellStyle();
            // 设置的背景颜色
            cell1Style.setFillForegroundColor(colorIndex);
            // 填充效果(全景填充)
            cell1Style.setFillPattern(FillPatternType.SOLID_FOREGROUND);
            cell1Style.setAlignment(HorizontalAlignment.CENTER);
            cell1Style.setVerticalAlignment(VerticalAlignment.CENTER);

            HSSFRow row = sheet.createRow(rowIndex++);
            row.setHeight((short) (25 * 20));
            // 第一列
            HSSFCell cell1 = row.createCell(0);
            cell1.setCellStyle(cell1Style);
            cell1.setCellValue("X:" + colorIndex);

            // 第二列
            HSSFCellStyle cell2Style = workbook.createCellStyle();
            cell2Style.setAlignment(HorizontalAlignment.CENTER);
            cell2Style.setVerticalAlignment(VerticalAlignment.CENTER);

            HSSFCell cell2 = row.createCell(1);
            cell2.setCellStyle(cell2Style);
            cell2.setCellValue(color.name());
            // 设置列宽
            sheet.setColumnWidth(0, 10 * 256 + 185);
            sheet.setColumnWidth(1, 35 * 256 + 185);
        }

        FileOutputStream outputStream = new FileOutputStream("D:/temp/Excel背景颜色列表.xlsx");
        workbook.write(outputStream);
        outputStream.close();
        workbook.close();
    }


2、Excel Cell单元格背景填充样式+颜色填充对照关系

    /**
     * 设置背景颜色填充效果
     * <pre>
     *      背景颜色填充效果参考链接
     *          https://blog.csdn.net/qq_39541254/article/details/107940224
     * </pre>
     */
    public static void setFillBackgroundColor() throws IOException {
        HSSFWorkbook workbook = new HSSFWorkbook();
        HSSFSheet sheet = workbook.createSheet("excel填充设置");

        int rowIndex = 0;
        short colorIndex = IndexedColors.RED.getIndex(); // 选择红色(可参照上图背景色色号) --> 10

        // 填充样式
        for (FillPatternType patternType : FillPatternType.values()) {
            HSSFCellStyle cell1Style = workbook.createCellStyle();
            // 设置的背景颜色
            cell1Style.setFillForegroundColor(colorIndex);
            // 填充效果(全景填充)
            cell1Style.setFillPattern(patternType);
            // 设置垂直居中
            cell1Style.setAlignment(HorizontalAlignment.CENTER);
            cell1Style.setVerticalAlignment(VerticalAlignment.CENTER);
            // 设置字体
            HSSFFont font = workbook.createFont();
            // 加粗
            font.setBold(true);
            cell1Style.setFont(font);

            HSSFRow row = sheet.createRow(rowIndex++);
            // 设置行高:height = 磅 * 20 (1磅=0.353毫米=20缇)-> POI中行高是"缇(twips)"
            row.setHeight((short) (25 * 20));
            // 第一列
            HSSFCell cell1 = row.createCell(0);
            cell1.setCellStyle(cell1Style);
            cell1.setCellValue("code:" + patternType.getCode());

            HSSFCellStyle cell2Style = workbook.createCellStyle();
            // 设置垂直居中
            cell2Style.setAlignment(HorizontalAlignment.CENTER);
            cell2Style.setVerticalAlignment(VerticalAlignment.CENTER);
            // 第二列
            HSSFCell cell2 = row.createCell(1);
            cell2.setCellStyle(cell2Style);
            cell2.setCellValue(patternType.name());

            // 设置列宽: width = 256*磅 + 185
            sheet.setColumnWidth(0, 10 * 256 + 185);
            sheet.setColumnWidth(1, 24 * 256 + 185);
        }

        FileOutputStream outputStream = new FileOutputStream("D:/temp/Excel背景填充效果.xlsx");
        workbook.write(outputStream);
        outputStream.close();
        workbook.close();
    }


3、Excel Cell字体样式设置+对照图

    /**
     * 设置单元格字体样式
     */
    public static void setCellFontStyle() throws IOException {
        HSSFWorkbook workbook = new HSSFWorkbook();
        HSSFSheet sheet = workbook.createSheet("excel字体样式");

        HSSFCellStyle cellStyle = workbook.createCellStyle();
        HSSFFont font = workbook.createFont();
        // 字体加粗
        font.setBold(true);
        // 字体倾斜
        font.setItalic(true);
        // 字体删除线
        font.setStrikeout(true);
        // 字体颜色
        font.setColor(IndexedColors.YELLOW.getIndex());
        // 字体大小:字号
        font.setFontHeightInPoints((short) 14);
        // 设置行高
        // font.setFontHeight((short) 14);
        // 字体
        font.setFontName("宋体");
        cellStyle.setFont(font);

        // 设置文字垂直居中
        cellStyle.setAlignment(HorizontalAlignment.CENTER);
        cellStyle.setVerticalAlignment(VerticalAlignment.CENTER);
        // 设置单元格内容自动换行(文字超出列宽自动换行)
        cellStyle.setWrapText(true);


        HSSFRow row = sheet.createRow(0);
        HSSFCell cell = row.createCell(0);
        cell.setCellStyle(cellStyle);
        cell.setCellValue("字体");

        row.setHeight((short) (30 * 20));
        sheet.setColumnWidth(0, 30 * 256 + 185);


        FileOutputStream outputStream = new FileOutputStream("D:/temp/Excel字体样式.xlsx");
        workbook.write(outputStream);
        outputStream.close();
        workbook.close();
    }


4、Excel 行高、列宽设置

    /**
     * 行高列宽设置
     */
    public static void setRowHeightAndCellWidth() throws IOException {
        HSSFWorkbook workbook = new HSSFWorkbook();
        HSSFSheet sheet = workbook.createSheet("excel行高、列宽");
        // 定义一个5行、5列的数据
        int[][] data = {{1, 2, 3, 4, 5}, {6, 7, 8, 9, 10}, {11, 12, 13, 14, 15}, {16, 17, 18, 19, 20}, {21, 22, 23, 24, 25}};

        for (int rowIndex = 0; rowIndex < data.length; rowIndex++) {
            int[] cellData = data[rowIndex];

            HSSFRow row = sheet.createRow(rowIndex);
            // 行高计算方式:缇(twips) = 磅 * 20 ==> 换算 1磅=20缇
            row.setHeight((short) (25 * 20));
            for (int cellIndex = 0; cellIndex < cellData.length; cellIndex++) {
                HSSFCell cell = row.createCell(cellIndex);
                // 列宽计算方式:8磅 * 256 + 185
                sheet.setColumnWidth(cellIndex, 8 * 256 + 185);
                cell.setCellValue(cellData[cellIndex]);
            }
        }

        FileOutputStream outputStream = new FileOutputStream("D:/temp/Excel行高、列宽.xlsx");
        workbook.write(outputStream);
        outputStream.close();
        workbook.close();
    }


5、Excel单元格边框设置+边框类型图片对比

    /**
     * 设置多有边框样式 + 颜色
     */
    public static void setAllBorderStyle() throws IOException {
        HSSFWorkbook workbook = new HSSFWorkbook();
        HSSFSheet sheet = workbook.createSheet("excel单元格边框样式");

        // ======================= 设置边框
        int rowIndex = 0;
        for (BorderStyle borderStyle : BorderStyle.values()) {
            int cellIndex = 0;
            HSSFRow row = sheet.createRow(rowIndex++);
            row.setHeight((short) (35 * 20));
            // 第一列
            HSSFCell cell = row.createCell(cellIndex);
            HSSFCellStyle topBorderStyle = workbook.createCellStyle();
            // 上边框样式
            topBorderStyle.setBorderTop(borderStyle);
            cell.setCellValue("设置上边框(" + borderStyle.name() + ")");
            cell.setCellStyle(topBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第三列
            HSSFCell cell2 = row.createCell(cellIndex);
            HSSFCellStyle bottomBorderStyle = workbook.createCellStyle();
            // 下边框样式
            bottomBorderStyle.setBorderBottom(borderStyle);
            cell2.setCellValue("设置下边框(" + borderStyle.name() + ")");
            cell2.setCellStyle(bottomBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第五列
            HSSFCell cell3 = row.createCell(cellIndex);
            HSSFCellStyle leftBorderStyle = workbook.createCellStyle();
            // 左边框样式
            leftBorderStyle.setBorderLeft(borderStyle);
            cell3.setCellValue("设置左边框(" + borderStyle.name() + ")");
            cell3.setCellStyle(leftBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第七列
            HSSFCell cell4 = row.createCell(cellIndex);
            HSSFCellStyle rightBorderStyle = workbook.createCellStyle();
            // 左边框样式
            rightBorderStyle.setBorderRight(borderStyle);
            cell4.setCellValue("设置右边框(" + borderStyle.name() + ")");
            cell4.setCellStyle(rightBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);
        }

        // ================= 设置边框并设置颜色
        rowIndex += 2;
        for (BorderStyle borderStyle : BorderStyle.values()) {
            int cellIndex = 0;
            HSSFRow row = sheet.createRow(rowIndex++);
            row.setHeight((short) (35 * 20));
            // 第一列
            HSSFCell cell = row.createCell(cellIndex);
            HSSFCellStyle topBorderStyle = workbook.createCellStyle();
            // 上边框样式
            topBorderStyle.setBorderTop(borderStyle);
            // 上边框颜色
            topBorderStyle.setTopBorderColor(IndexedColors.RED.getIndex());
            cell.setCellValue("设置上边框(" + borderStyle.name() + ")");
            cell.setCellStyle(topBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第三列
            HSSFCell cell2 = row.createCell(cellIndex);
            HSSFCellStyle bottomBorderStyle = workbook.createCellStyle();
            // 下边框样式
            bottomBorderStyle.setBorderBottom(borderStyle);
            // 下边框颜色
            bottomBorderStyle.setBottomBorderColor(IndexedColors.GREEN.getIndex());
            cell2.setCellValue("设置下边框(" + borderStyle.name() + ")");
            cell2.setCellStyle(bottomBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第五列
            HSSFCell cell3 = row.createCell(cellIndex);
            HSSFCellStyle leftBorderStyle = workbook.createCellStyle();
            // 左边框样式
            leftBorderStyle.setBorderLeft(borderStyle);
            // 左边框颜色
            leftBorderStyle.setLeftBorderColor(IndexedColors.YELLOW.getIndex());
            cell3.setCellValue("设置左边框(" + borderStyle.name() + ")");
            cell3.setCellStyle(leftBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);

            cellIndex += 2;
            // 第七列
            HSSFCell cell4 = row.createCell(cellIndex);
            HSSFCellStyle rightBorderStyle = workbook.createCellStyle();
            // 左边框样式
            rightBorderStyle.setBorderRight(borderStyle);
            // 右边框颜色
            rightBorderStyle.setRightBorderColor(IndexedColors.ORANGE.getIndex());
            cell4.setCellValue("设置右边框(" + borderStyle.name() + ")");
            cell4.setCellStyle(rightBorderStyle);
            sheet.setColumnWidth(cellIndex, 35 * 256 + 185);
        }

        FileOutputStream outputStream = new FileOutputStream("D:/temp/Excel单元格边框样式.xlsx");
        workbook.write(outputStream);
        outputStream.close();
        workbook.close();
    }

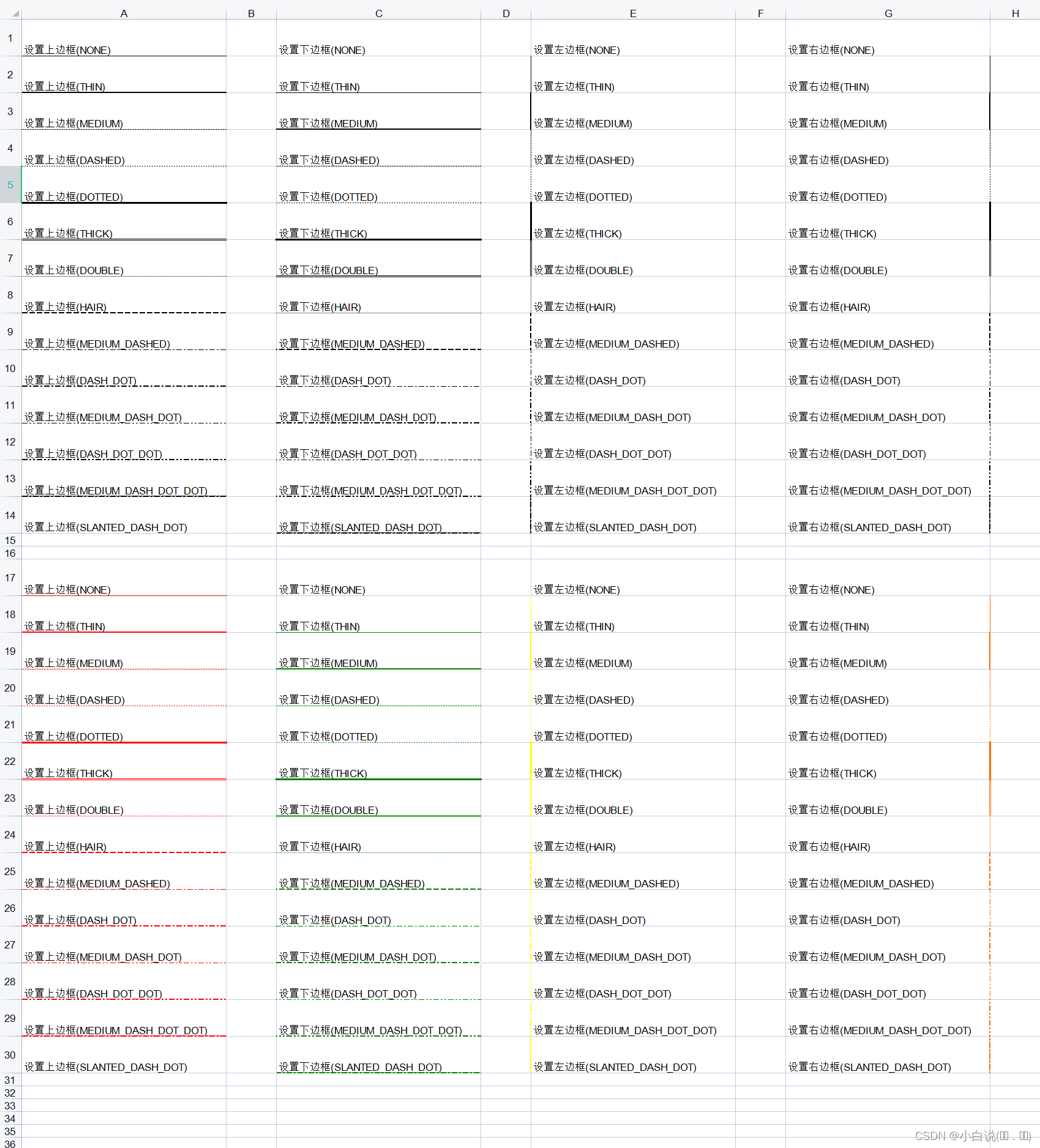

边框样式对照表,括号内为BorderStyle枚举对象

在这里插入图片描述

附一:一些问题

1、关于列宽使用磅*20的计算方式


2、关于行高使用磅*256+185的计算方式


3、关于sheet.getLastRowNum()最终行数不正确问题

如果整个Excel中存在空行(整行空),当时若干空行下面存在其他数据,这时候获取到的最终行号就不对了,尤其是存在合并单元格的情况最容易出现这类问题。
很明显10、11、13、14全都是空行了,这时候的lastNum就是不正确的,这种情况要尤为注意。

避免这种情况的出现最直接的一种方式就是,预先知道数据存在多少行,先把所有行都生成sheet.createRow(0)。


同样地,空白的单元格也会出现这种情况,如果单元格不存在或没有样式,获取到的最后一个单元格列数也是不正确的。

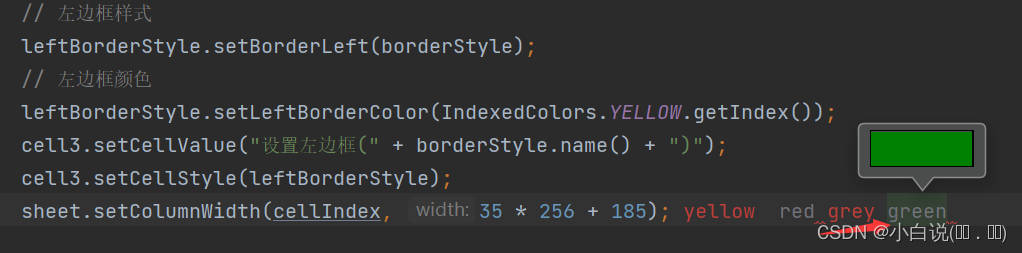

4、IDEA中按住快捷键(Shift)+鼠标悬浮到对应单词可以查看颜色

在这里插入图片描述
在这里插入图片描述

附二:参考链接

像素、磅、点、缇等各种单位换算_点和像素换算_tanghuan的博客-CSDN博客
JAVA对excle创建、读取、设置单元格颜色、背景色、跨行跨列_java设置excel背景色_谷同学的博客-CSDN博客
POI4颜色名称,颜色汉语名称,颜色对应关系_软件工程师文艺的博客-CSDN博客
POI设置Excel单元格背景色(setFillForegroundColor与setFillPattern的使用) - 大墨垂杨 - 博客园
java用POI设置Excel的列宽_sheet.setcolumnwidth_duqian42707的博客-CSDN博客
Java POI 设置Excel单元格的宽度和高度_java poi 设置单元格宽度_aosica的博客-CSDN博客
