rac多scan-ip配置

rb和cc若在一套rac cluster上，需要配置两个scan-ip来规避可能的后续操作，当前环境已有一个scanip，增加scanip的步骤

1. 检查当前scan和scan_listener的状态

grid@rac1[/home/grid]$srvctl config scan

SCAN name: rac-cluster-scan, Network: 1

Subnet IPv4: 10.45.53.0/255.255.255.0/ens192, static

Subnet IPv6:

SCAN 1 IPv4 VIP: 10.45.53.36

SCAN VIP is enabled.

SCAN VIP is individually enabled on nodes:

SCAN VIP is individually disabled on nodes:

grid@rac1[/home/grid]$srvctl status scan

SCAN VIP scan1 is enabled

SCAN VIP scan1 is running on node rac1

grid@rac1[/home/grid]$srvctl config scan_listener

SCAN Listener LISTENER_SCAN1 exists. Port: TCP:1522

Registration invited nodes:

Registration invited subnets:

SCAN Listener is enabled.

SCAN Listener is individually enabled on nodes:

SCAN Listener is individually disabled on nodes:

grid@rac1[/home/grid]$srvctl status scan_listener

SCAN Listener LISTENER_SCAN1 is enabled

SCAN listener LISTENER_SCAN1 is running on node rac1

1. 修改/etc/hosts,增加新的scanip

10.45.53.30 rac1

10.45.53.31 rac2

#private --bond1

10.0.10.1       rac1-priv

10.0.10.2       rac2-priv

#virtual IP --bond0

10.45.53.34  rac1-vip

10.45.53.35  rac2-vip

#scan-ip,oracle rac service --bond0

10.45.53.36  rac-cluster-scan    ##原来的

10.45.53.32  rac-cluster-scan  ##新增的

1. 停scan_listener,再停scan

grid@rac1[/home/grid]$srvctl stop scan_listener

grid@rac1[/home/grid]$srvctl status scan_listener

SCAN Listener LISTENER_SCAN1 is enabled

SCAN listener LISTENER_SCAN1 is not running

grid@rac1[/home/grid]$srvctl stop scan

grid@rac1[/home/grid]$srvctl status scan

SCAN VIP scan1 is enabled

SCAN VIP scan1 is not running

1. root用户修改scan

root@rac1[/root]#/u01/app/grid/product/bin/srvctl modify scan -scanname rac-cluster-scan

1. 更新scan_listener，使其自动建立LISTENER_SCAN2

grid@rac1[/home/grid]$srvctl modify scan_listener -update

1. 查看状态

root@rac1[/root]#/u01/app/grid/product/bin/srvctl config scan

SCAN name: rac-cluster-scan, Network: 1

Subnet IPv4: 10.45.53.0/255.255.255.0/ens192, static

Subnet IPv6:

SCAN 1 IPv4 VIP: 10.45.53.36

SCAN VIP is enabled.

SCAN VIP is individually enabled on nodes:

SCAN VIP is individually disabled on nodes:

SCAN 2 IPv4 VIP: 10.45.53.32

SCAN VIP is enabled.

SCAN VIP is individually enabled on nodes:

SCAN VIP is individually disabled on nodes:

root@rac1[/root]#/u01/app/grid/product/bin/srvctl status scan

SCAN VIP scan1 is enabled

SCAN VIP scan1 is not running

SCAN VIP scan2 is enabled

SCAN VIP scan2 is not running

grid@rac1[/home/grid]$srvctl config scan_listener

SCAN Listener LISTENER_SCAN1 exists. Port: TCP:1522

Registration invited nodes:

Registration invited subnets:

SCAN Listener is enabled.

SCAN Listener is individually enabled on nodes:

SCAN Listener is individually disabled on nodes:

SCAN Listener LISTENER_SCAN2 exists. Port: TCP:1522

Registration invited nodes:

Registration invited subnets:

SCAN Listener is enabled.

SCAN Listener is individually enabled on nodes:

SCAN Listener is individually disabled on nodes:

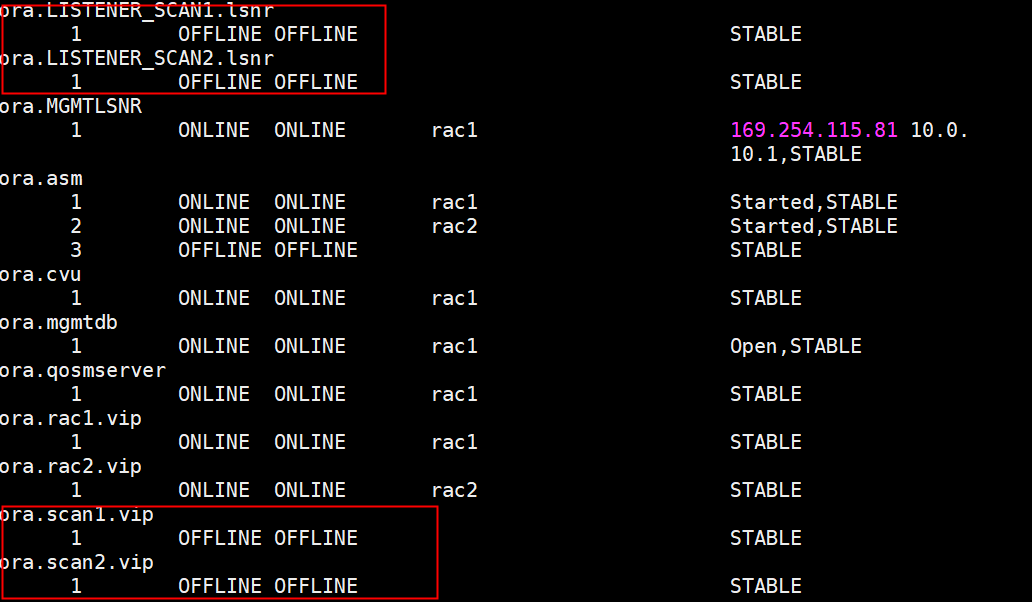

grid@rac1[/home/grid]$crsctl stat res -t

1. 启动scan和scan_listener

grid@rac1[/home/grid]$srvctl start scan

grid@rac1[/home/grid]$srvctl start scan_listener

1. 检查状态

grid@rac1[/home/grid]$srvctl status scan

SCAN VIP scan1 is enabled

SCAN VIP scan1 is running on node rac2

SCAN VIP scan2 is enabled

SCAN VIP scan2 is running on node rac1

grid@rac1[/home/grid]$srvctl status scan_listener

SCAN Listener LISTENER_SCAN1 is enabled

SCAN listener LISTENER_SCAN1 is running on node rac2

SCAN Listener LISTENER_SCAN2 is enabled

SCAN listener LISTENER_SCAN2 is running on node rac1

oraclerac@rac1[/home/oraclerac]$lsnrctl status LISTENER_SCAN1

oraclerac@rac1[/home/oraclerac]$lsnrctl status LISTENER_SCAN2

可以看到rb和cc都被这两个listener监听着，通过这两个ip（10.45.53.36，10.45.53.32）的1522端口均可访问rb和cc

1. relocate可以将两个scanip放到同一个节点

grid@rac1[/home/grid]$srvctl relocate scan -scannumber 1

grid@rac1[/home/grid]$srvctl status scan

SCAN VIP scan1 is enabled

SCAN VIP scan1 is running on node rac1

SCAN VIP scan2 is enabled

SCAN VIP scan2 is running on node rac1

grid@rac1[/home/grid]$srvctl config scan

SCAN name: rac-cluster-scan, Network: 1

Subnet IPv4: 10.45.53.0/255.255.255.0/ens192, static

Subnet IPv6:

SCAN 1 IPv4 VIP: 10.45.53.36

SCAN VIP is enabled.

SCAN VIP is individually enabled on nodes:

SCAN VIP is individually disabled on nodes:

SCAN 2 IPv4 VIP: 10.45.53.32

SCAN VIP is enabled.

SCAN VIP is individually enabled on nodes:

SCAN VIP is individually disabled on nodes:

grid@rac1[/home/grid]$srvctl config scan_listener

SCAN Listener LISTENER_SCAN1 exists. Port: TCP:1522

Registration invited nodes:

Registration invited subnets:

SCAN Listener is enabled.

SCAN Listener is individually enabled on nodes:

SCAN Listener is individually disabled on nodes:

SCAN Listener LISTENER_SCAN2 exists. Port: TCP:1522

Registration invited nodes:

Registration invited subnets:

SCAN Listener is enabled.

SCAN Listener is individually enabled on nodes:

SCAN Listener is individually disabled on nodes:

grid@rac1[/home/grid]$srvctl status scan_listener

SCAN Listener LISTENER_SCAN1 is enabled

SCAN listener LISTENER_SCAN1 is running on node rac1

SCAN Listener LISTENER_SCAN2 is enabled

SCAN listener LISTENER_SCAN2 is running on node rac1
