html：

<!DOCTYPE html>
<html lang="zh-CN">

<head>
	<meta http-equiv="X-UA-Compatible" content="IE=EDGE">
	<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
	<title>步骤条</title>
	<meta name="viewport" content="width=device-width, initial-scale=1.0">
	<link rel="stylesheet" href="./static/libs/font-awesome/css/font-awesome.css">
	<link rel="stylesheet" href="./static/libs/web-icons/web-icons.css">
	<link rel="stylesheet" href="./static/libs/bootstrap/css/bootstrap.css">
	<link rel="stylesheet" href="./static/css/step.css">
</head>

<body>

	<!-- //step begin -->

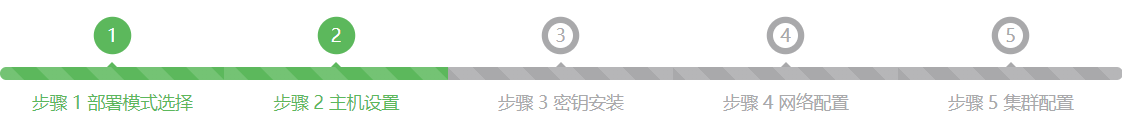

	<ul class="nav nav-pills nav-justified step step-progress" data-step="1" id="step-cluster">
		<li>
			<a>步骤 1 部署模式选择<span class="caret"></span></a>
		</li>
		<li>
			<a>步骤 2 主机设置<span class="caret"></span></a>
		</li>
		<li>
			<a>步骤 3 密钥安装<span class="caret"></span></a>
		</li>
		<li>
			<a>步骤 4 网络配置<span class="caret"></span></a>
		</li>
		<li>
			<a>步骤 5 集群配置<span class="caret"></span></a>
		</li>
	</ul>
	<!-- step end // -->

	<script src="./static/libs/jquery/jquery-1.11.2.min.js"></script>
	<script src="./static/libs/bootstrap/js/bootstrap.js"></script>
	<script>
		function bsStep(i) {
			$('.step').each(function () {
				var a, $this = $(this);
				if (i > $this.find('li').length) {
					a = $this.find('li').length;
				}
				else if (i == undefined && $this.data('step') == undefined) {
					a = 1;
				}
				else if (i == undefined && $this.data('step') != undefined) {
					a = $(this).data('step');
				}
				else {
					a = i;
				}
				$(this).find('li').removeClass('active');
				$(this).find('li:lt(' + a + ')').addClass('active');
			});
		};

		bsStep(2)
	</script>

</body>

</html>

step.css：

.step {
  counter-reset: flag;
  font-family: 'Microsoft YaHei', 'Lantinghei SC', 'Open Sans', Arial, 'Hiragino Sans GB', 'STHeiti', 'WenQuanYi Micro Hei', 'SimSun', sans-serif;
}
.step li {
  position: relative;
  transition: all 0.3s ease-in-out;
  -webkit-transition: all 0.3s ease-in-out;
  -ms-transition: all 0.3s ease-in-out;
}
.step li a {
  cursor: pointer;
  padding: 10px 15px;
  transition: all 0.3s ease-in-out;
  -webkit-transition: all 0.3s ease-in-out;
  -ms-transition: all 0.3s ease-in-out;
}
.step li a:before {
  content: counter(flag);
  counter-increment: flag;
  transition: all 0.3s ease-in-out;
  -webkit-transition: all 0.3s ease-in-out;
  -ms-transition: all 0.3s ease-in-out;
}
.step li a:after {
  content: "";
  transition: all 0.3s ease-in-out;
  -webkit-transition: all 0.3s ease-in-out;
  -ms-transition: all 0.3s ease-in-out;
}
.step-arrow {
  margin: 20px 0;
}
.step-arrow.unhover li a:hover,
.step-arrow.unhover li a:focus {
  background-color: #f6f6f6;
  color: #444444;
}
.step-arrow.unhover li a:hover:before,
.step-arrow.unhover li a:focus:before {
  background-color: #d2d2d2;
  color: #ffffff;
}
.step-arrow.unhover li:not(:last-child) a:hover:after,
.step-arrow.unhover li:not(:last-child) a:focus:after {
  background-color: #f6f6f6;
}
.step-arrow li {
  padding-right: 20px;
}
.step-arrow li:last-child {
  padding-right: 0;
}
.step-arrow li:nth-child(n+2) a {
  margin-left: -20px;
  border-radius: 0;
}
.step-arrow li:not(:last-child) a:after {
  position: absolute;
  top: -1px;
  right: -20px;
  width: 40px;
  height: 40px;
  transform: scale(0.707) rotate(45deg);
  z-index: 1;
  background-color: #f6f6f6;
  border-radius: 0 5px 0 50px;
  border-top: 1px solid #ffffff;
  border-right: 1px solid #ffffff;
  box-sizing: content-box;
}
.step-arrow li:not(:last-child) a:hover:after {
  background-color: #5cb85c;
}
.step-arrow li a {
  border-radius: 0;
  color: #444444;
  background-color: #f6f6f6;
}
.step-arrow li a:hover {
  background-color: #5cb85c;
  color: #ffffff;
}
.step-arrow li a:hover:before {
  background: #ffffff;
  color: #5cb85c;
}
.step-arrow li a:before {
  position: absolute;
  z-index: 2;
  width: 20px;
  height: 20px;
  line-height: 20px;
  border-radius: 20px;
  left: 3rem;
  font-weight: bold;
  font-size: 1rem;
  overflow: hidden;
  top: 10px;
  background: #d2d2d2;
  color: #ffffff;
}
.step-arrow li.active a:before {
  background: #ffffff;
  color: #5cb85c;
}
.step-arrow li.active a:after {
  background-color: #5cb85c;
}
.step-arrow li.active a,
.step-arrow li.active a:hover {
  background-color: #5cb85c;
  color: #ffffff;
}
.step-arrow li.active a:before,
.step-arrow li.active a:hover:before {
  background-color: #ffffff;
  color: #5cb85c;
}
.step-arrow li.active a:after,
.step-arrow li.active a:hover:after {
  background-color: #5cb85c !important;
}
.step-square {
  margin-top: 40px;
}
.step-square > li:hover a:before,
.step-square > li:active a:before,
.step-square > li.active a:before {
  background-color: #5cb85c;
  color: #ffffff;
  border-color: #5cb85c;
}
.step-square > li:hover a:after,
.step-square > li:active a:after,
.step-square > li.active a:after {
  background-color: #5cb85c;
}
.step-square > li:first-child a:after {
  left: 50%;
  border-right: 1px solid #ffffff;
}
.step-square > li:last-child a:after {
  right: 50%;
  border-left: 1px solid #ffffff;
}
.step-square > li > a {
  color: #a9a9ab;
}
.step-square > li > a:hover {
  background-color: #ffffff;
  color: #5cb85c;
}
.step-square > li > a:before {
  position: absolute;
  z-index: 2;
  top: -2rem;
  left: 0;
  right: 0;
  margin: 0 auto;
  width: 2rem;
  height: 2rem;
  background-color: #ffffff;
  line-height: 20px;
  border: 1px solid #a9a9ab;
}
.step-square > li > a:after {
  content: '';
  position: absolute;
  left: 0;
  right: 0;
  top: -35%;
  background-color: #a9a9ab;
  z-index: 1;
  height: 2px;
  border: solid #ffffff;
  border-width: 0 1px;
}
.step-square > li.active > a,
.step-square > li.active > a:focus,
.step-square > li.active > a:hover {
  color: #5cb85c;
  background: transparent;
}
.step-round {
  margin-top: 40px;
}
.step-round > li:first-child > a:after {
  left: 30%;
  border-radius: 5px 0 0 5px;
}
.step-round > li:last-child > a:after {
  right: 30%;
  border-radius: 0 5px 5px 0;
}
.step-round > li.active > a,
.step-round > li.active > a:hover,
.step-round > li.active > a:focus {
  background: transparent;
  color: #5cb85c;
}
.step-round > li.active > a:before,
.step-round > li.active > a:hover:before,
.step-round > li.active > a:focus:before {
  background-color: #5cb85c;
  color: #ffffff;
}
.step-round > li.active > a:after,
.step-round > li.active > a:hover:after,
.step-round > li.active > a:focus:after {
  background-color: #5cb85c;
}
.step-round > li > a {
  color: #a9a9ab;
}
.step-round > li > a:before {
  position: absolute;
  z-index: 2;
  top: -2rem;
  left: 0;
  right: 0;
  margin: 0 auto;
  width: 2rem;
  height: 2rem;
  border-radius: 50%;
  background-color: #ffffff;
  line-height: 2rem;
  box-shadow: 0 0 0 5px #a9a9ab;
}
.step-round > li > a:after {
  position: absolute;
  left: 0;
  right: 0;
  top: -38%;
  background-color: #a9a9ab;
  z-index: 1;
  height: 8px;
}
.step-round > li > a:after:after {
  background-color: #5cb85c;
}
.step-round > li > a:hover {
  background: transparent;
  color: #5cb85c;
}
.step-round > li > a:hover:before {
  background-color: #5cb85c;
  color: #ffffff;
}
.step-round > li > a:hover:after {
  background-color: #5cb85c;
}
.step-progress {
  margin-top: 60px;
}
.step-progress > li > a {
  color: #a9a9ab;
  padding-top: 1.8rem;
}
.step-progress > li > a:before {
  position: absolute;
  z-index: 2;
  top: -35px;
  left: 0;
  right: 0;
  margin: 0 auto;
  width: 2rem;
  height: 2rem;
  border-radius: 50%;
  line-height: 2rem;
  box-shadow: 0 0 0 5px #a9a9ab;
}

.step-progress > li.active > a:before {
  position: absolute;
  z-index: 2;
  top: -35px;
  left: 0;
  right: 0;
  margin: 0 auto;
  width: 2rem;
  height: 2rem;
  border-radius: 50%;
  line-height: 2rem;
  box-shadow: 0 0 0 5px #5cb85c;
}

.step-progress > li > a:after {
  content: "";
  background-image: -webkit-linear-gradient(45deg, rgba(255, 255, 255, 0.15) 25%, rgba(0, 0, 0, 0) 25%, rgba(0, 0, 0, 0) 50%, rgba(255, 255, 255, 0.15) 50%, rgba(255, 255, 255, 0.15) 75%, rgba(0, 0, 0, 0) 75%, rgba(0, 0, 0, 0));
  background-image: -o-linear-gradient(45deg, rgba(255, 255, 255, 0.15) 25%, transparent 25%, transparent 50%, rgba(255, 255, 255, 0.15) 50%, rgba(255, 255, 255, 0.15) 75%, transparent 75%, transparent);
  background-image: linear-gradient(45deg, rgba(255, 255, 255, 0.15) 25%, rgba(0, 0, 0, 0) 25%, rgba(0, 0, 0, 0) 50%, rgba(255, 255, 255, 0.15) 50%, rgba(255, 255, 255, 0.15) 75%, rgba(0, 0, 0, 0) 75%, rgba(0, 0, 0, 0));
  -webkit-background-size: 40px 40px;
  background-size: 40px 40px;
  background-color: #a9a9ab;
  float: left;
  width: 100%;
  position: absolute;
  top: 0;
  bottom: 0;
  left: 0;
  right: 0;
  height: 10px;
  transition: all 0.5s ease-in-out;
  -webkit-transition: all 0.5s ease-in-out;
  -ms-transition: all 0.5s ease-in-out;
}
.step-progress > li > a span.caret {
  position: absolute;
  left: 0;
  right: 0;
  margin: 0 auto;
  transform: rotate(180deg);
  top: -4px;
}
.step-progress > li > a:hover {
  background: transparent;
  color: #5cb85c;
}
.step-progress > li > a:hover:before {
  color: #ffffff;
  background-color: #5cb85c;
}
.step-progress > li > a:hover:after {
  background-color: #5cb85c;
}
.step-progress > li.active > a,
.step-progress > li.active > a:hover,
.step-progress > li.active > a:focus {
  color: #5cb85c;
  background: transparent;
}
.step-progress > li.active > a:before,
.step-progress > li.active > a:hover:before,
.step-progress > li.active > a:focus:before {
  background-color: #5cb85c;
  color: #ffffff;
}
.step-progress > li.active > a:after,
.step-progress > li.active > a:hover:after,
.step-progress > li.active > a:focus:after {
  background-color: #5cb85c;
}
.step-progress > li.active > a:after {
  -webkit-animation: progress-bar-stripes 2s linear infinite;
  -o-animation: progress-bar-stripes 2s linear infinite;
  animation: progress-bar-stripes 2s linear infinite;
}
.step-progress > li:first-child a:after {
  border-radius: 5px 0 0 5px;
}
.step-progress > li:last-child a:after {
  border-radius: 0 5px 5px 0;
}
/*step-progress*/

全部代码：

https://github.com/samveduan/bootstrap-step
