前言
本文讲解的是如何自定义一个填空题控件，实现的方式其实有很多，最重要的是了解其中实现的思路和想法，正所谓条条大路通罗马嘛。
在 Android 系统中，我们最常使用的用于展示文字和编辑文字的控件，就是 TextView 和 EditView ，这两个控件基本上已经能够满足我们日常大部分开发需求。

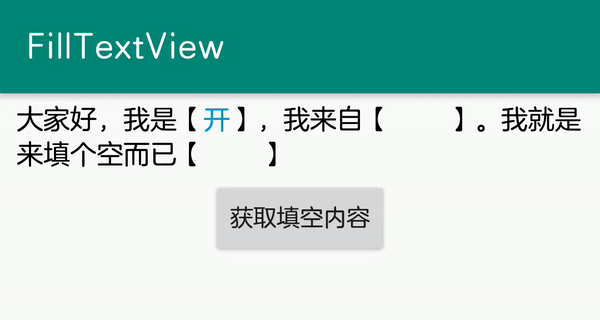

效果图
那么，我们就仿造学习强国，定制一个填空题控件呗。
思路
1. 如何显示文字
在定义 View 中， 显示文字是一件非常简单的函数调用，无非就是
canvas.drawText(text, x, y, paint)

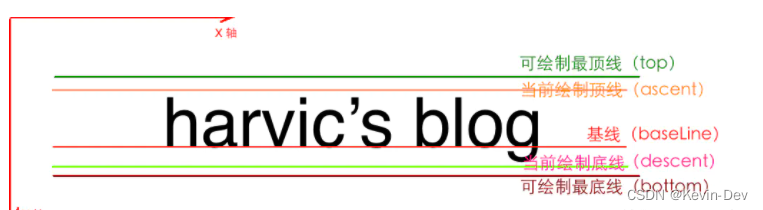

1）文字基线
首先，对于 y 坐标，指的是文字的基线（baseLine），而非文字的 top 坐标，这个坐标可以近似认为是文字的 bottom 坐标，但并没有那么简单。如下图：
关于文字的绘制,推荐如下文章：
自定义控件之绘图篇（ 五）：drawText()详解
2）文字换行
不可避免的问题，文字过长的时候，我们需要对它进行换行显示，那么我们怎么样才能知道什么时候需要换行呢？
这里就涉及到一个文字宽度计算问题
在 Android 中如何计算文字的宽度呢？如下：
private fun measureTextLength(text: String): Float {
return mNormalPaint.measureText(text)
}
注意：汉字和数字英文的宽度占位是不一样的。 因此在换行的时候，需要特别关注和处理这两者的关系。
3）区分普通文字和可编辑文字
原文：
大家好，我是<fill>，我来自<fill>。
翻译过来就是：
大家好，我是【 】，我来自【 】。
这样，经过 String.split(“”) 后，就可以把这段文字拆分为多个分段。
2. 可编辑字段点击
我们知道，每个 View 都可以接收 onTouch 事件，并且可以监听到触摸点的 x/y 坐标。
override fun onTouchEvent(event: MotionEvent): Boolean {
when (event.action) {
MotionEvent.ACTION_DOWN -> {
if (touchCollision(event)) {//触摸碰撞检测
isFocusableInTouchMode = true
isFocusable = true
requestFocus()
try {
val imm = context.getSystemService(Context.INPUT_METHOD_SERVICE) as InputMethodManager
imm.showSoftInput(this, InputMethodManager.RESULT_SHOWN)
imm.restartInput(this)
} catch (ignore: Exception) {
}
return true
}
}
}
return super.onTouchEvent(event)
}
3. 接收输入法输入
通常，需要一个可输入文字的控件时，我们很少自己去定义一个控件，而是直接使用 EditText ，以至于我们几乎认为只有 EditText 可以接收输入法输入。
但是，其实 Android 每个继承 View 的控件都是可以接收输入的。
override fun onCheckIsTextEditor(): Boolean {
return true
}
override fun onCreateInputConnection(outAttrs: EditorInfo): InputConnection {
outAttrs.inputType = InputType.TYPE_CLASS_TEXT
outAttrs.imeOptions = EditorInfo.IME_ACTION_DONE
return MyInputConnection(this, false, this)
}
代码
1. attr.xml
<?xml version="1.0" encoding="utf-8"?>
<resources>
<declare-styleable name="filled_text">
<attr name="filledText" format="string"/>
<attr name="fillTextSize" format="dimension"/>
<attr name="normalColor" format="color"/>
<attr name="fillColor" format="color"/>
<attr name="rowSpace" format="dimension"/>
</declare-styleable>
</resources>
2. activity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".ui.activity.MainActivity">
<com.hkt.studydemo.ui.views.FillTextView
android:id="@+id/fillText"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:layout_constraintTop_toTopOf="parent"
android:layout_marginLeft="10dp"
android:layout_marginRight="10dp"
app:fillTextSize="16sp"
app:rowSpace="3dp"
app:fillColor="@android:color/holo_blue_dark"
app:filledText="大家好，我是<fill>，我来自<fill>。我就是来填个空而已<fill>"/>
<Button android:id="@+id/btn"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:onClick="clickBtn"
app:layout_constraintTop_toBottomOf="@+id/fillText"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
android:text="获取填空内容"/>
<TextView android:id="@+id/tv_fills"
android:layout_width="wrap_content"
app:layout_constraintTop_toBottomOf="@id/btn"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
android:layout_marginTop="12dp"
android:layout_height="wrap_content"/>
</androidx.constraintlayout.widget.ConstraintLayout>
3. MainActivity.kt
class MainActivity : AppCompatActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
}
fun clickBtn(view: View) {
var t = ""
for (text in fillText.getFillTexts()) {
t += text
t +=","
}
tv_fills.text = t.subSequence(0, t.length - 1)
}
}
4. FillTextView.kt
/**
* Created on 2022/5/17 15:52
*
* @author Gong Youqiang
*/
class FillTextView : View, MyInputConnection.InputListener, View.OnKeyListener {
//编辑字段标记
private var EDIT_TAG = "<fill>"
//编辑字段替换
private var EDIT_REPLACEMENT = "【 】"
//可编辑空白
private val BLANKS = " "
//可编辑开始符
private var mEditStartTag = "【"
//可编辑结束符
private var mEditEndTag = "】"
//文本
private var mText = StringBuffer()
//存放文字段的列表，根据<fill>分割为多个字段
private var mTextList = arrayListOf<AText>()
//正在输入的字段
private var mEditingText: AText? = null
//当前正在编辑的文本行数
private var mEditTextRow = 1
//光标[0]：x坐标,[1]：文字的基准线
private var mCursor = arrayOf(-1f, -1f)
//光标所在文字索引
private var mCursorIndex = 0
//光标闪烁标志
private var mHideCursor = true
//控件宽度
private var mWidth = 0
//文字画笔
private val mNormalPaint = Paint()
//普通文字颜色
private var mNormalColor = Color.BLACK
//文字画笔
private val mFillPaint = Paint()
//填写文字颜色
private var mFillColor = Color.BLACK
//光标画笔
private val mCursorPain = Paint()
//光标宽度1dp
private var mCursorWidth = 1f
//一个汉字的宽度
private var mOneWordWidth = 0f
//一行最大的文字数
private var mMaxSizeOneLine = 0
//字体大小
private var mTextSize = sp2px(16f).toFloat()
//当前绘制到第几行
private var mCurDrawRow = 1
//获取文字的起始位置
private var mStartIndex = 0
//获取文字的结束位置
private var mEndIndex = 0
//存放每行的文字，用于计算文字长度
private var mOneRowText = StringBuffer()
//一行字包含的字段：普通字段，可编辑字段
private var mOneRowTexts = arrayListOf<AText>()
//默认行距2dp，也是最小行距（用户设置的行距在此基础上叠加，即：2 + cst）
private var mRowSpace = dp2px(2f).toFloat()
//是否显示下划线
private var mUnderlineVisible = false
//下划线画笔
private val mUnderlinePain = Paint().apply {
strokeWidth = dp2px(1f).toFloat()
color = Color.BLACK
isAntiAlias = true
}
constructor(context: Context): super(context) {
init()
}
constructor(context: Context, attrs: AttributeSet): super(context, attrs) {
getAttrs(attrs)
init()
}
constructor(context: Context, attrs: AttributeSet, defStyleAttr: Int): super(context, attrs, defStyleAttr) {
getAttrs(attrs)
init()
}
private fun getAttrs(attrs: AttributeSet) {
val ta = context.obtainStyledAttributes(attrs, R.styleable.filled_text)
mTextSize = ta.getDimension(R.styleable.filled_text_fillTextSize, mTextSize)
mText = mText.append(ta.getText(R.styleable.filled_text_filledText)?: "")
mNormalColor = ta.getColor(R.styleable.filled_text_normalColor, Color.BLACK)
mFillColor = ta.getColor(R.styleable.filled_text_fillColor, Color.BLACK)
mRowSpace += ta.getDimension(R.styleable.filled_text_rowSpace, 0f)
ta.recycle()
}
private fun init() {
isFocusable = true
initCursorPaint()
initTextPaint()
initFillPaint()
splitTexts()
initHandler()
setOnKeyListener(this)
}
/**
* 初始化光标画笔
*/
private fun initCursorPaint() {
mCursorWidth = dp2px(mCursorWidth).toFloat()
mCursorPain.strokeWidth = mCursorWidth
mCursorPain.color = mFillColor
mCursorPain.isAntiAlias = true
}
/**
* 初始化文字画笔
*/
private fun initTextPaint() {
// mTextSize = sp2px(mTextSize).toFloat()
// mRowSpace = dp2px(mRowSpace).toFloat()
mNormalPaint.color = mNormalColor
mNormalPaint.textSize = mTextSize
mNormalPaint.isAntiAlias = true
mOneWordWidth = measureTextLength("测")
}
private fun initFillPaint() {
mFillPaint.color = mFillColor
mFillPaint.textSize = mTextSize
mFillPaint.isAntiAlias = true
}
private fun dp2px(dp: Float): Int {
val density = resources.displayMetrics.density
return (dp * density + 0.5).toInt()
}
private fun sp2px(sp: Float): Int {
val density = resources.displayMetrics.scaledDensity
return (sp * density + 0.5).toInt()
}
/**
* 拆分文字，普通文字和可编辑文字
*/
private fun splitTexts() {
mTextList.clear()
val texts = mText.split(EDIT_TAG)
for (i in 0 until texts.size - 1) {
var text = texts[i]
if (i > 0) {
text = mEditEndTag + text
}
text += mEditStartTag
mTextList.add(AText(text))
mTextList.add(AText(BLANKS, true))
}
mTextList.add(AText(mEditEndTag + texts[texts.size - 1]))
}
override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec)
val widthMode = MeasureSpec.getMode(widthMeasureSpec)
val widthSize = MeasureSpec.getSize(widthMeasureSpec)
val heightMode = MeasureSpec.getMode(heightMeasureSpec)
val heightSize = MeasureSpec.getSize(heightMeasureSpec)
var width = widthSize
var height = heightSize
val realText = StringBuffer()
for (aText in mTextList) {
realText.append(aText.text)
}
when(widthMode) {
MeasureSpec.EXACTLY -> {
width = widthSize
//用户指定宽高
mWidth = width
mMaxSizeOneLine = (width / mOneWordWidth).toInt()
}
MeasureSpec.UNSPECIFIED, MeasureSpec.AT_MOST -> {
//绘制宽高为文字最大长度，如果长度超过，则使用父布局可用的最大长度
width = if (mText.isEmpty()) 0
else Math.min(widthSize, measureTextLength(realText.toString()).toInt())
//设配最大宽高
mWidth = widthSize
mMaxSizeOneLine = (widthSize / mOneWordWidth).toInt()
}
}
when(heightMode) {
MeasureSpec.EXACTLY -> height = heightSize
MeasureSpec.UNSPECIFIED, MeasureSpec.AT_MOST ->
height = if (realText.isEmpty()) 0
else //其中mRowSpace + mNormalPaint.fontMetrics.descent是最后一行距离底部的间距
(getRowHeight() * (mCurDrawRow - 1) + mRowSpace + mNormalPaint.fontMetrics.descent).toInt()
}
setMeasuredDimension(width, height)
}
override fun draw(canvas: Canvas) {
clear()
canvas.save()
mStartIndex = 0
mEndIndex = mMaxSizeOneLine
for (i in 0 until mTextList.size) {
val aText = mTextList[i]
val text = aText.text
while (true) {
if (mEndIndex > text.length) {
mEndIndex = text.length
}
addEditStartPos(aText) //记录编辑初始位置
val cs = text.subSequence(mStartIndex, mEndIndex)
mOneRowTexts.add(AText(cs.toString(), aText.isFill))
mOneRowText.append(cs)
val textWidth = measureTextLength(mOneRowText.toString())
if (textWidth <= mWidth) {
val left = mWidth - textWidth
val textCount = left / mOneWordWidth
if (mEndIndex < text.length) {
mStartIndex = mEndIndex
mEndIndex += textCount.toInt()
if (mStartIndex == mEndIndex) {
val one = measureTextLength(text.substring(mEndIndex, mEndIndex + 1))
if (one + textWidth < mWidth) { //可以放多一个字
mEndIndex++
} else {
//绘制文字
addEditEndPos(aText)
drawOneRow(canvas)
addEditStartPosFromZero(aText, mStartIndex) //编辑的段落可能进入下一行
}
}
} else { //进入下一段文字
addEditEndPos(aText) //记录编辑结束位置
if (i < mTextList.size - 1) {
mStartIndex = 0
mEndIndex = textCount.toInt()
if (mStartIndex == mEndIndex) {
val one = measureTextLength(mTextList[i + 1].text.substring(0, 1))
if (one + textWidth < mWidth) { //可以放多一个字
mEndIndex = 1 //只读下一段文字第一个字
} else {
//绘制文字
drawOneRow(canvas)
}
}
} else {
//绘制文字
drawOneRow(canvas)
}
break
}
} else {
//绘制文字
drawOneRow(canvas)
}
}
}
if (isFocused) {
drawCursor(canvas)
}
super.draw(canvas)
canvas.restore()
}
private var mHandler: Handler? = null
/**
* 光标闪烁定时
*/
private fun initHandler() {
mHandler = Handler(Handler.Callback {
mHideCursor = !mHideCursor
mHandler!!.sendEmptyMessageDelayed(1, 500)
invalidate()
true
})
mHandler!!.sendEmptyMessageDelayed(1, 500)
}
override fun onFocusChanged(gainFocus: Boolean, direction: Int, previouslyFocusedRect: Rect?) {
super.onFocusChanged(gainFocus, direction, previouslyFocusedRect)
if (gainFocus) {
mHandler?.removeMessages(1)
mHandler?.sendEmptyMessageDelayed(1, 500)
} else {//失去焦点时，停止刷新光标
mHandler?.removeMessages(1)
}
}
/**
* 清除过期状态
*/
private fun clear() {
mCurDrawRow = 1
mStartIndex = 0
mEndIndex = 0
mOneRowText.delete(0, mOneRowText.length)
mOneRowTexts.clear()
mEditingText?.posInfo?.clear()
}
/**
* 绘制一行文字
*/
private fun drawOneRow(canvas: Canvas) {
//drawText中的y坐标为文字基线
// canvas.drawText(mOneRowText.toString(), 0f, getRowHeight()*mCurDrawRow, mNormalPaint)
val fm = mNormalPaint.fontMetrics //文字基准线问题
var x = 0f
for (aText in mOneRowTexts) {
canvas.drawText(aText.text, x, getRowHeight()*mCurDrawRow,
if (aText.isFill) mFillPaint else mNormalPaint)
val lineStartX = x
x += measureTextLength(aText.text)
if (aText.isFill && mUnderlineVisible) {
canvas.drawLine(lineStartX, getRowHeight()*mCurDrawRow + fm.descent,
x, (getRowHeight()*mCurDrawRow + fm.descent), mUnderlinePain)
}
}
mCurDrawRow++
mEndIndex += mMaxSizeOneLine
mOneRowText.delete(0, mOneRowText.length)
mOneRowTexts.clear()
requestLayout()
}
/**
* 绘制光标
*/
private fun drawCursor(canvas: Canvas) {
if (mHideCursor) {
mCursorPain.alpha = 0
} else {
mCursorPain.alpha = 255
}
if (mCursor[0] >= 0 && mCursor[1] >= 0) {
if (mEditingText?.text == BLANKS && //光标可能需要换到上一行
(mCursor[0] == 0f || (mCursor[0] == mCursorWidth && mEditingText!!.posInfo.size > 1))) {
if (mEditingText!!.posInfo.size > 1) {
mEditTextRow = mEditingText!!.getStartPos() //得到可编辑字段最上面一行的起始位置
val posInfo = mEditingText!!.posInfo[mEditTextRow]
mCursor[0] = posInfo!!.rect.left.toFloat()
mCursor[1] = posInfo!!.rect.bottom.toFloat()
if (mCursor[0] <= 0) mCursor[0] = mCursorWidth //矫正光标X轴坐标
}
}
val fm = mNormalPaint.fontMetrics //文字基准线问题
canvas.drawLine(mCursor[0], mCursor[1] + fm.ascent,
mCursor[0], (mCursor[1] + fm.descent), mCursorPain)
}
}
/**
* 添加编辑字段起始位置
*/
private fun addEditStartPos(aText: AText) {
if (aText.isFill && mStartIndex == 0) {
aText.posInfo.clear()
val width = measureTextLength(mOneRowText.toString()).toInt()
val rect = Rect(width, (getRowHeight()*(mCurDrawRow - 1) + mRowSpace/*加上行距*/).toInt(), 0, 0)
val info = EditPosInfo(mStartIndex, rect)
aText.posInfo[mCurDrawRow] = info
}
}
/**
* 添加编辑字段起始位置（换行的情况）
*/
private fun addEditStartPosFromZero(aText: AText, index: Int) {
if (aText.isFill) {
val rect = Rect(0, (getRowHeight()*(mCurDrawRow - 1) + mRowSpace/*加上行距*/).toInt(), 0, 0)
val info = EditPosInfo(index, rect)
aText.posInfo[mCurDrawRow] = info
}
}
/**
* 添加编辑字段结束位置
*/
private fun addEditEndPos(aText: AText) {
if (aText.isFill) {
val width = measureTextLength(mOneRowText.toString())
aText.posInfo[mCurDrawRow]?.rect?.right = width.toInt()
aText.posInfo[mCurDrawRow]?.rect?.bottom = (getRowHeight()*mCurDrawRow).toInt()
}
}
/**
* 计算文字长度：px
*/
private fun measureTextLength(text: String): Float {
return mNormalPaint.measureText(text)
}
/**
* 获取一行高度
*/
private fun getRowHeight(): Float {
return mTextSize + mRowSpace
}
override fun onWindowFocusChanged(hasWindowFocus: Boolean) {
super.onWindowFocusChanged(hasWindowFocus)
if (!hasWindowFocus) {
hideInput()
}
}
/**
* 隐藏输入法
*/
private fun hideInput() {
val imm = context.getSystemService(Context.INPUT_METHOD_SERVICE) as InputMethodManager
imm.hideSoftInputFromWindow(windowToken, 0)
}
override fun onTouchEvent(event: MotionEvent): Boolean {
isFocusableInTouchMode = true
requestFocus()
when (event.action) {
MotionEvent.ACTION_DOWN -> {
if (touchCollision(event)) {
isFocusableInTouchMode = true //important
isFocusable = true
requestFocus()
try {
val imm = context.getSystemService(Context.INPUT_METHOD_SERVICE) as InputMethodManager
imm.showSoftInput(this, InputMethodManager.RESULT_SHOWN)
imm.restartInput(this)
} catch (ignore: Exception) {
}
return true
}
}
}
return super.onTouchEvent(event)
}
/**
* 检测点击碰撞
*/
private fun touchCollision(event: MotionEvent): Boolean {
for (aText in mTextList) {
if (aText.isFill) {
for ((row, posInfo) in aText.posInfo) {
if (event.x > posInfo.rect.left && event.x < posInfo.rect.right &&
event.y > posInfo.rect.top && event.y < posInfo.rect.bottom) {
mEditTextRow = row
if (aText.text == BLANKS) {
val firstRow = aText.getStartPos()
if (firstRow >= 0) { //可能存在换行
mEditTextRow = firstRow
}
}
mEditingText = aText
calculateCursorPos(event, aText.posInfo[mEditTextRow]!!, aText.text)
return true
}
}
}
}
return false
}
/**
* 计算光标位置
*/
private fun calculateCursorPos(event: MotionEvent, posInfo: EditPosInfo, text: String) {
val eX = event.x
var innerWidth = eX - posInfo.rect.left
var nWord = (innerWidth / mOneWordWidth).toInt()
var wordsWidth = 0
if (nWord <= 0) nWord = 1
if (text == BLANKS) {
mCursor[0] = posInfo.rect.left.toFloat()
mCursor[1] = posInfo.rect.bottom.toFloat()
mCursorIndex = 0
} else {
//循环计算，直到最后一个真正超过显示范围的文字（因为汉字和英文数字占位不一样，这里以汉字作为初始占位）
do {
wordsWidth = measureTextLength(text.substring(posInfo.index, posInfo.index + nWord)).toInt()
nWord++
} while (wordsWidth < innerWidth && posInfo.index + nWord <= text.length)
mCursorIndex = posInfo.index + nWord - 1
val leftWidth = wordsWidth - innerWidth //计算点击位置是否超过所点击文字的一半
if (leftWidth > measureTextLength(text.substring(mCursorIndex - 1, mCursorIndex))/2) {
mCursorIndex--
}
mCursor[0] = posInfo.rect.left + measureTextLength(text.substring(posInfo.index, mCursorIndex))
mCursor[1] = posInfo.rect.bottom.toFloat()
}
invalidate()
}
/**
* 键盘输入
*/
override fun onTextInput(text: CharSequence) {
if (mEditingText != null) {
val filledText = StringBuffer(mEditingText!!.text.replace(BLANKS, ""))
if (filledText.isEmpty()) {
filledText.append(text)
mCursorIndex = text.length
} else {
filledText.insert(mCursorIndex, text)
mCursorIndex += text.length
}
mEditingText!!.text = filledText.toString()
if (mCursor[0] + measureTextLength(text.toString()) > mWidth) {//计算实际可以放多少字
var restCount = ((mWidth - mCursor[0])/mOneWordWidth).toInt()
var realWidth = mCursor[0] + measureTextLength(text.substring(0, restCount))
//循环计算，直到最后一个真正超过显示范围的文字（因为汉字和英文数字占位不一样，这里以汉字作为初始占位）
while (realWidth <= mWidth && restCount < text.length) {
restCount++
realWidth = mCursor[0] + measureTextLength(text.substring(0, restCount))
}
mEditTextRow += ((mCursor[0] + measureTextLength(text.toString()))/mWidth).toInt()
if (mEditTextRow < 1) mEditTextRow = 1
val realCount = if (restCount - 1 > 0) restCount -1 else 0
mCursor[0] = measureTextLength(text.substring(realCount, text.length))
mCursor[1] = getRowHeight() * (mEditTextRow)
} else {
mCursor[0] += measureTextLength(text.toString())
}
invalidate()
}
}
override fun onCheckIsTextEditor(): Boolean {
return true
}
override fun onCreateInputConnection(outAttrs: EditorInfo): InputConnection {
outAttrs.inputType = InputType.TYPE_CLASS_TEXT
outAttrs.imeOptions = EditorInfo.IME_ACTION_DONE
return MyInputConnection(this, false, this)
}
override fun onKey(view: View?, keyCode: Int, keyEvent: KeyEvent): Boolean {
if (keyCode == KeyEvent.KEYCODE_DEL &&
keyEvent.action == KeyEvent.ACTION_DOWN) {
onDeleteWord()
return true
}
return false
}
override fun onDeleteWord() {
if (mEditingText != null) {
val text = StringBuffer(mEditingText?.text)
if (!text.isNullOrEmpty() &&
text.toString() != BLANKS &&
mCursorIndex >= 1) {
var cursorPos = (mCursor[0] - measureTextLength(text.substring(mCursorIndex - 1, mCursorIndex))).toInt()
if (cursorPos > 0 ||
(cursorPos == 0 && mEditingText!!.posInfo.size == 1)) {//光标仍然在同一行
mCursor[0] = cursorPos.toFloat()
} else { //光标回到上一行
mEditTextRow--
val posInfo = mEditingText!!.posInfo[mEditTextRow]!!
mCursor[0] = posInfo.rect.left + measureTextLength(text.substring(posInfo.index, mCursorIndex - 1))
mCursor[1] = getRowHeight() * (mEditTextRow)
}
mEditingText?.text = text.replace(mCursorIndex - 1, mCursorIndex, "").toString()
mCursorIndex--
if (mEditingText?.text?.length?:0 <= 0) {
if (text.toString() != BLANKS) {
mEditingText?.text = BLANKS
mCursorIndex = 1
val firstRow = mEditingText!!.getStartPos()
if (firstRow > 0) {//可能存在换行
mEditTextRow = firstRow
}
mCursor[0] = mEditingText!!.posInfo[mEditTextRow]!!.rect.left.toFloat()
mCursor[1] = getRowHeight() * (mEditTextRow)
}
}
invalidate()
}
}
}
/**
* 设置文本
*/
fun setText(text: String) {
mText = StringBuffer(text)
splitTexts()
invalidate()
}
/**
* 设置字体大小，单位sp
*/
fun setTextSize(sp: Float) {
mTextSize = sp2px(sp).toFloat()
initTextPaint()
initFillPaint()
invalidate()
}
/**
* 设置行距，单位dp
*/
fun setRowSpace(dp: Float) {
mRowSpace = dp2px(2+dp).toFloat()
invalidate()
}
/**
* 设置可编辑标记的开始和结束符
*/
fun setEditTag(startTag: String, endTag: String) {
mEditStartTag = startTag
mEditEndTag = endTag
invalidate()
}
/**
* 设置是否显示可编辑字段下划线
*/
fun displayUnderline(visible: Boolean) {
mUnderlineVisible = visible
}
/**
* 设置下划线颜色
*/
fun setUnderlineColor(color: Int) {
mUnderlinePain.color = color
invalidate()
}
/**
* 获取填写的文本内容
*/
fun getFillTexts(): List<String> {
val list = arrayListOf<String>()
for (value in mTextList) {
if (value.isFill) {
list.add(value.text)
}
}
return list
}
}
internal class MyInputConnection(targetView: View, fullEditor: Boolean, private val mListener: InputListener) : BaseInputConnection(targetView, fullEditor) {
override fun commitText(text: CharSequence, newCursorPosition: Int): Boolean {
if (!isEmoji(text)) { //过滤emoji表情
mListener.onTextInput(text)
}
return super.commitText(text, newCursorPosition)
}
private fun isEmoji(string: CharSequence): Boolean {
//过滤Emoji表情
val p = Pattern.compile("[^\\u0000-\\uFFFF]")
//过滤Emoji表情和颜文字
//Pattern p = Pattern.compile("[\\ud83c\\udc00-\\ud83c\\udfff]|[\\ud83d\\udc00-\\ud83d\\udfff]|[\\u2600-\\u27ff]|[\\ud83e\\udd00-\\ud83e\\uddff]|[\\u2300-\\u23ff]|[\\u2500-\\u25ff]|[\\u2100-\\u21ff]|[\\u0000-\\u00ff]|[\\u2b00-\\u2bff]|[\\u2d06]|[\\u3030]")
val m = p.matcher(string)
return m.find()
}
override fun deleteSurroundingText(beforeLength: Int, afterLength: Int): Boolean {
//软键盘的删除键 DEL 无法直接监听，自己发送del事件
return if (beforeLength == 1 && afterLength == 0) {
super.sendKeyEvent(KeyEvent(KeyEvent.ACTION_DOWN, KEYCODE_DEL)) && super.sendKeyEvent(KeyEvent(KeyEvent.ACTION_UP, KeyEvent.KEYCODE_DEL))
} else super.deleteSurroundingText(beforeLength, afterLength)
}
interface InputListener {
fun onTextInput(text: CharSequence)
fun onDeleteWord()
}
}
internal class AText(text: String, isFill: Boolean = false) {
//段落文字
var text: String = text
//是否为填写字段
var isFill = isFill
//文本位置信息<行，文本框>
var posInfo: MutableMap<Int, EditPosInfo> = mutableMapOf()
fun getStartPos(): Int {
if (posInfo.isEmpty()) return -1
var firstRow = Int.MAX_VALUE
for ((row, _) in posInfo) {
if (firstRow > row) {
firstRow = row
}
}
return firstRow
}
}
data class EditPosInfo(var index: Int, var rect: Rect)
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
