.net core 3.1 使用hangfire+MySQL

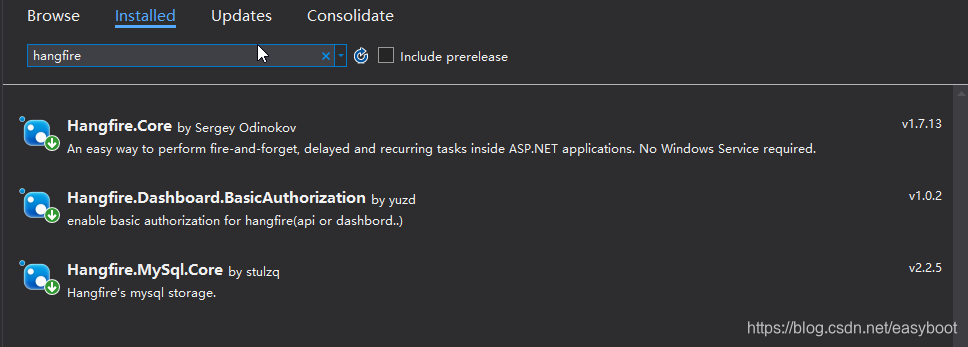

1.使用nuget添加hangfire

startup.cs中的引用

using Hangfire;
using Hangfire.Dashboard.BasicAuthorization;
using Hangfire.MySql.Core;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using System;
using System.Data;

startup.cs
增加如下代码

        public void ConfigureServices(IServiceCollection services)
        {
            services.AddControllersWithViews();

            string s = Configuration["DBConnStr:MySQL:ConnectionString"];
            services.AddDbContext<EFCoreContext>(options => options.UseMySql(Configuration["DBConnStr:MySQL:ConnectionString"]));

            services.AddHangfire(x => x.UseStorage(new MySqlStorage(
                            Configuration["DBConnStr:Hangfire:ConnectionString"],
                            new MySqlStorageOptions
                            {
                                TransactionIsolationLevel = IsolationLevel.ReadCommitted, // 事务隔离级别。默认是读取已提交。
                                QueuePollInterval = TimeSpan.FromSeconds(15),             //- 作业队列轮询间隔。默认值为15秒。
                                JobExpirationCheckInterval = TimeSpan.FromHours(1),       //- 作业到期检查间隔（管理过期记录）。默认值为1小时。
                                CountersAggregateInterval = TimeSpan.FromMinutes(5),      //- 聚合计数器的间隔。默认为5分钟。
                                PrepareSchemaIfNecessary = true,                          //- 如果设置为true，则创建数据库表。默认是true。
                                DashboardJobListLimit = 50000,                            //- 仪表板作业列表限制。默认值为50000。
                                TransactionTimeout = TimeSpan.FromMinutes(1),             //- 交易超时。默认为1分钟。
                                TablePrefix = "Hangfire"                                  //- 数据库中表的前缀。默认为none
                            }
                            )));

            services.AddMvc();
        }

继续增加hangfire访问路径
        public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
            if (env.IsDevelopment())
            {
                app.UseDeveloperExceptionPage();
            }
            else
            {
                app.UseExceptionHandler("/Home/Error");
                // The default HSTS value is 30 days. You may want to change this for production scenarios, see https://aka.ms/aspnetcore-hsts.
                app.UseHsts();
            }
            app.UseHttpsRedirection();
            app.UseStaticFiles();

            app.UseRouting();

            app.UseAuthorization();


            app.UseEndpoints(endpoints =>
            {
                endpoints.MapControllerRoute(
                    name: "default",
                    pattern: "{controller=Home}/{action=Index}/{id?}");
            });

            //配置hangfire访问路径
            app.UseHangfireServer();
            app.UseHangfireDashboard("/hangfire", new DashboardOptions
            {
                Authorization = new[]
                {
                     new BasicAuthAuthorizationFilter(new BasicAuthAuthorizationFilterOptions
                    {
                        SslRedirect = false,          // 是否将所有非SSL请求重定向到SSL URL
                        RequireSsl = false,           // 需要SSL连接才能访问HangFire Dahsboard。强烈建议在使用基本身份验证时使用SSL
                        LoginCaseSensitive = false,   //登录检查是否区分大小写
                        Users = new[]                 //配置登陆账号和密码
                        {
                            new BasicAuthAuthorizationUser
                            {
                                Login ="admin",//用户名
                                PasswordClear="123456"
                            }
                        }
                    })
                 }
            });
        }

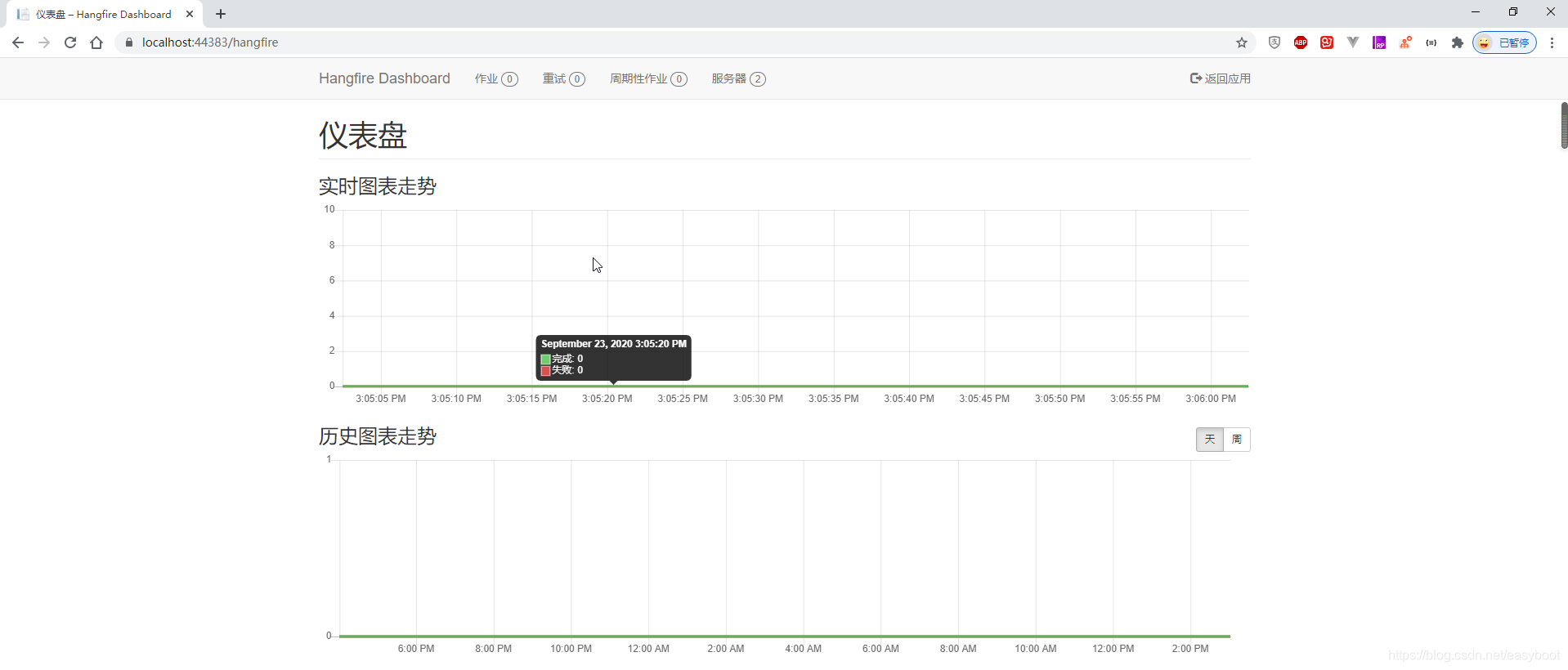

运行程序，在地址后面加入/hangfire 即可看到下图

注意appsettings.json 文件中mysql连接字符串需要加入Allow User Variables=true否则会报错
{
    "Logging": {
        "LogLevel": {
            "Default": "Information",
            "Microsoft": "Warning",
            "Microsoft.Hosting.Lifetime": "Information"
        }
    },
    "DBConnStr": {
        "Redis": {
            "ConnectionString": "localhost:6379,password=123456,abortConnect=false",
            "Db": 10
        },
        "MySQL": {
            "ConnectionString": "server=192.168.1.3;port=3306;database=a;uid=root;pwd=123456;CharSet=utf8;pooling=true;SslMode=None;"
        },
        "Hangfire": {
            "ConnectionString": "server=192.168.1.8;port=3306;database=Hangfire;uid=root;pwd=123456;CharSet=utf8;pooling=true;SslMode=None;Allow User Variables=true"
        },
        "WorkerId": 1 // 0-31
    },
    "AllowedHosts": "*"
}



使用方法示例

public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
{
    app.UseHangfireServer();
    app.UseHangfireDashboard();

    RecurringJob.AddOrUpdate(() => TestAsync(), Cron.Minutely());
}

public static async Task TestAsync()
{
    // to do...
}
