VMware 搭建 Bitnami GitLab CE

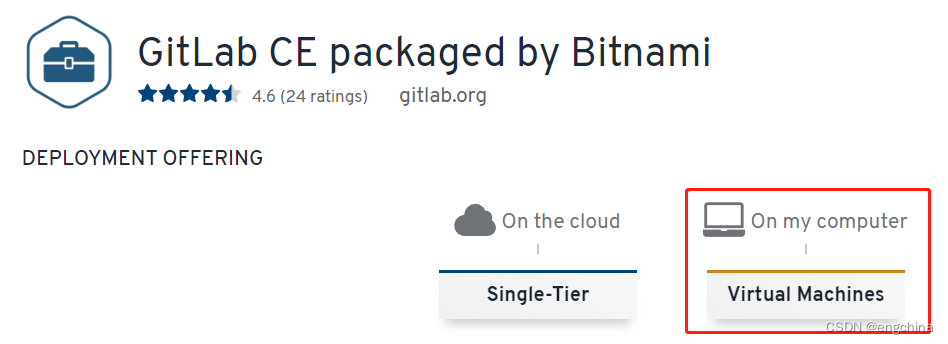

下载 Bitnami GitLab CE

下载地址，

https://bitnami.com/stack/gitlab/virtual-machine

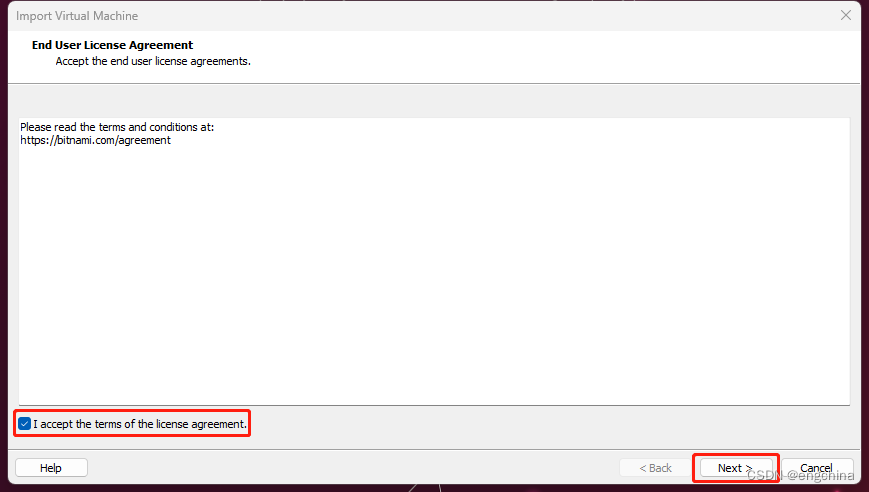

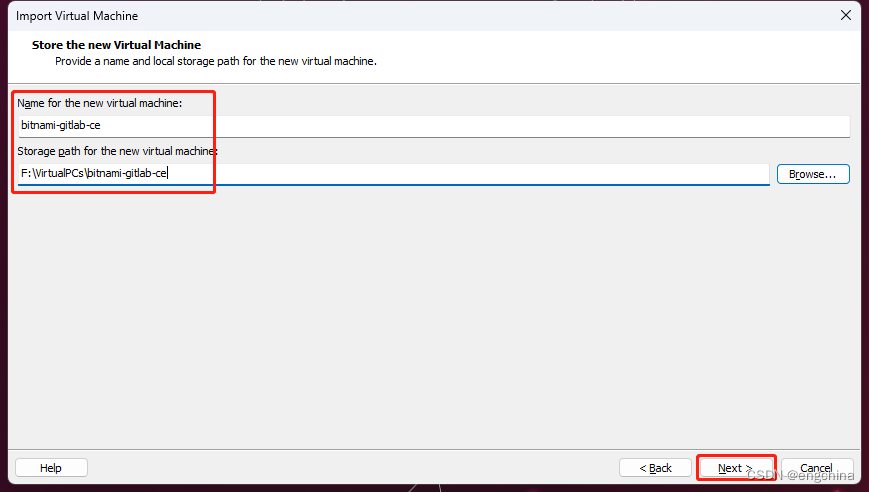

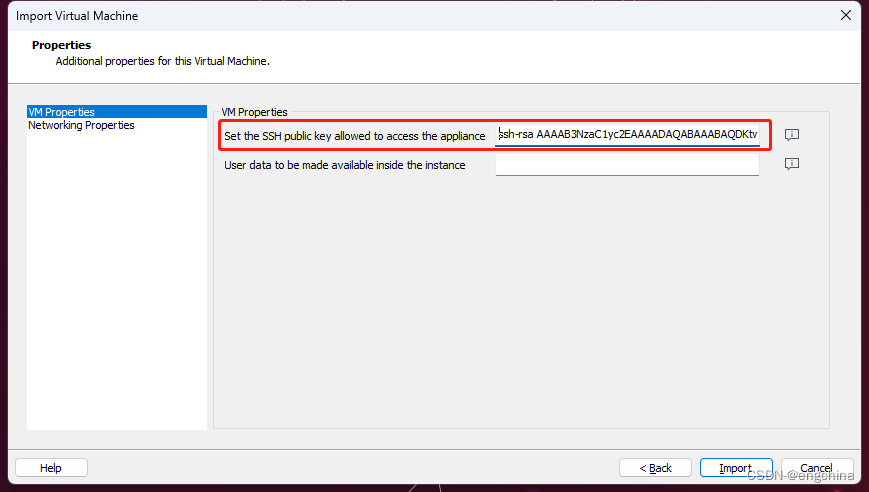

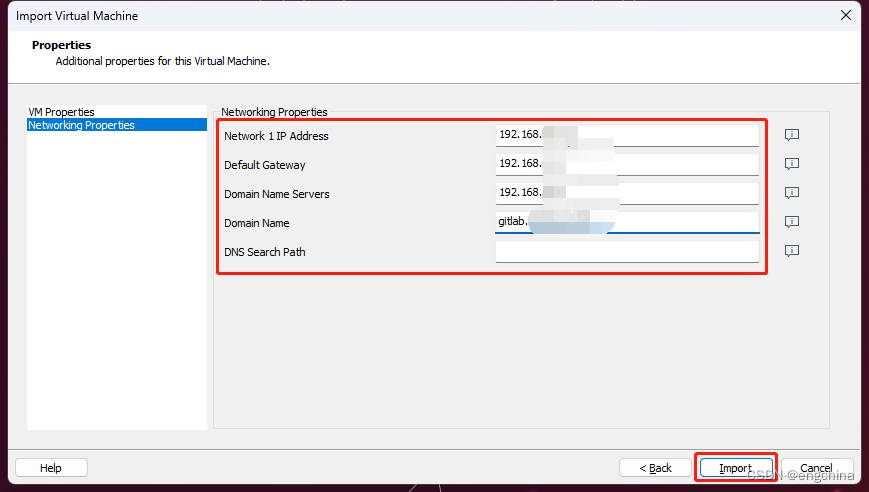

导入到 VMware

ssh 登录到虚拟机获取 root 用户密码

ssh -i <your_private_sshkey> bitnami@<your_gitlab_vm_ip>

sudo cat /home/bitnami/bitnami_credentials

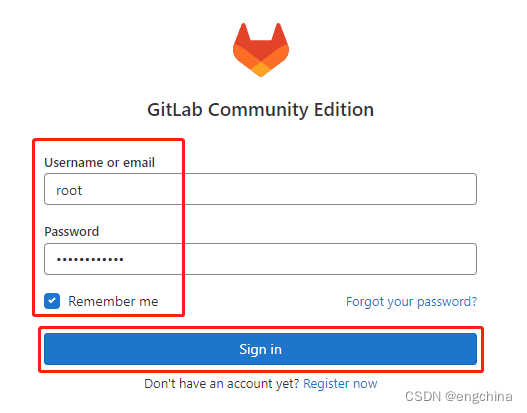

访问 GitLab CE

打开浏览器，输入 https://<your_gitlab_vm_ip>，

• Username or email: root
• Password: 上面步骤获取的 root 用户密码

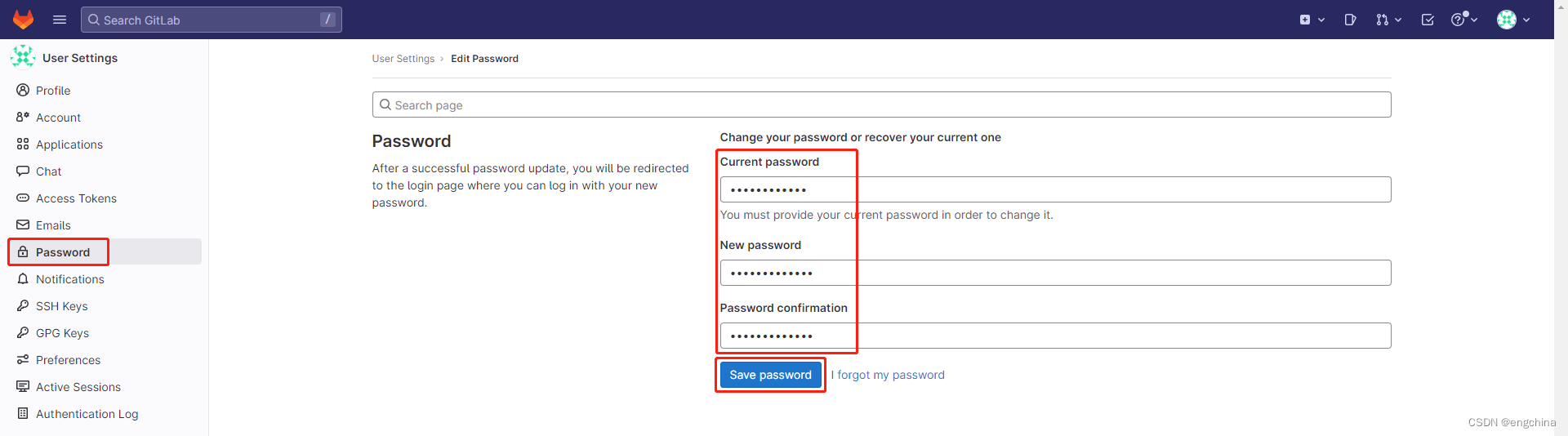

修改密码，

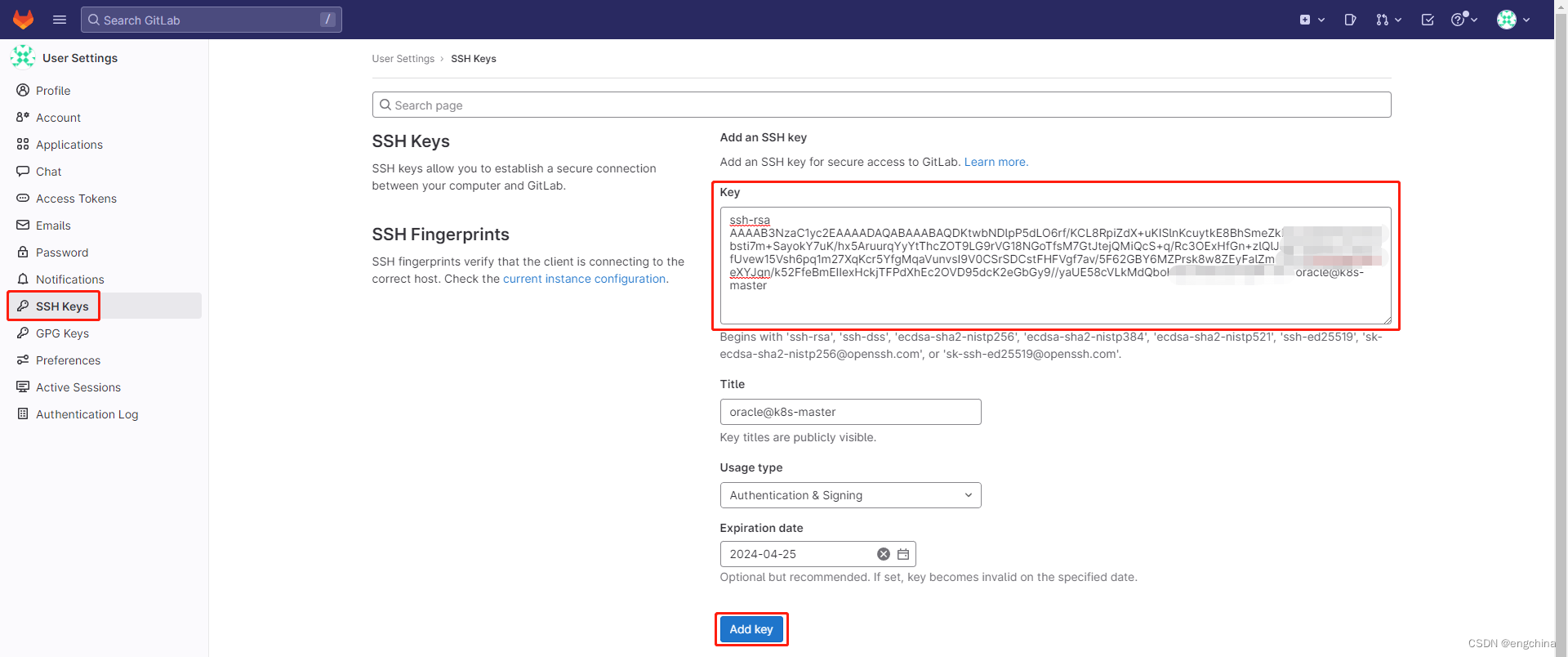

添加 SSH Keys，

关机命令

 shutdown -h now

重启命令

 shutdown -r now

扩展磁盘

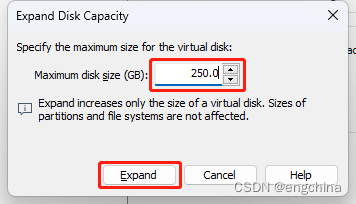

关机后，打开 Vitual Machine Settings，


设置完成后，启动虚拟机，df -h 查看磁盘大小是否更改完成，

配置 tls 证书

refer: https://docs.gitlab.com/runner/configuration/tls-self-signed.html

refer: https://docs.gitlab.com/omnibus/settings/ssl/ssl_troubleshooting.html

修改 /etc/hosts，添加本地域名和IP的匹配信息，示例中使用域名 server.local，请根据情况修改，

sudo vi /etc/hosts

--- add
192.168.31.13 gitlab.server.local
---

下面是创建证书的示例命令，示例中使用域名 server.local，请根据情况修改，

sudo mkdir -p /u01/certs; cd /u01/certs
openssl genrsa -des3 -passout pass:123456 -out ca.key 2048
openssl rsa -in ca.key -passin pass:123456 -out ca.key
openssl req -x509 -new -nodes -key ca.key -sha256 -days 3650 -out ca.crt -subj "/CN=server.local"
openssl genrsa -out tls.key 2048
openssl req -new -key tls.key -out tls.csr -subj "/CN=server.local"
cat > server.ext <<EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
subjectAltName = @alt_names

[alt_names]
DNS.1 = *.server.local
EOF

openssl x509 -req -in tls.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out tls.crt -days 3650 -extfile server.ext

更换 gitlab 的 tls 证书，

mv /etc/gitlab/ssl /etc/gitlab/ssl.bak; mkdir /etc/gitlab/ssl
cp /u01/certs/ca.crt /etc/gitlab/trusted-certs
cp /u01/certs/tls.crt /etc/gitlab/ssl/server.crt
cp /u01/certs/tls.key /etc/gitlab/ssl/server.key

配置 gitlab 外部访问地址，

sudo vi /etc/gitlab/gitlab.rb

--- modify
external_url 'https://gitlab.server.local'
---

应用更新配置，

gitlab-ctl reconfigure

重启 gitlab，

gitlab-ctl restart

配置 git 使用自签名证书，

git config --global http.sslCAInfo /u01/certs/ca.crt

安装 GitLab Runner

将 ca.crt、tls.crt 合成 1 个文件，注意，tls.crt 必须放在前面，

cat tls.crt ca.crt > all.crt

启动 gitlab-runner，--add-host 指定想要使用的本地域名和IP地址，请根据实际情况修改，示例命令如下，

sudo mkdir -p /u01/gitlab-runner/config; sudo chmod 777 /u01/gitlab-runner/config
sudo mkdir -p /u01/gitlab-runner/ca-certificates; sudo chmod 777 /u01/gitlab-runner/ca-certificates
sudo mkdir -p /u01/gitlab-runner/.gitlab-runner; sudo chmod 777 /u01/gitlab-runner/.gitlab-runner
sudo cp -r /u01/certs /u01/gitlab-runner/config
sudo mv /u01/gitlab-runner/config/certs/all.crt /u01/gitlab-runner/config/certs/ca.crt
sudo docker run -d --name gitlab-runner --restart always \
  -v /u01/gitlab-runner/config:/etc/gitlab-runner \
  -v /u01/gitlab-runner/ca-certificates:/usr/local/share/ca-certificates \
  -v /u01/gitlab-runner/.gitlab-runner:/home/gitlab-runner/.gitlab-runner \
  -v /cache:/cache \
  --cap-add SYS_ADMIN \
  --cap-add NET_ADMIN \
  --privileged \
  --add-host gitlab.server.local:192.168.31.13 \
  bitnami/gitlab-runner:15.11.0

sudo docker ps 查看，

注册 GitLab Runner

refer: https://docs.gitlab.com/ee/ci/docker/using_docker_build.html#use-docker-in-docker

首先在 GitLab 上创建一个项目，然后访问 Settings => CI/CD，获取 Runners 的注册 token，

配置自签名证书，

sudo cp -r /u01/certs /u01/gitlab-runner/config

为项目注册 runner，--url 指定想要使用的本地域名，--add-host 指定想要使用的本地域名和IP地址，请根据实际情况修改，示例命令如下，

sudo docker run --rm \
  -v /u01/gitlab-runner/config:/etc/gitlab-runner \
  -v /u01/gitlab-runner/ca-certificates:/usr/local/share/ca-certificates \
  -v /u01/gitlab-runner/.gitlab-runner:/home/gitlab-runner/.gitlab-runner \
  -v /var/run/docker.sock:/var/run/docker.sock \
  -v /cache:/cache \
  --cap-add SYS_ADMIN \
  --cap-add NET_ADMIN \
  --privileged \
  --add-host gitlab.server.local:192.168.31.13 \
  bitnami/gitlab-runner:15.11.0 register \
  --non-interactive \
  --url "https://gitlab.server.local/" \
  --registration-token "<your_project_token>" \
  --executor "docker" \
  --docker-image alpine:latest \
  --description "docker-runner" \
  --maintenance-note "Free-form maintainer notes about this runner" \
  --tag-list "docker,aws" \
  --run-untagged="true" \
  --locked="false" \
  --access-level="not_protected" \
  --docker-privileged \
  --docker-network-mode host \
  --tls-ca-file=/etc/gitlab-runner/certs/ca.crt \
  --docker-volumes "/etc/gitlab-runner/certs/ca.crt:/etc/gitlab-runner/certs/ca.crt:ro" \
  --pre-build-script="apk update >/dev/null && apk add ca-certificates > /dev/null && rm -rf /var/cache/apk/* && cp /etc/gitlab-runner/certs/ca.crt /usr/local/share/ca-certificates/ca.crt && update-ca-certificates --fresh > /dev/null"

sudo chmod 666 /var/run/docker.sock

sudo crontab -e

--- add
@reboot sleep 60 && chmod 666 /var/run/docker.sock
---

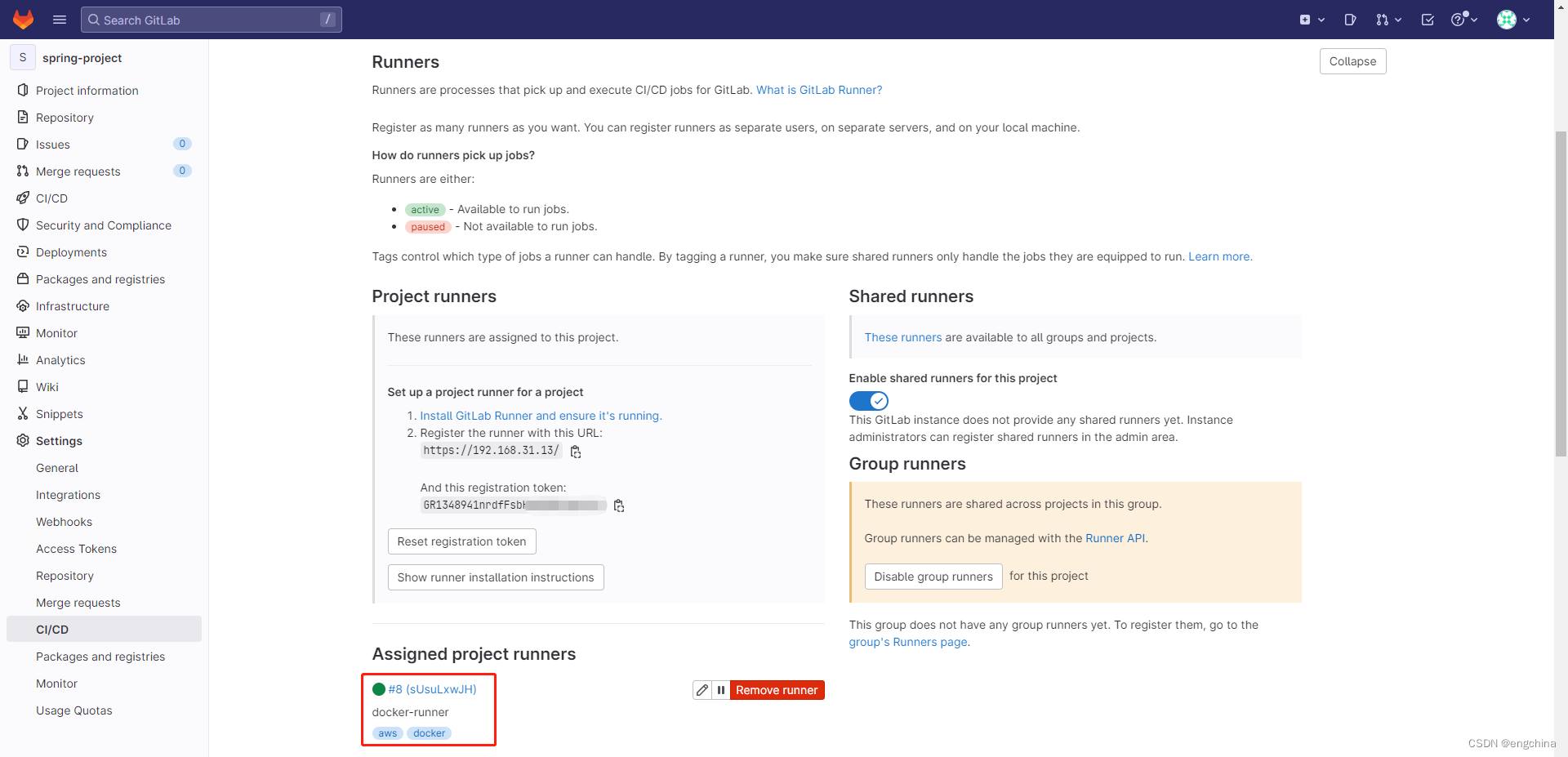

确认 runner 正常注册，并且是 active 的状态，

测试 CI/CD Pipeline

创建一个 .gitlab-ci.yml 文件，文件内容如下，

stages:
  - start

start-code-job:
  stage: start
  script:
    - echo "Start ..."

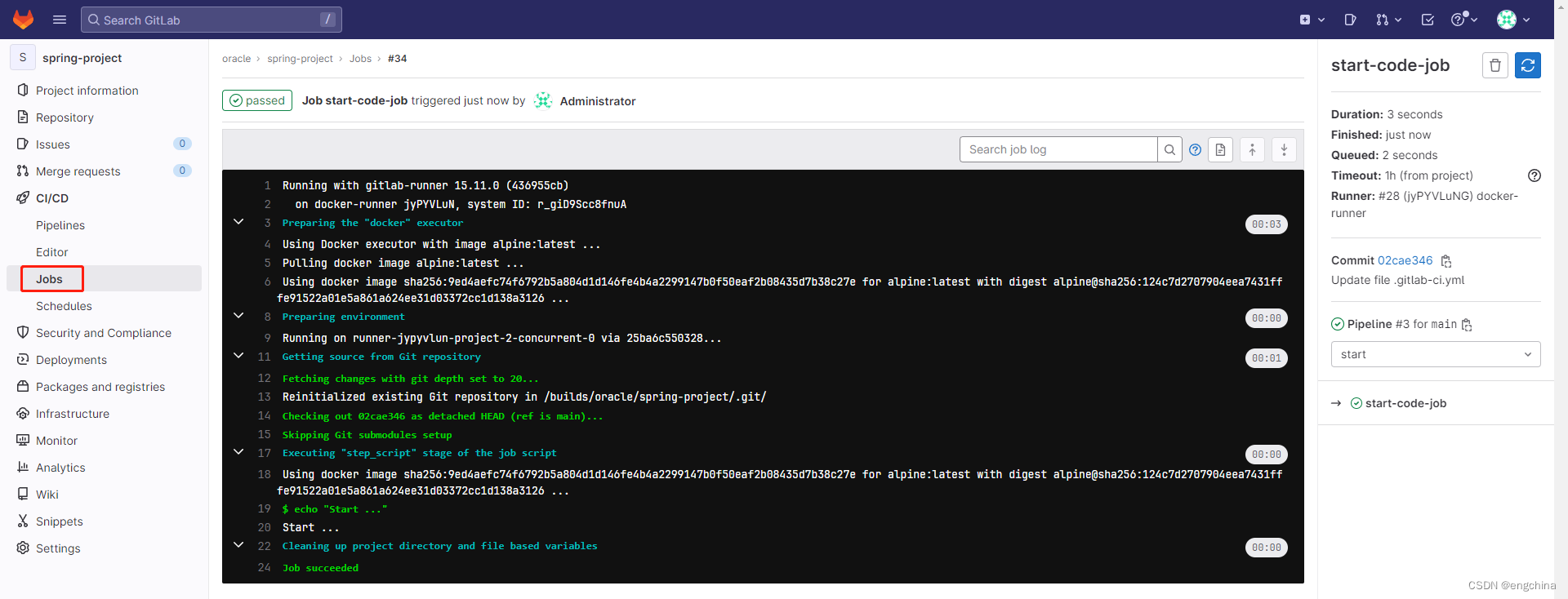

查看 CI/CD Pipeline 的执行结果为 Job succeeded，

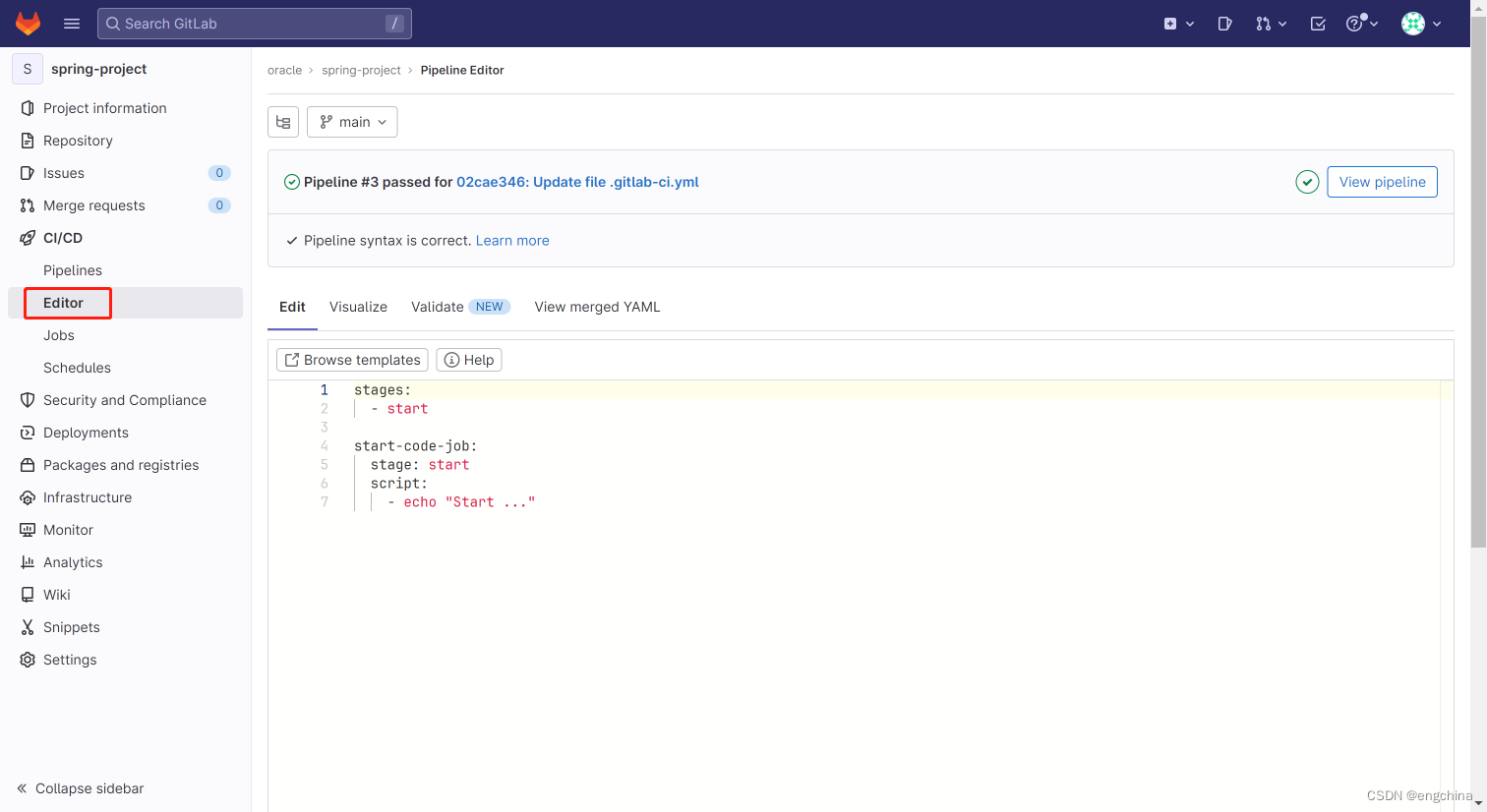

可以使用 CI/CD 的 Editor 对 .gitlab-ci.yml 进行快速修改，

配置 docker

否则在 gitlab runner 中使用 docker 命令会报错，

sudo vi /lib/systemd/system/docker.service

--- modify
# ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock -H fd:// --containerd=/run/containerd/containerd.sock
---

sudo systemctl daemon-reload
sudo systemctl restart docker
sudo chmod 666 /var/run/docker.sock

配置 docker 信任自签名证书

sudo mkdir -p /etc/docker/certs.d/gitlab.server.local
sudo cp /u01/certs/ca.crt /etc/docker/certs.d/gitlab.server.local
sudo cp /u01/certs/ca.crt /usr/local/share/ca-certificates/
sudo update-ca-certificates
sudo systemctl daemon-reload
sudo systemctl restart docker

其他，和 Harbor 联调示例代码

https://github.com/engchina/spring-project.git

完结！
