如何通过rshim在Host上升级Bluefield DPU？

已于 2025-03-03 00:10:20 修改
阅读量793 收藏 15
点赞数 10
分类专栏： Mellanox专区-OFED&DOCA&RDMA 文章标签： mellanox DPU
于 2024-10-09 02:49:16 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/essencelite/article/details/142772967
版权

背景

流程

下载镜像

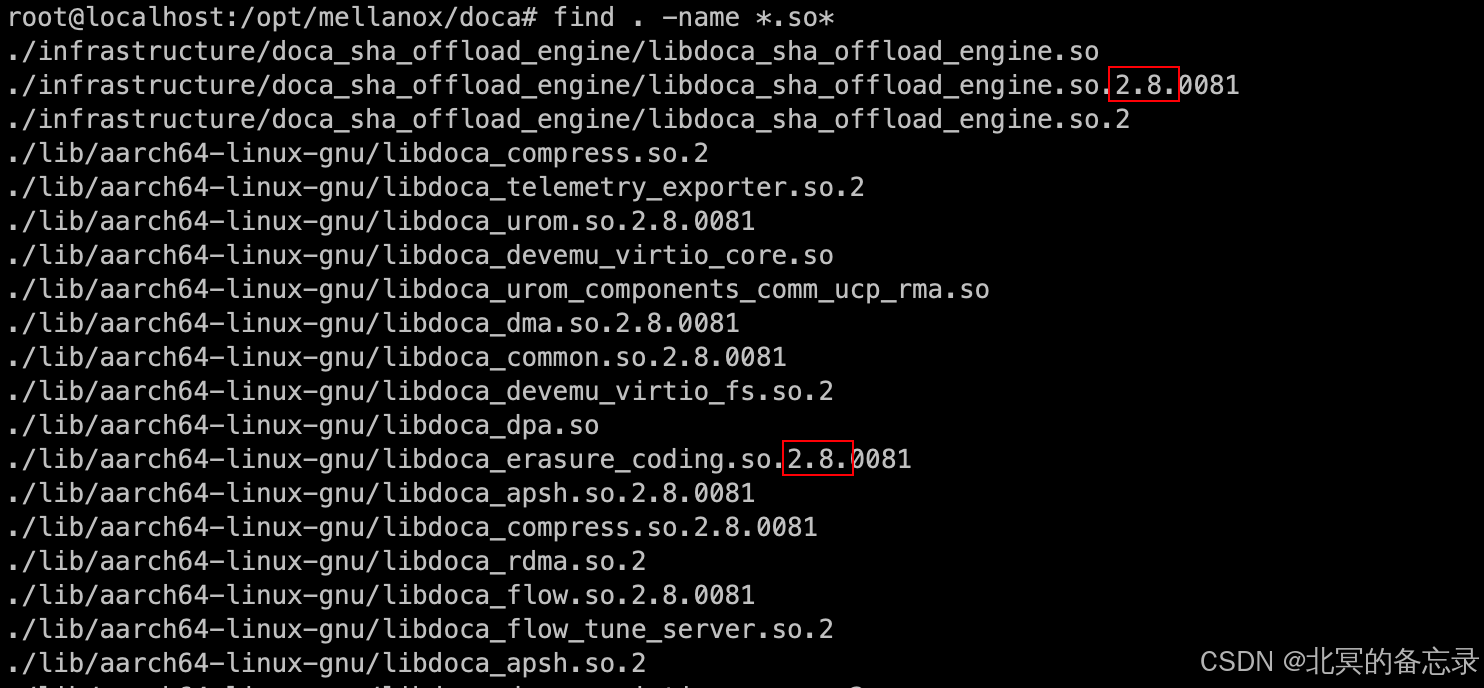

如果需要支持特定的doca，可以直接使用DOCA bund绑定的版本。也可以在BSP路径下载。
DOCA Bund版本的下载地址：https://docs.nvidia.com/doca/sdk/nvidia+doca+installation+guide+for+linux/index.html
将镜像拷贝到host主机上

启动bfb烧录

关键日志：

文字版：

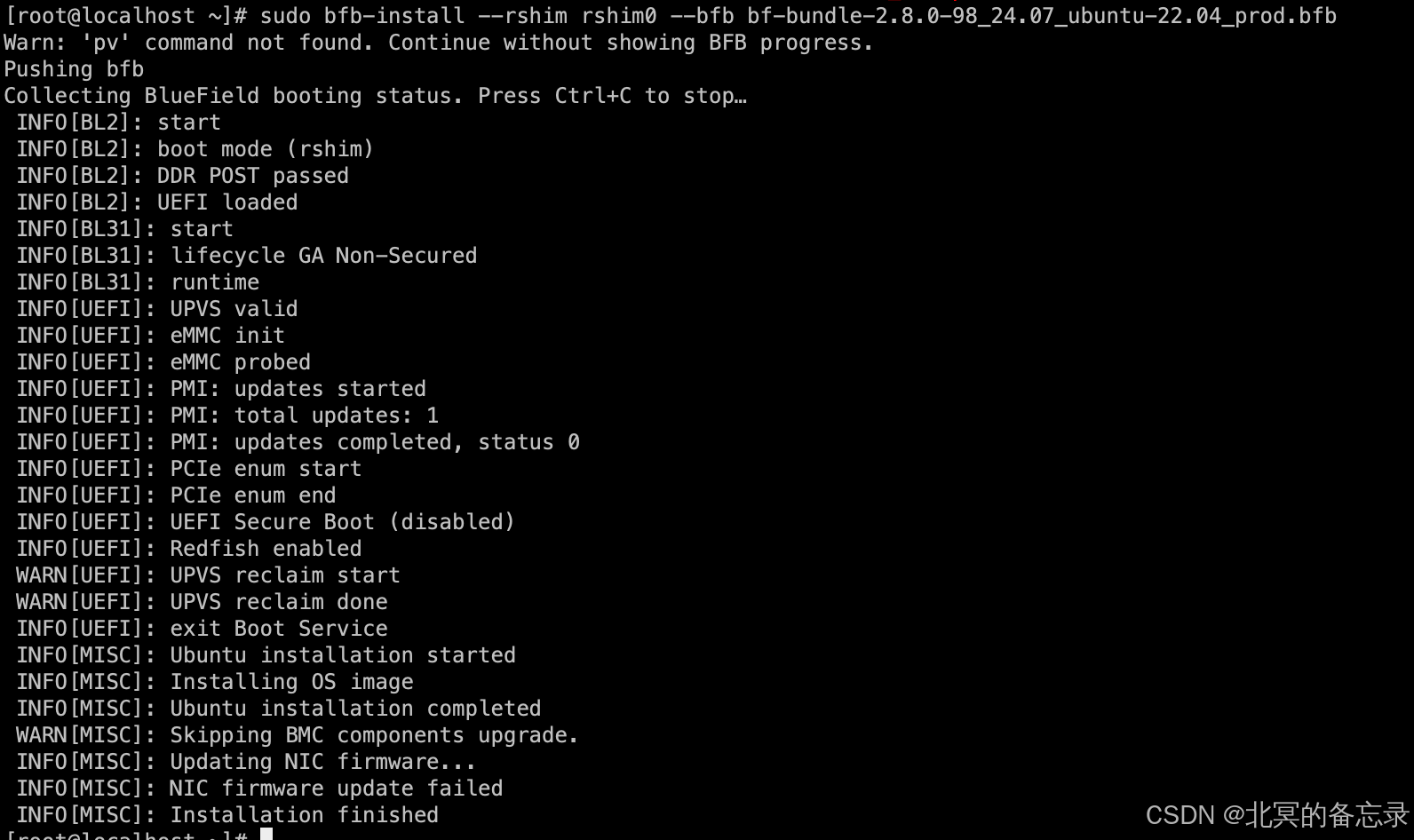

[root@localhost ~]# sudo bfb-install --rshim rshim0 --bfb bf-bundle-2.8.0-98_24.07_ubuntu-22.04_prod.bfb
Warn: 'pv' command not found. Continue without showing BFB progress.
Pushing bfb
Collecting BlueField booting status. Press Ctrl+C to stop…
 INFO[BL2]: start
 INFO[BL2]: boot mode (rshim)
 INFO[BL2]: DDR POST passed
 INFO[BL2]: UEFI loaded
 INFO[BL31]: start
 INFO[BL31]: lifecycle GA Non-Secured
 INFO[BL31]: runtime
 INFO[UEFI]: UPVS valid
 INFO[UEFI]: eMMC init
 INFO[UEFI]: eMMC probed
 INFO[UEFI]: PMI: updates started
 INFO[UEFI]: PMI: total updates: 1
 INFO[UEFI]: PMI: updates completed, status 0
 INFO[UEFI]: PCIe enum start
 INFO[UEFI]: PCIe enum end
 INFO[UEFI]: UEFI Secure Boot (disabled)
 INFO[UEFI]: Redfish enabled
 WARN[UEFI]: UPVS reclaim start
 WARN[UEFI]: UPVS reclaim done
 INFO[UEFI]: exit Boot Service
 INFO[MISC]: Ubuntu installation started
 INFO[MISC]: Installing OS image
 INFO[MISC]: Ubuntu installation completed
 WARN[MISC]: Skipping BMC components upgrade.
 INFO[MISC]: Updating NIC firmware...
 INFO[MISC]: NIC firmware update failed
 INFO[MISC]: Installation finished

启动串口

Mellanox BlueField-2 A1 BL1 V1.1
NOTICE:  No CDI passed to Riot core!
NOTICE:  BL2R: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2R: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2R built for hw (ver 1)
NOTICE:  BL2R: Booting BL2
NOTICE:  BL2: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2 built for hw (ver 1)
NOTICE:  Running as MBF2M345A-VENOT_ system
NOTICE:  No SPD detected on MSS0 DIMM0
NOTICE:  No SPD detected on MSS0 DIMM1
NOTICE:  Finished initializing DDR
NOTICE:  DDR POST passed.
NOTICE:  BL31: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL31: Built : 15:50:28, Aug  7 2024
NOTICE:  BL31 built for hw (ver 1), lifecycle GA Non-Secured
UEFI firmware (version BlueField:4.8.0-36-gf01f42f-BId13249 built at 16:04:33 on Aug  7 2024)
FmpDxe: EFI Capsule Authentication Successful, Status: Success.
[PMI] Boot image update started.
Note: Installed image will be filtered from 6650464 bytes to 2823728 bytes
Size check good, 2823728 <= 4194304
Check boot image, Status: Success
...Filtering unneeded executables...
...Preparing boot image...
...Generating boot image...
...Writing the boot image, Size: 2824192 bytes...
...Verify boot image...
Write boot image to partition 1, Status: Success
...Filtering unneeded executables...
...Preparing boot image...
...Generating boot image...
...Writing the boot image, Size: 2824192 bytes...
...Verify boot image...
Write boot image to partition 2, Status: Success
[PMI] Boot Image update completed, Status: Success
[PMI] Total number of updates: 1
[PMI] Errors during updates  : 0
CapsuleRuntimeDxe: ProcessCapsuleImage 0, Status: Success
Current Secure Boot State: disabled
Secure Boot Mode         : Setup Mode
PK is not configured
Redfish enabled

Press ESC/F2/DEL twice    to enter UEFI Menu.
Press ENTER               to skip countdown.

3  seconds remain...
2  seconds remain...
1  seconds remain...
0  seconds remain...
EFI stub: Booting Linux Kernel...
EFI stub: Generating empty DTB
EFI stub: Loaded initrd from command line option
EFI stub: Exiting boot services.[   10.144792] mlxbf_gige MLNXBF17:00: Error getting PHY irq. Use polling instead
[   10.145693] mlxbf2_gpio MLNXBF22:01: IRQ index 0 not found
[  OK  ] Finished Coldplug All udev Devices.
[   10.171066] mlxbf2_gpio MLNXBF22:02: IRQ index 0 not found
[  OK  ] Reached target System Initialization.
[  OK  ] Reached target Basic System.
         Starting dracut initqueue hook...
[  OK  ] Finished dracut initqueue hook.
[  OK  ] Reached target Preparation for Remote File Systems.
[  OK  ] Reached target Remote File Systems.
[  OK  ] Reached target Initrd Root File System.
         Starting Reload Configuration from the Real Root...
         Starting Network Configuration...
[  OK  ] Started Network Configuration.
[  OK  ] Reached target Network.
[  OK  ] Finished Reload Configuration from the Real Root.
[  OK  ] Reached target Initrd File Systems.
         Starting Install ubuntu Linux...
[   10.606615] ipmb-host 1-1011: ERROR: ipmb_send_request failed during ipmb detection
[   10.622056] ipmb-host 1-1011: Unable to get response from slave device at this time
[18:35:44] Starting mst:
[18:35:46] Starting MST (Mellanox Software Tools) driver set
Loading MST PCI module - Success
Loading MST PCI configuration module - Success
Create devices
Unloading MST PCI module (unused) - Success
[   15.126125] initrd-install[1333]: Error: /dev/mmcblk0boot0: unrecognised disk label
[   15.133831] initrd-install[1333]: Error: /dev/mmcblk0boot1: unrecognised disk label
[18:35:56] INFO: Ubuntu installation started
[18:35:56] OS installation target: /dev/mmcblk0
[   25.515487] initrd-install[1373]: 1+0 records in
[   25.515851] initrd-install[1373]: 1+0 records out
[   25.516037] initrd-install[1373]: 512 bytes copied, 0.397715 s, 1.3 kB/s
[18:35:56] Creating partitions on /dev/mmcblk0 using sfdisk:
[18:35:58] Installing OS image
[18:35:58] Creating file systems:
[18:37:40] Extracting /...
[18:39:58] Configure dhcp:
[18:39:58]
[18:39:58]
[18:39:58]
[18:39:58] Updating Ubuntu initramfs
[18:40:14] dracut: Executing: /usr/bin/dracut --force --add-drivers "mlxbf-bootctl sdhci-of-dwcmshc mlxbf-tmfifo dw_mmc-bluefield mlx5_core mlx5_ib mlxfw ib_umad nvme sbsa_gwdt gpio-mlxbf2 gpio-mlxbf3 mlxbf-gige pinctrl-mlxbf3 8021q" --gzip /boot/initrd.img-5.15.0-1050-bluefield 5.15.0-1050-bluefield
dracut: dracut module 'bootchart' will not be installed, because command '/sbin/bootchartd' could not be found!
dracut: dracut module 'rngd' will not be installed, because command 'rngd' could not be found!
dracut: dracut module 'network' will not be installed, because command 'wicked' could not be found!
dracut: dracut module 'dmraid' will not be installed, because command 'dmraid' could not be found!
dracut: dracut module 'cifs' will not be installed, because command 'mount.cifs' could not be found!
cat: /sys/power/resume: No such file or directory
dracut: dracut module 'biosdevname' will not be installed, because command 'biosdevname' could not be found!
dracut: dracut module 'rngd' will not be installed, because command 'rngd' could not be found!
dracut: dracut module 'dmraid' will not be installed, because command 'dmraid' could not be found!
dracut: dracut module 'cifs' will not be installed, because command 'mount.cifs' could not be found!
dracut: *** Including module: bash ***
dracut: *** Including module: dash ***
dracut: *** Including module: systemd ***
dracut: *** Including module: systemd-initrd ***
dracut: *** Including module: console-setup ***
dracut: *** Including module: network-legacy ***
dracut: *** Including module: network ***
dracut: *** Including module: ifcfg ***
dracut: *** Including module: kernel-modules ***
dracut: *** Including module: kernel-modules-extra ***
dracut: *** Including module: kernel-network-modules ***
dracut: *** Including module: overlay-root ***
dracut: *** Including module: resume ***
dracut: *** Including module: rootfs-block ***
dracut: *** Including module: terminfo ***
dracut: *** Including module: udev-rules ***
dracut: Skipping udev rule: 40-redhat.rules
dracut: Skipping udev rule: 91-permissions.rules
dracut: Skipping udev rule: 80-drivers-modprobe.rules
dracut: Skipping udev rule: 70-persistent-net.rules
dracut: *** Including module: dracut-systemd ***
dracut: *** Including module: usrmount ***
dracut: *** Including module: base ***
dracut: *** Including module: fs-lib ***
dracut: *** Including module: shutdown ***
dracut: *** Including modules done ***
dracut: *** Installing kernel module dependencies ***
dracut: *** Installing kernel module dependencies done ***
dracut: *** Resolving executable dependencies ***
dracut: *** Resolving executable dependencies done ***
dracut: *** Hardlinking files ***
Mode:           real
Files:          665
Linked:         1 files
Compared:       0 xattrs
Compared:       13 files
Saved:          692 B
Duration:       0.014138 seconds
dracut: *** Hardlinking files done ***
dracut: *** Store current command line parameters ***
dracut: Stored kernel commandline:
dracut:  root=UUID=f6402afe-1584-423c-93b6-9288af67d75d rootfstype=ext4 rootflags=rw,relatime
dracut: *** Stripping files ***
dracut: *** Stripping files done ***
dracut: *** Creating image file '/boot/initrd.img-5.15.0-1050-bluefield' ***
dracut: *** Creating initramfs image file '/boot/initrd.img-5.15.0-1050-bluefield' done ***
[18:40:15] Configure grub:
[18:40:15] Creating GRUB configuration
[  284.116195] initrd-install[5250]: Installing for arm64-efi platform.
[  286.164625] initrd-install[5250]: Installation finished. No error reported.
[18:40:17]
[  286.552622] initrd-install[5268]: Sourcing file `/etc/default/grub'
[  286.666078] initrd-install[5268]: Sourcing file `/etc/default/grub.d/10-disableos-prober.cfg'
[  286.667474] initrd-install[5268]: Sourcing file `/etc/default/grub.d/init-select.cfg'
[  286.672786] initrd-install[5310]: Generating grub configuration file ...
[  286.992536] initrd-install[5351]: Found linux image: /boot/vmlinuz-5.15.0-1050-bluefield
[  287.014349] initrd-install[5351]: Found initrd image: /boot/initrd.img-5.15.0-1050-bluefield
[  287.835128] initrd-install[5615]: Warning: os-prober will not be executed to detect other bootable partitions.
[  287.835484] initrd-install[5615]: Systems on them will not be added to the GRUB boot configuration.
[  287.835650] initrd-install[5615]: Check GRUB_DISABLE_OS_PROBER documentation entry.
[  287.842686] initrd-install[5619]: Adding boot menu entry for UEFI Firmware Settings ...
[  287.866203] initrd-install[5634]: done
[18:40:19]
[18:40:19]
[18:40:19] Updating EFI boot entries:
[18:40:19] Remove old boot entries
[18:40:22] BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0000,0001,0002,0004,0005,0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0000* focal
Boot0001* Linux from mmc0
Boot0002* EFI Internal Shell
Boot0004* Linux from eMMC
Boot0005* EFI Misc Device
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0001,0002,0004,0005,0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0001* Linux from mmc0
Boot0002* EFI Internal Shell
Boot0004* Linux from eMMC
Boot0005* EFI Misc Device
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0002,0004,0005,0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0002* EFI Internal Shell
Boot0004* Linux from eMMC
Boot0005* EFI Misc Device
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0004,0005,0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0004* Linux from eMMC
Boot0005* EFI Misc Device
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0005,0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0005* EFI Misc Device
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0006,0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0006* EFI Network
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0007,0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0007* EFI Network 1
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0008,0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0008* EFI Network 2
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0009,000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0009* EFI Network 3
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000A,000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000A* EFI Network 4
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000B,000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000B* EFI Network 5
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000C,000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000C* EFI Network 6
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000D,000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000D* EFI Network 7
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000E,000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000E* EFI Network 8
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 000F,0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot000F* EFI Network 9
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0010,0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0010* EFI Network 10
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0011,0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0011* EFI Network 11
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0012,0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0012* UiApp
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0013,0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0013* UEFI Misc Device
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0014,0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0014* UEFI Non-Block Boot Device
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0015,0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0015* UEFI PXEv4 (MAC:B8CEF6FC53F0)
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0016,0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0016* UEFI PXEv6 (MAC:B8CEF6FC53F0)
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0017,0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0017* UEFI HTTPv4 (MAC:B8CEF6FC53F0)
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0018,0019,001A,001B,001C,001D,001E,001F,0020
Boot0018* UEFI HTTPv6 (MAC:B8CEF6FC53F0)
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0019,001A,001B,001C,001D,001E,001F,0020
Boot0019* UEFI PXEv4 (MAC:001ACAFFFF01)
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001A,001B,001C,001D,001E,001F,0020
Boot001A* UEFI PXEv6 (MAC:001ACAFFFF01)
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001B,001C,001D,001E,001F,0020
Boot001B* UEFI HTTPv4 (MAC:001ACAFFFF01)
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001C,001D,001E,001F,0020
Boot001C* UEFI HTTPv6 (MAC:001ACAFFFF01)
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001D,001E,001F,0020
Boot001D* UEFI PXEv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001E,001F,0020
Boot001E* UEFI PXEv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 001F,0020
Boot001F* UEFI HTTPv4 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0020
Boot0020* UEFI HTTPv6 (MAC:B8CEF6FC53F4 VLAN4040)
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
No BootOrder is set; firmware will attempt recovery
Boot0021* Linux from rshim
BootCurrent: 0021
Timeout: 3 seconds
No BootOrder is set; firmware will attempt recovery
[  293.389677] initrd-install[5718]: yes: standard output: Broken pipe
[  293.396087] initrd-install[5721]: yes: standard output: Broken pipe
[  293.401551] initrd-install[5724]: 16+0 records in
[  293.401750] initrd-install[5724]: 16+0 records out
[  293.401930] initrd-install[5724]: 4096 bytes (4.1 kB, 4.0 KiB) copied, 0.000152625 s, 26.8 MB/s
[18:40:28] Adding Ubuntu boot entry:
[18:40:28] BootCurrent: 0021
Timeout: 3 seconds
BootOrder: 0006,0000,0001,0002,0003,0004,0005
Boot0000* NET-NIC_P0-IPV4
Boot0001* NET-NIC_P0-IPV6
Boot0002* NET-OOB-IPV4
Boot0003* NET-OOB-IPV6
Boot0004* NET-NIC_P0-IPV4-HTTP
Boot0005* NET-OOB-IPV4-HTTP
Boot0006* ubuntu0
[18:40:29] INFO: Ubuntu installation completed
[18:40:29] Updating ATF/UEFI:
[18:40:33] skip BFB signature verification

    ***********************************************************************
    ***                                                                 ***
    ***                 Platform firmware updates complete.             ***
    ***                                                                 ***
    ***********************************************************************
[18:40:33]
    ***********************************************************************
    ***                                                                 ***
    ***    Reboot the system to process the platform firmware updates   ***
    ***                                                                 ***
    ***********************************************************************

primary: /dev/mmcblk0boot0
backup: /dev/mmcblk0boot1
boot-bus-width: x8
reset to x1 after reboot: FALSE
watchdog-swap: disabled
lifecycle state: GA Non-Secured
secure boot key free slots: 4
[18:40:33]
    ***********************************************************************
    ***                                                                 ***
    ***    Reboot the system to process the platform firmware updates   ***
    ***                                                                 ***
    ***********************************************************************

primary: /dev/mmcblk0boot0
backup: /dev/mmcblk0boot1
boot-bus-width: x8
reset to x1 after reboot: FALSE
watchdog-swap: disabled
lifecycle state: GA Non-Secured
secure boot key free slots: 4
[  302.724893] initrd-install[6307]: umount: /mnt/efi_system_partition: no mount point specified.
[18:40:33] BMC_USER and/or BMC_PASSWORD are not defined. Skipping BMC components upgrade.
[18:40:33] WARN Skipping BMC components upgrade.
[18:40:35] INFO: Updating NIC firmware...
Initializing...
Scanning /opt/mellanox/mlnx-fw-updater/firmware//mlxfwmanager_sriov_dis_aarch64_41686
Scanning /opt/mellanox/mlnx-fw-updater/firmware//mlxfwmanager_sriov_dis_aarch64_41692
Attempting to perform Firmware update...
Running: lspci -d 15b3: -s.0 2>/dev/null | cut -d" " -f"1"
Processing device 03:00.0 (SN: MT2130X02622) for first time...
Running: /opt/mellanox/mlnx-fw-updater/firmware//mlxfwmanager_sriov_dis_aarch64_41686 --clear-semaphore -d 03:00.0 > /dev/null 2>&1
running /opt/mellanox/mlnx-fw-updater/firmware//mlxfwmanager_sriov_dis_aarch64_41686 -d 03:00.0 --query 2>/dev/null | grep PSID: | awk '{print $NF}'

The firmware for this device is not distributed inside Mellanox driver: 03:00.0 (PSID: MT_0000000809)
To obtain firmware for this device, please contact your HW vendor.

Failed to update Firmware.
See /tmp/mlnx_fw_update.log
[18:40:46] INFO: NIC firmware update failed
[18:40:46] Unmount partitions
[18:40:46] Unmounting /mnt/boot/efi
[18:40:46]
[18:40:46] Unmounting /mnt/sys/firmware/efi/efivars
[18:40:46]
[18:40:46] Unmounting /mnt/sys
[18:40:46]
[18:40:46] Unmounting /mnt/dev/pts
[18:40:46]
[18:40:46] Unmounting /mnt/dev
[18:40:46]
[18:40:46] Unmounting /mnt/proc
[18:40:46]
[18:40:46] Unmounting /mnt
[  315.688256] initrd-install[7246]: umount: /mnt: target is busy.
[18:40:46]
[18:40:46] Unmounting /mnt/sys/firmware/efi/efivars
[18:40:46]
[18:40:47] Unmounting /mnt/sys
[18:40:47]
[18:40:47] Unmounting /mnt/proc
[18:40:47]
[18:40:47] Unmounting /mnt/dev
[18:40:47]
[18:40:47] Unmounting /mnt
[18:40:49]
[18:40:49] INFO: Installation finished
[18:40:52] INFO: Rebooting...
[  327.731908] initrd-install[7307]: Rebooting.
Mellanox BlueField-2 A1 BL1 V1.1
NOTICE:  No CDI passed to Riot core!
NOTICE:  BL2R: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2R: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2R built for hw (ver 1)
NOTICE:  BL2R: Booting BL2
NOTICE:  BL2: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2 built for hw (ver 1)
NOTICE:  Running as MBF2M345A-VENOT_ system
NOTICE:  No SPD detected on MSS0 DIMM0
NOTICE:  No SPD detected on MSS0 DIMM1
NOTICE:  Finished initializing DDR
NOTICE:  DDR POST passed.
NOTICE:  BL31: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL31: Built : 15:50:28, Aug  7 2024
NOTICE:  BL31 built for hw (ver 1), lifecycle GA Non-Secured
UEFI firmware (version BlueField:4.8.0-36-gf01f42f-BId13249 built at 16:04:33 on Aug  7 2024)
FmpDxe: EFI Capsule Authentication Successful, Status: Success.
[PMI] Boot image update started.
Note: Installed image will be filtered from 6650464 bytes to 2823728 bytes
Size check good, 2823728 <= 4194304
Check boot image, Status: Success
...Filtering unneeded executables...
...Preparing boot image...
...Generating boot image...
...Writing the boot image, Size: 2824192 bytes...
...Verify boot image...
Write boot image to partition 1, Status: Success
...Filtering unneeded executables...
0    eparing boot image...
...Generating boot image...
...Writing the boot image, Size: 2824192 bytes...
...Verify boot image...
Write boot image to partition 2, Status: Success
[PMI] Boot Image update completed, Status: Success
[PMI] Total number of updates: 1
[PMI] Errors during updates  : 0
CapsuleRuntimeDxe: ProcessCapsuleImage 0, Status: Success
FmpDxe: EFI Capsule Authentication Successful, Status: Success.
[PMI] DB update started.
Enable Custom Mode, Status: Success
Enroll key, Status: Success
[PMI] DB update completed, Status: Success
[PMI] DB update started.
Enroll key, Status: Success
[PMI] DB update completed, Status: Success
[PMI] DB update started.
Enroll key, Status: Success
[PMI] DB update completed, Status: Success
[PMI] DB update started.
Enroll key, Status: Success
[PMI] DB update completed, Status: Success
[PMI] DB update started.
Enroll key, Status: Success
[PMI] DB update completed, Status: Success
[PMI] DB update started.
Delete single key, Status: Not Found
[PMI] DB update completed, Status: Success
[PMI] Total number of updates: 6
[PMI] Errors during updates  : 0
CapsuleRuntimeDxe: ProcessCapsuleImage 1, Status: Success
Current Secure Boot State: disabled
Secure Boot Mode         : Setup Mode
PK is not configured
Redfish enabled
 DHCP Session Start

Press ESC/F2/DEL twice    to enter UEFI Menu.
Press ENTER               to skip countdown.

3  seconds remain...
2  seconds remain...
1  seconds remain...
0  seconds remain...
EFI stub: Booting Linux Kernel...
EFI stub: Using DTB from configuration table
EFI stub: Exiting boot services..

firmware升级失败，系统启动会报错

Press ESC/F2/DEL twice    to enter UEFI Menu.
Press ENTER               to skip countdown.

3  seconds remain...
2  seconds remain...
1  seconds remain...
0  seconds remain...
EFI stub: Booting Linux Kernel...
EFI stub: Using DTB from configuration table
EFI stub: Exiting boot services..[    3.501079] mlxbf_gige MLNXBF17:00: Error getting PHY irq. Use polling instead
[    3.507611] mlxbf2_gpio MLNXBF22:01: IRQ index 0 not found
[    3.514510] mlxbf2_gpio MLNXBF22:02: IRQ index 0 not found
[   15.411223] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   15.426406] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   15.439154] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   17.733951] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   17.749159] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   17.761858] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   20.045184] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   20.060368] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   20.072972] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   22.361001] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   22.376194] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   22.388821] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   24.688855] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   24.704049] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   24.716658] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   26.992972] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   27.008163] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   27.020765] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   29.292752] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   29.307934] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   29.320525] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   31.600705] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   31.615887] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   31.628484] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   33.941769] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   33.956988] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   33.969610] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   36.248672] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   36.263860] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   36.276451] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   38.564637] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   38.579821] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   38.592460] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   40.872674] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   40.887864] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   40.900460] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   43.176575] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   43.191765] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   43.204353] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   45.464694] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   45.479886] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   45.492477] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   47.772617] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   47.787811] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   47.800418] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   50.084600] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   50.099789] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   50.112388] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   52.388598] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   52.403795] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   52.416384] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   54.684641] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   54.699830] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   54.712428] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   56.996637] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   57.011818] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   57.024398] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   59.324675] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   59.339858] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   59.352447] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   61.640635] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   61.655821] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   61.668417] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   63.952552] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   63.967745] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   63.980333] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   66.256616] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   66.271816] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   66.284406] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   68.572641] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   68.587826] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   68.600421] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   70.892650] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   70.907836] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   70.920423] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   73.196617] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   73.211806] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   73.224391] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   75.496611] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   75.511792] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   75.524368] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   77.800624] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   77.815825] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   77.828459] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   80.108624] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   80.123812] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   80.136408] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   82.436624] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   82.451810] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   82.464387] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   84.736607] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   84.751798] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   84.764382] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   87.048585] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   87.063778] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   87.076363] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   89.352617] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   89.367795] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   89.380374] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   91.648597] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   91.663786] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   91.676373] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   93.936711] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   93.951916] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   93.964558] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   96.260649] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   96.275827] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   96.288430] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[   98.584629] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[   98.599812] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[   98.612404] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  100.880617] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  100.895794] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  100.908381] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  103.196587] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  103.211781] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  103.224360] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  105.512598] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  105.527783] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  105.540377] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  107.812584] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  107.827767] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  107.840356] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  110.124599] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  110.139796] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  110.152396] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  112.432620] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  112.447808] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  112.460395] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  114.744566] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  114.759758] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  114.772350] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  117.076629] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  117.091813] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  117.104404] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22
[  119.380607] mlx5_core 0000:03:00.0: mlx5_cmd_out_err:832:(pid 985): CREATE_FLOW_GROUP(0x933) op_mod(0x0) failed, status bad parameter(0x3), syndrome (0x201c1c), err(-22)
[  119.395800] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce_steering:71:(pid 985): Failed to create RDMA RX flow group err(-22)
[  119.408396] mlx5_core 0000:03:00.0: mlx5_rdma_enable_roce:164:(pid 985): Failed to enable RoCE steering: -22

报错原因：https://www.reddit.com/r/nvidia/comments/1davt4l/bluefield2_mbf2m345avenot_es_dpus/

确认版本升级成功

在这里插入图片描述

强制烧录其他镜像问题

直接下载烧录报错：

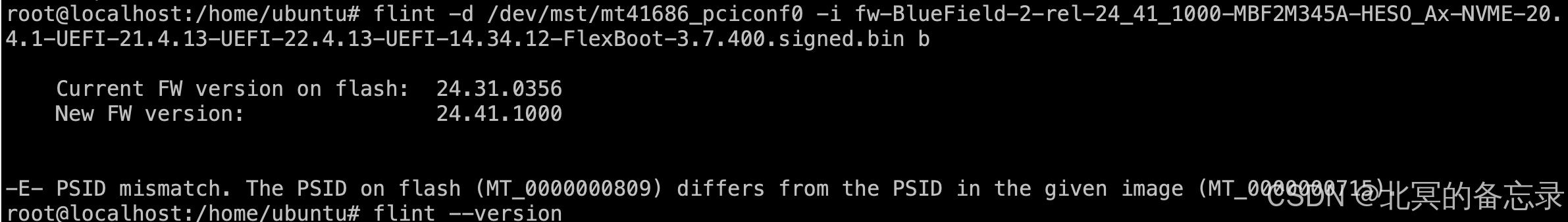

在这里插入图片描述
flint指定忽略PSID烧录 --allow_psid_change ：
flint -d /dev/mst/mt41686_pciconf0 --allow_psid_change -i fw-BlueField-2-rel-24_41_1000-MBF2M345A-HESO_Ax-NVME-20.4.1-UEFI-21.4.13-UEFI-22.4.13-UEFI-14.34.12-FlexBoot-3.7.400.signed.bin b

可见最开始的PSID是：MT_0000000715。PSID说明参考兄弟篇：https://blog.csdn.net/essencelite/article/details/138429032

root@localhost:/home/ubuntu# flint -d /dev/mst/mt41686_pciconf0 --allow_psid_change -i fw-BlueField-2-rel-24_41_1000-MBF2M345A-HESO_Ax-NVME-20.4.1-UEFI-21.4.13-UEFI-22.4.13-UEFI-14.34.12-FlexBoot-3.7.400.signed.bin b
Done.
    Current FW version on flash:  24.31.0356
    New FW version:               24.41.1000


    You are about to replace current PSID on flash - "MT_0000000809" with a different PSID - "MT_0000000715".
    Note: It is highly recommended not to change the PSID.

 Do you want to continue ? (y/n) [n] : y
Burning FW image without signatures - OK
Burning FW image without signatures - OK
Restoring signature                     - OK
-I- To load new FW run mlxfwreset or reboot machine.
root@localhost:/home/ubuntu#

flint查询烧录后的版本

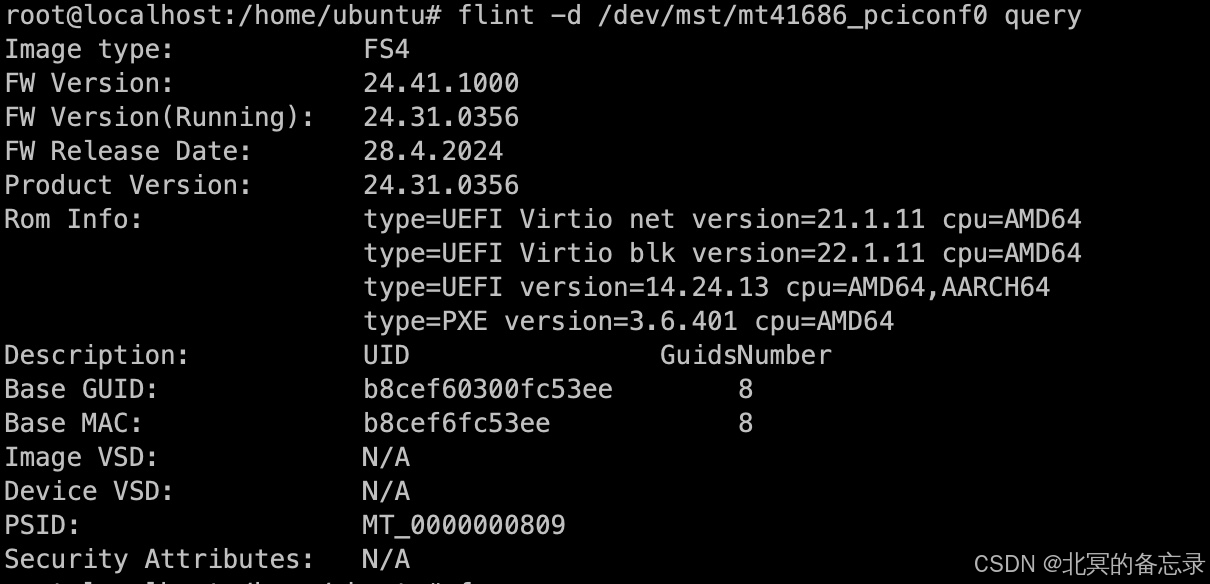

在这里插入图片描述

强制重启：
mlxfwreset -d /dev/mst/mt41686_pciconf0 -l 4 -t 0 reset -y
不生效

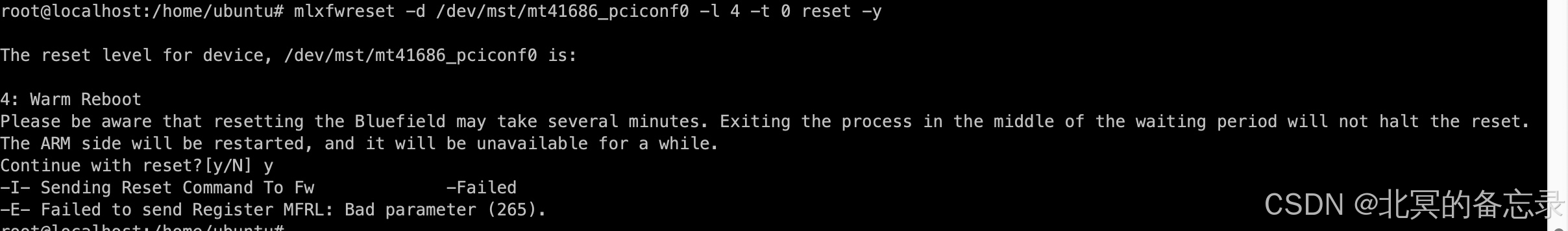

在这里插入图片描述

需要ipmitool对主机进行power cycle，会卡在启动界面

重启后问题

启动卡在initializing DDR

[root@localhost ~]# screen /dev/rshim0/console
screen: /lib64/libtinfo.so.6: no version information available (required by screen)
Mellanox BlueField-2 A1 BL1 V1.1
NOTICE:  No CDI passed to Riot core!
NOTICE:  BL2R: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2R: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2R built for hw (ver 1)
NOTICE:  BL2R: Booting BL2
NOTICE:  BL2: v2.2(release):4.8.0-41-gf0ff3a4
NOTICE:  BL2: Built : 15:50:28, Aug  7 2024
NOTICE:  BL2 built for hw (ver 1)
NOTICE:  Running as MBF2M345A-HESO system
NOTICE:  No SPD detected on MSS0 DIMM0
NOTICE:  No SPD detected on MSS0 DIMM1
NOTICE:  Finished initializing DDR
  Memory Device: 0 BIST Failed
 -----------------------------
 Error Address = 0x0
 Error Row = 0x0
 Error Column = 0x0
 Error Bank = 0x0 :
 Error Physical Rank = 0x0 :
 Error Logical Rank = 0x0 :
 Error Chunk = 0x0 :
 Number of errors = 0xff00519 :
 SRAM entry 0 = 0xf0 :

     Expected Data:
  [0x08] [0xf7] [0x08] [0xf7] [0xf7] [0xf7] [0x08] [0xf7] [0x08] [0x08] [0xf7] [0x08] [0xf7] [0x00] [0xf7] [0x00] [0x08] [0xff]
  [0x08] [0xff] [0x00] [0x00]  0x00  [0xf7]  0xff  [0xff] [0xff] [0x08] [0x08] [0xf7] [0x08] [0xf7] [0x08] [0xf7] [0x08] [0xf7]

     Error Data:
  [0x00] [0xdf] [0x00] [0xdf] [0x00] [0xbf] [0x00] [0xbf] [0x00] [0x7f] [0x00] [0x7f] [0xff] [0xfe] [0x01] [0xfe] [0xff] [0xfd]
  [0x00] [0xfd] [0xff] [0xfb]  0x00  [0xfb]  0xff  [0xf7] [0x00] [0xf7] [0xff] [0xef] [0x00] [0xef] [0xff] [0xdf] [0x00] [0xdf]
Byte 0: Expected 0x8(8) Received 0x0(0)
  DQ 3 (bit 3)  First Rising  (1 --> 0)
Byte 1: Expected 0xf7(247) Received 0xdf(223)
  DQ 3 (bit 11)  First Falling  (0 --> 1)
  DQ 5 (bit 13)  First Falling  (1 --> 0)
Byte 2: Expected 0x8(8) Received 0x0(0)
  DQ 3 (bit 19)  Second Rising  (1 --> 0)
Byte 3: Expected 0xf7(247) Received 0xdf(223)
  DQ 3 (bit 27)  Second Falling  (0 --> 1)
  DQ 5 (bit 29)  Second Falling  (1 --> 0)
Byte 4: Expected 0xf7(247) Received 0x0(0)
  DQ 8 (bit 32)  First Rising  (1 --> 0)
  DQ 9 (bit 33)  First Rising  (1 --> 0)
  DQ 10 (bit 34)  First Rising  (1 --> 0)
  DQ 12 (bit 36)  First Rising  (1 --> 0)
  DQ 13 (bit 37)  First Rising  (1 --> 0)
  DQ 14 (bit 38)  First Rising  (1 --> 0)
  DQ 15 (bit 39)  First Rising  (1 --> 0)
Byte 5: Expected 0xf7(247) Received 0xbf(191)
  DQ 11 (bit 43)  First Falling  (0 --> 1)
  DQ 14 (bit 46)  First Falling  (1 --> 0)
Byte 6: Expected 0x8(8) Received 0x0(0)
  DQ 11 (bit 51)  Second Rising  (1 --> 0)
Byte 7: Expected 0xf7(247) Received 0xbf(191)
  DQ 11 (bit 59)  Second Falling  (0 --> 1)
  DQ 14 (bit 62)  Second Falling  (1 --> 0)
Byte 8: Expected 0x8(8) Received 0x0(0)
  DQ 19 (bit 67)  First Rising  (1 --> 0)
Byte 9: Expected 0x8(8) Received 0x7f(127)
  DQ 16 (bit 72)  First Falling  (0 --> 1)
  DQ 17 (bit 73)  First Falling  (0 --> 1)
  DQ 18 (bit 74)  First Falling  (0 --> 1)
  DQ 20 (bit 76)  First Falling  (0 --> 1)
  DQ 21 (bit 77)  First Falling  (0 --> 1)
  DQ 22 (bit 78)  First Falling  (0 --> 1)
Byte 10: Expected 0xf7(247) Received 0x0(0)
  DQ 16 (bit 80)  Second Rising  (1 --> 0)
  DQ 17 (bit 81)  Second Rising  (1 --> 0)
  DQ 18 (bit 82)  Second Rising  (1 --> 0)
  DQ 20 (bit 84)  Second Rising  (1 --> 0)
  DQ 21 (bit 85)  Second Rising  (1 --> 0)
  DQ 22 (bit 86)  Second Rising  (1 --> 0)
  DQ 23 (bit 87)  Second Rising  (1 --> 0)
Byte 11: Expected 0x8(8) Received 0x7f(127)
  DQ 16 (bit 88)  Second Falling  (0 --> 1)
  DQ 17 (bit 89)  Second Falling  (0 --> 1)
  DQ 18 (bit 90)  Second Falling  (0 --> 1)
  DQ 20 (bit 92)  Second Falling  (0 --> 1)
  DQ 21 (bit 93)  Second Falling  (0 --> 1)
  DQ 22 (bit 94)  Second Falling  (0 --> 1)
Byte 12: Expected 0xf7(247) Received 0xff(255)
  DQ 27 (bit 99)  First Rising  (0 --> 1)
Byte 13: Expected 0x0(0) Received 0xfe(254)
  DQ 25 (bit 105)  First Falling  (0 --> 1)
  DQ 26 (bit 106)  First Falling  (0 --> 1)
  DQ 27 (bit 107)  First Falling  (0 --> 1)
  DQ 28 (bit 108)  First Falling  (0 --> 1)
  DQ 29 (bit 109)  First Falling  (0 --> 1)
  DQ 30 (bit 110)  First Falling  (0 --> 1)
  DQ 31 (bit 111)  First Falling  (0 --> 1)
Byte 14: Expected 0xf7(247) Received 0x1(1)
  DQ 25 (bit 113)  Second Rising  (1 --> 0)
  DQ 26 (bit 114)  Second Rising  (1 --> 0)
  DQ 28 (bit 116)  Second Rising  (1 --> 0)
  DQ 29 (bit 117)  Second Rising  (1 --> 0)
  DQ 30 (bit 118)  Second Rising  (1 --> 0)
  DQ 31 (bit 119)  Second Rising  (1 --> 0)
Byte 15: Expected 0x0(0) Received 0xfe(254)
  DQ 25 (bit 121)  Second Falling  (0 --> 1)
  DQ 26 (bit 122)  Second Falling  (0 --> 1)
  DQ 27 (bit 123)  Second Falling  (0 --> 1)
  DQ 28 (bit 124)  Second Falling  (0 --> 1)
  DQ 29 (bit 125)  Second Falling  (0 --> 1)
  DQ 30 (bit 126)  Second Falling  (0 --> 1)
  DQ 31 (bit 127)  Second Falling  (0 --> 1)
Byte 16: Expected 0x8(8) Received 0xff(255)
  DQ 32 (bit 128)  First Rising  (0 --> 1)
  DQ 33 (bit 129)  First Rising  (0 --> 1)
  DQ 34 (bit 130)  First Rising  (0 --> 1)
  DQ 36 (bit 132)  First Rising  (0 --> 1)
  DQ 37 (bit 133)  First Rising  (0 --> 1)
  DQ 38 (bit 134)  First Rising  (0 --> 1)
  DQ 39 (bit 135)  First Rising  (0 --> 1)
Byte 17: Expected 0xff(255) Received 0xfd(253)
  DQ 33 (bit 137)  First Falling  (1 --> 0)
Byte 18: Expected 0x8(8) Received 0x0(0)
  DQ 35 (bit 147)  Second Rising  (1 --> 0)
Byte 19: Expected 0xff(255) Received 0xfd(253)
  DQ 33 (bit 153)  Second Falling  (1 --> 0)
Byte 20: Expected 0x0(0) Received 0xff(255)
  DQ 40 (bit 160)  First Rising  (0 --> 1)
  DQ 41 (bit 161)  First Rising  (0 --> 1)
  DQ 42 (bit 162)  First Rising  (0 --> 1)
  DQ 43 (bit 163)  First Rising  (0 --> 1)
  DQ 44 (bit 164)  First Rising  (0 --> 1)
  DQ 45 (bit 165)  First Rising  (0 --> 1)
  DQ 46 (bit 166)  First Rising  (0 --> 1)
  DQ 47 (bit 167)  First Rising  (0 --> 1)
Byte 21: Expected 0x0(0) Received 0xfb(251)
  DQ 40 (bit 168)  First Falling  (0 --> 1)
  DQ 41 (bit 169)  First Falling  (0 --> 1)
  DQ 43 (bit 171)  First Falling  (0 --> 1)
  DQ 44 (bit 172)  First Falling  (0 --> 1)
  DQ 45 (bit 173)  First Falling  (0 --> 1)
  DQ 46 (bit 174)  First Falling  (0 --> 1)
  DQ 47 (bit 175)  First Falling  (0 --> 1)
Byte 23: Expected 0xf7(247) Received 0xfb(251)
  DQ 42 (bit 186)  Second Falling  (1 --> 0)
  DQ 43 (bit 187)  Second Falling  (0 --> 1)
Byte 25: Expected 0xff(255) Received 0xf7(247)
  DQ 51 (bit 203)  First Falling  (1 --> 0)
Byte 26: Expected 0xff(255) Received 0x0(0)
  DQ 48 (bit 208)  Second Rising  (1 --> 0)
  DQ 49 (bit 209)  Second Rising  (1 --> 0)
  DQ 50 (bit 210)  Second Rising  (1 --> 0)
  DQ 51 (bit 211)  Second Rising  (1 --> 0)
  DQ 52 (bit 212)  Second Rising  (1 --> 0)
  DQ 53 (bit 213)  Second Rising  (1 --> 0)
  DQ 54 (bit 214)  Second Rising  (1 --> 0)
  DQ 55 (bit 215)  Second Rising  (1 --> 0)
Byte 27: Expected 0x8(8) Received 0xf7(247)
  DQ 48 (bit 216)  Second Falling  (0 --> 1)
  DQ 49 (bit 217)  Second Falling  (0 --> 1)
  DQ 50 (bit 218)  Second Falling  (0 --> 1)
  DQ 51 (bit 219)  Second Falling  (1 --> 0)
  DQ 52 (bit 220)  Second Falling  (0 --> 1)
  DQ 53 (bit 221)  Second Falling  (0 --> 1)
  DQ 54 (bit 222)  Second Falling  (0 --> 1)
  DQ 55 (bit 223)  Second Falling  (0 --> 1)
Byte 28: Expected 0x8(8) Received 0xff(255)
  DQ 56 (bit 224)  First Rising  (0 --> 1)
  DQ 57 (bit 225)  First Rising  (0 --> 1)
  DQ 58 (bit 226)  First Rising  (0 --> 1)
  DQ 60 (bit 228)  First Rising  (0 --> 1)
  DQ 61 (bit 229)  First Rising  (0 --> 1)
  DQ 62 (bit 230)  First Rising  (0 --> 1)
  DQ 63 (bit 231)  First Rising  (0 --> 1)
Byte 29: Expected 0xf7(247) Received 0xef(239)
  DQ 59 (bit 235)  First Falling  (0 --> 1)
  DQ 60 (bit 236)  First Falling  (1 --> 0)
Byte 30: Expected 0x8(8) Received 0x0(0)
  DQ 59 (bit 243)  Second Rising  (1 --> 0)
Byte 31: Expected 0xf7(247) Received 0xef(239)
  DQ 59 (bit 251)  Second Falling  (0 --> 1)
  DQ 60 (bit 252)  Second Falling  (1 --> 0)
Byte 32: Expected 0x8(8) Received 0xff(255)
  CB 0 (bit 256)  First Rising  (0 --> 1)
  CB 1 (bit 257)  First Rising  (0 --> 1)
  CB 2 (bit 258)  First Rising  (0 --> 1)
  CB 4 (bit 260)  First Rising  (0 --> 1)
  CB 5 (bit 261)  First Rising  (0 --> 1)
  CB 6 (bit 262)  First Rising  (0 --> 1)
  CB 7 (bit 263)  First Rising  (0 --> 1)
Byte 33: Expected 0xf7(247) Received 0xdf(223)
  CB 3 (bit 267)  First Falling  (0 --> 1)
  CB 5 (bit 269)  First Falling  (1 --> 0)
Byte 34: Expected 0x8(8) Received 0x0(0)
  CB 3 (bit 275)  Second Rising  (1 --> 0)
Byte 35: Expected 0xf7(247) Received 0xdf(223)
  CB 3 (bit 283)  Second Falling  (0 --> 1)
  CB 5 (bit 285)  Second Falling  (1 --> 0)
ERROR:   DDR BIST POST failed!
ERROR:   Verify DDR s

下载地址

doca下载地址：
https://docs.nvidia.com/doca/sdk/nvidia+doca+documentation+archives/index.html

参考：
https://www.reddit.com/r/nvidia/comments/1davt4l/bluefield2_mbf2m345avenot_es_dpus/

https://forums.developer.nvidia.com/t/anyone-has-mbf2m345a-venot-es-ax-firmware/286358

NVIDIA DPU — 安装部署
烟云的计算
09-08 2022
BlueField boot stream file (BFB) 是用于启动 BlueField-2 DPU OS 的 Image file，包含了：DPU OS image、底层 BootLoader 代码、以及相应的 Drivers 套件。文档：https://docs.nvidia.com/doca/sdk/installation-guide/index.html#doca-dpi-installation。在 Server 上以 Ethernet 模式安装 DPU 硬件，详见《
NVIDIA DPU — BlueField DPU Hardware
烟云的计算
09-08 2045
BlueField DPU 嵌入了多种接口类型，主要分为 Console（Console Plane）和 Network（Data Plane）两大类。支持多种连接方式，包括：Network 连接、Console 连接、JTAG 连接。例如：ConnectX-6 Lx SmartNIC 充分利用了软件定义、硬件加速的引擎来扩展加速计算，将更多的安全和网络处理工作从 CPU 卸载到网卡上来。ConnectX 来自 NVIDIA Mellanox 的 ConnectX 系列 SmartNIC。
微知-如何通过rshim在host重启Bluefield DPU上的OS？如何进入BIOS？以及一些DPU的BIOS(echo ‘SW_RESET 1‘ ＞ /dev/rshim0/misc)
技术札记
10-08 1145
在Bluefield DPU中，经常需要重启设备，可以通过OOB带外，也可以ssh登录后reboot，也可以通过ipmitool指定ip，如果带外，ipmitool等都无法登录了，此时rshim通道的SW_RESET就是一个很好的重启方式?
Bluefiled DPU无法用rshim登录，不存在/dev/rshim处理办法？（yum install -y rshim，systemctl restart rshim）
技术札记
10-08 1406
登录Bluefield DPU可以使用ssh通过带外OOB登录，可以使用主机HOST上通过配置DPU的互通设备tmfifo_net0然后ssh登录，也可以通过rshim的console登录。本文将介绍使用rshim登录场景，主机host并没有rshim相关文件或服务的处理办法。
【DPU系列之】如何通过带外口登录到DPU上的ARM服务器？（Bluefield2举例）
技术札记
05-05 2216
连接前后在路由器的web端查看新增的设备，并获取IP地址：（可以通过MAC地址进一步确认，网卡的MAC地址在网卡的标签上）。DPU上的ARM服务器可以通过多种方式登录（rshim、IP、带外IP、BMC串口），本文主要记录通过BMC端口登录。可以看到CPU是ARM的A72，有1块芯片（socket），8核，支持32和64bit。需要把DPU的OOB、服务器、用户电脑都连接到同一网络。使用ssh登录到DPU，可以从server端登录，也可以用用户电脑直接登录。可以看到登录成功，另外可以看到oob的IP地址。
速记-BlueField DPU系统从DOCA 2.8升级到DOCA 2.9?(bfb-install --rshim rshim1 --bfb bf.*_prod.bfb -c bf.cfg)
技术札记
11-24 1160
在misc中看到。
【DPU系列之】BlueField DPU的3种工作模式，相互特点以及如何开启和关闭？（ECPF、Zero Trust、NIC；mlxprivhost r p q；mlxconfig；冷重启）
技术札记
05-05 4305
可以看到设置为p之后，ARM和HOST都具有特权。
如何让NVIDIA BlueField-2 DPU的Arm子系统连接至公网
Markchen7788的博客
06-27 376
【代码】如何让NVIDIA BlueField-2 DPU的Arm子系统连接至公网。
DPU环境配置
m0_52504912的博客
03-15 1277
NVIDIA DPU 环境配置
Nvidia BF3 DPU安装
你的问题在于，读书太少而想得太多。
04-25 2971
Nvidia BF3 DPU安装
Bluefield DPU user manual文档
10-08
BlueField DPU是Mellanox公司推出的一款数据处理器单元，旨在通过在数据路径中引入专用的智能处理能力，以提高数据中心的性能和效率。 BlueField DPU用户手册是为使用BlueField软件产品的客户提供的一份技术指南。...
NVIDIA BlueField DPU
11-10
NVIDIA BlueField DPU 官网Spec data processing unit (DPU) is a data center infrastructure on a chip optimized for traditional enterprise data processing unit (DPU) is a data center infrastructure on a ...
BlueField DPU Solutions 202104.pdf
01-11
关于Nvidia BlueField2最新介绍，涵盖DPU介绍、安全加速、存储加速、网络加速、裸金属云、bluefield 生态等主题。物超所值！
NVIDIA DPU — BlueField DPU Software
烟云的计算
09-07 1068
BlueField boot stream file (BFB) 是用于启动 BlueField-2 DPU OS 的 Image file，包含了：DPU OS image、底层 BootLoader 代码、以及相应的 Drivers 套件。BlueField DPU 由 ARM AArch64 processors 和 ConnectX network controller 这 2 大硬件芯片组成，各自也提供了相应的软件及相应的 API 接口。根据需要调整端口类型，可选 IB 和 Eth 类型。
模拟IC设计领域：环形振荡器与锁相环的设计、仿真及测试指南
04-28
内容概要：本文详细介绍了环形振荡器（Ring VCO）和锁相环（PLL）的设计、仿真与测试方法。针对初学者，提供了从基础电路理论到具体实操步骤的全面指导，涵盖了Cadence软件的使用、PSS/PNOISE仿真、调谐曲线绘制、相位噪声优化以及眼图调试等方面的内容。文中不仅讲解了基本概念和技术要点，还分享了许多实用的操作技巧和常见问题解决方案，如如何正确设置仿真参数、优化相位噪声、处理电源纹波等问题。此外，还附赠了一份详细的ADE_XL用户指南，帮助读者深入理解和掌握相关技术。 适合人群：对模拟IC设计感兴趣的初学者及有一定基础的研发人员。 使用场景及目标：①掌握环形振荡器的基本原理及其在Cadence中的仿真方法；②学会如何进行调谐曲线、相位噪声等关键性能指标的仿真与优化；③提高解决实际工程问题的能力，如电源纹波抑制、眼图调试等。 其他说明：本文特别强调了实践经验的重要性，鼓励读者动手实践并在实践中不断积累经验。同时提醒读者注意一些容易忽视但至关重要的细节，如仿真参数的选择和特殊条件下可能出现的问题。
【java】基于Java+Springboot+Vue的社区医院管理系统(源代码+数据库+万字论文).zip
04-28
【java】基于Java+Springboot+Vue的社区医院管理系统(源代码+数据库+万字论文).zip
scratch少儿编程逻辑思维游戏源码-大盗之魂.zip
04-28
scratch少儿编程逻辑思维游戏源码-大盗之魂.zip
scratch少儿编程逻辑思维游戏源码-弹跳猫.zip
04-28
scratch少儿编程逻辑思维游戏源码-弹跳猫.zip
scratch少儿编程逻辑思维游戏源码-城堡逃脱.zip
最新发布
04-28
scratch少儿编程逻辑思维游戏源码-城堡逃脱.zip
bluefield DPU芯片的架构是什么呢？
07-14
BlueField DPU（Data Processing Unit）是由NVIDIA开发的一种数据处理单元芯片。它采用了复杂的多核架构，其中包括ARM CPU核心、NVIDIA GPU核心以及专门的加速引擎。BlueField DPU的设计目标是为数据中心提供高度集成的数据处理和网络功能，以提高数据中心的性能和效率。 BlueField DPU的架构包括以下关键组件： 1. ARM CPU核心：该芯片集成了多个ARM Cortex-A系列CPU核心，用于处理通用计算任务和运行操作系统等。 2. NVIDIA GPU核心：BlueField DPU集成了NVIDIA的GPU核心，用于加速图形处理和通用并行计算任务。 3. 加速引擎：BlueField DPU还集成了多个硬件加速引擎，用于加速网络功能如虚拟化、加密解密、压缩解压缩等。 4. RDMA引擎：该引擎支持远程直接内存访问（RDMA），实现高性能的数据传输和存储访问。 5. 弹性可编程模块（Elastic Programmable Module）：这是一个可编程的硬件模块，可以根据应用需求进行定制和扩展。 总体而言，BlueField DPU的架构结合了通用计算、图形处理和专门加速引擎，以实现高集成度和高性能的数据处理和网络功能。
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
