Workflowcore等待外部事件

书接上回例子，Workflowcore通过事件，可以从外部输入数据到工作流中，我们把上回的例子改一改，SearchFolder，和FoderContains都从外部获得数据，工作流通过WaitFor等待事件，host.PublishEvent可以让工作流获得数据后，继续执行。修改SearchFilesWorkflow.cs文件。

using WorkflowCore.Interface;
using WorkflowCore.Models;
using WorkflowTest2.Models;

namespace WorkflowTest2.Workflow
{
    internal class SearchFilesWorkflow : IWorkflow<SearchFiles>
    {
        public string Id => "Searchfiles";

        public int Version => 1;

        public void Build(IWorkflowBuilder<SearchFiles> builder)
        {
            builder
                .StartWith(context=>ExecutionResult.Next())
                .WaitFor("inputFolder",(data,context)=>context.Workflow.Id,data=>DateTime.Now)
                .Output(data=>data.SearchFolder,step=>step.EventData)
                .Then<Search_StepBody>()
                .Input(step => step.SearchFolder, data => data.SearchFolder)
                .Output(data => data.Files, step => step.SearchFiles)
                .WaitFor("inputFolderContains",(data,context)=>context.Workflow.Id, data=>DateTime.Now)
                .Output(data=>data.FolderContains,step=>step.EventData)
                .Then<FolderContains_StepBody>()
                .Input(step => step.InputFiles, data => data.Files)
                .Input(step => step.FolderContains, data => data.FolderContains)
                .Output(data => data.Files, step => step.OutputFiles);
        }
    }
}

WaitFor第一个参数是 事件名称，第二个是事件Key，事件Key可以任意取名，在这里用的是工作流的Id，data=>"1"这样也是可以的。

修改Program.cs文件

using Microsoft.Extensions.DependencyInjection;
using WorkflowCore.Interface;
using WorkflowTest2.Models;
using WorkflowTest2.Workflow;

namespace WorkflowTest2
{
    internal class Program
    {
        static void Main(string[] args)
        {
            var provider = ConfigureServices();
            var host = provider.GetService<IWorkflowHost>();
            host.RegisterWorkflow<SearchFilesWorkflow, SearchFiles>();
            var searchFiles = new SearchFiles(){ Files = new List<SearchFile>(),FolderContains="" };
            host.Start();
            var workflowId = host.StartWorkflow("Searchfiles", searchFiles).Result;

            Console.WriteLine("请输入搜索文件夹名称：");
            string folderName = Console.ReadLine();
            host.PublishEvent("inputFolder", workflowId, folderName);

            Console.WriteLine("请输入包含文件夹名称：");
            folderName = Console.ReadLine();
            host.PublishEvent("inputFolderContains", workflowId, folderName);

            Console.ReadLine();
            Console.WriteLine($"总项数： {searchFiles.Files.Count}");
            searchFiles.Files.ForEach(f => Console.WriteLine($"{f.FullName}  => {f.IsDirectory}"));

            Console.WriteLine("结束..");
            host.Stop();
        }

        private static IServiceProvider ConfigureServices()
        {
            IServiceCollection services = new ServiceCollection();
            services.AddLogging();
            services.AddWorkflow();
            return services.BuildServiceProvider();
        }
    }
}

host.PublishEvent第一个参数是事件名称，第二个参数是事件Key，要和定义时一致，第三个就是输入的参数。

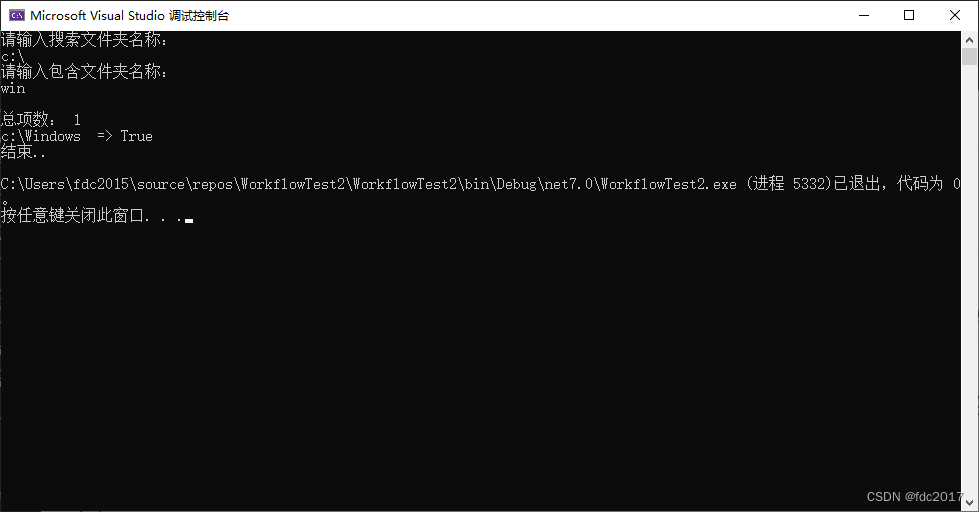

运行结果

 在实际工作中，在ERP流程中，从材料库中取出某材料下订单时，需要上级领导审核，审核通过后工作流再继续，所以用的场景还是很多的。
