BFD(BidirectionalForwardingDetection)双向转发检测，用于快速检测、监控网络中链路或者IP路由的转发连通状况，保证邻居之间能够快速检测到通信故障，从而快速建立起备用通道恢复通信。

bfd协议详细信息可以参考RFC 5880，也可以参考这篇文章，这里只讲述在ovs中bfd的实现。

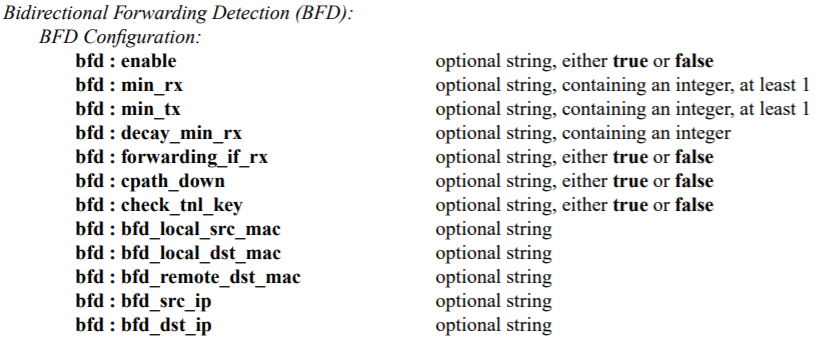

ovs支持的bfd的参数可从ovsdb定义查到，如下所示，每个字段有详细的解释。


下面挑几个重要的字段翻译一下

bfd:enable bfd是设置在interface上的，设置为true使能bfd，默认是关闭bfd的。
bfd:min_rx 本端bfd session期望接收bfd报文的最小间隔，单位毫秒，默认值1000。
bfd:min_tx 本端bfd session期望发送bfd报文的最小间隔，单位毫秒，默认值100。
bfd:bfd_local_src_mac 本端发送bfd报文的源mac地址，如果不指定，则默认使用interface的mac地址。
bfd:bfd_local_dst_mac 本端发送bfd报文的目的mac地址，如果不指定，则默认使用00:23:20:00:00:01。
bfd:bfd_remote_dst_mac 用于检测接收到的对端发送bfd报文的目的mac。如果配置了，则目的mac必须是配置的值，如果没配置，则不做检查。
bfd:bfd_src_ip 本端发送bfd报文的源ip，如果不指定，则默认使用169.254.1.1。
bfd:bfd_dst_ip 本端发送bfd报文的目的ip，如果不指定，则默认使用169.254.1.0。

bfd配置

使用如下命令使能bfd，查看bfd配置，查看bfd状态，抓取bfd报文

//查看当前ovs的配置
root@master:~# ovs-vsctl show
163a03bf-8b1b-4043-8d37-8b2287bf94fe
    Bridge "br1"
        Port "br1"
            Interface "br1"
                type: internal
        Port "ens8"
            Interface "ens8"

//在ens8接口上使能bfd
root@master:~# ovs-vsctl set interface ens8 bfd:enable=true
//查看bfd配置，注意bfd_status不是配置的，而是实时反映interface的状态
root@master:~# ovs-vsctl list interface ens8
_uuid               : 1b7b107b-f54e-44a5-85d2-41b2ea337549
admin_state         : up
bfd                 : {enable="true"}
bfd_status          : {diagnostic="No Diagnostic", flap_count="0", forwarding="false", remote_diagnostic="No Diagnostic", remote_state=down, state=down}

//查看bfd session协议状态，包含本端和对端情况
root@master:~# ovs-appctl bfd/show
---- ens8 ----
        Forwarding: false
        Detect Multiplier: 3
        Concatenated Path Down: false
        TX Interval: Approx 1000ms
        RX Interval: Approx 1000ms
        Detect Time: now -1168912259ms
        Next TX Time: now +478ms
        Last TX Time: now -432ms

        Local Flags: none
        Local Session State: down
        Local Diagnostic: No Diagnostic
        Local Discriminator: 0x2ca43608
        Local Minimum TX Interval: 1000ms
        Local Minimum RX Interval: 1000ms

        Remote Flags: none
        Remote Session State: down
        Remote Diagnostic: No Diagnostic
        Remote Discriminator: 0x0
        Remote Minimum TX Interval: 0ms
        Remote Minimum RX Interval: 1ms
        Remote Detect Multiplier: 0

//在interface ens8上可抓到bfd报文，源mac为ens8的mac，目的mac,源ip和目的ip都为默认值。
root@master:~# tcpdump -vne -i ens8
tcpdump: listening on ens8, link-type EN10MB (Ethernet), capture size 262144 bytes
10:16:18.348154 52:54:00:9e:98:20 > 00:23:20:00:00:01, ethertype IPv4 (0x0800), length 66: (tos 0x18, ttl 255, id 0, offset 0, flags [none], proto UDP (17), length 52)
    169.254.1.1.49154 > 169.254.1.0.3784: BFDv1, length: 24
        Control, State Down, Flags: [none], Diagnostic: No Diagnostic (0x00)
        Detection Timer Multiplier: 3 (3000 ms Detection time), BFD Length: 24
        My Discriminator: 0x2ca43608, Your Discriminator: 0x00000000
          Desired min Tx Interval:    1000 ms
          Required min Rx Interval:   1000 ms
          Required min Echo Interval:    0 ms

下面尝试修改源ip和源mac，查看是否生效

root@master:~# ovs-vsctl set interface ens8 bfd:bfd_src_ip=10.10.10.1
root@master:~# ovs-vsctl set interface ens8 bfd:bfd_local_src_mac=00:00:00:00:00:01

root@master:~# ovs-vsctl list interface ens8
_uuid               : 1b7b107b-f54e-44a5-85d2-41b2ea337549
admin_state         : up
bfd                 : {bfd_local_src_mac="00:00:00:00:00:01", bfd_src_ip="10.10.10.1", bfd_src_mac="00:00:00:00:00:01", enable="true"}
bfd_status          : {diagnostic="No Diagnostic", flap_count="0", forwarding="false", remote_diagnostic="No Diagnostic", remote_state=down, state=down}

//从抓包内容可看到，源ip和mac已经生效
root@master:~# tcpdump -vne -i ens8
tcpdump: listening on ens8, link-type EN10MB (Ethernet), capture size 262144 bytes
10:26:33.537711 00:00:00:00:00:01 > 00:23:20:00:00:01, ethertype IPv4 (0x0800), length 66: (tos 0x18, ttl 255, id 0, offset 0, flags [none], proto UDP (17), length 52)
    10.10.10.1.49154 > 169.254.1.0.3784: BFDv1, length: 24
        Control, State Down, Flags: [none], Diagnostic: No Diagnostic (0x00)
        Detection Timer Multiplier: 3 (3000 ms Detection time), BFD Length: 24
        My Discriminator: 0x2ca43608, Your Discriminator: 0x00000000
          Desired min Tx Interval:    1000 ms
          Required min Rx Interval:   1000 ms
          Required min Echo Interval:    0 ms

将对端bfd也使能后，查看本端bfd状态，Forwarding已经变为true

root@master:~# ovs-appctl bfd/show
---- ens8 ----
        Forwarding: true
        Detect Multiplier: 3
        Concatenated Path Down: false
        TX Interval: Approx 1000ms
        RX Interval: Approx 1000ms
        Detect Time: now +2201ms
        Next TX Time: now +276ms
        Last TX Time: now -604ms

        Local Flags: none
        Local Session State: up
        Local Diagnostic: No Diagnostic
        Local Discriminator: 0x2ca43608
        Local Minimum TX Interval: 100ms
        Local Minimum RX Interval: 1000ms

        Remote Flags: none
        Remote Session State: up
        Remote Diagnostic: No Diagnostic
        Remote Discriminator: 0xb732dbb8
        Remote Minimum TX Interval: 100ms
        Remote Minimum RX Interval: 1000ms
        Remote Detect Multiplier: 3

源码分析

bfd配置
配置bfd流程如下，在bfd_configure中会解析bfd配置。
ofproto_port_set_bfd -> set_bfd -> bfd_configure
解析配置后，会调用 ofproto_dpif_monitor_port_update，此函数会判断如果配置了bfd，启动新线程用来发送bfd报文。

//如果有bfd,lldp或者cfm配置了，则需要启动 monitor 线程，执行bfd,lldp或者cfg相关操作
//如果 monitor 线程已经运行了，但是bfd,lldp和cfm的配置为空了，则需要删除monitor线程
/* Creates the mport in monitor module if either bfd or cfm
 * is configured.  Otherwise, deletes the mport.
 * Also checks whether the monitor thread should be started
 * or terminated. */
void
ofproto_dpif_monitor_port_update(const struct ofport_dpif *ofport,
                                 struct bfd *bfd, struct cfm *cfm,
                                 struct lldp *lldp,
                                 const struct eth_addr *hw_addr)
{
    ovs_mutex_lock(&monitor_mutex);
    if (!cfm && !bfd && !lldp) {
        mport_unregister(ofport);
    } else {
        mport_register(ofport, bfd, cfm, lldp, hw_addr);
            struct mport *mport = mport_find(ofport);
            if (!mport) {
                mport = xzalloc(sizeof *mport);
                mport->ofport = ofport;
                hmap_insert(&monitor_hmap, &mport->hmap_node, hash_pointer(ofport, 0));
                heap_insert(&monitor_heap, &mport->heap_node, 0);
            }
            mport_update(mport, bfd, cfm, lldp, hw_addr);
    }
    ovs_mutex_unlock(&monitor_mutex);

    /* If the monitor thread is not running and the hmap
     * is not empty, starts it.  If it is and the hmap is empty,
     * terminates it. */
    if (!monitor_running && !hmap_is_empty(&monitor_hmap))  {
        latch_init(&monitor_exit_latch);
        //启动线程
        monitor_tid = ovs_thread_create("monitor", monitor_main, NULL);
        monitor_running = true;
    } else if (monitor_running && hmap_is_empty(&monitor_hmap))  {
        latch_set(&monitor_exit_latch);
        xpthread_join(monitor_tid, NULL);
        latch_destroy(&monitor_exit_latch);
        monitor_running = false;
    }
}

发送bfd报文
发送bfd报文的工作由上面启动的线程处理，可以通过top -H -p pid来查看，如下monitor68

Threads:   7 total,   0 running,   7 sleeping,   0 stopped,   0 zombie
%Cpu(s):  0.0 us,  0.0 sy,  0.0 ni,100.0 id,  0.0 wa,  0.0 hi,  0.0 si,  0.0 st
MiB Mem :   7961.7 total,    325.6 free,    638.5 used,   6997.6 buff/cache
MiB Swap:      0.0 total,      0.0 free,      0.0 used.   7036.0 avail Mem

  PID USER      PR  NI    VIRT    RES    SHR S  %CPU  %MEM     TIME+ COMMAND
  319 root      20   0  448212   5708   3416 S   0.0   0.1   4:08.92 ovs-vswitchd
  346 root      20   0  448212   5708   3416 S   0.0   0.1   0:00.31 urcu4
  518 root      20   0  448212   5708   3416 S   0.0   0.1   0:00.02 handler67
  519 root      20   0  448212   5708   3416 S   0.0   0.1   0:02.11 handler64
  520 root      20   0  448212   5708   3416 S   0.0   0.1   0:07.69 revalidator66
  521 root      20   0  448212   5708   3416 S   0.0   0.1   0:05.06 revalidator65
 1622 root      20   0  448212   5708   3416 S   0.0   0.1   0:10.25 monitor68

此线程首先调用 bfd_put_packet，根据配置构造bfd报文


void
bfd_put_packet(struct bfd *bfd, struct dp_packet *p,
               const struct eth_addr eth_src, bool *oam) OVS_EXCLUDED(mutex)
{
    long long int min_tx, min_rx;
    struct udp_header *udp;
    struct eth_header *eth;
    struct ip_header *ip;
    struct msg *msg;

    ovs_mutex_lock(&mutex);
    if (bfd->next_tx) {
        long long int delay = time_msec() - bfd->next_tx;
        long long int interval = bfd_tx_interval(bfd);
        if (delay > interval * 3 / 2) {
            VLOG_INFO("%s: long delay of %lldms (expected %lldms) sending BFD"
                      " control message", bfd->name, delay, interval);
        }
    }

    /* RFC 5880 Section 6.5
     * A BFD Control packet MUST NOT have both the Poll (P) and Final (F) bits
     * set. */
    ovs_assert(!(bfd->flags & FLAG_POLL) || !(bfd->flags & FLAG_FINAL));

    dp_packet_reserve(p, 2); /* Properly align after the ethernet header. */
    eth = dp_packet_put_uninit(p, sizeof *eth);
    eth->eth_src = eth_addr_is_zero(bfd->local_eth_src)
        ? eth_src : bfd->local_eth_src;
    eth->eth_dst = eth_addr_is_zero(bfd->local_eth_dst)
        ? eth_addr_bfd : bfd->local_eth_dst;
    eth->eth_type = htons(ETH_TYPE_IP);

    ip = dp_packet_put_zeros(p, sizeof *ip);
    ip->ip_ihl_ver = IP_IHL_VER(5, 4);
    ip->ip_tot_len = htons(sizeof *ip + sizeof *udp + sizeof *msg);
    ip->ip_ttl = MAXTTL;
    ip->ip_tos = IPTOS_LOWDELAY | IPTOS_THROUGHPUT;
    ip->ip_proto = IPPROTO_UDP;
    put_16aligned_be32(&ip->ip_src, bfd->ip_src);
    put_16aligned_be32(&ip->ip_dst, bfd->ip_dst);
    /* Checksum has already been zeroed by put_zeros call. */
    ip->ip_csum = csum(ip, sizeof *ip);

    udp = dp_packet_put_zeros(p, sizeof *udp);
    udp->udp_src = htons(bfd->udp_src);
    udp->udp_dst = htons(BFD_DEST_PORT);
    udp->udp_len = htons(sizeof *udp + sizeof *msg);

    msg = dp_packet_put_uninit(p, sizeof *msg);
    msg->vers_diag = (BFD_VERSION << 5) | bfd->diag;
    msg->flags = (bfd->state & STATE_MASK) | bfd->flags;

    msg->mult = bfd->mult;
    msg->length = BFD_PACKET_LEN;
    msg->my_disc = htonl(bfd->disc);
    msg->your_disc = htonl(bfd->rmt_disc);
    msg->min_rx_echo = htonl(0);

    if (bfd_in_poll(bfd)) {
        min_tx = bfd->poll_min_tx;
        min_rx = bfd->poll_min_rx;
    } else {
        min_tx = bfd_min_tx(bfd);
        min_rx = bfd->min_rx;
    }

    msg->min_tx = htonl(min_tx * 1000);
    msg->min_rx = htonl(min_rx * 1000);

    bfd->flags &= ~FLAG_FINAL;
    *oam = bfd->oam;

    log_msg(VLL_DBG, msg, "Sending BFD Message", bfd);

    bfd->last_tx = time_msec();
    bfd_set_next_tx(bfd);
    ovs_mutex_unlock(&mutex);
}

再调用 ofproto_dpif_send_packet 将bfd报文发送出去，流程如下:

ofproto_dpif_send_packet -> xlate_send_packet -> ofproto_dpif_execute_actions -> ofproto_dpif_execute_actions__ -> dpif_execute -> dpif_operate
dpif_operate根据datapath类型调用不同的函数，将报文最终发送出去。
接收bfd报文
bfd等协议报文都是由ovs的slow path处理的。
第一个bfd报文查找fast path流表失败后，会上送slow path进行处理，代码流程如下:

#第一个bfd报文处理路径
dp_netdev_process_rxq_port
    //接收报文
    netdev_rxq_recv
    //处理报文
    dp_netdev_input
        dp_netdev_input__
            //查找emc失败后，查fast path
            emc_processing
            //查fast path失败后，查slow path
            fast_path_processing
                //slow path的处理
                handle_packet_upcall
                    dp_netdev_upcall
                        upcall_cb
                            process_upcall
                                upcall_xlate
                                    xlate_actions
                                        //处理bfd报文
                                        process_special
                                    //对于bfd报文，需要安装flow，action为userspace，表示需要slow path处理
                                    compose_slow_path
                                        cookie.type = USER_ACTION_COOKIE_SLOW_PATH;
                                        cookie.slow_path.unused = 0;
                                        cookie.slow_path.reason = xout->slow;
                                        //OVS_ACTION_ATTR_USERSPACE
                                        odp_put_userspace_action
                    //此处只有正常action的处理，不包含slow-path的处理
                    dp_netdev_execute_actions
                    //将flow安装到fast path
                    dp_netdev_flow_add
                    //将flow安装到emc
                    emc_probabilistic_insert(pmd, key, netdev_flow);

bfd首包处理完后，就会安装流表到emc和fast path，可通过如下命令查询(只能查到fast path流表，emc的看不到)

root@master:~# ovs-appctl dpctl/dump-flows
recirc_id(0),in_port(2),eth_type(0x0800),ipv4(proto=17,frag=no),udp(dst=3784), packets:15818, bytes:1043988, used:0.004s, actions:userspace(pid=2898884630,slow_path(bfd))

后续bfd报文都会匹配上面的流表，执行action，即上送slow path处理，代码流程如下

#后续bfd报文处理路径
dp_netdev_process_rxq_port
    //接收报文
    netdev_rxq_recv
    //处理报文
    dp_netdev_input
        dp_netdev_input__
            //查找emc流表，成功，不用再查fast path
            emc_processing
            //不用查fast path。但是emc流表一般只有8k，如果流很多的话，可能还得查找fast path
            fast_path_processing
            //执行流表的action
            packet_batch_per_flow_execute
                dp_netdev_execute_actions
                    odp_execute_actions
                        //上送userspace
                        dp_execute_cb
                            OVS_ACTION_ATTR_USERSPACE
                                dp_execute_userspace_action
                                    //userdata不为空
                                    dp_netdev_upcall
                                        upcall_cb
                                            process_upcall
                                                upcall_xlate
                                                    xlate_actions
                                                       //最终也是调用到process_special处理bfd报文
                                                        process_special

从上面流程可知，不管bfd报文走的是slow path，还是后面的fast path，最终都会调用 process_special处理bfd报文。
首先调用bfd_should_process_flow判断是否是bfd报文，只有满足条件了才认为是bfd报文。

bool
bfd_should_process_flow(const struct bfd *bfd_, const struct flow *flow,
                        struct flow_wildcards *wc)
{
    struct bfd *bfd = CONST_CAST(struct bfd *, bfd_);
    //如果配置了 bfd:bfd_remote_dst_mac，则需要检查收到的bfd报文的目的mac是否和配置的一样，不一样就不处理
    if (!eth_addr_is_zero(bfd->rmt_eth_dst)) {
        memset(&wc->masks.dl_dst, 0xff, sizeof wc->masks.dl_dst);

        if (!eth_addr_equals(bfd->rmt_eth_dst, flow->dl_dst)) {
            return false;
        }
    }
    //报文类型必须是ipv4
    if (flow->dl_type == htons(ETH_TYPE_IP)) {
        memset(&wc->masks.nw_proto, 0xff, sizeof wc->masks.nw_proto);
        //必须是udp报文
        if (flow->nw_proto == IPPROTO_UDP && !(flow->nw_frag & FLOW_NW_FRAG_LATER)) {
            memset(&wc->masks.tp_dst, 0xff, sizeof wc->masks.tp_dst);
            //udp报文目的端口号必须是3784
            if (flow->tp_dst == htons(BFD_DEST_PORT)) {
                bool check_tnl_key;
                //如果配置了 check_tnl_key，tunnle id必须是0
                atomic_read_relaxed(&bfd->check_tnl_key, &check_tnl_key);
                if (check_tnl_key) {
                    memset(&wc->masks.tunnel.tun_id, 0xff,
                           sizeof wc->masks.tunnel.tun_id);
                    return flow->tunnel.tun_id == htonll(0);
                }
                return true;
            }
        }
    }
    return false;
}

认定是bfd报文后，调用 bfd_process_packet 处理bfd报文。

也可参考：ovs bfd - 简书 (jianshu.com)
