写此文章,一是积累一下知识,二也是因为某个项目要求在10.6上运行,但由于10.6的NSTableView只支持Cell-Base。因此想与iphone一样,把一些视图addsubview来说就要走点弯路了。在10.7下就可以完全使用view-base来实现。对于view来说,大家都用得很顺手了,想什么画什么,add一下就OK了,但基于cell-base 的row cell,你还使用addview吗?要想了解CELL 就得先了解一下NSCell,这个是Cell的祖宗了,在mac os中各个控件基本上都有一个cell,而这些cell都是从NSCell派生出来。如果不清楚建议先了解一下。
下面重点回到tableView上,讲一下在cell-base上碰到的问题,及解决方式,如果还有更好的,请高人指点。
question:
1.如何自定义绘制某列某行的表格显示自己想要的样式?
2.如何锁定指定的行不允行选中或修改?
3.如何当鼠标进入到指定的cell中进行触发事件?
4.如何实现NSTableView的动态高度?并随列的大小改变而自动设置高度?
5.如何更改选中的行的高亮色?
6.如何可以进行选择自定义cell中的文字进行选中操作?
7.如何实现Cell中的文字高亮部分显示?
NSTableView 的代码Create部分:
NSScrollView * tableContainer = [[NSScrollView alloc] initWithFrame:NSMakeRect(10, 10, 560, 540)];
FSHighlightTableView * tableView = [[FSHighlightTableView alloc] initWithFrame:NSMakeRect(0, 0, 544, 540)];
// create tableview style
//设置水平,坚直线
[tableView setGridStyleMask:NSTableViewSolidVerticalGridLineMask | NSTableViewSolidHorizontalGridLineMask];
//线条色
[tableView setGridColor:[NSColor redColor]];
//设置背景色
[tableView setBackgroundColor:[NSColor greenColor]];
//设置每个cell的换行模式,显不下时用...
[[tableView cell]setLineBreakMode:NSLineBreakByTruncatingTail];
[[tableView cell]setTruncatesLastVisibleLine:YES];
[tableView sizeLastColumnToFit];
[tableView setColumnAutoresizingStyle:NSTableViewUniformColumnAutoresizingStyle];
//[tableView setAllowsTypeSelect:YES];
//设置允许多选
[tableView setAllowsMultipleSelection:NO];
[tableView setAllowsExpansionToolTips:YES];
[tableView setAllowsEmptySelection:YES];
[tableView setAllowsColumnSelection:YES];
[tableView setAllowsColumnResizing:YES];
[tableView setAllowsColumnReordering:YES];
//双击
[tableView setDoubleAction:@selector(ontableviewrowdoubleClicked:)];
[tableView setAction:@selector(ontablerowclicked:)];
//选中高亮色模式
//显示背景色
[tableView setSelectionHighlightStyle:NSTableViewSelectionHighlightStyleRegular];
//会把背景色去掉
//[tableView setSelectionHighlightStyle:NSTableViewSelectionHighlightStyleSourceList];
//NSTableViewSelectionHighlightStyleNone
//不需要列表头
//[tableView setHeaderView:nil];
//使用隐藏的效果会出现表头的高度
//[tableView.headerView setHidden:YES];
// create columns for our table
NSTableColumn * column1 = [[NSTableColumn alloc] initWithIdentifier:@"col1"];
[column1.headerCell setTitle:@"第一列"];
//[column1 setResizingMask:NSTableColumnAutoresizingMask];
NSTableColumn * column2 = [[NSTableColumn alloc] initWithIdentifier:@"col2"];
[column2.headerCell setTitle:@"第二列"];
//[column2 setResizingMask:NSTableColumnAutoresizingMask];
[column1 setWidth:250];
[column2 setWidth:250];
// generally you want to add at least one column to the table view.
[tableView addTableColumn:column1];
[tableView addTableColumn:column2];
[tableView setDelegate:self];
[tableView setDataSource:self];
// embed the table view in the scroll view, and add the scroll view to our window.
[tableContainer setDocumentView:tableView];
[tableContainer setHasVerticalScroller:YES];
[tableContainer setHasHorizontalScroller:YES];
[self addSubview:tableContainer];
[tableContainer release];
[tableView release];
[column1 release];
[column2 release];
上述代码是创建一个二列的table(本人不太习G使用IB来弄UI)。
再来看一下代理。
关键的:
- (CGFloat)tableView:(NSTableView *)tableView heightOfRow:(NSInteger)row
{
NSTableColumn *column = [[tableView tableColumns] objectAtIndex:0];
NSCell *dycell = [tableView preparedCellAtColumn:0 row:row];
NSRect cellBounds = NSZeroRect;
cellBounds.size.width = [column width]; cellBounds.size.height = FLT_MAX;
NSSize cellSize = [dycell cellSizeForBounds:cellBounds];
return cellSize.height;
}
- (NSInteger)numberOfRowsInTableView:(NSTableView *)tableView
{
return listData.count;
}
- (id)tableView:(NSTableView *)tableView objectValueForTableColumn:(NSTableColumn *)tableColumn row:(NSInteger)row
{
return [listData objectAtIndex:row];
}
- (NSCell *)tableView:(NSTableView *)tableView dataCellForTableColumn:(NSTableColumn *)tableColumn row:(NSInteger)row
{
if ([tableColumn.identifier isEqualToString:@"col1"]) {
FSDyHeightCell *dycell = [[[FSDyHeightCell alloc]init]autorelease];
dycell.display = [listData objectAtIndex:row];
return dycell;
} //一定要写判断条件,原来只有一个else 显示的不对,不写的话永远不会进第一列
// else if ([tableColumn.identifier isEqualToString:@"col2"])
// {
// FSCell *customCell = [[[FSCell alloc]init]autorelease];
//
// [customCell setSelectionBKColor:[NSColor lightGrayColor]];
// [customCell setSelectionFontColor:[NSColor redColor]];
// return customCell;
// }
return nil;
}
看起来是不是有点像iphone的tableView呀。确实有点,不过mac的有列的概念了。其实这几个代理就可以基本的把数据显示出来。这没有什么好奇怪的。但要对每个cell进行一些功能的扩展或自定义,这就需要费时了。
问题1:先看一下未定义之前,NSTableView为我们默认创建了一个NSTextFieldCell的对象来进行显示数据,
很简单的数据显示,但往往我们有时需要在某个表格中有图,有字显然NSTextFieldCell是不够的了,可以参考一下官网提供的ImageAndTextCell 。另外我们也可以自己从NSCell派生下来,自己实现NSCell的
- (void)drawWithFrame:(NSRect)cellFrame inView:(NSView *)controlView;方法,使用这个方法draw时可以按照自己的想法把图,文等都可以draw上去,但这个就需要有点CGGraphics 的功底了。这个方法还有一点要注意的就是cellFrame 的y轴坐标,这个坐标是一个y轴的偏移坐标。因此在使用这个来draw东东时,rect的y轴一定要跟着变,否则你看到的只有一行数据,大家都积在同一坐标点上了,另外,这个y的值会把grid的线条宽加在内,比如每行之间线条是1,哪么在第10行的时候,中间隔了9条线,哪么第10行的y的偏移会是9行的高度+8行的线行宽度的值作为第10行的起始偏移点,这个大家体会一下吧,可能我描术的不是很清楚。

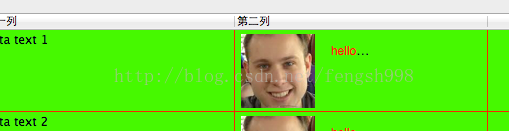

如图中,我自己将第二列进行自定义,当然这个大家可以按自己的需要进行绘制。贴下简单的码:
- (void)drawWithFrame:(NSRect)cellFrame inView:(NSView *)controlView
{
//选中高亮色这种只能改变某个Cell的背景色不能整行改变
if ([self isHighlighted]) {
[self highlightColorWithFrame:cellFrame inView:controlView];
}
NSColor* primaryColor = [self isHighlighted] ? [NSColor alternateSelectedControlTextColor] : [NSColor textColor];
NSDictionary* primaryTextAttributes = [NSDictionary dictionaryWithObjectsAndKeys: primaryColor, NSForegroundColorAttributeName,
[NSFont systemFontOfSize:13], NSFontAttributeName, nil];
NSMutableAttributedString *string = [[[NSMutableAttributedString alloc]initWithString:@"hello world" attributes:primaryTextAttributes]autorelease];
[string setAttributes:@{NSForegroundColorAttributeName:[NSColor redColor]} range:NSMakeRange(0, 5)];
//[string drawAtPoint:NSMakePoint(cellFrame.origin.x+cellFrame.size.height+10, cellFrame.origin.y+20)];
//用下面这个可以使用省略属性
NSMutableParagraphStyle *ps = [[NSParagraphStyle defaultParagraphStyle] mutableCopy];
[ps setLineBreakMode:NSLineBreakByTruncatingTail];
NSRange range = NSMakeRange(0, [string length]);
[string addAttribute:NSParagraphStyleAttributeName value:ps range:range];
[ps release];
[string drawInRect:NSMakeRect(cellFrame.origin.x+cellFrame.size.height+15, cellFrame.origin.y+10,40,15)];
NSImage *icon = [NSImage imageNamed:@"1"];
//icon = [self roundCorners:icon];圆形
//这句很重要,如果没有Y轴的移偏,看到的只有第一行有头像
float yOffset = cellFrame.origin.y;
[icon drawInRect:NSMakeRect(cellFrame.origin.x+5,yOffset + 3,cellFrame.size.height-6, cellFrame.size.height-6)
fromRect:NSMakeRect(0,0,[icon size].width, [icon size].height)
operation:NSCompositeSourceOver
fraction:1.0 respectFlipped:YES hints:nil];
}
问题二:有时候在工作中,我们对满足某一条件的行或列进行锁定,不让用户进行编辑或随意拖动。
这个稍有点简单,主要是利用下面的代理来完成之。
/*==========================================================================================
* 设置某行是否可以被选中,返回YES,则可以选中,返回NO 则不可选中,即没有高亮选中
* 用于控制某一行是否可以被选中,前提是selectionShouldChangeInTableView:必须返回YES
*===========================================================================================*/
- (BOOL)tableView:(NSTableView *)tableView shouldSelectRow:(NSInteger)row
{
if (row == 2)
{
return NO;
}
return YES;
}
- (NSIndexSet *)tableView:(NSTableView *)tableView selectionIndexesForProposedSelection:(NSIndexSet *)proposedSelectionIndexes
{
return proposedSelectionIndexes;
}
- (BOOL)tableView:(NSTableView *)tableView shouldSelectTableColumn:(NSTableColumn *)tableColumn
{
if ([tableColumn.identifier isEqualToString:kMCButtontColumnID]) {
return YES;
}
return NO;
}
问题三:这个问题上需要费点劲,为什么呢,如果做 MAC 的话你会发现,NSView是不会自动响应MouseMove事件的,同时NSTableView也不会自动响应MouseMove事件的。况且现在是Cell-base没有View.本想利用NSView上的鼠标事件来实现移出移入单元格的思路也被卡掉了。哪么就没有办法了吗?办法总是有的,只是好用不好用,易用不易用罢了,下面我说下我的实现思路,如果有MAC高手发现不对就指教了。
1。让tableView支持mouseMove事件。
2。想办法把mouseMove事件中的鼠标坐标点转换为tableView对应的行和列。
先解决第一点,要想有mouseMove事件,先得让tableView有焦点。有时候自己手工创建的tableView 由于窗口上有好多View而使得tableView当前不在焦点上,因此可以借住第一响就这个方式来使之成为第一响应。
- (void)focus:(NSWindow *) owner
{
[owner makeFirstResponder:m_tableView];
}
其次还必须把NSTableView 的接受鼠标事件开启:
[m_tableView.window setAcceptsMouseMovedEvents:YES];
好,现在NSTableView有鼠标移动事件了,现在关键是确定鼠标移动点是在哪一行和列上,细看NSTableView的接口你会发现有这样两个方法:
/* Returns the column index at 'point', or -1 if 'point' is outside of all table columns.
*/
- (NSInteger)columnAtPoint:(NSPoint)point;
- (NSInteger)rowAtPoint:(NSPoint)point;
但注意这里的point,与鼠标的坐标不同,鼠标是相对于screen的,需要转换到app上来,怎么转?
NSPoint p = [self convertPoint:[theEvent locationInWindow] fromView:nil];
这样一句就可以转过来了。
好吧,有了这些信息哪么就好办了,现在还有一个关键点。就是这个行与行,列与列之间的事件触发。因此必须很精确的判断出来。具体看码吧。
- (BOOL)RTMouseInRect:(NSRect) rect withPoint:(NSPoint)pt
{
// +2是因为有一个边框的大小为1
float xpos = ceilf(pt.x); //向上取整
float ypos = ceilf(pt.y);
if ((xpos >= rect.origin.x) && ( xpos <= rect.origin.x + rect.size.width +2)
&& (ypos >= rect.origin.y) && ypos <= rect.origin.y + rect.size.height+2)
{
return YES;
}
return NO;
}
static NSRect prevRect;
- (void)mouseMoved:(NSEvent *)theEvent
{
//NSLog(@"mouseMoved theEvent = %@",theEvent);
NSPoint p = [self convertPoint:[theEvent locationInWindow] fromView:nil];
long column = [self columnAtPoint:p];
long row = [self rowAtPoint:p];
if(column != -1 && row != -1)
{
//NSLog(@"col = %ld",column);
// NSLog(@"row = %ld",row);
// NSLog(@"pppppp = %@",NSStringFromPoint(p));
//NSLog(@"self.rowHeight = %f",self.rowHeight);
NSTableColumn* theColumn = [[self tableColumns] objectAtIndex:column];
//NSLog(@"theColumn = %@",theColumn);
//NSLog(@"theColumn.dataCell = %@",theColumn.dataCell);
//NSCell *dataCell = [theColumn dataCellForRow:row];//取到的类型不对,一直是NSTextFieldCell的,不是自己定义的
//NSLog(@"dataCell = %@",dataCell);
//只有用这种方法才可以取到正确的自定义cell
NSCell *customcell = [self preparedCellAtColumn:column row:row];
//NSLog(@"customcell = %@",customcell);
NSRect rect = [self frameOfCellAtColumn:column row:row];
//前后发生变化时
if (![NSStringFromRect(prevRect) isEqualToString:NSStringFromRect(rect)])
{
BOOL enter = [self RTMouseInRect:prevRect withPoint:p];
if (!enter && ![NSStringFromRect(prevRect) isEqualToString:NSStringFromRect(NSZeroRect)])
{
//NSLog(@"outter");
NSIndexSet *idxset = [self columnIndexesInRect:prevRect];
NSUInteger col = [idxset lastIndex];
//NSArray * cols =[[self tableColumns]objectsAtIndexes:idxset]; //也可以取到
NSTableColumn* colobj = [[self tableColumns] objectAtIndex:col];
NSRange rg = [self rowsInRect:prevRect];
NSUInteger preRow = rg.location;
id cell = [self preparedCellAtColumn:col row:preRow];
if ([delegate respondsToSelector:@selector(mouseExitTableViewCell:cell:column:row:)]) {
[delegate mouseExitTableViewCell:self cell:cell column:colobj row:preRow];
}
}
enter = [self RTMouseInRect:rect withPoint:p];
if (enter)
{
//NSLog(@"enter ");
if ([delegate respondsToSelector:@selector(mouseEnterTableViewCell:cell:column:row:)]) {
[delegate mouseEnterTableViewCell:self cell:customcell column:theColumn row:row];
}
}
}
prevRect = rect;
}
else
{
if (![NSStringFromRect(prevRect) isEqualToString:NSStringFromRect(NSZeroRect)])
{
//NSLog(@"outter");
NSIndexSet *idxset = [self columnIndexesInRect:prevRect];
NSUInteger col = [idxset lastIndex];
//NSArray * cols =[[self tableColumns]objectsAtIndexes:idxset]; //也可以取到
NSTableColumn* colobj = [[self tableColumns] objectAtIndex:col];
NSRange rg = [self rowsInRect:prevRect];
NSUInteger preRow = rg.location;
id cell = [self preparedCellAtColumn:col row:preRow];
if ([delegate respondsToSelector:@selector(mouseExitTableViewCell:cell:column:row:)]) {
[delegate mouseExitTableViewCell:self cell:cell column:colobj row:preRow];
}
}
prevRect = NSZeroRect;
}
[super mouseMoved:theEvent];
}
- (void)scrollWheel:(NSEvent *)theEvent
{
NSLog(@"wheel theEvent = %@",theEvent);
[super scrollWheel:theEvent];
//滚动时触发一下鼠标移动事件
[self mouseMoved:theEvent];
}

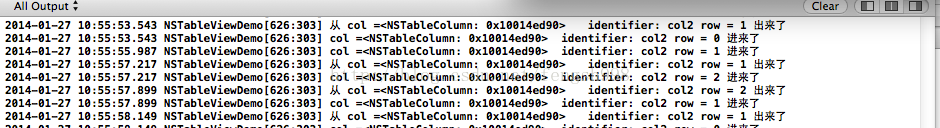

下面是通过代理打印出来的信息:
问题四:一般情况下,对于每行高度是固定的,哪就没有什么好说的了,实现
- (CGFloat)tableView:(NSTableView *)tableView heightOfRow:(NSInteger)row
就可以了,但如果是某行的高度是动态的,哪对于cell-base还真有点麻烦。为什么,因为cell只有在绘制出来的时候都好确定cell的大小,不像View,可以直接用frame就可以确定。cell不一样,cell初始代的时候是是(40000,40000)宽高。你总不能把这个当作动态高度吧。因此在Cell中必须使用cellSize或cellSizeForBounds 来确定高度。

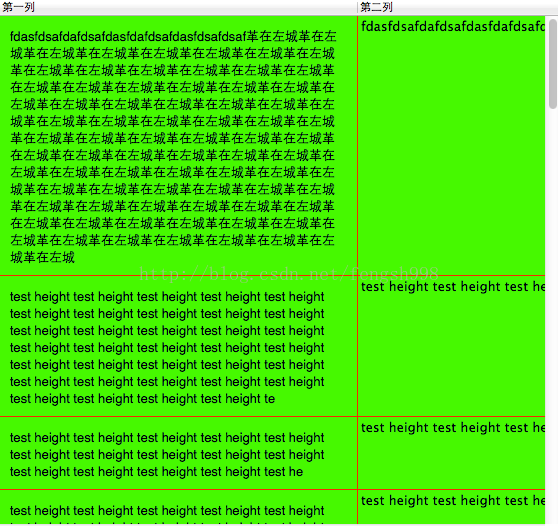

看下效果:
具体的算法:
-(NSSize)cellSizeForBounds:(NSRect)aRect
{
NSSize tmp = NSMakeSize(aRect.size.width, aRect.size.height);
if (display) {
//tmp.height = [self heightForStringDrawing:display andFont:[NSFont fontWithName:@"Helvetica" size:13] withWidth:tmp.width -20]+20;
NSRect rect = [self getstringHeighInWith:tmp.width -20 byString:display];
tmp.height = CGRectGetHeight(rect)+20;
}
else
{
tmp.height = 0;
}
return tmp;
}
-(NSSize)cellSize
{
NSSize tmp = [super cellSize];
if (display) {
//tmp.height = [self heightForStringDrawing:display andFont:[NSFont systemFontOfSize:13] withWidth:230]+20;
} else { tmp.height = 0; } return tmp;}- (NSRect)getstringHeighInWith:(float)width byString:(NSString *)string{ NSMutableParagraphStyle *ps = [[NSParagraphStyle defaultParagraphStyle] mutableCopy]; [ps setLineBreakMode:NSLineBreakByCharWrapping]; ps.alignment = NSJustifiedTextAlignment; NSDictionary* primaryTextAttributes = [NSDictionary dictionaryWithObjectsAndKeys: [NSColor blackColor], NSForegroundColorAttributeName, [NSFont fontWithName:@"Helvetica" size:13], NSFontAttributeName, NSParagraphStyleAttributeName,ps,nil]; NSRect rect = [string boundingRectWithSize:NSMakeSize(width, 4000) options:NSStringDrawingUsesLineFragmentOrigin attributes:primaryTextAttributes]; return rect;}NSRect rect = [self getstringHeighInWith:tmp.width -20 byString:display]; tmp.height = CGRectGetHeight(rect)+20;
其次是在高度返回值中处理:- (CGFloat)tableView:(NSTableView *)tableView heightOfRow:(NSInteger)row { NSTableColumn *column = [[tableView tableColumns] objectAtIndex:0]; NSCell *dycell = [tableView preparedCellAtColumn:0 row:row]; NSRect cellBounds = NSZeroRect; cellBounds.size.width = [column width]; cellBounds.size.height = FLT_MAX; NSSize cellSize = [dycell cellSizeForBounds:cellBounds]; return cellSize.height; }
以上可以实现动态高度了,但还有一点,就是列拖动大小的时候,行的高度不变,哪怎么处理呢?幸好,tableView已为我们提供了便捷的刷新方法:即- (void)tableViewColumnDidResize:(NSNotification *)aNotification { NSTableView* aTableView = aNotification.object; NSIndexSet *indexes = [NSIndexSet indexSetWithIndexesInRange:NSMakeRange(0,aTableView.numberOfRows)]; [aTableView noteHeightOfRowsWithIndexesChanged:indexes]; }
和[aTableView noteHeightOfRowsWithIndexesChanged:indexes];
我们只需要在列大小改变的时候调用就OK了,我的代码里是用窗口大小变化来触发的。具体以实际情况而定了。- (void)noteNumberOfRowsChanged;

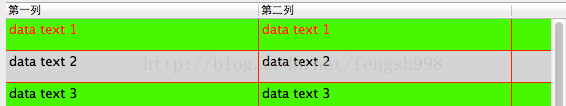

问题五:tableView自身的选中色为蓝色的。要想改变,有两种变通的方法。
1.利用NSCell进行设置,注意这种处理方法,是针对每个格子的进行设置,比如有1234列,如果每例的Cell设置得不同的时候,你会发现当选中一行时,显示为不同的选中色了。样例代码。这个用法,需要注意有表格线和没有表格线时的表示,否则你会看到蓝色线条。
//自个画,,,,, - (void)drawWithFrame:(NSRect)cellFrame inView:(NSView *)controlView { BOOL elementDisabled = NO; NSColor* primaryColor = [self isHighlighted] ? [NSColor alternateSelectedControlTextColor] : (elementDisabled? [NSColor disabledControlTextColor] : [NSColor textColor]); NSDictionary* primaryTextAttributes = [NSDictionary dictionaryWithObjectsAndKeys: primaryColor, NSForegroundColorAttributeName, [NSFont systemFontOfSize:13], NSFontAttributeName, nil]; [self.displayName.stringValue drawAtPoint:NSMakePoint(cellFrame.origin.x+cellFrame.size.height+10, cellFrame.origin.y) withAttributes:primaryTextAttributes]; //画图 [[NSGraphicsContext currentContext] saveGraphicsState]; float yOffset = cellFrame.origin.y; if ([controlView isFlipped]) { NSAffineTransform* xform = [NSAffineTransform transform]; [xform translateXBy:0.0 yBy: cellFrame.size.height]; [xform scaleXBy:1.0 yBy:-1.0]; [xform concat]; yOffset = 0-cellFrame.origin.y; } NSImageInterpolation interpolation = [[NSGraphicsContext currentContext] imageInterpolation]; [[NSGraphicsContext currentContext] setImageInterpolation: NSImageInterpolationHigh]; [avatar.image drawInRect:NSMakeRect(cellFrame.origin.x+5,yOffset+3,cellFrame.size.height-6, cellFrame.size.height-6) fromRect:NSMakeRect(0,0,[avatar.image size].width, [avatar.image size].height) operation:NSCompositeSourceOver fraction:1.0]; [[NSGraphicsContext currentContext] setImageInterpolation: interpolation]; [[NSGraphicsContext currentContext] restoreGraphicsState]; } - (NSAttributedString*)getCellAttributes { NSDictionary* _attributes = [NSDictionary dictionaryWithObjectsAndKeys:_cellFontColor,NSForegroundColorAttributeName,nil]; NSString* _cellString = [self stringValue]; _cellAttributedString = [[[NSAttributedString alloc] initWithString:_cellString attributes:_attributes] autorelease]; return _cellAttributedString; } - (NSColor*)highlightColorWithFrame:(NSRect)cellFrame inView:(NSView *)controlView { NSRect newRect = NSMakeRect(cellFrame.origin.x - 1, cellFrame.origin.y, cellFrame.size.width + 5, cellFrame.size.height); if (_cellBKColor) { [_cellBKColor set]; NSRectFill(newRect); } [self setAttributedStringValue:[self getCellAttributes]]; return nil; }
第2种,也是我比较喜欢的吧,不过需要继承NSTableView来实现。
- (id)_highlightColorForCell:(id)cell;进行重写。
//重写 - (id)_highlightColorForCell:(id)cell { if([self selectionHighlightStyle] == 1) { return nil; } else { return [NSColor redColor];//_highlightBKColor; } }
问题六:这个问题是当你绘制出来的字体,不支持鼠标选中操作。
这个问题,还没有解决,初步确认是用这四个方法进行实现,但我还没有研究透。还在找资料。(也请高手指点)
- (BOOL)trackMouse:(NSEvent *)theEvent inRect:(NSRect)cellFrame ofView:(NSView *)controlView untilMouseUp:(BOOL)flag; - (void)editWithFrame:(NSRect)aRect inView:(NSView *)controlView editor:(NSText *)textObj delegate:(id)anObject event:(NSEvent *)theEvent; - (void)selectWithFrame:(NSRect)aRect inView:(NSView *)controlView editor:(NSText *)textObj delegate:(id)anObject start:(NSInteger)selStart length:(NSInteger)selLength; - (void)endEditing:(NSText *)textObj;
问题七:对于部分字体的高亮,通常会出现在搜索时的显示结果上。哪这又是怎么处理的呢?其它也是通过属性字段进行设置不同的字体色进行Draw上来的。
- (void)drawWithFrame:(NSRect)cellFrame inView:(NSView *)controlView { NSColor* primaryColor = [self isHighlighted] ? [NSColor alternateSelectedControlTextColor] : [NSColor textColor]; if (name && phone && highlightkey) { NSDictionary* primaryTextAttributes = [NSDictionary dictionaryWithObjectsAndKeys: primaryColor, NSForegroundColorAttributeName, [NSFont systemFontOfSize:12], NSFontAttributeName, nil]; NSMutableAttributedString *namestring = [[NSMutableAttributedString alloc]initWithString:name attributes:primaryTextAttributes]; [namestring beginEditing]; NSRange namerg = [name rangeOfString:highlightkey]; [namestring setAttributes:@{NSForegroundColorAttributeName:[NSColor redColor]} range:namerg]; NSMutableAttributedString *phonestring = [[NSMutableAttributedString alloc]initWithString:phone attributes:primaryTextAttributes]; NSRange phonerg = [phone rangeOfString:highlightkey]; [phonestring setAttributes:@{NSForegroundColorAttributeName:[NSColor redColor]} range:phonerg]; NSMutableAttributedString *left = [[NSMutableAttributedString alloc]initWithString:@"(" attributes:primaryTextAttributes]; NSMutableAttributedString *right = [[NSMutableAttributedString alloc]initWithString:@")" attributes:primaryTextAttributes]; [namestring appendAttributedString:left]; [namestring appendAttributedString:phonestring]; [namestring appendAttributedString:right]; NSMutableParagraphStyle *ps = [[NSParagraphStyle defaultParagraphStyle] mutableCopy]; [ps setLineBreakMode:NSLineBreakByTruncatingTail]; NSRange range = NSMakeRange(0, [namestring length]); [namestring addAttribute:NSParagraphStyleAttributeName value:ps range:range]; [ps release]; [namestring endEditing]; CGFloat xpos = cellFrame.origin.x+cellFrame.size.height+15; CGFloat w = cellFrame.size.width - xpos - 30; [namestring drawInRect:NSMakeRect(xpos, cellFrame.origin.y+10,w,15)]; [right release]; [left release]; [namestring release]; [phonestring release]; } if (ringUser) { [ringImg drawInRect:NSMakeRect(cellFrame.origin.x+9.5,cellFrame.origin.y + 1,36, 36) fromRect:NSMakeRect(0,0,ringImg.size.width, ringImg.size.height) operation:NSCompositeSourceOver fraction:1.0 respectFlipped:YES hints:nil]; } if (avatar) { [[NSGraphicsContext currentContext] saveGraphicsState]; NSRect rt = NSMakeRect(cellFrame.origin.x+12.5,cellFrame.origin.y + 4,30, 30); CGFloat radius = 15; NSBezierPath *clipPath = [NSBezierPath bezierPathWithRoundedRect:rt xRadius:radius yRadius:radius]; [clipPath setWindingRule:NSEvenOddWindingRule]; [clipPath addClip]; [avatar drawInRect: rt fromRect:NSMakeRect(0,0,avatar.size.width, avatar.size.height) operation:NSCompositeSourceOver fraction:1.0 respectFlipped:YES hints:nil]; [[NSGraphicsContext currentContext] restoreGraphicsState]; } }
其中highlightkey就是需要设置为高亮的部分。
欢迎路过大侠多多指教。
好了,有点多,也有点杂。大家需要慢慢体会。源码我都放在:http://download.csdn.net/detail/fengsh998/6887159
马上回家过年,这是2013贺岁篇,也正好是在csdn发表文章的第100篇。记念一下。
同时也祝自己马年,天马流星,神马飞扬,马到功成,马上有想法,马上有伯乐,马上当BOSS,马上开挂,最后辛苦的一年即将过去,来年心想事成,万事如意。
好,收拾 东东,马上回家。。。。。。
