前言：

spring和redis集成有很多方式，看到网上很多都是使用redistemplate自己去做redis 的一些操作，但是对于我们开发来说，肯定是使用越方便越好，于是乎就有了spring的对redis或者memcahe这些换成框架的封装，只需要引入spring的spring-data-redis的jar。

好了，废话不多说，我们开始上代码。

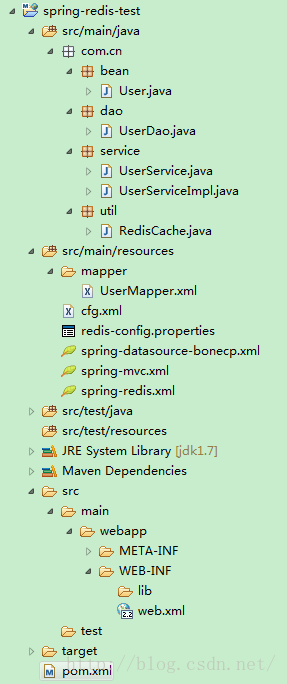

工程目录结构

我们先预览一下这个项目的工程目录结构先：

启动redis

还没安装的redis 的同学可以自己去安装redis，我自己是在window上安装的，其实也不是安装，解压一下就可以使用了，不过需要注意的是它的启动方式，直接点击redis-server启动会直接闪退的，正确的启动方式使用命令【redis-server.exe redis.windows.conf】，详细请参考：Windows 64位下安装Redis详细教程

创建数据库

配置pom文件

pom文件就没什么好说的了，直接贴配置给大家吧

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>ylink.com</groupId>
	<artifactId>spring-redis-test</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>war</packaging>
	<build />

	<properties>
		<spring.version>4.2.6.RELEASE</spring.version>
		<slf4j.version>1.6.4</slf4j.version>
		<logback.version>1.0.0</logback.version>
		<junit.version>4.9</junit.version>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
			<exclusions>
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				</exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-beans</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-expression</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-orm</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-test</artifactId>
			<version>${spring.version}</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.1.1</version>
		</dependency>
		<!-- junit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>${junit.version}</version>
			<scope>test</scope>
		</dependency>

		<!-- memcached <dependency> <groupId>com.whalin</groupId> <artifactId>Memcached-Java-Client</artifactId>
			<version>3.0.1</version> </dependency> -->
		<dependency>
			<groupId>commons-lang</groupId>
			<artifactId>commons-lang</artifactId>
			<version>2.6</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.2.2</version>
		</dependency>
		<!-- log -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>
		<dependency>
			<groupId>ch.qos.logback</groupId>
			<artifactId>logback-classic</artifactId>
			<version>${logback.version}</version>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>commons-logging</groupId>
			<artifactId>commons-logging</artifactId>
			<version>1.1.1</version>
		</dependency>
		<dependency>
			<groupId>redis.clients</groupId>
			<artifactId>jedis</artifactId>
			<version>2.8.1</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.data</groupId>
			<artifactId>spring-data-redis</artifactId>
			<version>1.7.2.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.31</version>
		</dependency>
		<dependency>
			<groupId>com.jolbox</groupId>
			<artifactId>bonecp</artifactId>
			<version>0.7.1.RELEASE</version>
		</dependency>
	</dependencies>
</project>

配置spring文件

下面是spring-mvc.xml的配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-4.2.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd">
    <!-- 自动扫描该包，使SpringMVC认为包下用了@controller注解的类是控制器 -->
    <context:component-scan base-package="com.cn" />

    <!-- 引入同文件夹下的redis属性配置文件 -->
    <import resource="spring-redis.xml"/>

    <import resource="spring-datasource-bonecp.xml"/>

    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		 <property name="basePackage" value="com.cn.dao"/>
	 </bean>

</beans>

下面是spring-redis.xml的配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:cache="http://www.springframework.org/schema/cache"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-4.2.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
                        http://www.springframework.org/schema/cache
                        http://www.springframework.org/schema/cache/spring-cache-4.2.xsd">

    <context:property-placeholder location="classpath:redis-config.properties" />

    <!-- 启用缓存注解功能，这个是必须的，否则注解不会生效，另外，该注解一定要声明在spring主配置文件中才会生效 -->
    <cache:annotation-driven cache-manager="cacheManager" />

     <!-- redis 相关配置 -->
     <bean id="poolConfig" class="redis.clients.jedis.JedisPoolConfig">
         <property name="maxIdle" value="${redis.maxIdle}" />
         <property name="maxWaitMillis" value="${redis.maxWait}" />
         <property name="testOnBorrow" value="${redis.testOnBorrow}" />
     </bean>

     <bean id="JedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory"
       p:host-name="${redis.host}" p:port="${redis.port}" p:password="${redis.pass}" p:pool-config-ref="poolConfig"/>

     <bean id="redisTemplate" class="org.springframework.data.redis.core.RedisTemplate">
         <property name="connectionFactory" ref="JedisConnectionFactory" />
     </bean>

     <!-- spring自己的缓存管理器，这里定义了缓存位置名称 ，即注解中的value -->
     <bean id="cacheManager" class="org.springframework.cache.support.SimpleCacheManager">
         <property name="caches">
            <set>
                <!-- 这里可以配置多个redis -->
                <!-- <bean class="com.cn.util.RedisCache">
                     <property name="redisTemplate" ref="redisTemplate" />
                     <property name="name" value="default"/>
                </bean> -->
                <bean class="com.cn.util.RedisCache">
                     <property name="redisTemplate" ref="redisTemplate" />
                     <property name="name" value="common"/>
                     <!-- common名称要在类或方法的注解中使用 -->
                </bean>
            </set>
         </property>
     </bean>

</beans>

下面是spring-datasource-bonecp.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:task="http://www.springframework.org/schema/task"
	xmlns:util="http://www.springframework.org/schema/util"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
		http://www.springframework.org/schema/task http://www.springframework.org/schema/task/spring-task-3.1.xsd
		http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd
		http://www.springframework.org/schema/aop  http://www.springframework.org/schema/aop/spring-aop-3.2.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">

	<!--用于连接boneCp数据源 -->
	<bean id="commonDataSourceConfig" class="com.jolbox.bonecp.BoneCPDataSource" abstract="true" destroy-method="close">
        <!-- 每个分区最大的连接数 -->
        <property name="maxConnectionsPerPartition" value="100" />
        <!-- 每个分区最小的连接数 -->
        <property name="minConnectionsPerPartition" value="10" />
        <!-- 分区数 ，默认值2，最小1，推荐3-4，视应用而定-->
        <property name="partitionCount" value="3" />
        <!-- 每次去拿数据库连接的时候一次性要拿几个,默认值：2 -->
        <property name="acquireIncrement" value="2" />
        <!-- 测试连接有效性的间隔时间，单位分钟
        <property name="idleConnectionTestPeriod" value="40" />-->
        <!-- 空闲存活时间 分钟
        <property name="idleMaxAge" value="10"/>-->
        <!-- 连接超时时间 毫秒-->
		<property name="connectionTimeout" value="10000"/>
	</bean>

	<!-- 数据源配置 -->
	<bean id="dataSource" parent="commonDataSourceConfig">
		<property name="driverClass" value="com.mysql.jdbc.Driver" />

		<property name="jdbcUrl" value="jdbc:mysql://127.0.0.1:3306/test" />
		<property name="username" value="root"/>
		<property name="password" value=""/>
	</bean>

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="configLocation" value="classpath:cfg.xml"/>
		<property name="dataSource" ref="dataSource"/>
	</bean>
</beans>

编写java类

直接上service，其他的大家可以自己去我上传的源码去下载查看，至于对spring的缓存的注解不太了解怎么使用的，可以参考下这边博客园博主写的博文：Spring Cache使用详解

package com.cn.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Service;

import com.cn.bean.User;
import com.cn.dao.UserDao;

/**
 * @类名称： UserServiceImpl
 * @类描述：
 * @创建人： 1603254
 * @创建时间： 2016-12-2 上午11:10:33
 *
 * @修改人： 1603254
 * @操作时间： 2016-12-2 上午11:10:33
 * @操作原因：
 *
 */
@Service
public class UserServiceImpl implements UserService{

	@Autowired
	private UserDao userDao;

	@Cacheable(value="common",key="'id_'+#id")
	public User selectByPrimaryKey(Integer id) {
		System.out.println("======================");
		System.out.println("======================");
		System.out.println("======================");
		return userDao.selectByPrimaryKey(id);
	}

	@CachePut(value="common",key="#user.getUserName()")
	public void insertSelective(User user) {
//		userDao.insertSelective(user);
		System.out.println("########################");
		System.out.println("########################");
		System.out.println("########################");
	}

	@CacheEvict(value="common",key="'id_'+#id")
	public void deleteByPrimaryKey(Integer id) {
//		userDao.deleteByPrimaryKey(id);
		System.out.println("******************************");
		System.out.println("******************************");
		System.out.println("******************************");
	}
}

编写mybatis配置文件

下面是cfg.xml配置文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	 <!-- mapping 文件路径配置 -->
	 <mappers>
        <mapper resource="mapper/UserMapper.xml" />
    </mappers>
     <!-- <plugins>
	    <plugin interceptor="com.github.pagehelper.PageHelper">
	    	<property name="dialect" value="oracle"/>
	        该参数默认为false
	        设置为true时，会将RowBounds第一个参数offset当成pageNum页码使用
	        和startPage中的pageNum效果一样
	        <property name="offsetAsPageNum" value="true"/>
	        该参数默认为false
	        设置为true时，使用RowBounds分页会进行count查询
	        <property name="rowBoundsWithCount" value="true"/>
	        设置为true时，如果pageSize=0或者RowBounds.limit = 0就会查询出全部的结果
	        （相当于没有执行分页查询，但是返回结果仍然是Page类型）
	        <property name="pageSizeZero" value="true"/>
	        启用合理化时，如果pageNum<1会查询第一页，如果pageNum>pages会查询最后一页
	        禁用合理化时，如果pageNum<1或pageNum>pages会返回空数据
	        <property name="reasonable" value="true"/>
	        增加了一个`params`参数来配置参数映射，用于从Map或ServletRequest中取值
	        可以配置pageNum,pageSize,count,pageSizeZero,reasonable,不配置映射的用默认值
	        <property name="params" value="pageNum=start;pageSize=limit;pageSizeZero=zero;reasonable=heli;count=contsql"/>
    	</plugin>
	</plugins>
 -->
</configuration>

下面是UserMapper.xml配置

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://www.mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.cn.dao.UserDao" >

  <resultMap id="resultMap" type="com.cn.bean.User" >
	    <result column="id" property="id" jdbcType="CHAR" />
	    <result column="name" property="name" jdbcType="CHAR" />
  </resultMap>
<!--添加-->
 <insert id="insertSelective"  parameterType="com.cn.bean.User">
 insert into user(id,name) values(#{id,jdbcType=CHAR},#{name,jdbcType=VARCHAR})
 </insert>
<!--查询-->
 <select id="selectByPrimaryKey"  resultMap="resultMap">
 	select * from user where id=#{id}
 </select>
<!--删除-->
 <select id="deleteByPrimaryKey"  resultMap="resultMap">
 	delete   from user where id=#{id}
 </select>
</mapper>

配置web.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.2//EN" "http://java.sun.com/j2ee/dtds/web-app_2_2.dtd">
<web-app id="WebApp_ID">
	<display-name>spring-redis-test</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
		<welcome-file>index.htm</welcome-file>
		<welcome-file>index.jsp</welcome-file>
		<welcome-file>default.html</welcome-file>
		<welcome-file>default.htm</welcome-file>
		<welcome-file>default.jsp</welcome-file>
	</welcome-file-list>


	<servlet>
		<servlet-name>SpringMVC</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
		<async-supported>true</async-supported>
	</servlet>
</web-app>

编写测试用例

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.AbstractJUnit4SpringContextTests;

import com.cn.bean.User;
import com.cn.service.UserService;


@ContextConfiguration(locations="classpath:spring-mvc.xml")
public class Test extends AbstractJUnit4SpringContextTests {

	@Autowired
	private UserService userService;



	@org.junit.Test
	public void  add(){
		User user=new User();
		user.setName("wen");
		user.setId("1");
		userService.insertSelective(user);
	}


	@org.junit.Test
	public void  query(){
		User user=userService.selectByPrimaryKey(1);
		System.out.println(user.toString());
	}
}

上面我是这样执行校验的:

1）先把数据库的操作打开，插入一条数据，插入的时候，数据库会插入一条数据，redis里面也会有一条数据。

2）然后执行查询的测试用例，第一次查询会将数据库的数据查到redis，然后第二次直接从redis里面去查询，你可以把数据库的数据删掉，结果显示是可以从redis里面查询出来

上面代码我都测试过，无措执行，部分缺少的java类，可以直接下载demo查看，有问题大家可以提出来讨论一下，谢谢~

源代码下载

下载地址是：spring集成redis源码+表结构

其实说实话，用起来还是蛮简单的，而且方便，快捷，真正想要了解深入一点的话，还是建议有时间去看看源代码。

后面大家评论说RedisCache类没写给出来，下面给一下（链接里面的demo 有Override 注解删除就可以使用了）：

package com.cn.util;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;

import org.springframework.cache.Cache;
import org.springframework.cache.support.SimpleValueWrapper;
import org.springframework.dao.DataAccessException;
import org.springframework.data.redis.connection.RedisConnection;
import org.springframework.data.redis.core.RedisCallback;
import org.springframework.data.redis.core.RedisTemplate;

public class RedisCache implements Cache{

	private RedisTemplate<String, Object> redisTemplate;
    private String name;
    public RedisTemplate<String, Object> getRedisTemplate() {
	    return redisTemplate;
	}

	public void setRedisTemplate(RedisTemplate<String, Object> redisTemplate) {
	    this.redisTemplate = redisTemplate;
	}

	public void setName(String name) {
	    this.name = name;
    }

    public String getName() {
       // TODO Auto-generated method stub
        return this.name;
    }

    public Object getNativeCache() {
      // TODO Auto-generated method stub
        return this.redisTemplate;
    }

    public ValueWrapper get(Object key) {
      // TODO Auto-generated method stub
      System.out.println("get key");
      final String keyf =  key.toString();
      Object object = null;
      object = redisTemplate.execute(new RedisCallback<Object>() {
      public Object doInRedis(RedisConnection connection)
                  throws DataAccessException {
          byte[] key = keyf.getBytes();
          byte[] value = connection.get(key);
          if (value == null) {
             return null;
            }
          return toObject(value);
          }
       });
        return (object != null ? new SimpleValueWrapper(object) : null);
      }

     public void put(Object key, Object value) {
       // TODO Auto-generated method stub
       System.out.println("put key");
       final String keyf = key.toString();
       final Object valuef = value;
       final long liveTime = 86400;
       redisTemplate.execute(new RedisCallback<Long>() {
           public Long doInRedis(RedisConnection connection)
                   throws DataAccessException {
                byte[] keyb = keyf.getBytes();
	            byte[] valueb = toByteArray(valuef);
	            connection.set(keyb, valueb);
	            if (liveTime > 0) {
	                connection.expire(keyb, liveTime);
                 }
                return 1L;
             }
         });
      }

      private byte[] toByteArray(Object obj) {
         byte[] bytes = null;
         ByteArrayOutputStream bos = new ByteArrayOutputStream();
         try {
           ObjectOutputStream oos = new ObjectOutputStream(bos);
           oos.writeObject(obj);
           oos.flush();
           bytes = bos.toByteArray();
           oos.close();
           bos.close();
	      }catch (IOException ex) {
	           ex.printStackTrace();
	      }
	      return bytes;
	    }

	   private Object toObject(byte[] bytes) {
         Object obj = null;
	       try {
	           ByteArrayInputStream bis = new ByteArrayInputStream(bytes);
	           ObjectInputStream ois = new ObjectInputStream(bis);
	           obj = ois.readObject();
	           ois.close();
	           bis.close();
	       } catch (IOException ex) {
	           ex.printStackTrace();
	        } catch (ClassNotFoundException ex) {
	           ex.printStackTrace();
	        }
	        return obj;
        }

       public void evict(Object key) {
         // TODO Auto-generated method stub
    	 System.out.println("del key");
         final String keyf = key.toString();
         redisTemplate.execute(new RedisCallback<Long>() {
         public Long doInRedis(RedisConnection connection)
                   throws DataAccessException {
             return connection.del(keyf.getBytes());
            }
          });
        }

	    public void clear() {
	       // TODO Auto-generated method stub
	    	System.out.println("clear key");
	       redisTemplate.execute(new RedisCallback<String>() {
	            public String doInRedis(RedisConnection connection)
	                    throws DataAccessException {
	              connection.flushDb();
	                return "ok";
	           }
	       });
	    }

		public <T> T get(Object key, Class<T> type) {
			// TODO Auto-generated method stub
			return null;
		}

		public ValueWrapper putIfAbsent(Object key, Object value) {
			// TODO Auto-generated method stub
			return null;
		}

}

Fighter168

关注

6
点赞
踩
46

收藏

觉得还不错? 一键收藏
12
评论
redis和spring集成（注解实现，方便，快捷）

前言： spring和redis集成有很多方式，看到网上很多都是使用redistemplate自己去做redis 的一些操作，但是对于我们开发来说，肯定是使用越方便越好，于是乎就有了spring的对redis或者memcahe这些换成框架的封装，只需要引入spring的spring-data-redis的jar。好了，废话不多说，我们开始上代码。
复制链接

扫一扫
