springboot使用yml方式添加log4j2日志文件（注意有坑的地方）

平时写的业务代码比较多，没有什么机会来自己搭框架，这段时间刚好项目需求量不大，新的项目还在洽谈中。趁着现在有时间，学习一下框架的搭建，稍微提升一下自己在框架方面的技术。今天我将要在我的框架中添加log4j2，并使用.yml方式。

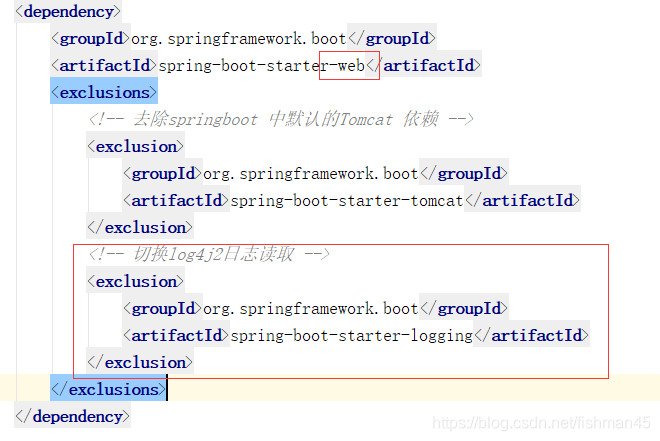

1、添加maven依赖（这里有坑，请注意）

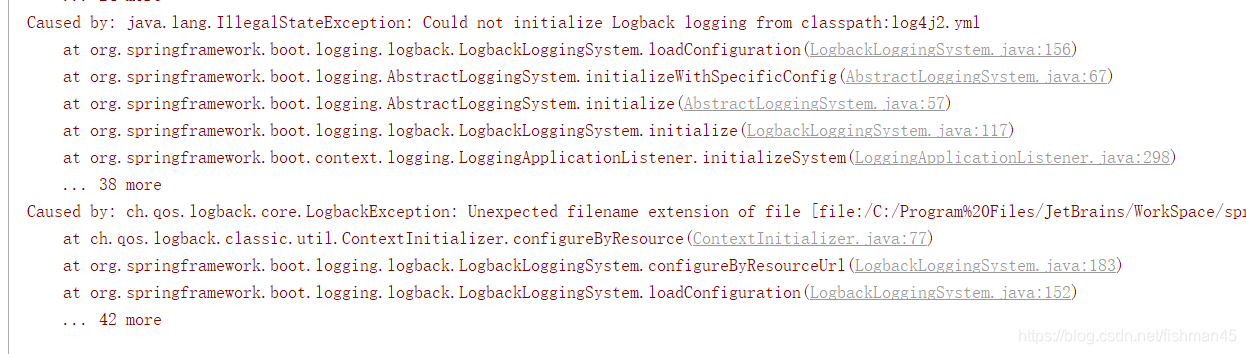

这样配置的情况下，启动项目调试的时候会报错如下：

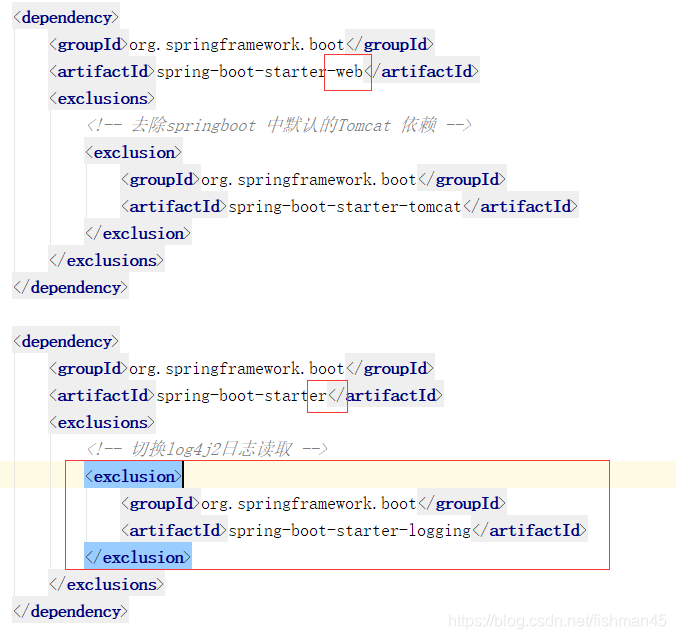

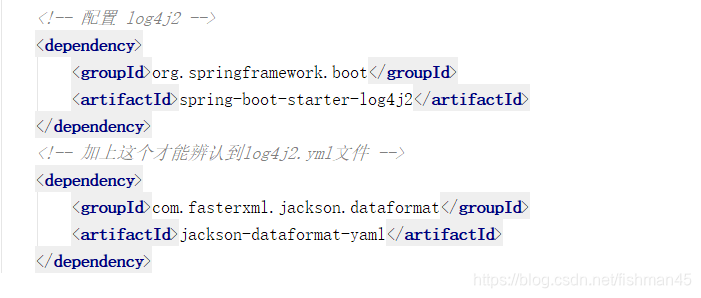

为了避免出现以上的报错，现修改maven的依赖配置

2、在resouces文件下配置文件，添加log4j2.yml

Configuration:
  status: warn
  monitorInterval: 30
  Properties:
    Property:
      - name: log.level.console
        value: info
      - name: log.path
        value: log
      - name: project.name
        value: opendoc
      - name: log.pattern
        value: "%d{yyyy-MM-dd HH:mm:ss.SSS} -%5p ${PID:-} [%15.15t] %-30.30C{1.} : %m%n"
  Appenders:
    Console:
      name: CONSOLE
      target: SYSTEM_OUT
      PatternLayout:
        pattern: ${log.pattern}
    RollingFile:
      - name: ROLLING_FILE
        fileName: ${log.path}/${project.name}.log
        filePattern: "${log.path}/historyRunLog/$${date:yyyy-MM}/${project.name}-%d{yyyy-MM-dd}-%i.log.gz"
        PatternLayout:
          pattern: ${log.pattern}
        Filters:
          ThresholdFilter:
            - level: error
              onMatch: DENY
              onMismatch: NEUTRAL
            - level: info
              onMatch: ACCEPT
              onMismatch: DENY
        Policies:
          TimeBasedTriggeringPolicy:
            modulate: true
            interval: 1
        DefaultRolloverStrategy:
          max: 100

      - name: PLATFORM_ROLLING_FILE
        ignoreExceptions: false
        fileName: ${log.path}/platform/${project.name}_platform.log
        filePattern: "${log.path}/platform/$${date:yyyy-MM}/${project.name}-%d{yyyy-MM-dd}-%i.log.gz"
        PatternLayout:
          pattern: ${log.pattern}
        Policies:
          TimeBasedTriggeringPolicy:
            modulate: true
            interval: 1
        DefaultRolloverStrategy:
          max: 100

      - name: BUSSINESS_ROLLING_FILE
        ignoreExceptions: false
        fileName: ${log.path}/bussiness/${project.name}_bussiness.log
        filePattern: "${log.path}/bussiness/$${date:yyyy-MM}/${project.name}-%d{yyyy-MM-dd}-%i.log.gz"
        PatternLayout:
          pattern: ${log.pattern}
        Policies:
          TimeBasedTriggeringPolicy:
            modulate: true
            interval: 1
        DefaultRolloverStrategy:
          max: 100

      - name: EXCEPTION_ROLLING_FILE
        ignoreExceptions: false
        fileName: ${log.path}/exception/${project.name}_exception.log
        filePattern: "${log.path}/exception/$${date:yyyy-MM}/${project.name}-%d{yyyy-MM-dd}-%i.log.gz"
        ThresholdFilter:
          level: error
          onMatch: ACCEPT
          onMismatch: DENY
        PatternLayout:
          pattern: ${log.pattern}
        Policies:
          TimeBasedTriggeringPolicy:
            modulate: true
            interval: 1
        DefaultRolloverStrategy:
          max: 100

      - name: DB_ROLLING_FILE
        ignoreExceptions: false
        fileName: ${log.path}/db/${project.name}_db.log
        filePattern: "${log.path}/db/$${date:yyyy-MM}/${project.name}-%d{yyyy-MM-dd}-%i.log.gz"
        PatternLayout:
          pattern: ${log.pattern}
        Policies:
          TimeBasedTriggeringPolicy:
            modulate: true
            interval: 1
        DefaultRolloverStrategy:
          max: 100
  Loggers:
    Root:
      level: info
      AppenderRef:
        - ref: CONSOLE
        - ref: ROLLING_FILE
        - ref: EXCEPTION_ROLLING_FILE
    Logger:
      - name: platform
        level: info
        additivity: false
        AppenderRef:
          - ref: CONSOLE
          - ref: PLATFORM_ROLLING_FILE
      - name: bussiness
        level: info
        additivity: false
        AppenderRef:
          - ref: BUSSINESS_ROLLING_FILE
      - name: exception
        level: debug
        additivity: true
        AppenderRef:
          - ref: EXCEPTION_ROLLING_FILE
      - name: db
        level: info
        additivity: false
        AppenderRef:
          - ref: DB_ROLLING_FILE

3、在application.yml中引入log4j2.yml文件（注意yaml文件的格式，避免出错）

spring:
  profiles:
    active: test

logging:
  config: classpath:log4j2.yml

4、编写log的枚举类型（具体用法度娘一下就好）

public enum LogEnum {

    BUSSINESS("bussiness"),
    PLATFORM("platform"),
    DB("db"),
    EXCEPTION("exception"),
    ;

    private String category;

    LogEnum(String category) {
        this.category = category;
    }

    public String getCategory() {
        return category;
    }

    public void setCategory(String category) {
        this.category = category;
    }
}

5、编写log公共类

该类定义了不同层的日志，分别是业务层、平台、数据库层和异常。如果需要添加更多的层面，可以自己定义yaml文件以及枚举类型，并写入到工具类中即可。

public class LogUtils {
    /**
     * 获取业务日志logger
     */
    public static Logger getBussinessLogger() {
        return LoggerFactory.getLogger(LogEnum.BUSSINESS.getCategory());
    }

    /**
     * 获取平台日志logger
     */
    public static Logger getPlatformLogger() {
        return LoggerFactory.getLogger(LogEnum.PLATFORM.getCategory());
    }

    /**
     * 获取数据库日志logger
     */
    public static Logger getDBLogger() {
        return LoggerFactory.getLogger(LogEnum.DB.getCategory());
    }

    /**
     * 获取异常日志logger
     */
    public static Logger getExceptionLogger() {
        return LoggerFactory.getLogger(LogEnum.EXCEPTION.getCategory());
    }
}

6、通过单元测试测试log4j2的输出日志

@RunWith(SpringRunner.class)
@SpringBootTest
public class LogTest {

    @Test
    public void logTest() {
        Logger log = LogUtils.getExceptionLogger();
        Logger log1 = LogUtils.getBussinessLogger();
        Logger log2 = LogUtils.getDBLogger();

        log.error("getExceptionLogger===日志测试");
        log1.info("getBussinessLogger===日志测试");
        log2.debug("getDBLogger===日志测试");
    }
}

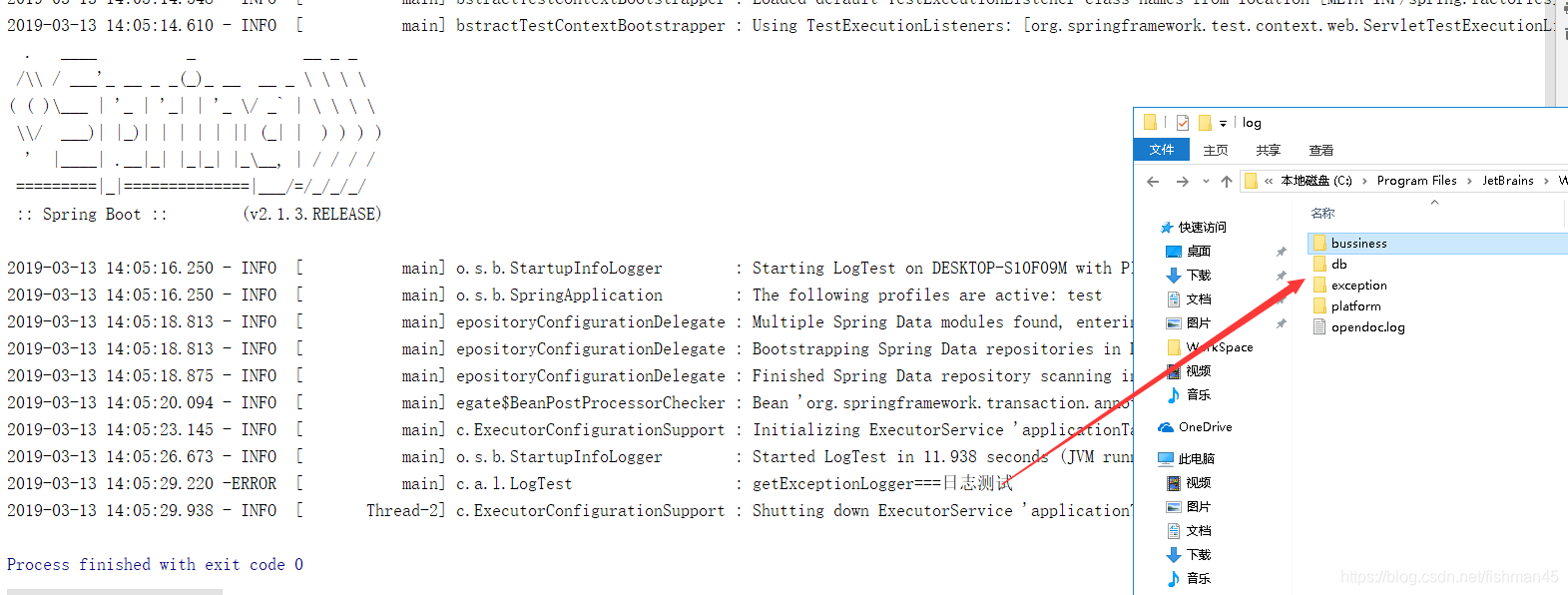

7、测试结果

以上有什么不妥的，望老铁们指正
