ARCCONF命令行工具可以在服务器正常运行过程中对Adaptec RAID卡进行带内在线查询配置操作，无需重启服务器，十分方便快捷，本文讲解常见的查询操作。

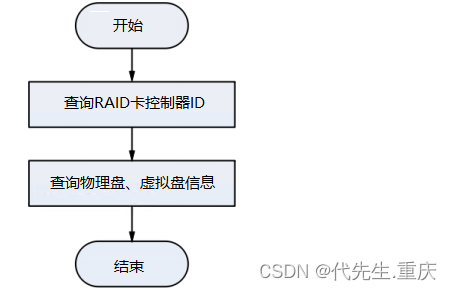

一、查询流程
二、常见指令
1、查询已安装的RAID卡清单
[root@localhost ~]# ./arcconf-linux list
Controllers found: 1
----------------------------------------------------------------------
Controller information
----------------------------------------------------------------------
Controller ID : Status, Slot, Mode, Name, SerialNumber, WWN
----------------------------------------------------------------------
Controller 1: : Optimal, Slot 0, RAID (Hide RAW), ZTE SmartROC3100 SDPSx V2.54, 739186000138, 50015EBE047A1C3F
Command completed successfully.可见有1个 RAID卡
2、查询RAID卡1信息
# ./arcconf-linux list 1
Controllers found: 1
----------------------------------------------------------------------
Controller information
----------------------------------------------------------------------
Controller ID : Status, Slot, Mode, Name, SerialNumber, WWN
----------------------------------------------------------------------
Controller 1: : Optimal, Slot 0, RAID (Hide RAW), ZTE SmartROC3100 SDPSx V2.54, 739186000138, 50015EBE047A1C3F
----------------------------------------------------------------------
Array Information
----------------------------------------------------------------------
Array ID : Status (Interface, TotalSize MB, FreeSpace MB)
----------------------------------------------------------------------
Array 0 : Ok (SATA SSD, 915725 MB, 0 MB)
Array 1 : Ok (SATA SSD, 3662840 MB, 0 MB)
Array 2 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 3 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 4 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 5 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 6 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 7 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 8 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 9 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 10 : Ok (SATA SSD, 1831420 MB, 0 MB)
Array 11 : Ok (SATA SSD, 1831420 MB, 0 MB)
----------------------------------------------------------------------
Logical device information
----------------------------------------------------------------------
Logical ID : Status (RAID, Interface, Size MB) Name
----------------------------------------------------------------------
Logical 0 : Optimal (1, Data, 457830 MB) Logical Drive 1
Logical 1 : Optimal (1, Data, 1831388 MB) 1
Logical 2 : Optimal (0, Data, 1831388 MB) 0-2
Logical 3 : Optimal (0, Data, 1831388 MB) 0-3
Logical 4 : Optimal (0, Data, 1831388 MB) 0-4
Logical 5 : Optimal (0, Data, 1831388 MB) 0-5
Logical 6 : Optimal (0, Data, 1831388 MB) 0-6
Logical 7 : Optimal (0, Data, 1831388 MB) 0-7
Logical 8 : Optimal (0, Data, 1831388 MB) 0-8
Logical 9 : Optimal (0, Data, 1831388 MB) 0-9
Logical 10 : Optimal (0, Data, 1831388 MB) 0-10
Logical 11 : Optimal (0, Data, 1831388 MB) 0-11
----------------------------------------------------------------------
maxCache information
----------------------------------------------------------------------
Array ID : Status (Interface, TotalSize MB, FreeSpace MB)
----------------------------------------------------------------------
No maxCache device created
----------------------------------------------------------------------
Physical Device information
----------------------------------------------------------------------
Physical ID : State (Interface, BlockSize, SizeMB, Vendor, Model, Type) WWN, [Location]
----------------------------------------------------------------------
Physical 0,0 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C41, [Direct Attached, Slot 0(Connector 0:CN0)]
Physical 0,1 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C42, [Direct Attached, Slot 1(Connector 0:CN0)]
Physical 0,2 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C40, [Direct Attached, Slot 2(Connector 0:CN0)]
Physical 0,3 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C3F, [Direct Attached, Slot 3(Connector 0:CN0)]
Physical 0,4 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C45, [Direct Attached, Slot 4(Connector 1:CN1)]
Physical 0,5 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C46, [Direct Attached, Slot 5(Connector 1:CN1)]
Physical 0,6 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C44, [Direct Attached, Slot 6(Connector 1:CN1)]
Physical 0,7 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C43, [Direct Attached, Slot 7(Connector 1:CN1)]
Physical 0,8 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C49, [Direct Attached, Slot 8(Connector 2:CN2)]
Physical 0,9 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C4A, [Direct Attached, Slot 9(Connector 2:CN2)]
Physical 0,10 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C48, [Direct Attached, Slot 10(Connector 2:CN2)]
Physical 0,11 : Online (SATA, 512 Bytes, 1831420MB, ATA, SAMSUNG MZ7LH1T9, Solid State Drive) 30015EBE047A1C47, [Direct Attached, Slot 11(Connector 2:CN2)]
Physical 0,12 : Online (SATA, 512 Bytes, 457862MB, ATA, INTEL SSDSC2KB48, Solid State Drive) 30015EBE047A1C4D, [Direct Attached, Slot 12(Connector 3:CN3)]
Physical 0,13 : Online (SATA, 512 Bytes, 457862MB, ATA, INTEL SSDSC2KB48, Solid State Drive) 30015EBE047A1C4E, [Direct Attached, Slot 13(Connector 3:CN3)]
Physical 2,0 : Ready (SES2, Not Applicable, Not Applicable, ZTE , Virtual SGPIO, Enclosure Services Device) 50015EBE047A1C51, [Not Applicable]
Command completed successfully.可见RAID卡1有物理磁盘0-13共14块，组成了0-11共12个磁盘RAID组和对应逻辑磁盘。Logical ID对应相庆的RAID磁盘组，Physical ID对应相应物理磁盘。
3、查看RAID卡配置信息
./arcconf-linux getconfig 1 ad
Controllers found: 1
----------------------------------------------------------------------
Controller information
----------------------------------------------------------------------
Controller Status : Optimal
Controller Mode : RAID (Hide RAW)
Channel description : SCSI
Controller Model : ZTE SmartROC3100 SDPSx V2.54
Vendor ID : 0x9005
Device ID : 0x028F
Subsystem Vendor ID : 0x9005
Subsystem Device ID : 0x0806
Controller Serial Number : 739186000138
Controller World Wide Name : 50015EBE047A1C3F
Physical Slot : 0
Temperature : 41 C/ 105 F (Normal)
Negotiated PCIe Data Rate : PCIe 3.0 x8(7880 MB/s)
PCI Address (Domain:Bus:Device:Function) : 0:3c:0:0
Number of Ports : 5
Internal Port Count : 5
External Port Count : 0
Defunct disk drive count : 0
NCQ status : Enabled
Queue Depth : Automatic
Monitor and Performance Delay : 60 minutes
Elevator Sort : Enabled
Degraded Mode Performance Optimization : Disabled
Latency : Disabled
Statistics data collection mode : Disabled
Post Prompt Timeout : 0 seconds
Boot Controller : False
Controller Supports Boot Connector : Yes
Primary Boot Volume : None
Secondary Boot Volume : None
Driver Name : smartpqi
Driver Supports SSD I/O Bypass : Yes
NVMe Supported : No
NVMe Configuration Supported : No
Manufacturing Part Number : Not Applicable
Manufacturing Spare Part Number : Not Applicable
Manufacturing Wellness Log : Not Applicable
Manufacturing SKU Number : Not Applicable
Manufacturing Model : Not Applicable
NVRAM Checksum Status : Passed
Sanitize Lock Setting : None
Expander Minimum Scan Duration : 0 seconds
Expander Scan Time-out : 350 seconds
-------------------------------------------------------------------
Power Settings
-------------------------------------------------------------------
Power Consumption : Not Available
Current Power Mode : Maximum Performance
Pending Power Mode : Not Applicable
Survival Mode : Enabled
-------------------------------------------------------------------
Cache Properties
-------------------------------------------------------------------
Cache Status : Not Configured
Cache Serial Number : Not Applicable
Cache memory : 1808 MB
Read Cache Percentage : Not Applicable
Write Cache Percentage : Not Applicable
No-Battery Write Cache : Enabled
Wait for Cache Room : Disabled
Write Cache Bypass Threshold Size : 1040 KB
-------------------------------------------------------------------
Green Backup Information
-------------------------------------------------------------------
Backup Power Status : Ok
Battery/Capacitor Pack Count : 1
Hardware Error : No Error
-------------------------------------------------------------------
Physical Drive Write Cache Policy Information
-------------------------------------------------------------------
Configured Drives : Default
Unconfigured Drives : Default
HBA Drives : Default
-------------------------------------------------------------------
maxCache Properties
-------------------------------------------------------------------
maxCache Version : 4
maxCache RAID5 WriteBack Enabled : Enabled
-------------------------------------------------------------------
RAID Properties
-------------------------------------------------------------------
Logical devices/Failed/Degraded : 12/0/0
Spare Activation Mode : Failure
Background consistency check : Idle
Consistency Check Delay : 3 seconds
Parallel Consistency Check Supported : Enabled
Parallel Consistency Check Count : 1
Inconsistency Repair Policy : Disabled
Consistency Check Inconsistency Notify : Disabled
Rebuild Priority : High
Expand Priority : Medium
-------------------------------------------------------------------
Controller Version Information
-------------------------------------------------------------------
Firmware : 3.22
Driver : Linux 1.2.16-010
Hardware Revision : A
Hardware Minor Revision : Not Available
-------------------------------------------------------------------
Temperature Sensors Information
-------------------------------------------------------------------
Sensor ID : 0
Current Value : 35 deg C
Max Value Since Powered On : 37 deg C
Location : Inlet Ambient
Sensor ID : 1
Current Value : 41 deg C
Max Value Since Powered On : 43 deg C
Location : ASIC
-------------------------------------------------------------------
Out Of Band Interface Settings
-------------------------------------------------------------------
OOB Interface : MCTP
Pending OOB Interface : MCTP
I2C Address : 0xDE
Pending I2C Address : 0xDE
-------------------------------------------------------------------
PBSI
-------------------------------------------------------------------
I2C Clock Speed : Not Applicable
I2C Clock Stretching : Not Applicable
Pending I2C Clock Speed : Not Applicable
Pending I2C Clock Stretching : Not Applicable
-------------------------------------------------------------------
MCTP
-------------------------------------------------------------------
SMBus Device Type : Not Applicable
SMBus Channel : Enabled
Static EIDs Use On Initialization : Enabled
VDM Notification : Enabled
Pending SMBus Device Type : Not Applicable
Pending SMBus Channel : Enabled
Pending Static EIDs Use On Initialization : Enabled
Pending VDM Notification : Enabled
-------------------------------------------------------------------
Connector information
-------------------------------------------------------------------
Connector #0
Connector name : CN0
Connection Number : 0
Functional Mode : RAID (Hide RAW)
Connector Location : Internal
Boot Connector : No
SAS Address : 50015EBE047A1C3F
Connector #1
Connector name : CN1
Connection Number : 1
Functional Mode : RAID (Hide RAW)
Connector Location : Internal
Boot Connector : No
SAS Address : 50015EBE047A1C43
Connector #2
Connector name : CN2
Connection Number : 3
Functional Mode : RAID (Hide RAW)
Connector Location : Internal
Boot Connector : No
SAS Address : 50015EBE047A1C47
Connector #3
Connector name : CN3
Connection Number : 2
Functional Mode : RAID (Hide RAW)
Connector Location : Internal
Boot Connector : No
SAS Address : 50015EBE047A1C4B
Connector #4
Connector name : CN4
Connection Number : 6
Functional Mode : RAID (Hide RAW)
Connector Location : Internal
Boot Connector : Yes
SAS Address : 50015EBE047A1C4F
Command completed successfully.“Controller Mode”是控制器的工作模式，有HBA、RAID、Mixed三种
“HBA”，不允许创建RAID，所有盘以裸盘形式上报OS，对应模式设置ID为2。
“RAID”，RAID卡只上报创建了RAID盘，对应模式设置ID为3。
“Mixed”，RAID卡上报创建了RAID盘。若硬盘本身没有RAID配置信息，则会以裸盘的方式上报给OS，OS可以直接操作硬盘，对应模式设置ID为5。可用"./arcconf-linux setcontrollermode 控制器ID 模式ID进行修改"。
4、查询逻辑盘信息
# ./arcconf-linux getconfig 1 ld
Controllers found: 1
--------------------------------------------------------
Logical device information
--------------------------------------------------------
Logical Device number 0
Logical Device name : Logical Drive 1
Disk Name : /dev/sda
Block Size of member drives : 512 Bytes
Array : 0
RAID level : 1
Status of Logical Device : Optimal
Size : 457830 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : /boot/efi 600 MB Partition Number 1 /boot 1024 MB Partition Number 2
LD Acceleration Method : SSD IO Bypass
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001CABF2A33CB293CD714BC8
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 12 : Present (457862MB, SATA, SSD, Connector:3, Device:12) BTYF12230019480BGN
Device 13 : Present (457862MB, SATA, SSD, Connector:3, Device:13) BTYF1223003J480BGN
Logical Device number 1
Logical Device name : 1
Disk Name : /dev/sdb
Block Size of member drives : 512 Bytes
Array : 1
RAID level : 1
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : SSD IO Bypass
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001CF9B0CA75E5D539AA91EE
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 0 : Present (1831420MB, SATA, SSD, Connector:0, Device:0) S455NC0R904981
Device 1 : Present (1831420MB, SATA, SSD, Connector:0, Device:1) S455NC0R909489
Logical Device number 2
Logical Device name : 0-2
Disk Name : /dev/sdc
Block Size of member drives : 512 Bytes
Array : 2
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001CC9F6AF6AC352A9F73939
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 2 : Present (1831420MB, SATA, SSD, Connector:0, Device:2) S455NC0R915516
Logical Device number 3
Logical Device name : 0-3
Disk Name : /dev/sdd
Block Size of member drives : 512 Bytes
Array : 3
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C08F6CFB967225F000998
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 3 : Present (1831420MB, SATA, SSD, Connector:0, Device:3) S455NC0R915568
Logical Device number 4
Logical Device name : 0-4
Disk Name : /dev/sde
Block Size of member drives : 512 Bytes
Array : 4
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C3D7DA083E19C9526DE7C
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 4 : Present (1831420MB, SATA, SSD, Connector:1, Device:4) S455NC0R904969
Logical Device number 5
Logical Device name : 0-5
Disk Name : /dev/sdf
Block Size of member drives : 512 Bytes
Array : 5
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001CFCABEC062F31AD360408
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 5 : Present (1831420MB, SATA, SSD, Connector:1, Device:5) S455NC0R904979
Logical Device number 6
Logical Device name : 0-6
Disk Name : /dev/sdg
Block Size of member drives : 512 Bytes
Array : 6
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C1117753A950D01FF5394
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 6 : Present (1831420MB, SATA, SSD, Connector:1, Device:6) S455NC0R904964
Logical Device number 7
Logical Device name : 0-7
Disk Name : /dev/sdh
Block Size of member drives : 512 Bytes
Array : 7
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001CBDE6C3E430DF7E4E5D81
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 7 : Present (1831420MB, SATA, SSD, Connector:1, Device:7) S455NC0R904962
Logical Device number 8
Logical Device name : 0-8
Disk Name : /dev/sdi
Block Size of member drives : 512 Bytes
Array : 8
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C0604E97D1A8BBC845A91
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 8 : Present (1831420MB, SATA, SSD, Connector:2, Device:8) S455NC0R903477
Logical Device number 9
Logical Device name : 0-9
Disk Name : /dev/sdj
Block Size of member drives : 512 Bytes
Array : 9
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C3600C13E0FB9A9600321
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 9 : Present (1831420MB, SATA, SSD, Connector:2, Device:9) S455NC0R904756
Logical Device number 10
Logical Device name : 0-10
Disk Name : /dev/sdk
Block Size of member drives : 512 Bytes
Array : 10
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C9D7DD9C57A71CFD32FFB
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 10 : Present (1831420MB, SATA, SSD, Connector:2, Device:10) S455NC0R904971
Logical Device number 11
Logical Device name : 0-11
Disk Name : /dev/sdl
Block Size of member drives : 512 Bytes
Array : 11
RAID level : 0
Status of Logical Device : Optimal
Size : 1831388 MB
Stripe-unit size : 256 KB
Full Stripe Size : 256 KB
Interface Type : SATA SSD
Device Type : Data
Boot Type : None
Heads : 255
Sectors Per Track : 32
Cylinders : 65535
Caching : Disabled
Mount Points : Not Mounted
LD Acceleration Method : None
Logical Device On Boot Connector : No
Volume Unique Identifier : 600508B1001C8E742D672959B26B4E98
--------------------------------------------------------
Array Physical Device Information
--------------------------------------------------------
Device ID : Availability (SizeMB, Protocol, Type, Connector ID, Location) Serial Number
--------------------------------------------------------
Device 11 : Present (1831420MB, SATA, SSD, Connector:2, Device:11) S455NC0R904968
Command completed successfully.5、查询物理磁盘信息（以0通道的磁盘1为例）
# ./arcconf-linux getconfig 1 pd 0 1
Controllers found: 1
----------------------------------------------------------------------
Physical Device information
----------------------------------------------------------------------
Device #0
Device is a Hard drive
State : Online
Drive has stale RIS data : False
Block Size : 512 Bytes
Physical Block Size : 4K Bytes
Transfer Speed : SATA 6.0 Gb/s
Reported Channel,Device(T:L) : 0,1(1:0)
Reported Location : Direct Attached, Slot 1(Connector 0:CN0)
Array : 1
Vendor : ATA
Model : SAMSUNG MZ7LH1T9
Firmware : HXT7904Q
Serial number : S455NC0R909489
World-wide name : 30015EBE047A1C42
Reserved Size : 32768 KB
Used Size : 1831388 MB
Unused Size : 0 MB
Total Size : 1831420 MB
Write Cache : Disabled (write-through)
S.M.A.R.T. : No
S.M.A.R.T. warnings : 0
SSD : Yes
Device On Boot Connector : No
NCQ supported : Supported
NCQ status : Enabled
Boot Type : None
Current Temperature : 29 deg C
Maximum Temperature : 36 deg C
Threshold Temperature : 70 deg C
PHY Count : 1
Drive Configuration Type : Data
Drive Exposed to OS : False
Sanitize Erase Support : True
Sanitize Lock Freeze Support : True
Sanitize Lock Anti-Freeze Support : True
Sanitize Lock Setting : None
Usage Remaining : 100 percent
Estimated Life Remaining : Not Applicable
SSD Smart Trip Wearout : False
56 Day Warning Present : False
Drive Unique ID : 765FB9371AD0B92AADE6D8F213D31B09
Drive SKU Number : Not Applicable
Drive Part Number : Not Applicable
Last Failure Reason : No Failure
----------------------------------------------------------------
Device Phy Information
----------------------------------------------------------------
Phy #0
Negotiated Physical Link Rate : 6 Gbps
Negotiated Logical Link Rate : 6 Gbps
Maximum Link Rate : 6 Gbps
----------------------------------------------------------------
Device Error Counters
----------------------------------------------------------------
Aborted Commands : 0
Bad Target Errors : 0
Ecc Recovered Read Errors : 0
Failed Read Recovers : 0
Failed Write Recovers : 0
Format Errors : 0
Hardware Errors : 0
Hard Read Errors : 0
Hard Write Errors : 0
Hot Plug Count : 0
Media Failures : 0
Not Ready Errors : 0
Other Time Out Errors : 0
Predictive Failures : 0
Retry Recovered Read Errors : 0
Retry Recovered Write Errors : 0
Scsi Bus Faults : 0
Sectors Reads : 157530414447
Sectors Written : 497517920
Service Hours : 14154
Command completed successfully.
6824
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
