C#.Net通过OleDb和ODBC连接DBC{Paradox(*.db)}数据库,即传奇DB Commander数据库

版权声明:本文为博主原创文章,遵循 CC 4.0 by-sa 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/fromfire2/article/details/82563521

前言:

一直没用机会用C#操作ODBC,因为主流数据库有专用的ADO.NET,比如

using System.Data.SqlClient;
using MySql.Data.MySqlClient;
using System.Data.OleDb;

SqlConnection conn = new SqlConnection(ConnectString);
MySqlConnection conn = new MySqlConnection(ConnectString);
OleDbConnection conn = new OleDbConnection(ConnectString);

对于非主流数据库,微软的可以使用OleDb,其他的可能就只能使用ODBC了。

今天这篇博客的引子是传奇数据库,网上资料比较少,本人也是第一次使用ODBC特此记录。



正文:

1、C#通过ODBC连接DBC数据库

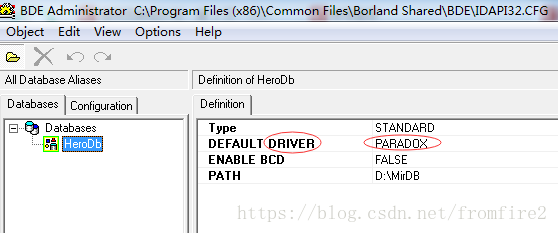

1.1、安装完DBC2000,我们一般会看到这个画面

注意看我圈起来得关键字,这个是数据库的类型,也就是我们常说的传奇DBC数据库实际上是Paradox数据库

1.2、接下来的第一反应就是要看看ODBC管理器里面有没有这个数据库驱动

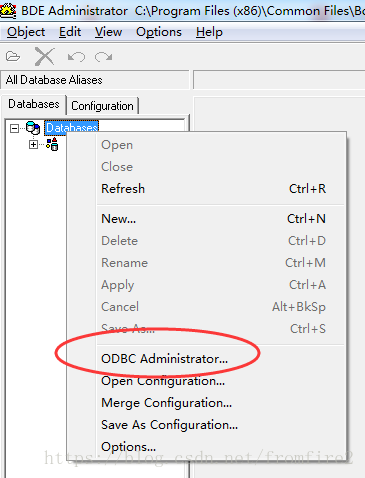

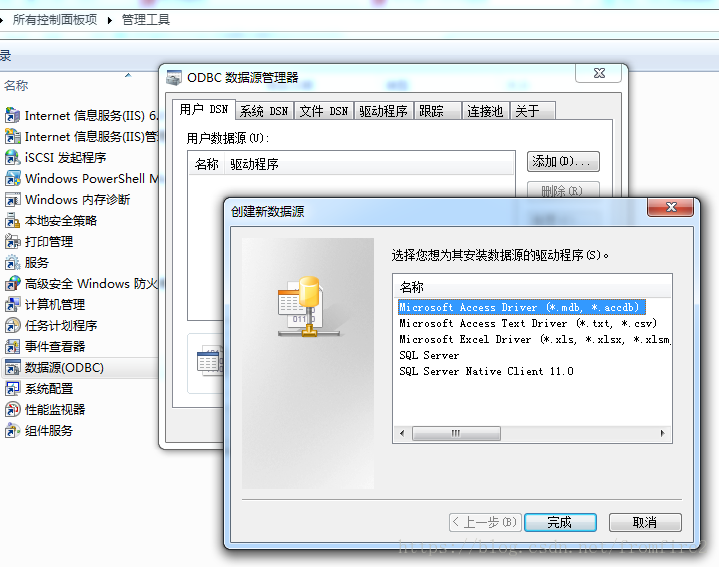

这个是控制面板的ODBC管理器,里面是没有Paradox驱动的,幸好本人喜欢乱点,带驱动的管理器入口在这里↓

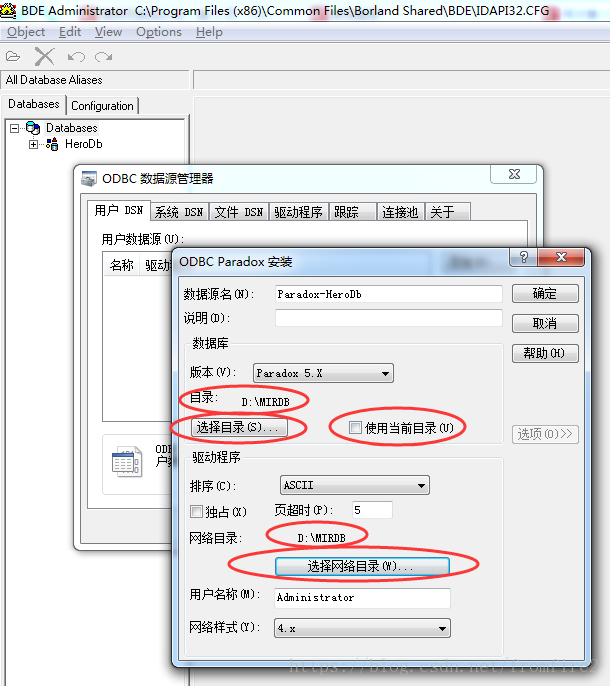

1.3、接下来我们就建立个ODBC数据源,随便起个名吧 Paradox-HeroDb,配置如下,重点已划出

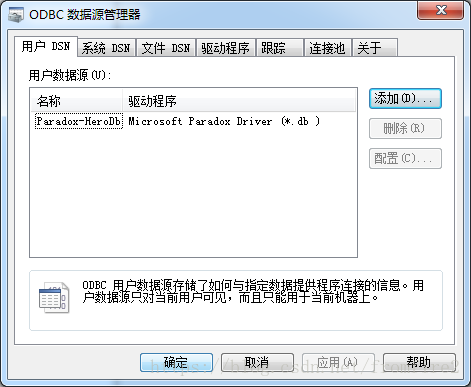

1.4、数据源建好了,查MSDN文档,看看ODBC怎么玩

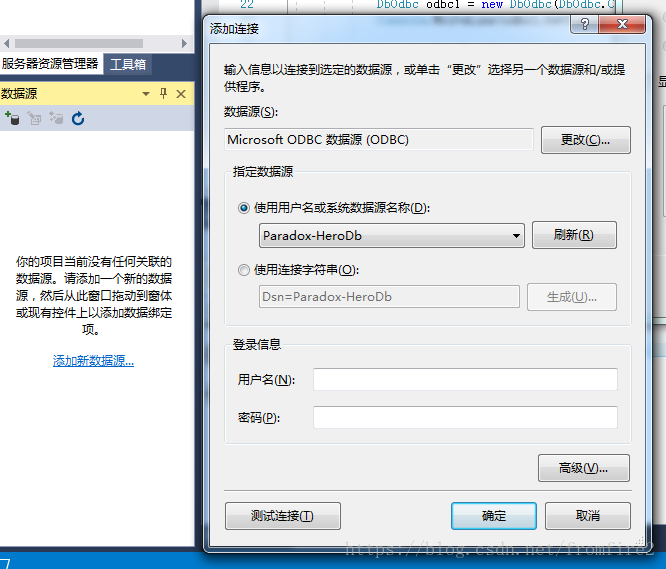

1.4.1、VS的可视化ODBC数据源

1.4.2、脱离管理器的连接字符串

@"Driver={Microsoft Paradox Driver (*.db )};DBQ=D:\MirDB;"

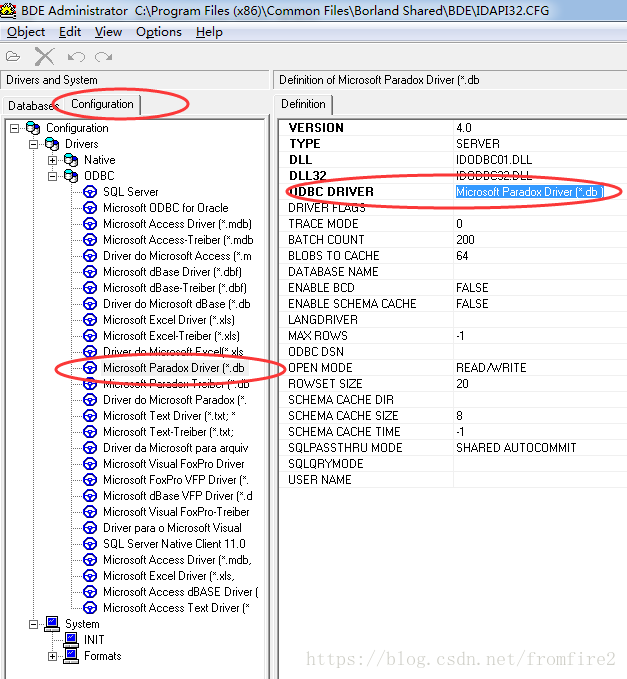

这个驱动名在这里找↓

1.4.3、基于管理器的连接字符串,特别注意,两种连接字符串内部不可出现''和"",出现这两种字符会出现各种奇怪报错,而且用百度搜索是找不到原因滴。。。出现空格没问题

"Dsn=Paradox-HeroDb;"

1.5、上代码:

using System;

namespace CommonUtils.Test
{
    class Program
    {
        static void Main(string[] args)
        {
            DbOdbc odbc1 = new DbOdbc(@"Driver={Microsoft Paradox Driver (*.db )};DBQ=D:\MirDB;");
            Console.WriteLine(odbc1.GetTableNames().ToJson());

            DbOdbc odbc2 = new DbOdbc("Dsn=Paradox-HeroDb;");
            Console.WriteLine(odbc2.GetTableNames().ToJson());

            Console.ReadKey();
        }
    }
}

代码里面的ToJson我就不上传了,是NewtonSoft对object的扩展,DbOdbc↓

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Common;
using System.Data.Odbc;

namespace CommonUtils
{
    /// <summary>
    /// Odbc数据库
    /// </summary>
    public class DbOdbc
    {
        /// <summary>
        /// 连接字符串
        /// </summary>
        public string ConnectString { get; private set; }

        /// <summary>
        /// 初始化
        /// </summary>
        public DbOdbc(string connString)
        {
            ConnectString = connString;
        }

        /// <summary>
        /// 是否可连接
        /// </summary>
        public bool CanConnect()
        {
            OdbcConnection conn = new OdbcConnection(ConnectString);
            try
            {
                conn.Open();
                conn.Close();
                ConnectInfo = StringUtil.Success;
                return true;
            }
            catch (Exception ex)
            {
                ConnectInfo = ex.Message;
                return false;
            }
            finally
            {
                conn.Dispose();
            }
        }

        /// <summary>
        /// 连接信息
        /// </summary>
        public string ConnectInfo { get; private set; }

        /// <summary>
        /// 获取DataReader
        /// </summary>
        public DbDataReader GetDataReader(string sql, Dictionary<string, object> map = null)
        {
            OdbcConnection conn = new OdbcConnection(ConnectString);
            conn.Open();
            OdbcCommand cmd = new OdbcCommand(sql, conn);
            AddParameters(cmd, map);
            return cmd.ExecuteReader(CommandBehavior.CloseConnection);
        }

        /// <summary>
        /// 获取DataTable
        /// </summary>
        public DataTable GetDataTable(string sql, Dictionary<string, object> map = null)
        {
            OdbcConnection conn = new OdbcConnection(ConnectString);
            conn.Open();
            OdbcCommand cmd = new OdbcCommand(sql, conn);
            AddParameters(cmd, map);
            OdbcDataAdapter da = new OdbcDataAdapter(cmd);
            DataTable table = new DataTable();
            da.Fill(table);
            cmd.Dispose();
            conn.Close();
            conn.Dispose();
            return table;
        }

        /// <summary>
        /// 获取DataRow
        /// </summary>
        public DataRow GetDataRow(string sql, Dictionary<string, object> map = null)
        {
            DataTable table = GetDataTable(sql, map);
            if (table.Rows.Count > 0)
                return table.Rows[0];
            else
                return null;
        }

        /// <summary>
        /// 判断取出的数据条数,str格式必须为 select count(*)
        /// </summary>
        public int GetSelectedCount(string sql, Dictionary<string, object> map = null)
        {
            object obj = GetSelectedObject(sql, map);
            return ConvertUtil.ToInt(obj);
        }

        /// <summary>
        /// 取单个数据,必须保证sql语句只取出一行,否者数据会被最后一行覆盖。
        /// </summary>
        public object GetSelectedObject(string sql, Dictionary<string, object> map = null)
        {
            object obj = new object();
            DbDataReader sdr = GetDataReader(sql, map);
            obj = (sdr.Read()) ? sdr[0] : obj;
            sdr.Close();
            return obj;
        }

        /// <summary>
        /// 取单个字符串,必须保证sql语句只取出一行,否者数据会被最后一行覆盖。
        /// </summary>
        public string GetSelectedString(string sql, Dictionary<string, object> map = null)
        {
            object obj = GetSelectedObject(sql, map);
            return obj.ToString();
        }

        /// <summary>
        /// 获取执行Sql语句后受影响的行数
        /// </summary>
        public int GetExecutedNumber(string sql, Dictionary<string, object> map = null)
        {
            OdbcConnection conn = new OdbcConnection(ConnectString);
            conn.Open();
            OdbcCommand cmd = new OdbcCommand(sql, conn);
            AddParameters(cmd, map);
            int number = cmd.ExecuteNonQuery();
            cmd.Dispose();
            conn.Close();
            conn.Dispose();
            return number;
        }

        /// <summary>
        /// 返回sql语句是否被执行
        /// </summary>
        public bool GetExecutedResult(string sql, Dictionary<string, object> map = null)
        {
            int count = GetExecutedNumber(sql, map);
            return count > 0;
        }

        /// <summary>
        /// 处理参数,防止报错
        /// </summary>
        private void AddParameters(OdbcCommand cmd, Dictionary<string, object> map)
        {
            if (map == null || map.Count == 0)
                return;

            List<OdbcParameter> paramList = new List<OdbcParameter>();
            OdbcParameter thisParam;
            foreach (KeyValuePair<string, object> kayValue in map)
            {
                if (kayValue.Value == null)
                    thisParam = new OdbcParameter(kayValue.Key, "");
                else
                    thisParam = new OdbcParameter(kayValue.Key, kayValue.Value);
                paramList.Add(thisParam);
            }
            cmd.Parameters.AddRange(paramList.ToArray());
        }

        /// <summary>
        /// 获取所有表名
        /// </summary>
        public string[] GetTableNames()
        {
            OdbcConnection conn = new OdbcConnection(ConnectString);
            conn.Open();
            DataTable dt = conn.GetSchema("Tables");
            conn.Close();
            List<string> listName = new List<string>();
            string name;
            string[] sysKeys = { "MSys", "$'_", "$'Print_", "_xlnm" };
            bool isTableName;
            foreach (DataRow dr in dt.Rows)
            {
                name = dr["TABLE_NAME"].ToString();
                isTableName = true;
                foreach (string sysKey in sysKeys)
                {
                    if (name.Contains(sysKey))
                    {
                        isTableName = false;
                        break;
                    }
                }

                if (isTableName)
                    listName.Add(name);
            }
            return listName.ToArray();
        }

        /// <summary>
        /// 批量插入
        /// </summary>
        public void BulkInsert(DataTable table, string tableName)
        {
            int colCount = table.Columns.Count;
            string columns = "";
            for (int colIndex = 0; colIndex < colCount; colIndex++)
            {
                if (colIndex != 0)
                {
                    columns += ",";
                }
                columns += "[" + table.Columns[colIndex].ColumnName + "]";
            }
            int rowCount = table.Rows.Count;
            OdbcConnection conn = new OdbcConnection(ConnectString);
            conn.Open();
            for (int rowIndex = 0; rowIndex < rowCount; rowIndex++)
            {
                string values = "";
                Dictionary<string, object> map = new Dictionary<string, object>();
                for (int colIndex = 0; colIndex < colCount; colIndex++)
                {
                    string value = "@r" + rowIndex + "c" + colIndex;
                    map.Add(value, table.Rows[rowIndex][colIndex]);
                    if (colIndex != 0)
                    {
                        values += ",";
                    }
                    values += value;
                }
                string sql = "insert into [" + tableName + "] (" + columns + ") values (" + values + ");";
                OdbcCommand cmd = new OdbcCommand(sql, conn);
                AddParameters(cmd, map);
                cmd.ExecuteNonQuery();
            }
            conn.Close();
        }

        /// <summary>
        /// 连接字符串
        /// value兼容空格,不要用"",''包裹
        /// </summary>
        public class ConnectStrings
        {
            /// <summary>
            /// 通过名字获取连接字符串
            /// </summary>
            /// <param name="name">系统中配置过的ODBC</param>
            public static string Name(string name)
            {
                return string.Format("Dsn={0};", name);
            }

            /// <summary>
            /// 通过驱动名和文件路径获取连接字符串
            /// </summary>
            /// <param name="driver">驱动名</param>
            /// <param name="path">文件路径</param>
            public static string Diver(string driver, string path)
            {
                return string.Format("Driver={0};DBQ={1};", driver, path);
            }

            /// <summary>
            /// Access07
            /// </summary>
            public static string AccessNew(string path)
            {
                return "Driver={Microsoft Access Driver (*.mdb, *.accdb)};" + string.Format("DBQ={0};", path);
            }

            /// <summary>
            /// Paradox
            /// </summary>
            public static string Paradox(string floder)
            {
                return "Driver={Microsoft Paradox Driver (*.db )};" + string.Format("DBQ={0};", floder);
            }
        }
    }
}

1.6、运行结果:

2、C#通过OleDb连接DBC数据库

2.1、看到Microsoft Paradox这两个字我就猜到OleDb应该能用,查MSDN文档,果不其然用的是03版的Access引擎

2.2、连接字符串:@"Provider=Microsoft.Jet.OLEDB.4.0;Data Source=D:\MirDB;Extended Properties=Paradox 5.x;"

2.3、上代码:

using System;

namespace CommonUtils.Test
{
    class Program
    {
        static void Main(string[] args)
        {
            DbOdbc odbc1 = new DbOdbc(@"Driver={Microsoft Paradox Driver (*.db )};DBQ=D:\MirDB;");
            Console.WriteLine(odbc1.GetTableNames().ToJson());

            DbOdbc odbc2 = new DbOdbc("Dsn=Paradox-HeroDb;");
            Console.WriteLine(odbc2.GetTableNames().ToJson());

            DbOle dbOle = new DbOle(@"Provider=Microsoft.Jet.OLEDB.4.0;Data Source=D:\MirDB;Extended Properties=Paradox 5.x;");
            Console.WriteLine(dbOle.GetTableNames().ToJson());

            Console.ReadKey();
        }
    }
}
using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Common;
using System.Data.OleDb;

namespace CommonUtils
{
    /// <summary>
    /// 访问Access,Excel,没有安装office可以安装microsoft office access database engine
    /// </summary>
    public class DbOle
    {
        /// <summary>
        /// 连接字符串
        /// </summary>
        public string ConnectString { get; private set; }

        /// <summary>
        /// 初始化,获取连接字符串
        /// </summary>
        public DbOle(string connString)
        {
            ConnectString = connString;
        }

        /// <summary>
        /// 是否可连接
        /// </summary>
        public bool CanConnect()
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            try
            {
                conn.Open();
                conn.Close();
                ConnectInfo = StringUtil.Success;
                return true;
            }
            catch (Exception ex)
            {
                ConnectInfo = ex.Message;
                return false;
            }
            finally
            {
                conn.Dispose();
            }
        }

        /// <summary>
        /// 连接信息
        /// </summary>
        public string ConnectInfo { get; private set; }

        /// <summary>
        /// 获取DataReader
        /// </summary>
        public DbDataReader GetDataReader(string sql, Dictionary<string, object> map = null)
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            OleDbCommand cmd = new OleDbCommand(sql, conn);
            AddParameters(cmd, map);
            return cmd.ExecuteReader(CommandBehavior.CloseConnection);
        }

        /// <summary>
        /// 获取DataTable
        /// </summary>
        public DataTable GetDataTable(string sql, Dictionary<string, object> map = null)
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            OleDbCommand cmd = new OleDbCommand(sql, conn);
            AddParameters(cmd, map);
            OleDbDataAdapter da = new OleDbDataAdapter(cmd);
            DataTable table = new DataTable();
            da.Fill(table);
            conn.Close();
            return table;
        }

        /// <summary>
        /// 获取DataRow
        /// </summary>
        public DataRow GetDataRow(string sql, Dictionary<string, object> map = null)
        {
            DataTable table = GetDataTable(sql, map);
            if (table.Rows.Count > 0)
                return table.Rows[0];
            else
                return null;
        }

        /// <summary>
        /// 获取DataSet
        /// </summary>
        public DataSet GetDataSet(string sql, Dictionary<string, object> map = null)
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            OleDbCommand cmd = new OleDbCommand(sql, conn);
            AddParameters(cmd, map);
            OleDbDataAdapter da = new OleDbDataAdapter(cmd);
            DataSet ds = new DataSet();
            da.Fill(ds);
            conn.Close();
            return ds;
        }

        /// <summary>
        /// 获取执行Sql语句后受影响的行数
        /// </summary>
        public int GetExecutedNumber(string sql, Dictionary<string, object> map = null)
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            OleDbCommand cmd = new OleDbCommand(sql, conn);
            AddParameters(cmd, map);
            int i = cmd.ExecuteNonQuery();
            conn.Close();
            return i;
        }

        /// <summary>
        /// 判断取出的数据条数,str格式必须为 select count(*)
        /// </summary>
        public int GetSelectedCount(string sql, Dictionary<string, object> map = null)
        {
            object obj = GetSelectedObject(sql, map);
            return ConvertUtil.ToInt(obj);
        }

        /// <summary>
        /// 取单个数据,必须保证sql语句只取出一行,否者数据会被最后一行覆盖。
        /// </summary>
        public object GetSelectedObject(string sql, Dictionary<string, object> map = null)
        {
            object obj = new object();
            DbDataReader sdr = GetDataReader(sql, map);
            obj = (sdr.Read()) ? sdr[0] : obj;
            sdr.Close();
            return obj;
        }

        /// <summary>
        /// 取单个字符串,必须保证sql语句只取出一行,否者数据会被最后一行覆盖。
        /// </summary>
        public string GetSelectedString(string sql, Dictionary<string, object> map = null)
        {
            object obj = GetSelectedObject(sql, map);
            return obj.ToString();
        }

        /// <summary>
        /// 返回sql语句是否被执行
        /// </summary>
        public bool GetExecutedResult(string sql, Dictionary<string, object> map = null)
        {
            int i = GetExecutedNumber(sql, map);
            return i > 0;
        }

        /// <summary>
        /// 处理参数,防止报错
        /// </summary>
        private void AddParameters(OleDbCommand cmd, Dictionary<string, object> map)
        {
            if (map == null || map.Count == 0)
                return;

            List<OleDbParameter> paramList = new List<OleDbParameter>();
            OleDbParameter thisParam;
            foreach (KeyValuePair<string, object> keyValue in map)
            {
                if (keyValue.Value == null)
                    thisParam = new OleDbParameter(keyValue.Key, "");
                else if (keyValue.Value.GetType() == typeof(DateTime))
                    thisParam = new OleDbParameter(keyValue.Key, ((DateTime)keyValue.Value).ToString("yyyy-MM-dd HH:mm:ss"));
                else
                    thisParam = new OleDbParameter(keyValue.Key, keyValue.Value);

                paramList.Add(thisParam);
            }
            cmd.Parameters.AddRange(paramList.ToArray());
        }

        /// <summary>
        /// 获取所有表名
        /// </summary>
        public string[] GetTableNames()
        {
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            DataTable dt = conn.GetSchema("Tables");
            conn.Close();
            List<string> listName = new List<string>();
            string name;
            string[] sysKeys = { "MSys", "$'_", "$'Print_", "_xlnm" };
            bool isTableName;
            foreach (DataRow dr in dt.Rows)
            {
                name = dr["TABLE_NAME"].ToString();
                isTableName = true;
                foreach (string sysKey in sysKeys)
                {
                    if (name.Contains(sysKey))
                    {
                        isTableName = false;
                        break;
                    }
                }

                if (isTableName)
                    listName.Add(name);
            }
            return listName.ToArray();
        }

        /// <summary>
        /// 批量插入
        /// </summary>
        public void BulkInsert(DataTable table, string tableName)
        {
            int colCount = table.Columns.Count;
            string columns = "";
            for (int colIndex = 0; colIndex < colCount; colIndex++)
            {
                if (colIndex != 0)
                {
                    columns += ",";
                }
                columns += "[" + table.Columns[colIndex].ColumnName + "]";
            }
            int rowCount = table.Rows.Count;
            OleDbConnection conn = new OleDbConnection(ConnectString);
            conn.Open();
            for (int rowIndex = 0; rowIndex < rowCount; rowIndex++)
            {
                string values = "";
                Dictionary<string, object> map = new Dictionary<string, object>();
                for (int colIndex = 0; colIndex < colCount; colIndex++)
                {
                    string value = "@r" + rowIndex + "c" + colIndex;
                    map.Add(value, table.Rows[rowIndex][colIndex]);
                    if (colIndex != 0)
                    {
                        values += ",";
                    }
                    values += value;
                }
                string sql = "insert into [" + tableName + "] (" + columns + ") values (" + values + ");";
                OleDbCommand cmd = new OleDbCommand(sql, conn);
                AddParameters(cmd, map);
                cmd.ExecuteNonQuery();
            }
            conn.Close();
        }

        /// <summary>
        /// 连接字符串
        /// 没有安装office可以安装microsoft office access database engine
        /// AccessDatabaseEngine
        /// 推荐下载2010版32位
        /// https://www.microsoft.com/zh-cn/download/confirmation.aspx?id=13255
        /// </summary>
        public class ConnectStrings
        {
            /// <summary>
            /// Access07
            /// </summary>
            public static string AccessNew(string path)
            {
                return string.Format("Provider=Microsoft.ACE.OLEDB.12.0;Data Source='{0}';", path);
            }

            /// <summary>
            /// Access03
            /// </summary>
            public static string AccessOld(string path)
            {
                return string.Format("Provider=Microsoft.JET.OLEDB.4.0;Data Source='{0}';", path);
            }

            /// <summary>
            /// Excel07 读取
            /// </summary>
            public static string ExcelNewReadOnly(string path)
            {
                return string.Format("Provider=Microsoft.ACE.OLEDB.12.0;Data Source='{0}';Extended Properties='Excel 12.0;HDR=YES;IMEX=1;';", path);
            }

            /// <summary>
            /// Excel07 读写
            /// </summary>
            public static string ExcelNewReadWrite(string path)
            {
                return string.Format("Provider=Microsoft.ACE.OLEDB.12.0;Data Source='{0}';Extended Properties='Excel 12.0;HDR=YES;IMEX=0;';", path);
            }

            /// <summary>
            /// Excel03 读取
            /// </summary>
            public static string ExcelOldReadOnly(string path)
            {
                return string.Format("Provider=Microsoft.JET.OLEDB.4.0;Data Source='{0}';Extended Properties='Excel 8.0;HDR=YES;IMEX=1;';", path);
            }

            /// <summary>
            /// Excel03 读写
            /// </summary>
            public static string ExcelOldReadWrite(string path)
            {
                return string.Format("Provider=Microsoft.JET.OLEDB.4.0;Data Source='{0}';Extended Properties='Excel 8.0;HDR=YES;IMEX=0;';", path);
            }

            /// <summary>
            /// Paradox引擎,传奇,征途等
            /// </summary>
            public static string Paradox(string floder)
            {
                return string.Format("Provider=Microsoft.Jet.OLEDB.4.0;Data Source={0};Extended Properties=Paradox 5.x;", floder);
            }
        }
    }
}

2.4、运行结果:

展开阅读全文

没有更多推荐了,返回首页
