Android移动开发-调用摄像头进行拍照的实现

现在Android智能手机的像素都会提供照相的功能,大部分的手机的摄像头的像素都在1000万以上的像素,有的甚至会更高。它们大多都会支持光学变焦、曝光以及快门等等。

下面的程序Demo实例示范了使用Camera v2来进行拍照,当用户按下拍照键时,该应用会自动对焦,当对焦成功时拍下照片。

  • layout/activity_main.xml界面布局代码如下:
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.fukaimei.camerav2test">

    <!-- 授予该程序使用摄像头的权限 -->
    <uses-permission android:name="android.permission.CAMERA" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

上面的程序的界面提供了一个自定义TextureView来显示预览取景,十分简单。该自定义TextureView类的代码如下:

  • AutoFitTextureView.java逻辑代码如下:
package com.fukaimei.camerav2test;

import android.content.Context;
import android.util.AttributeSet;
import android.view.TextureView;

/**
 * Created by FuKaimei on 2017/9/29.
 */

public class AutoFitTextureView extends TextureView {

    private int mRatioWidth = 0;
    private int mRatioHeight = 0;

    public AutoFitTextureView(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public void setAspectRatio(int width, int height) {
        mRatioWidth = width;
        mRatioHeight = height;
        requestLayout();
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);
        if (0 == mRatioWidth || 0 == mRatioHeight) {
            setMeasuredDimension(width, height);
        } else {
            if (width < height * mRatioWidth / mRatioHeight) {
                setMeasuredDimension(width, width * mRatioHeight / mRatioWidth);
            } else {
                setMeasuredDimension(height * mRatioWidth / mRatioHeight, height);
            }
        }
    }
}

接来了的MainActivity.java程序将会使用CameraManager来打开CameraDevice,并通过CameraDevice创建CameraCaptureSession,然后即可通过CameraCaptureSession进行预览或拍照了。

  • MainActivity.java逻辑代码如下:
package com.fukaimei.camerav2test;

import android.Manifest;
import android.app.Activity;
import android.content.Context;
import android.content.pm.PackageManager;
import android.content.res.Configuration;
import android.graphics.ImageFormat;
import android.graphics.SurfaceTexture;
import android.hardware.camera2.CameraAccessException;
import android.hardware.camera2.CameraCaptureSession;
import android.hardware.camera2.CameraCharacteristics;
import android.hardware.camera2.CameraDevice;
import android.hardware.camera2.CameraManager;
import android.hardware.camera2.CameraMetadata;
import android.hardware.camera2.CaptureRequest;
import android.hardware.camera2.TotalCaptureResult;
import android.hardware.camera2.params.StreamConfigurationMap;
import android.media.Image;
import android.media.ImageReader;
import android.os.Build;
import android.os.Bundle;
import android.support.annotation.RequiresApi;
import android.support.v4.app.ActivityCompat;
import android.util.Log;
import android.util.Size;
import android.util.SparseIntArray;
import android.view.Surface;
import android.view.TextureView;
import android.view.View;
import android.widget.Toast;

import java.io.File;
import java.io.FileOutputStream;
import java.nio.ByteBuffer;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Collections;
import java.util.Comparator;
import java.util.List;

@RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
public class MainActivity extends Activity implements View.OnClickListener {

    private static final SparseIntArray ORIENTATIONS = new SparseIntArray();
    private static final String TAG = "MainActivity";

    static {
        ORIENTATIONS.append(Surface.ROTATION_0, 90);
        ORIENTATIONS.append(Surface.ROTATION_90, 0);
        ORIENTATIONS.append(Surface.ROTATION_180, 270);
        ORIENTATIONS.append(Surface.ROTATION_270, 180);
    }

    private AutoFitTextureView textureView;
    // 摄像头ID(通常0代表后置摄像头,1代表前置摄像头)
    private String mCameraId = "0";
    // 定义代表摄像头的成员变量
    private CameraDevice cameraDevice;
    // 预览尺寸
    private Size previewSize;
    private CaptureRequest.Builder previewRequestBuilder;
    // 定义用于预览照片的捕获请求
    private CaptureRequest previewRequest;
    // 定义CameraCaptureSession成员变量
    private CameraCaptureSession captureSession;
    private ImageReader imageReader;
    private final TextureView.SurfaceTextureListener mSurfaceTextureListener
            = new TextureView.SurfaceTextureListener() {
        @Override
        public void onSurfaceTextureAvailable(SurfaceTexture texture
                , int width, int height) {
            // 当TextureView可用时,打开摄像头
            openCamera(width, height);
        }

        @Override
        public void onSurfaceTextureSizeChanged(SurfaceTexture texture
                , int width, int height) {
        }

        @Override
        public boolean onSurfaceTextureDestroyed(SurfaceTexture texture) {
            return true;
        }

        @Override
        public void onSurfaceTextureUpdated(SurfaceTexture texture) {
        }
    };
    private final CameraDevice.StateCallback stateCallback = new CameraDevice.StateCallback() {
        //  摄像头被打开时激发该方法
        @Override
        public void onOpened(CameraDevice cameraDevice) {
            MainActivity.this.cameraDevice = cameraDevice;
            // 开始预览
            createCameraPreviewSession();  // ②
        }

        // 摄像头断开连接时激发该方法
        @Override
        public void onDisconnected(CameraDevice cameraDevice) {
            cameraDevice.close();
            MainActivity.this.cameraDevice = null;
        }

        // 打开摄像头出现错误时激发该方法
        @Override
        public void onError(CameraDevice cameraDevice, int error) {
            cameraDevice.close();
            MainActivity.this.cameraDevice = null;
            MainActivity.this.finish();
        }
    };

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        textureView = (AutoFitTextureView) findViewById(R.id.texture);
        // 为该组件设置监听器
        textureView.setSurfaceTextureListener(mSurfaceTextureListener);
        findViewById(R.id.capture).setOnClickListener(this);
    }

    @Override
    public void onClick(View view) {
        captureStillPicture();
    }

    private void captureStillPicture() {
        try {
            if (cameraDevice == null) {
                return;
            }
            // 创建作为拍照的CaptureRequest.Builder
            final CaptureRequest.Builder captureRequestBuilder =
                    cameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_STILL_CAPTURE);
            // 将imageReader的surface作为CaptureRequest.Builder的目标
            captureRequestBuilder.addTarget(imageReader.getSurface());
            // 设置自动对焦模式
            captureRequestBuilder.set(CaptureRequest.CONTROL_AF_MODE,
                    CaptureRequest.CONTROL_AF_MODE_CONTINUOUS_PICTURE);
            // 设置自动曝光模式
            captureRequestBuilder.set(CaptureRequest.CONTROL_AE_MODE,
                    CaptureRequest.CONTROL_AE_MODE_ON_AUTO_FLASH);
            // 获取设备方向
            int rotation = getWindowManager().getDefaultDisplay().getRotation();
            // 根据设备方向计算设置照片的方向
            captureRequestBuilder.set(CaptureRequest.JPEG_ORIENTATION
                    , ORIENTATIONS.get(rotation));
            // 停止连续取景
            captureSession.stopRepeating();
            // 捕获静态图像
            captureSession.capture(captureRequestBuilder.build()
                    , new CameraCaptureSession.CaptureCallback()  // ⑤
                    {
                        // 拍照完成时激发该方法
                        @Override
                        public void onCaptureCompleted(CameraCaptureSession session
                                , CaptureRequest request, TotalCaptureResult result) {
                            try {
                                // 重设自动对焦模式
                                previewRequestBuilder.set(CaptureRequest.CONTROL_AF_TRIGGER,
                                        CameraMetadata.CONTROL_AF_TRIGGER_CANCEL);
                                // 设置自动曝光模式
                                previewRequestBuilder.set(CaptureRequest.CONTROL_AE_MODE,
                                        CaptureRequest.CONTROL_AE_MODE_ON_AUTO_FLASH);
                                // 打开连续取景模式
                                captureSession.setRepeatingRequest(previewRequest, null,
                                        null);
                            } catch (CameraAccessException e) {
                                e.printStackTrace();
                            }
                        }
                    }, null);
        } catch (CameraAccessException e) {
            e.printStackTrace();
        }
    }

    // 打开摄像头
    private void openCamera(int width, int height) {
        setUpCameraOutputs(width, height);
        CameraManager manager = (CameraManager) getSystemService(Context.CAMERA_SERVICE);
        try {
            // 打开摄像头
            if (ActivityCompat.checkSelfPermission(this, Manifest.permission.CAMERA) != PackageManager.PERMISSION_GRANTED) {
                // TODO: Consider calling
                //    ActivityCompat#requestPermissions
                // here to request the missing permissions, and then overriding
                //   public void onRequestPermissionsResult(int requestCode, String[] permissions,
                //                                          int[] grantResults)
                // to handle the case where the user grants the permission. See the documentation
                // for ActivityCompat#requestPermissions for more details.
                return;
            }
            manager.openCamera(mCameraId, stateCallback, null); // ①
        } catch (CameraAccessException e) {
            e.printStackTrace();
        }
    }

    private void createCameraPreviewSession() {
        try {
            SurfaceTexture texture = textureView.getSurfaceTexture();
            texture.setDefaultBufferSize(previewSize.getWidth(), previewSize.getHeight());
            Surface surface = new Surface(texture);
            // 创建作为预览的CaptureRequest.Builder
            previewRequestBuilder = cameraDevice
                    .createCaptureRequest(CameraDevice.TEMPLATE_PREVIEW);
            // 将textureView的surface作为CaptureRequest.Builder的目标
            previewRequestBuilder.addTarget(new Surface(texture));
            // 创建CameraCaptureSession,该对象负责管理处理预览请求和拍照请求
            cameraDevice.createCaptureSession(Arrays.asList(surface
                    , imageReader.getSurface()), new CameraCaptureSession.StateCallback() // ③
                    {
                        @Override
                        public void onConfigured(CameraCaptureSession cameraCaptureSession) {
                            // 如果摄像头为null,直接结束方法
                            if (null == cameraDevice) {
                                return;
                            }

                            // 当摄像头已经准备好时,开始显示预览
                            captureSession = cameraCaptureSession;
                            try {
                                // 设置自动对焦模式
                                previewRequestBuilder.set(CaptureRequest.CONTROL_AF_MODE,
                                        CaptureRequest.CONTROL_AF_MODE_CONTINUOUS_PICTURE);
                                // 设置自动曝光模式
                                previewRequestBuilder.set(CaptureRequest.CONTROL_AE_MODE,
                                        CaptureRequest.CONTROL_AE_MODE_ON_AUTO_FLASH);
                                // 开始显示相机预览
                                previewRequest = previewRequestBuilder.build();
                                // 设置预览时连续捕获图像数据
                                captureSession.setRepeatingRequest(previewRequest,
                                        null, null);  // ④
                            } catch (CameraAccessException e) {
                                e.printStackTrace();
                            }
                        }

                        @Override
                        public void onConfigureFailed(CameraCaptureSession cameraCaptureSession) {
                            Toast.makeText(MainActivity.this, "配置失败!"
                                    , Toast.LENGTH_SHORT).show();
                        }
                    }, null
            );
        } catch (CameraAccessException e) {
            e.printStackTrace();
        }
    }

    private void setUpCameraOutputs(int width, int height) {
        CameraManager manager = (CameraManager) getSystemService(Context.CAMERA_SERVICE);
        try {
            // 获取指定摄像头的特性
            CameraCharacteristics characteristics
                    = manager.getCameraCharacteristics(mCameraId);
            // 获取摄像头支持的配置属性
            StreamConfigurationMap map = characteristics.get(
                    CameraCharacteristics.SCALER_STREAM_CONFIGURATION_MAP);

            // 获取摄像头支持的最大尺寸
            Size largest = Collections.max(
                    Arrays.asList(map.getOutputSizes(ImageFormat.JPEG)),
                    new CompareSizesByArea());
            // 创建一个ImageReader对象,用于获取摄像头的图像数据
            imageReader = ImageReader.newInstance(largest.getWidth(), largest.getHeight(),
                    ImageFormat.JPEG, 2);
            imageReader.setOnImageAvailableListener(
                    new ImageReader.OnImageAvailableListener() {
                        // 当照片数据可用时激发该方法
                        @Override
                        public void onImageAvailable(ImageReader reader) {
                            // 获取捕获的照片数据
                            Image image = reader.acquireNextImage();
                            ByteBuffer buffer = image.getPlanes()[0].getBuffer();
                            byte[] bytes = new byte[buffer.remaining()];
                            // 使用IO流将照片写入指定文件
                            File file = new File(getExternalFilesDir(null), "pic.jpg");
                            buffer.get(bytes);
                            try (
                                    FileOutputStream output = new FileOutputStream(file)) {
                                output.write(bytes);

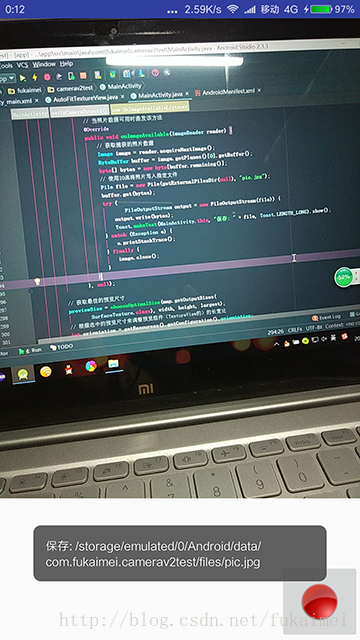

                                Toast.makeText(MainActivity.this, "保存: " + file, Toast.LENGTH_LONG).show();
                            } catch (Exception e) {
                                e.printStackTrace();
                            } finally {
                                image.close();
                            }
                        }
                    }, null);

            // 获取最佳的预览尺寸
            previewSize = chooseOptimalSize(map.getOutputSizes(
                    SurfaceTexture.class), width, height, largest);
            // 根据选中的预览尺寸来调整预览组件(TextureView的)的长宽比
            int orientation = getResources().getConfiguration().orientation;
            if (orientation == Configuration.ORIENTATION_LANDSCAPE) {
                textureView.setAspectRatio(
                        previewSize.getWidth(), previewSize.getHeight());
            } else {
                textureView.setAspectRatio(
                        previewSize.getHeight(), previewSize.getWidth());
            }
        } catch (CameraAccessException e) {
            e.printStackTrace();
        } catch (NullPointerException e) {
            Log.d(TAG, "出现错误");
        }
    }

    private static Size chooseOptimalSize(Size[] choices
            , int width, int height, Size aspectRatio) {
        // 收集摄像头支持的打过预览Surface的分辨率
        List<Size> bigEnough = new ArrayList<>();
        int w = aspectRatio.getWidth();
        int h = aspectRatio.getHeight();
        for (Size option : choices) {
            if (option.getHeight() == option.getWidth() * h / w &&
                    option.getWidth() >= width && option.getHeight() >= height) {
                bigEnough.add(option);
            }
        }
        // 如果找到多个预览尺寸,获取其中面积最小的。
        if (bigEnough.size() > 0) {
            return Collections.min(bigEnough, new CompareSizesByArea());
        } else {
            System.out.println("找不到合适的预览尺寸!!!");
            return choices[0];
        }
    }

    // 为Size定义一个比较器Comparator
    static class CompareSizesByArea implements Comparator<Size> {
        @Override
        public int compare(Size lhs, Size rhs) {
            // 强转为long保证不会发生溢出
            return Long.signum((long) lhs.getWidth() * lhs.getHeight() -
                    (long) rhs.getWidth() * rhs.getHeight());
        }
    }
}

上面的程序中序号①的代码是用于打开系统摄像头,openCamera()方法的第一个参数代表请求打开的摄像头ID,此处传入的摄像头ID为“0”,这代表打开设备后置摄像头;如果需要打开设备指定摄像头(比如前置摄像头),可以在调用openCamera()方法时传入相应的摄像头ID。

  • 注意:由于该程序需要使用手机的摄像头,因此还需要在清单文件AndroidManifest.xml文件中授权相应的权限:
<!-- 授予该程序使用摄像头的权限 -->
    <uses-permission android:name="android.permission.CAMERA" />
  • Demo程序运行效果界面截图如下:
    这里写图片描述
    ———————— The end ————————

如果您觉得这篇博客写的比较好的话,赞赏一杯咖啡吧~~
在这里插入图片描述


Demo程序源码下载地址

  • 22
    点赞
  • 41
    收藏
  • 打赏
    打赏
  • 0
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
©️2022 CSDN 皮肤主题:编程工作室 设计师:CSDN官方博客 返回首页
评论

打赏作者

_彼岸雨敲窗_

你的鼓励将是我创作的最大动力

¥2 ¥4 ¥6 ¥10 ¥20
输入1-500的整数
余额支付 (余额:-- )
扫码支付
扫码支付:¥2
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
