Kubernetes云原生监控之kube-state-metrics集群资源监控
概述

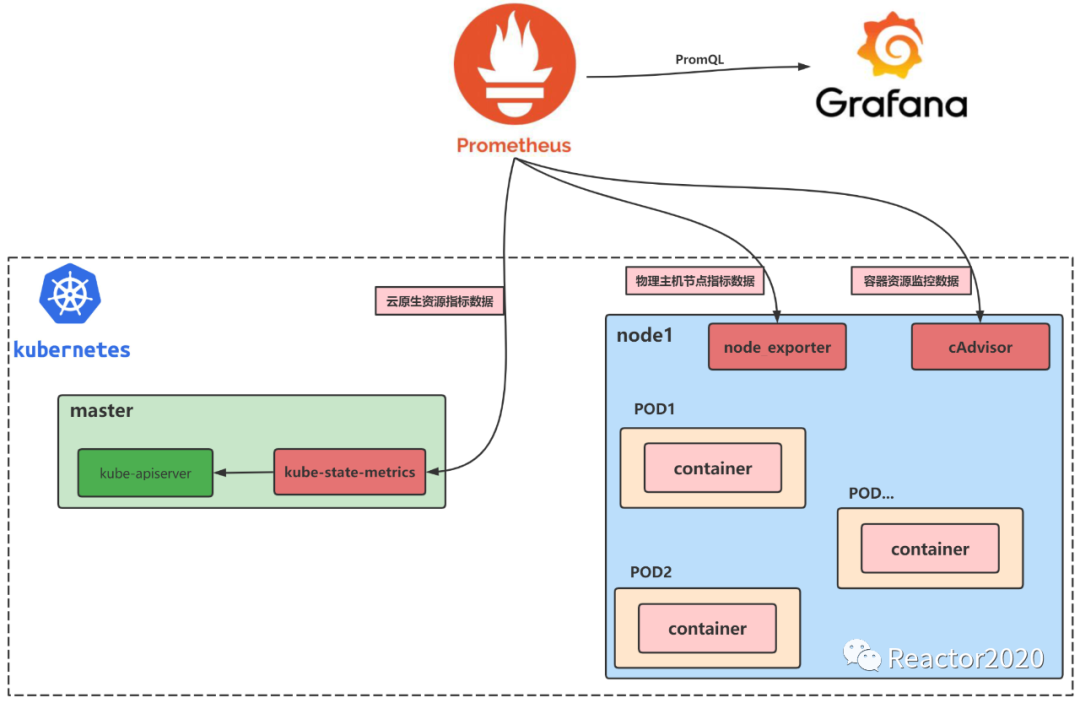

Kubernetes 云原生集群监控主要涉及到如下三类指标：node 物理节点指标、pod & container 容器资源指标和Kubernetes 云原生集群资源指标。针对这三类指标都有比较成熟的方案，见下图：
上节我们梳理了cAdvisor容器性能指标如何监控，这一节我们就来分析下云原生集群资源监控。
Kubernetes集群在运行过程中，我们想了解服务运行状态，这时就需要kube-state-metrics，它主要关注deployment、service 、 pod等集群资源对象的状态。
Kube State Metrics 是一个简单的服务，该服务通过监听 Kubernetes API 服务器来生成不同资源的状态的 Metrics 数据。
cAdvisor 已经被 Kubernetes 默认集成，而 Kube State Metrics 并没有被默认集成，所以我们要想监控集群完整数据，就需要在 Kubernetes 中单独部署 Kube State Metrics 组件，这样才能够将集群中的服务资源指标数据暴露出来，以便于对不同资源进行监控。
环境信息

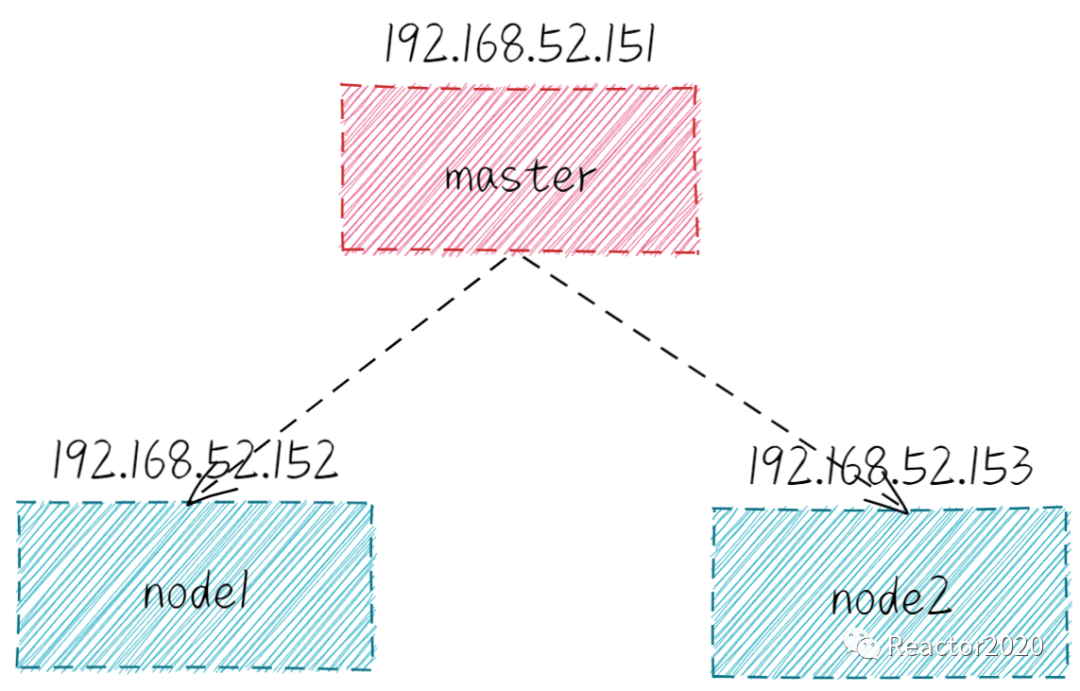

本人搭建的 Kubernetes 集群环境如下图，后续都是基于该集群演示：
kube-state-metrics安装

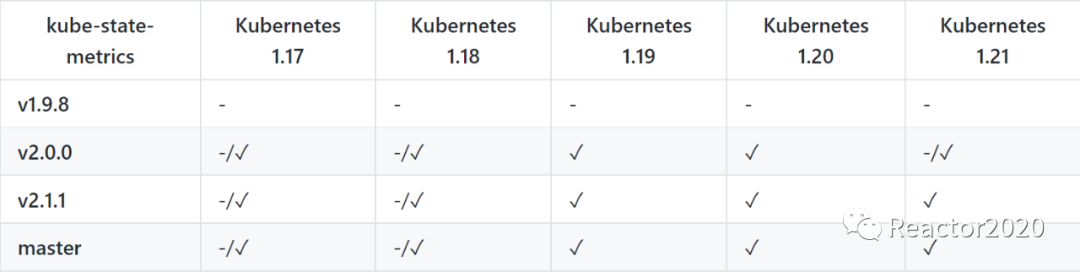

1、选择与Kubernetes版本兼容的kube-state-metrics版本，https://github.com/kubernetes/kube-state-metrics
[root@master kube-state-metrics]# kubectl version
Client Version: version.Info{Major:"1", Minor:"19", GitVersion:"v1.19.5", GitCommit:"e338cf2c6d297aa603b50ad3a301f761b4173aa6", GitTreeState:"clean", BuildDate:"2020-12-09T11:18:51Z", GoVersion:"go1.15.2", Compiler:"gc", Platform:"linux/amd64"}
Server Version: version.Info{Major:"1", Minor:"19", GitVersion:"v1.19.5", GitCommit:"e338cf2c6d297aa603b50ad3a301f761b4173aa6", GitTreeState:"clean", BuildDate:"2020-12-09T11:10:32Z", GoVersion:"go1.15.2", Compiler:"gc", Platform:"linux/amd64"}
我的k8s版本是v1.19.5，所以这里选择kube-state-metrics版本v2.1.1。
2、在master节点上创建目录kube-state-metrics，并将kube-state-metrics-2.1.1.zip解压包中examples/standard目录下文件拷贝到kube-state-metrics目录中：
[root@master kube-state-metrics]# ls -lah
总用量 20K
drwxr-xr-x. 2 root root 135 7月 21 13:40 .
drwxr-xr-x. 5 root root 74 7月 21 13:39 ..
-rw-r--r--. 1 root root 376 7月 29 2021 cluster-role-binding.yaml
-rw-r--r--. 1 root root 1.6K 7月 29 2021 cluster-role.yaml
-rw-r--r--. 1 root root 1.2K 7月 29 2021 deployment.yaml
-rw-r--r--. 1 root root 192 7月 29 2021 service-account.yaml
-rw-r--r--. 1 root root 405 7月 29 2021 service.yaml
“由于
Kube State Metrics组件需要通过与kube-apiserver连接，并调用相应的接口去获取kubernetes集群数据，这个过程需要Kube State Metrics组件拥有一定的权限才能成功执行这些操作。在Kubernetes中默认使用RBAC方式管理权限。所以，我们需要创建相应的 RBAC 资源来提供该组件使用。
deployment.yaml文件注意如下暴露的两个端口作用：
apiVersion: apps/v1
kind: Deployment
metadata:
name: kube-state-metrics
labels:
k8s-app: kube-state-metrics
spec:
replicas: 1
selector:
matchLabels:
k8s-app: kube-state-metrics
template:
metadata:
labels:
k8s-app: kube-state-metrics
spec:
serviceAccountName: kube-state-metrics
containers:
- name: kube-state-metrics
image: bitnami/kube-state-metrics:2.0.0
securityContext:
runAsUser: 65534
ports:
- name: http-metrics ##用于公开kubernetes的指标数据的端口
containerPort: 8080
- name: telemetry ##用于公开自身kube-state-metrics的指标数据的端口
containerPort: 8081
3、创建
[root@master kube-state-metrics]# kubectl apply -f ./
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
serviceaccount/kube-state-metrics created
service/kube-state-metrics created
4、查看
#查看是否运行成功
[root@master kube-state-metrics]# kubectl get pod -n kube-system -owide |grep kube-state-metrics
kube-state-metrics-5f84848c58-v7v9z 1/1 Running 0 50m 10.100.166.135 node1 <none> <none>
[root@master kube-state-metrics]# kubectl get svc -n kube-system |grep kube-state-metrics
kube-state-metrics ClusterIP None <none> 8080/TCP,8081/TCP 50m
这个镜像是特别注意的，因为前缀是k8s.gcr.io，所以是pull不了的，改为bitnami/kube-state-metrics:2.1.1，之后使用docker tag改名为k8s.gcr.io/kube-state-metrics/kube-state-metrics:v2.1.1
[root@node1 ~]# docker pull bitnami/kube-state-metrics:2.1.1
[root@node1 ~]# docker tag f0db7c5a6de8 k8s.gcr.io/kube-state-metrics/kube-state-metrics:v2.1.1
[root@node1 ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
bitnami/kube-state-metrics 2.1.1 f0db7c5a6de8 Less than a second ago 121MB
k8s.gcr.io/kube-state-metrics/kube-state-metrics v2.1.1 f0db7c5a6de8 Less than a second ago 121MB
registry.aliyuncs.com/k8sxio/kube-proxy v1.19.5 6e5666d85a31 7 months ago 118MB
5、验证指标是否采集成功 请求kube-state-metrics的pod ip+8080端口:
[root@master kube-state-metrics]# curl 10.100.166.135:8080/metrics
Prometheus接入
1、kube-state-metrics创建的svc是ClusterIP类型，只能被集群内部访问，所以prometheus需要部署在集群节点上，不然IP可能无法访问：
- job_name: 'kube-state-metrics'
metrics_path: metrics
kubernetes_sd_configs:
- role: pod
api_server: https://apiserver.simon:6443
bearer_token_file: /tools/token.k8s
tls_config:
insecure_skip_verify: true
bearer_token_file: /tools/token.k8s
tls_config:
insecure_skip_verify: true
relabel_configs:
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: pod
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- source_labels: [__meta_kubernetes_pod_ip]
regex: (.+)
target_label: __address__
replacement: ${1}:8080
- source_labels: ["__meta_kubernetes_pod_container_name"]
regex: "^kube-state-metrics.*"
action: keep
抓取指标列表：
kube_limitrange{}
kube_replicaset_created{}
kube_persistentvolumeclaim_status_phase{}
kube_pod_container_status_terminated{}
kube_secret_info{}
kube_service_info{}
kube_daemonset_status_observed_generation{}
kube_node_role{}
kube_persistentvolume_claim_ref{}
kube_pod_start_time{}
kube_configmap_info{}
kube_daemonset_created{}
kube_endpoint_address_not_ready{}
kube_node_created{}
kube_pod_init_container_status_waiting{}
kube_secret_metadata_resource_version{}
kube_pod_container_resource_requests{}
kube_pod_status_ready{}
kube_secret_created{}
kube_persistentvolume_capacity_bytes{}
kube_persistentvolumeclaim_info{}
kube_pod_status_reason{}
kube_secret_type{}
kube_deployment_spec_strategy_rollingupdate_max_unavailable{}
kube_deployment_status_condition{}
kube_pod_container_status_ready{}
kube_pod_created{}
kube_deployment_spec_replicas{}
kube_ingress_metadata_resource_version{}
kube_ingress_tls{}
kube_persistentvolumeclaim_resource_requests_storage_bytes{}
kube_deployment_status_replicas{}
kube_limitrange_created{}
kube_namespace_status_phase{}
kube_node_info{}
kube_endpoint_address_available{}
kube_ingress_labels{}
kube_pod_init_container_status_restarts_total{}
kube_daemonset_status_number_unavailable{}
kube_endpoint_created{}
kube_pod_status_phase{}
kube_deployment_spec_strategy_rollingupdate_max_surge{}
kube_deployment_status_replicas_available{}
kube_node_spec_unschedulable{}
kube_deployment_metadata_generation{}
kube_lease_renew_time{}
kube_node_status_capacity{}
kube_persistentvolumeclaim_access_mode{}
kube_daemonset_status_updated_number_scheduled{}
kube_namespace_created{}
kube_persistentvolume_status_phase{}
kube_pod_container_status_running{}
kube_daemonset_metadata_generation{}
kube_node_status_allocatable{}
kube_pod_container_resource_limits{}
kube_pod_init_container_status_terminated_reason{}
kube_configmap_created{}
kube_ingress_path{}
kube_pod_restart_policy{}
kube_replicaset_status_ready_replicas{}
kube_namespace_labels{}
kube_pod_status_scheduled_time{}
kube_configmap_metadata_resource_version{}
kube_pod_info{}
kube_pod_spec_volumes_persistentvolumeclaims_info{}
kube_replicaset_owner{}
kube_pod_owner{}
kube_pod_status_scheduled{}
kube_daemonset_labels{}
kube_deployment_created{}
kube_deployment_spec_paused{}
kube_persistentvolume_info{}
kube_pod_container_status_restarts_total{}
kube_pod_init_container_status_ready{}
kube_service_created{}
kube_persistentvolume_labels{}
kube_daemonset_status_number_available{}
kube_node_spec_taint{}
kube_pod_completion_time{}
kube_pod_container_info{}
kube_pod_init_container_status_running{}
kube_replicaset_labels{}
kube_daemonset_status_number_ready{}
kube_deployment_status_observed_generation{}
kube_ingress_info{}
kube_node_labels{}
kube_pod_container_status_terminated_reason{}
kube_pod_init_container_info{}
kube_daemonset_status_number_misscheduled{}
kube_deployment_status_replicas_updated{}
kube_endpoint_info{}
kube_endpoint_labels{}
kube_secret_labels{}
kube_deployment_status_replicas_unavailable{}
kube_lease_owner{}
kube_pod_container_status_waiting{}
kube_daemonset_status_current_number_scheduled{}
kube_ingress_created{}
kube_replicaset_metadata_generation{}
kube_deployment_labels{}
kube_node_status_condition{}
kube_pod_container_status_last_terminated_reason{}
kube_pod_init_container_status_terminated{}
kube_service_spec_type{}
kube_persistentvolumeclaim_labels{}
kube_pod_container_state_started{}
kube_pod_labels{}
kube_replicaset_status_observed_generation{}
kube_service_labels{}
kube_daemonset_status_desired_number_scheduled{}
kube_pod_spec_volumes_persistentvolumeclaims_readonly{}
kube_replicaset_status_replicas{}
kube_replicaset_spec_replicas{}
kube_replicaset_status_fully_labeled_replicas{}

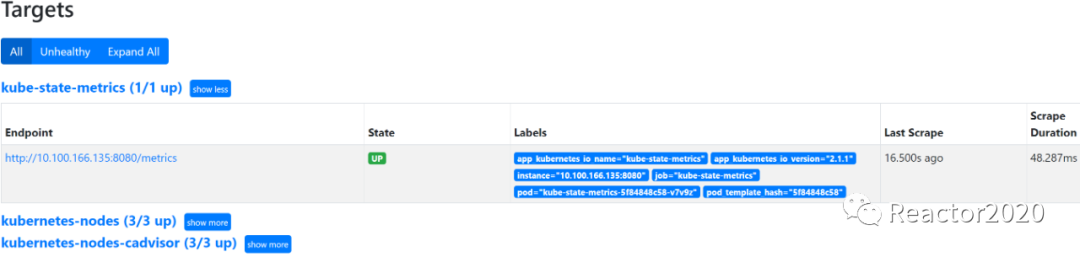

2、Prometheus target中检查是否成功接入：
dashboard配置

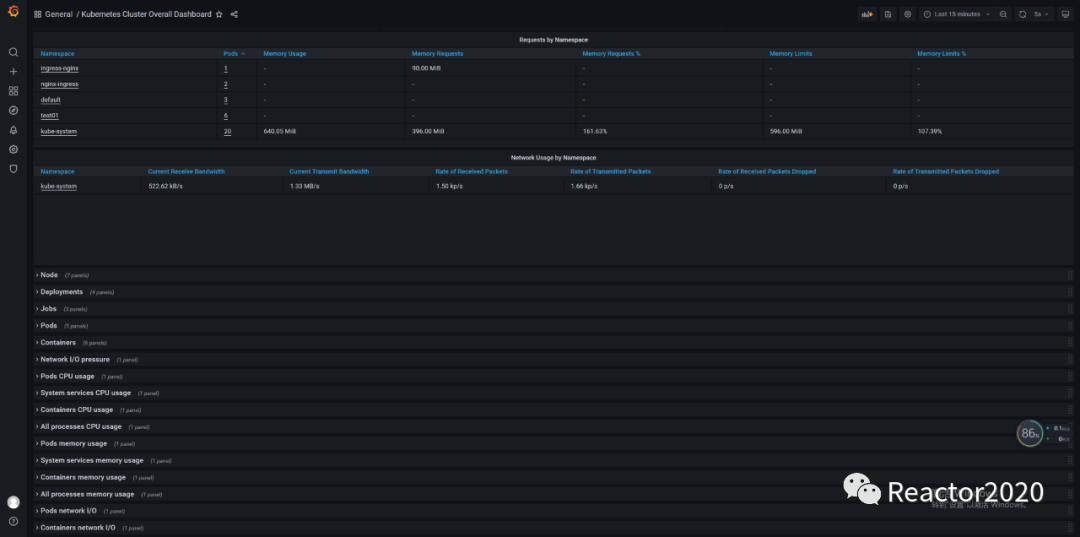

导入14518 dashboard，kube-state-metrics性能监控指标就展示到模板上，如下图：
