Linux 安装Harbor镜像仓库，最新教程，细到极致

  大家下午好，今天给大家带来的是Docker镜像仓库Harbor的安装，希望能给大家带来一点帮助
  闲话不说了，开始安装
1、首先下载安装包，官网下载地址是：Harbor下载
2、上传安装包

[root@VM-4-12-centos harbor]# pwd
/opt/harbor
[root@VM-4-12-centos harbor]# ll
total 488976
-rw-r--r-- 1 root root 500705880 May 15 15:31 harbor-offline-installer-v2.0.0.tgz

3、安装Harbor需要的依赖

[root@VM-4-12-centos harbor]# yum -y install lrzsz

3A、然后是安装Docker-compose,这个相当于是Docker的管家，可以一次性拉取多个镜像，另外，运行Harbor需要提前安装好Docker和Docker-compose,没有安装的Docker，Docker安装教程

5、查看Docker是否安装,同时Docker版本不小于1.10.0

[root@VM-4-12-centos harbor]# docker -v
Docker version 20.10.16, build aa7e414

6、安装Docker-compose，官网下载地址

[root@VM-4-12-centos harbor]# wget https://github.com/docker/compose/releases/download/1.25.0/docker-compose-Linux-x86_64
[root@VM-4-12-centos harbor]# mv docker-compose-Linux-x86_64 /usr/bin/docker-compose
[root@VM-4-12-centos harbor]# chmod a+x /usr/bin/docker-compose

7、查看是否安装成功

[root@VM-4-12-centos harbor]# docker-compose --version
docker-compose version 1.25.0, build 0a186604

8、解压Harbor

[root@VM-4-12-centos harbor]# tar -zxvf harbor-offline-installer-v2.0.0.tgz

9、进入Harbor

[root@VM-4-12-centos harbor]# cd harbor/
[root@VM-4-12-centos harbor]# ll
total 491060
-rw-r--r-- 1 root root      3361 May 11  2020 common.sh
-rw-r--r-- 1 root root 502808042 May 11  2020 harbor.v2.0.0.tar.gz
-rw-r--r-- 1 root root      7816 May 11  2020 harbor.yml.tmpl
-rwxr-xr-x 1 root root      2523 May 11  2020 install.sh
-rw-r--r-- 1 root root     11347 May 11  2020 LICENSE
-rwxr-xr-x 1 root root      1856 May 11  2020 prepare

10、增加云服务器主机映射

[root@VM-4-2-centos harbor]# vi /etc/hosts

101.35.245.191 666java.top

11、然后我们需要对Harbor配置Https，可以使用Nginx配置，也可以用我们的域名到云服务器下载一份ssl证书，这里我们使用官方提供的一种自制证书，测试一下，Harbor自制证书教程

[root@VM-4-2-centos harbor]# pwd
/opt/harbor/harbor

[root@VM-4-2-centos harbor]# openssl genrsa -out ca.key 4096

[root@VM-4-2-centos harbor]# openssl req -x509 -new -nodes -sha512 -days 3650 \
 -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=666java.top" \
 -key ca.key \
 -out ca.crt

[root@VM-4-2-centos harbor]# openssl genrsa -out 666java.top.key 4096

[root@VM-4-2-centos harbor]# openssl req -sha512 -new \
    -subj "/C=CN/ST=Beijing/L=Beijing/O=example/OU=Personal/CN=666java.top" \
    -key 666java.top.key \
    -out 666java.top.csr

[root@VM-4-2-centos harbor]# cat > v3.ext <<-EOF
authorityKeyIdentifier=keyid,issuer
basicConstraints=CA:FALSE
keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
extendedKeyUsage = serverAuth
subjectAltName = @alt_names

[alt_names]
DNS.1=666java.top
DNS.2=666java
DNS.3=101.35.245.191
EOF

[root@VM-4-2-centos harbor]# openssl x509 -req -sha512 -days 3650 \
    -extfile v3.ext \
    -CA ca.crt -CAkey ca.key -CAcreateserial \
    -in 666java.top.csr \
    -out 666java.top.crt

[root@VM-4-2-centos harbor]# mkdir -p /data/cert
[root@VM-4-2-centos harbor]# cp 666java.top.crt /data/cert/
[root@VM-4-2-centos harbor]# cp 666java.top.key /data/cert/

[root@VM-4-2-centos harbor]# openssl x509 -inform PEM -in 666java.top.crt -out 666java.top.cert

[root@VM-4-2-centos harbor]# mkdir -p /etc/docker/certs.d/666java.top/
[root@VM-4-2-centos harbor]#  cp /opt/harbor/harbor/666java.top.cert /etc/docker/certs.d/666java.top/
[root@VM-4-2-centos harbor]#  cp /opt/harbor/harbor/666java.top.key /etc/docker/certs.d/666java.top/
[root@VM-4-2-centos harbor]#  cp /opt/harbor/harbor/ca.crt /etc/docker/certs.d/666java.top/

12、重启Docker

[root@VM-4-2-centos harbor]# systemctl restart docker

13、拷贝一份配置，然后修改Harbor配置

[root@VM-4-12-centos harbor]# cp harbor.yml.tmpl harbor.yml
[root@VM-4-2-centos harbor]# vi harbor.yml

修改内容如下:

hostname: 666java.top

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 8081

# https related config
https:
  # https port for harbor, default is 443
  port: 443
  # The path of cert and key files for nginx
  certificate: /data/cert/666java.top.crt
  private_key: /data/cert/666java.top.key

14、运行prepare脚本，启用https

[root@VM-4-2-centos harbor]# ./prepare

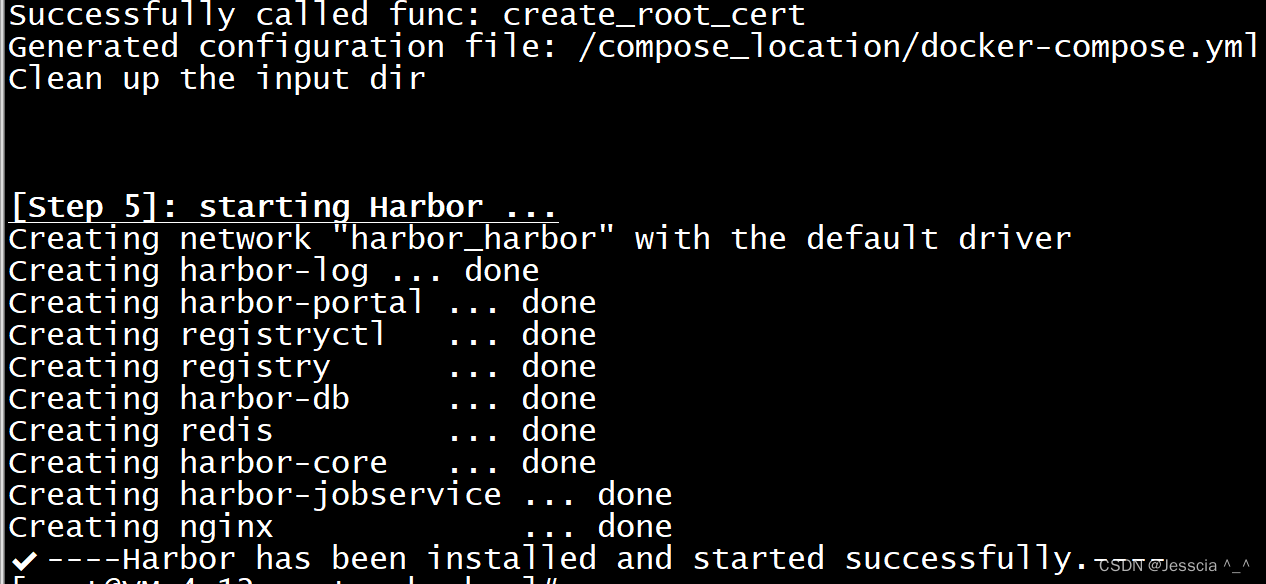

15、启动Harbor,–with-clair参数是启用漏洞扫描功能,然后出现以下提示，说明启动成功,–with-clair也可以不带

[root@VM-4-12-centos harbor]# ./install.sh --with-clair

16、我们也可以查看一下，对外访问的端口是否启动

[root@VM-4-12-centos harbor]# netstat -ntlp
tcp        0      0 0.0.0.0:8081            0.0.0.0:*               LISTEN      533420/docker-proxy

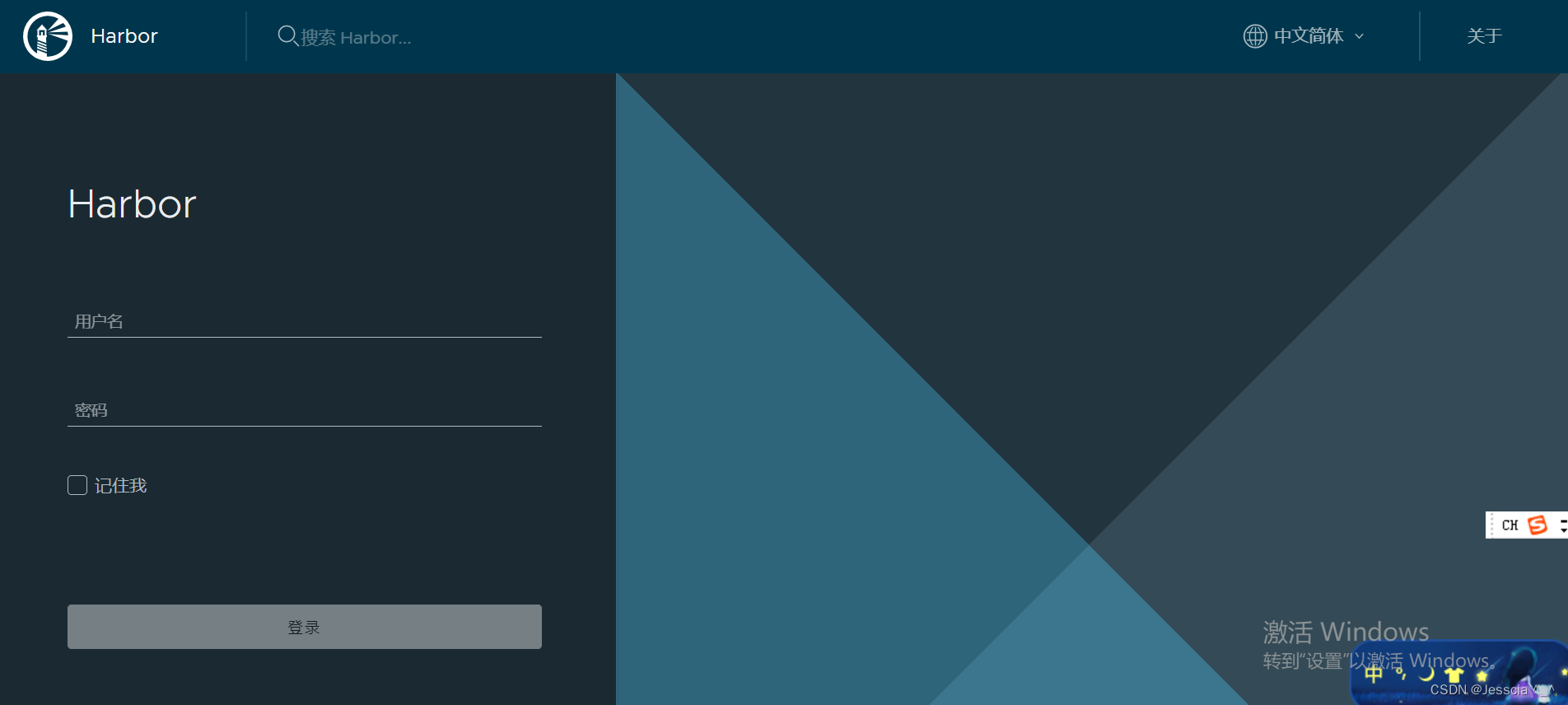

17、访问 https://666java.top/

18、最后，Harbor是部署在Docker里面的，我们需要到Docker里面，拿到用户名和密码

[root@VM-4-12-centos harbor]# docker exec -it harbor-core /bin/bash

19、查看密码，初始密码是Harbor12345

printenv | grep PASSWORD

20、退出Harbor，输入exit

harbor [ /harbor ]$ exit
exit

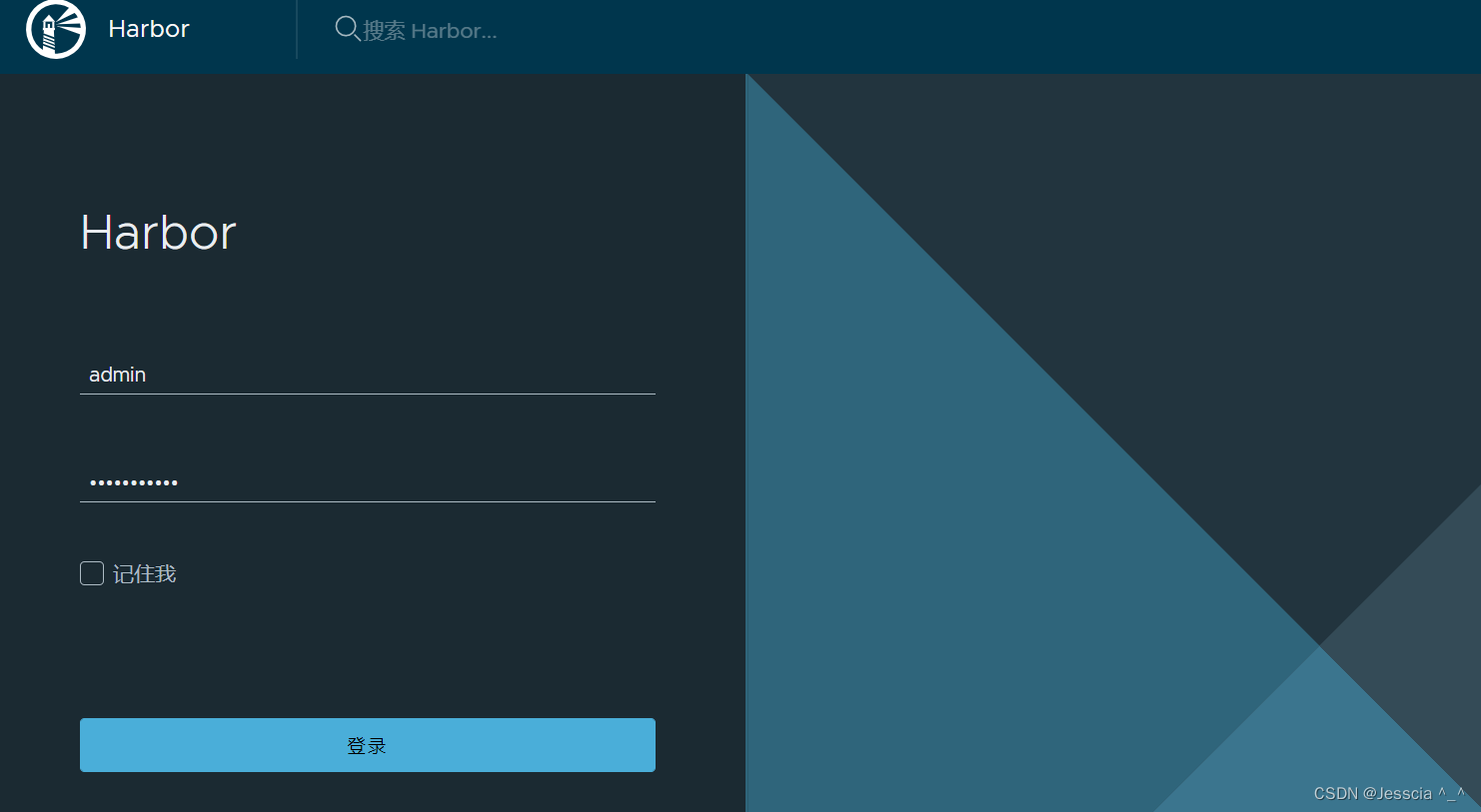

21、然后输入用户名和密码

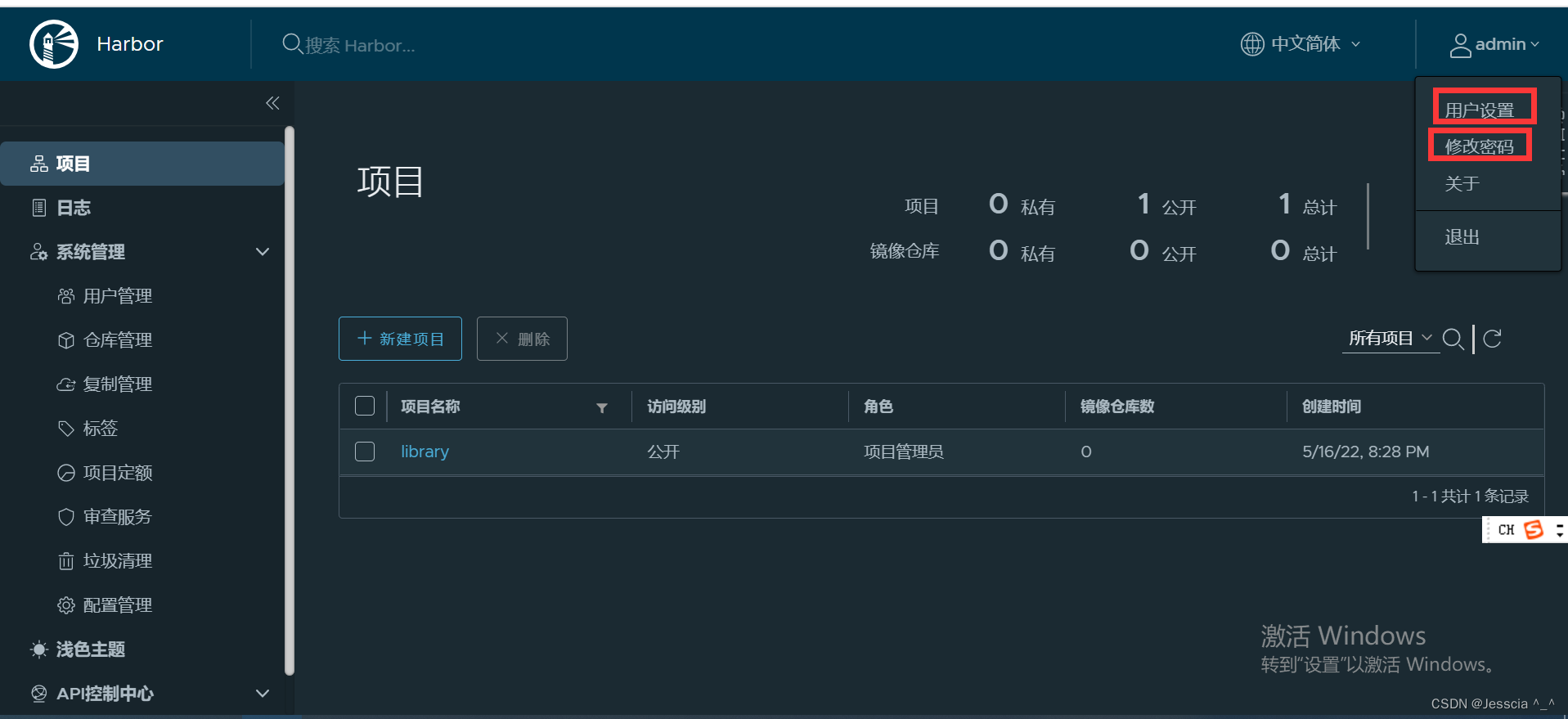

22、登录成功以后，我们可以在右上角修改用户信息和修改密码

23、然后来到用户管理，新增一个用户

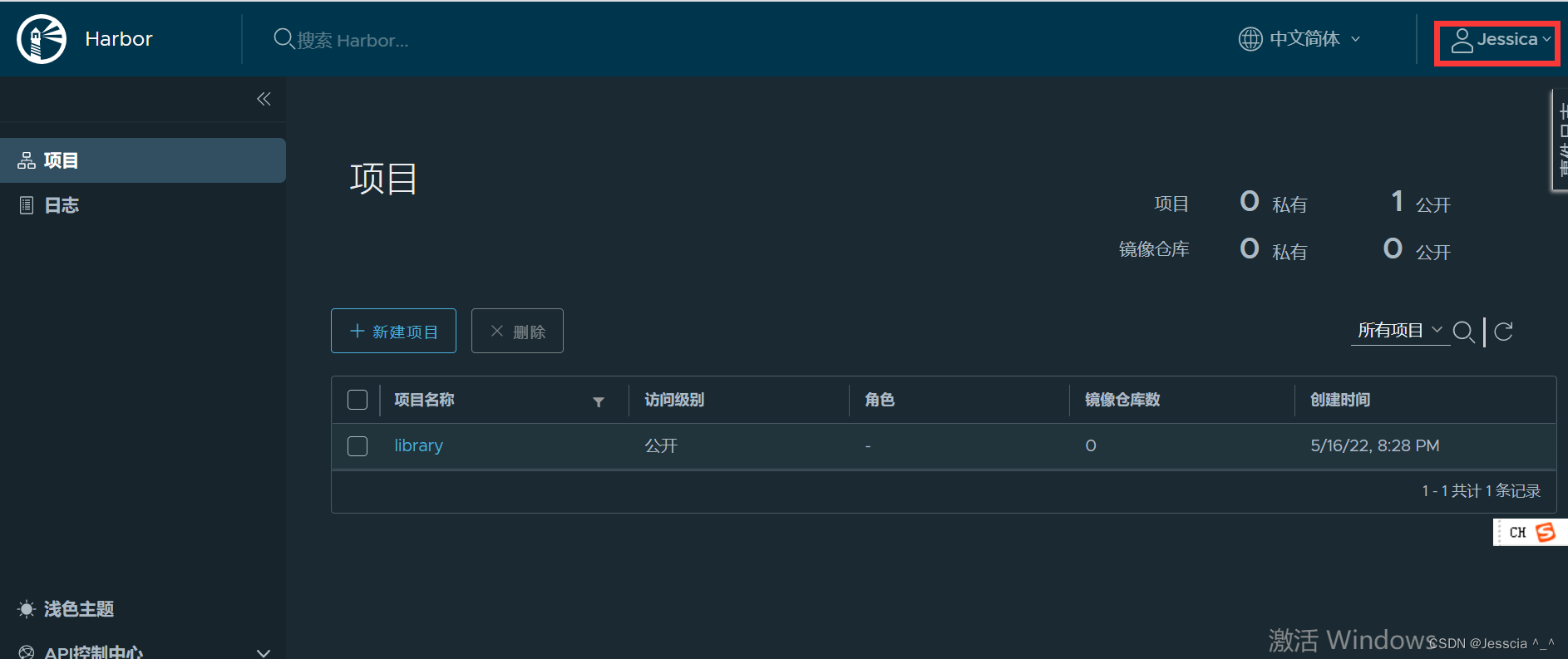

24、再次登录，成功

25、验证Docker 客户端是否可以登录Harbor，第一次需要输入用户名和密码，老哥已经登录过一次了，不需要输入

[root@VM-4-2-centos harbor]# docker login 666java.top
Authenticating with existing credentials...
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

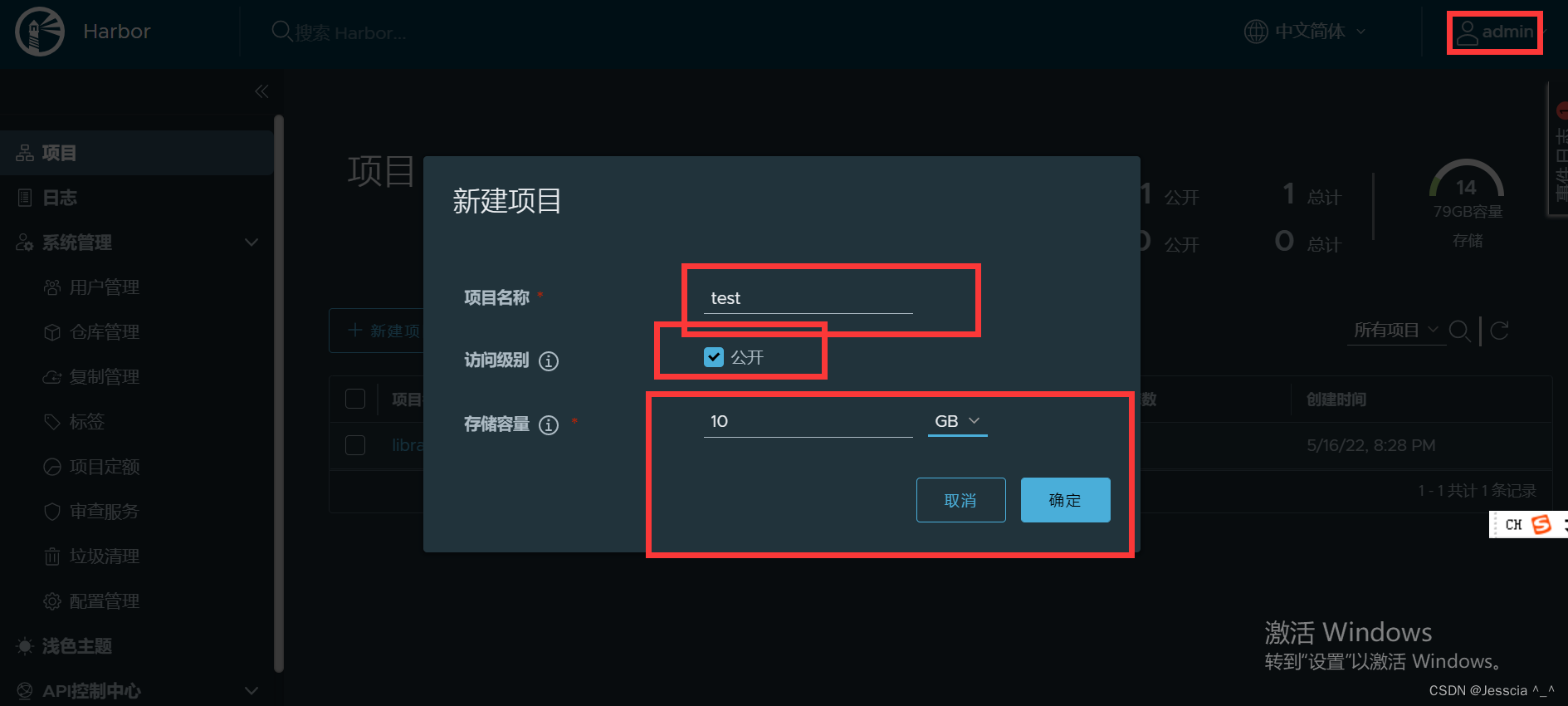

26、然后我们切换到admin用户，新建一个镜像仓库

27、最后我们测试一下，镜像仓库的推送和拉取，我们先从远程阿里云拉取一个rabbitmq镜像

[root@VM-4-2-centos harbor]# docker pull rabbitmq

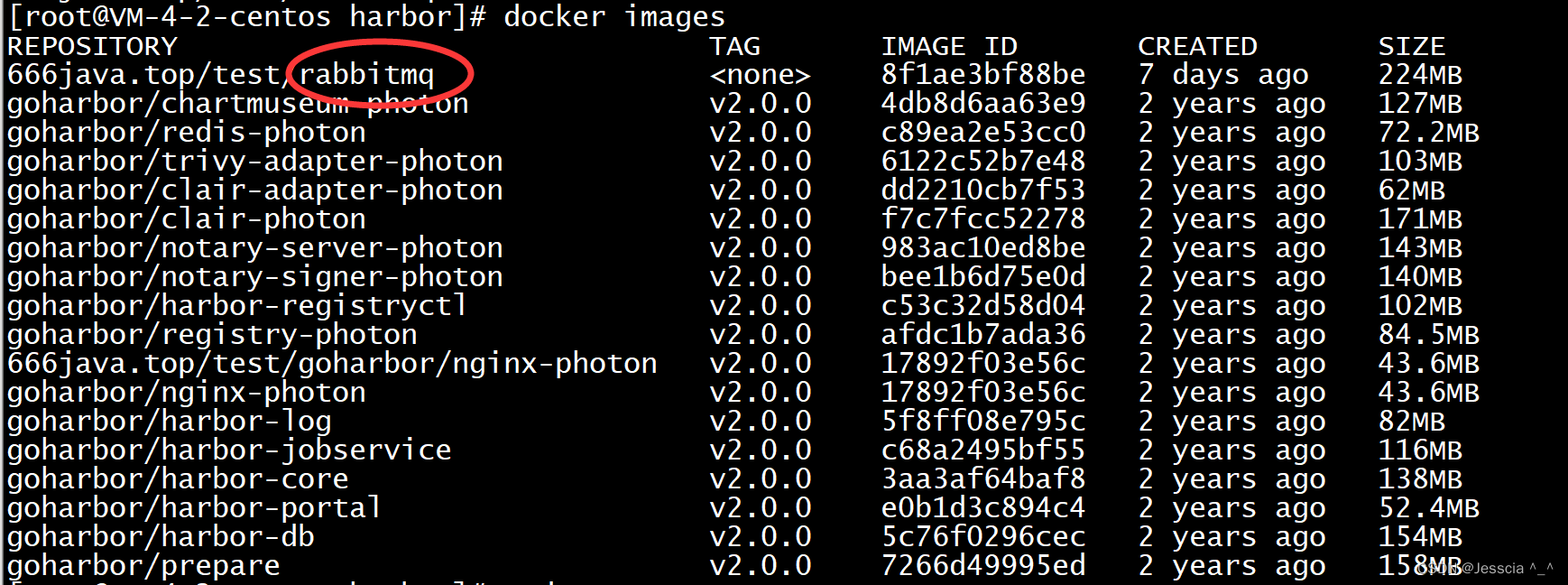

[root@VM-4-2-centos harbor]# docker images
REPOSITORY                               TAG       IMAGE ID       CREATED       SIZE
rabbitmq                                 latest    8f1ae3bf88be   7 days ago    224MB

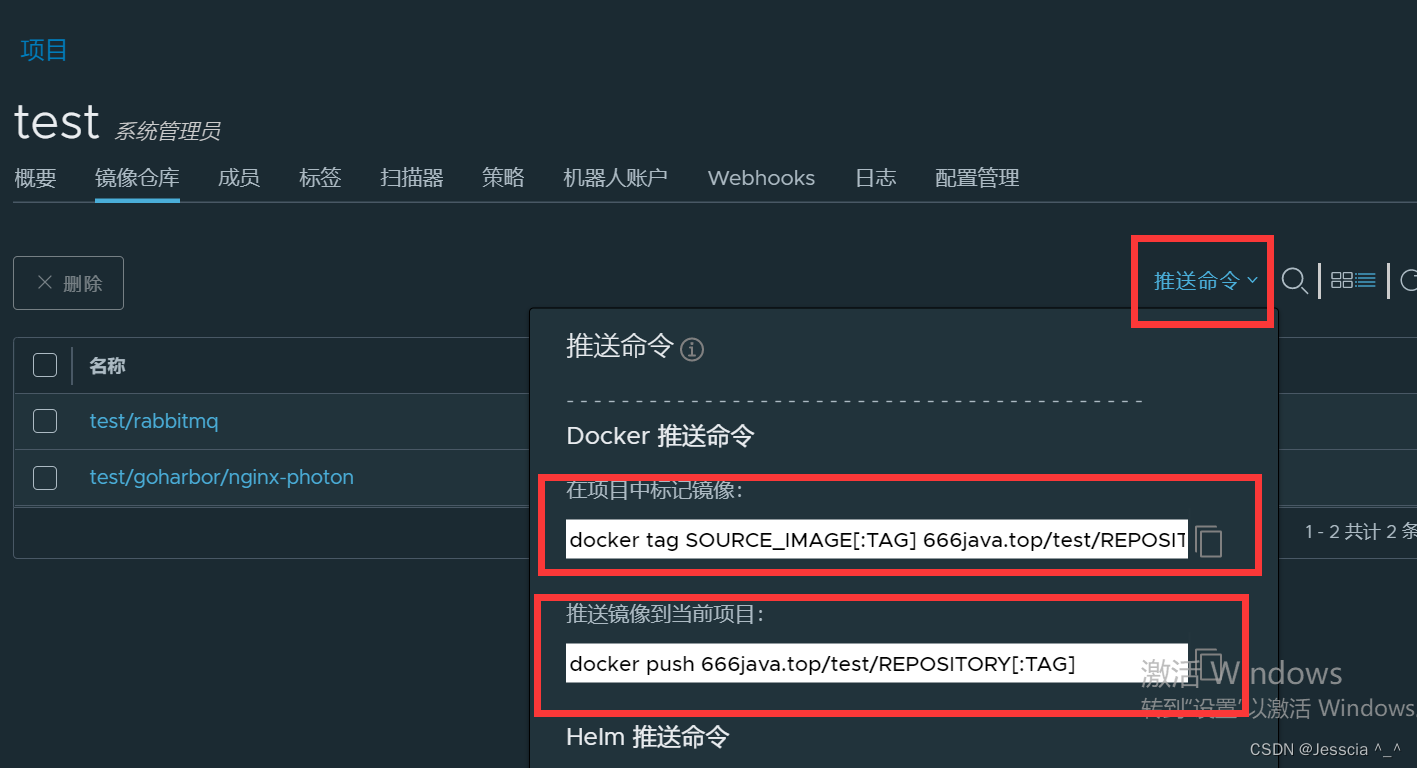

28、然后打包，推送到我们自己的Harbor仓库，在主界面上，官方提供了实例命令

[root@VM-4-2-centos harbor]# docker tag rabbitmq:latest 666java.top/test/rabbitmq:latest
[root@VM-4-2-centos harbor]# docker push 666java.top/test/rabbitmq:latest

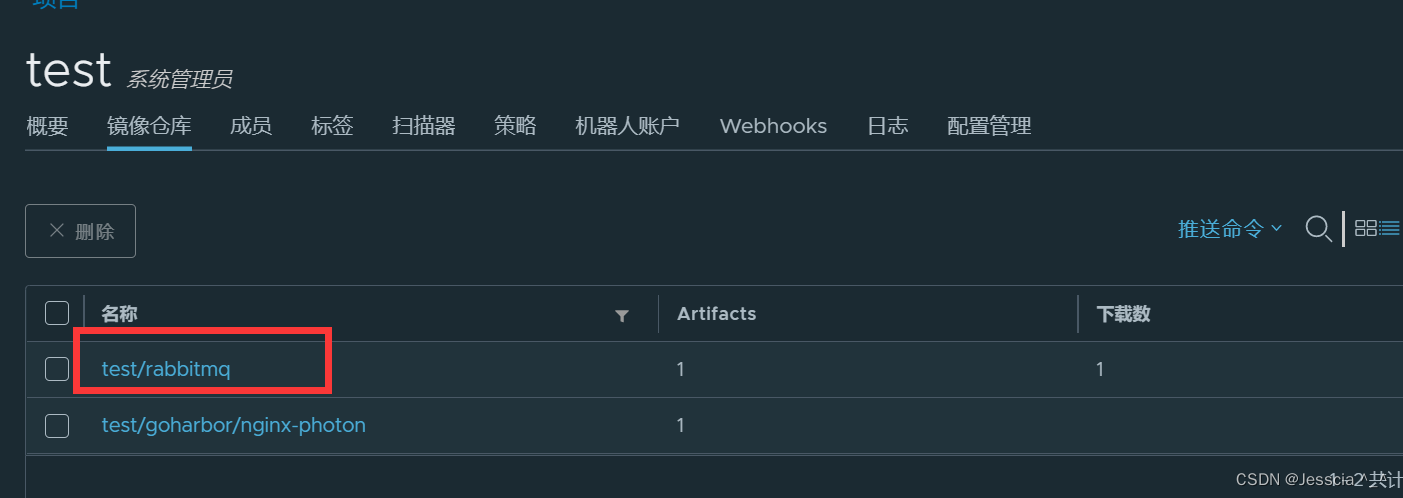

29、我们可以看到界面上已经有了rabbitmq

30、然后我们把docker里面的rabbitmq镜像删除

[root@VM-4-2-centos harbor]# docker rmi 666java.top/test/rabbitmq:latest

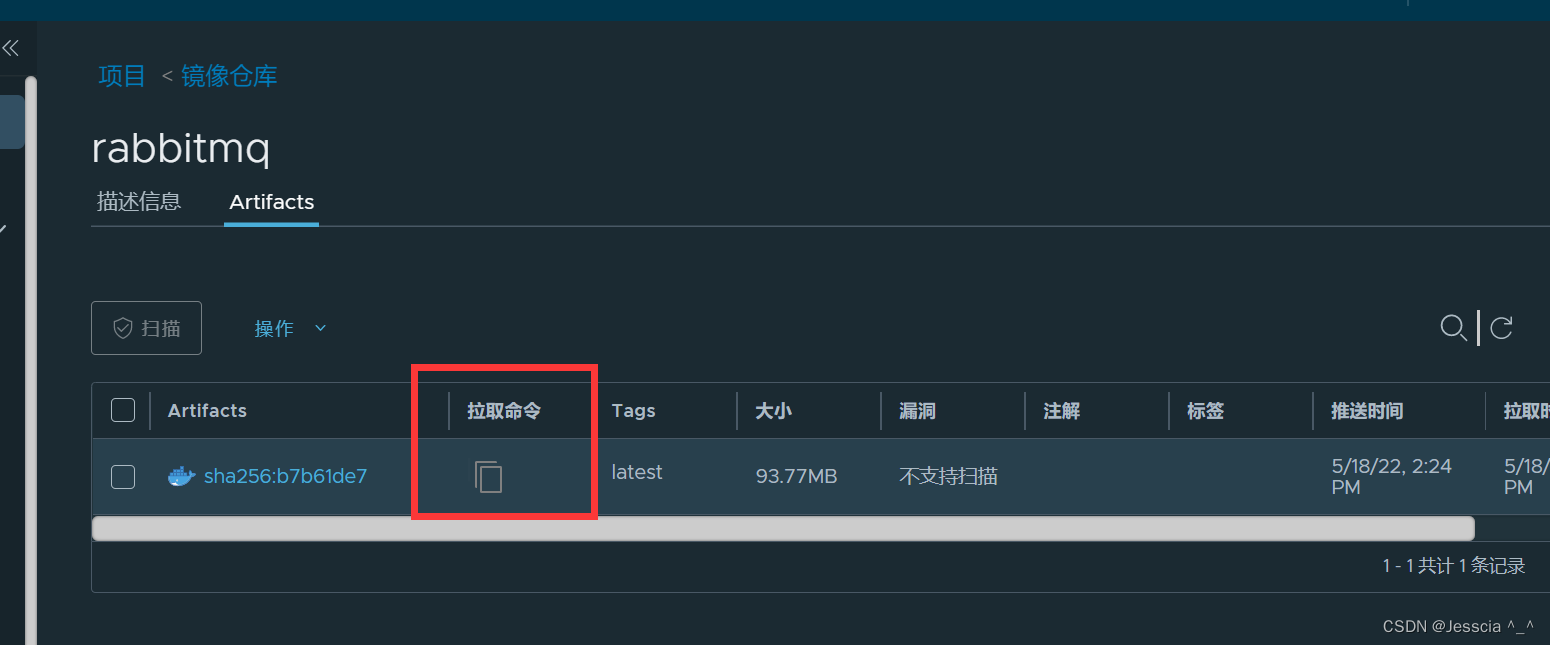

31、这次从我们的Harbor仓库拉取，官方也提供了实例命令，结束！

[root@VM-4-2-centos harbor]# docker pull 666java.top/test/rabbitmq@sha256:b7b61de711694729b32bfbea88756c40fe00ef88e62220eda08ca400c407c8a4
