静态路由的配置（简单版）

一、配置思路

1.配置主机IP

2.配置防火墙IP

3.配置路由器IP

4.配置区域

5.配置安全策略

6.配置静态路由

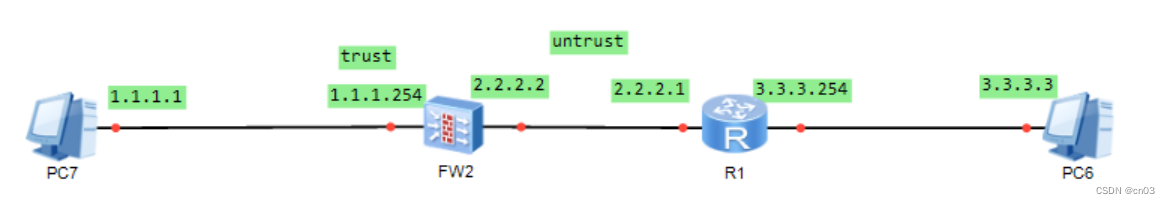

例子：通过静态路由实现PC7ping通PC6

二、配置过程

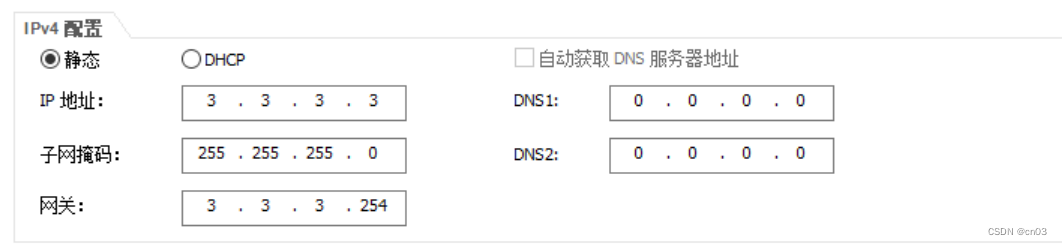

1.配置主机IP

2.配置防火墙IP

sys
sysname FW2
interface GigabitEthernet 1/0/0
ip address 1.1.1.254 24
interface GigabitEthernet 1/0/1
ip address 2.2.2.2 24

3.配置路由器IP

sys
sysname R1
interface Ethernet 0/0/0
ip address 2.2.2.1 24
interface Ethernet 0/0/1
ip address 3.3.3.254 24

4.配置区域【FW2】

firewall zone trust
add interface  GigabitEthernet 1/0/0
firewall zone untrust
add interface  GigabitEthernet 1/0/1

5.配置安全策略

security-policy
rule name pc7_pc6
source-zone trust
destination-zone untrust
source-address 1.1.1.1 32
destination-address 3.3.3.3 32
service icmp
action permit
rule name pc7_pc6
source-zone untrust
destination-zone trust
source-address 3.3.3.3 32
destination-address 1.1.1.1 32
service icmp
action permit

6.设置静态路由

【FW2】ip route-static 3.3.3.0 24 2.2.2.1
【R1】ip route-static 1.1.1.0 24 2.2.2.2
