gd32f450vi rtthread timer5定时器初始化示例

本文链接：https://blog.csdn.net/haotianmai/article/details/140490132

static void timer5_irq_handler(void)
{
    if (RESET != timer_interrupt_flag_get(TIMER5, TIMER_INT_FLAG_UP)) {
        timer_interrupt_flag_clear(TIMER5, TIMER_INT_FLAG_UP);

        //to do
    }
}

void TIMER5_DAC_IRQHandler(void)
{
    /* enter interrupt */
    rt_interrupt_enter();

    timer5_irq_handler();

    /* leave interrupt */
    rt_interrupt_leave();
}

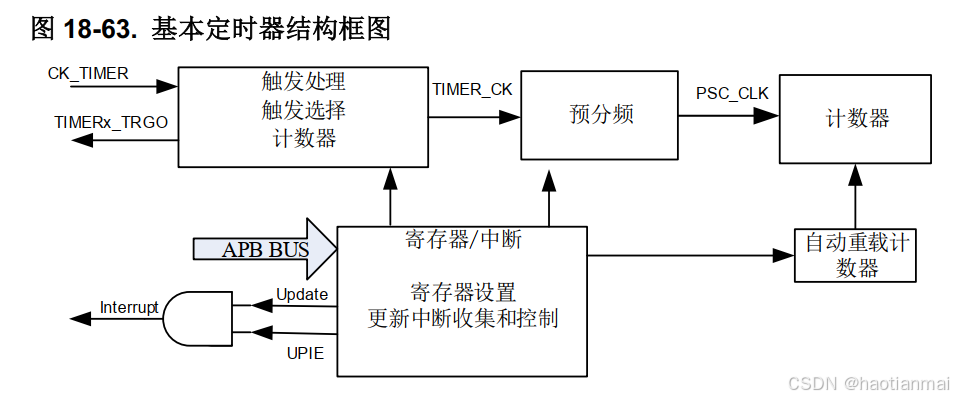

/* 描述：基本定时器5初始化

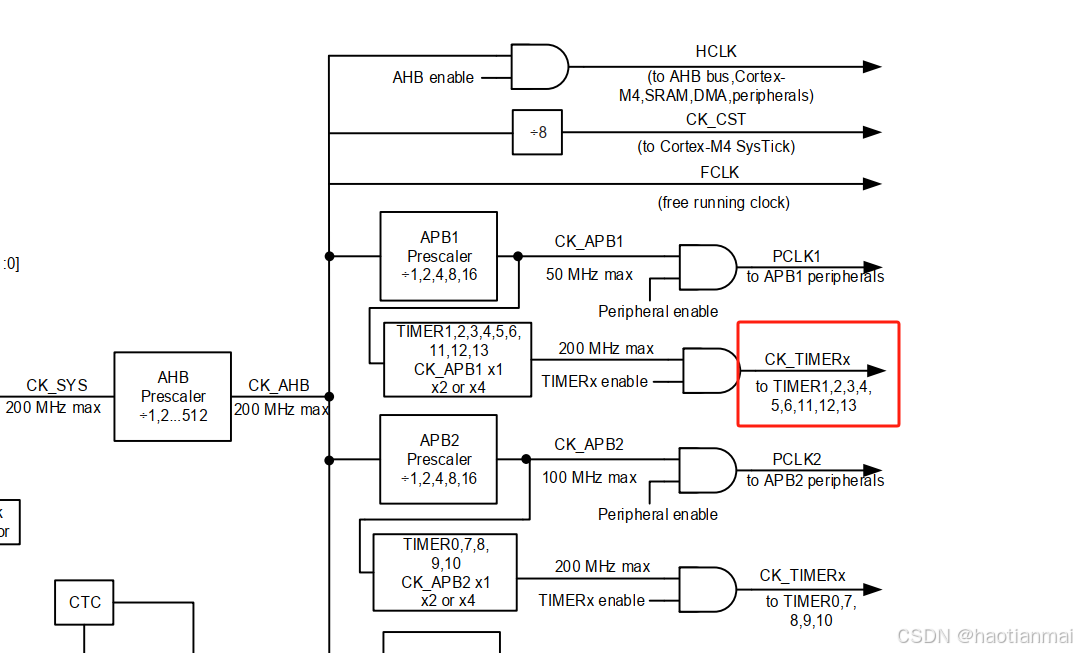

 * 备注：TIMER5的时钟源为 TIMER_CK = 100MHz
 * 1ms产生一次中断, 单脉冲模式
 * 返回值：无			*/
void timer5_period_init(void)
{
    timer_parameter_struct  timer_basestructure;
    unsigned int TIMER_CK;
    __IO unsigned short timer_prescaler;
    int count = 50000;

    memset(&timer_basestructure, 0x00, sizeof(timer_parameter_struct));

    /* enable the TIMER5 global interrupt */
    nvic_irq_enable((uint8_t)TIMER5_DAC_IRQn, 1U, 0U);

    rcu_periph_clock_enable(RCU_TIMER5);		/* 使能TIMER5时钟 */
    rcu_timer_clock_prescaler_config(RCU_TIMER_PSC_MUL2);
    timer_deinit(TIMER5);

    TIMER_CK = rcu_clock_freq_get(CK_APB1) * 2;   //100Mhz, 对应1000ms  => 0.1Mhz对应1ms

    //向上计数到50000，产生一次中断(1ms), 那么分频: 0.1Mhz/50000 = 2
    timer_prescaler = (TIMER_CK / 1000) / count - 1;

    timer_disable(TIMER5);
    timer_interrupt_disable(TIMER5, TIMER_INT_UP);


    /* TIMER5 初始化配置 */
    timer_basestructure.prescaler         = timer_prescaler;
    timer_basestructure.alignedmode       = TIMER_COUNTER_EDGE;
    timer_basestructure.counterdirection  = TIMER_COUNTER_UP;
    timer_basestructure.period            = count;

    timer_init(TIMER5,&timer_basestructure);
    timer_counter_value_config(TIMER5, 0);
    timer_update_source_config(TIMER5, TIMER_UPDATE_SRC_REGULAR);
    timer_auto_reload_shadow_disable(TIMER5);

    timer_single_pulse_mode_config(TIMER5, TIMER_SP_MODE_SINGLE);

    timer_interrupt_flag_clear(TIMER5, TIMER_INT_FLAG_UP);

    timer_interrupt_enable(TIMER5,TIMER_INT_UP);    /* 使能更新中断 */

	timer_enable(TIMER5);
    //dump_timer5_reg();

	return;
}
