Fast集群安装

集群安装

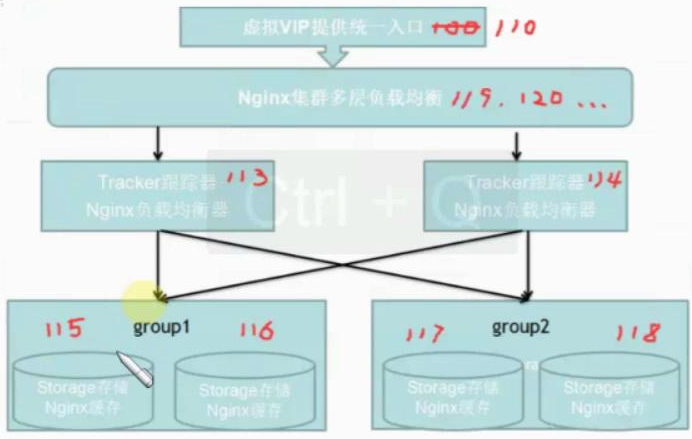

1.FastDFS安装

• Tracker，nginx
  192.168.56.113
  192.168.56.114
• storage
  group1
  192.168.56.115
  192.168.56.116
  group1
  192.168.56.116
  192.168.56.117

FastDFS相关软件下载地址 https://sourceforge.net/projects/fastdfs/files/

• 安装gcc。命令：apt-get install make
  apt-get install gcc
  apt-get install cmake
  apt-get install gcc-c++

---

1.1下载libfastcommon（项目通用函数库）

1）可以从git下载

git clone https://github.com/happyfish100/libfastcommon.git

2）编译安装

cd libfastcommon/
./make.sh
./make.sh install

• libfastcommon默认安装到了/usr/lib64/目录下，而Fastdfs程序使用,/usr/local/lib/,所以创建文件链接

3）创建链接

 mkdir /usr/local/lib/
 ln -s /usr/lib64/libfastcommon.so /usr/local/lib/libfastcommon.so
 ln -s /usr/lib64/libfastcommon.so /usr/lib/libfastcommon.so
 ln -s /usr/lib64/libfdfsclient.so /usr/local/lib/libfdfsclient.so
 ln -s /usr/lib64/libfdfsclient.so /usr/lib/libfdfsclient.so

---

####1.2 安装FastDFS
1）编译安装FastDFS

cd /usr/local/src
wget http://nchc.dl.sourceforge.net/project/fastdfs/FastDFS%20Server%20Source%20Code/FastDFS%20Server%20with%20PHP%20Extension%20Source%20Code%20V5.08/FastDFS_v5.08.tar.gz
tar -zxvf FastDFS_v5.08.tar.gz
cd FastDFS
./make.sh
./make.sh install

• 服务脚本在：
  /etc/init.d/fdfs_storaged
  /etc/init.d/fdfs_trackerd
• 配置文件在：
  /etc/fdfs/client.conf.sample
  /etc/fdfs/storage.conf.sample
  /etc/fdfs/tracker.conf.sampl
  2）修改服务脚本
• 因为FastDFS服务脚本设置的bin目录为/usr/local/bin/下,但是实际我们安装在了/u
  sr/bin/下面。所以我们需要修改FastDFS配置文件中的路径，也就是需要修改俩
  个配置文件：

 vim /etc/init.d/fdfs_storaged
 %s+/usr/local/bin+/usr/bin     ---替换服务脚本路径
 vim /etc/init.d/fdfs_trackerd
 %s+/usr/local/bin+/usr/bin ---替换服务脚本路径

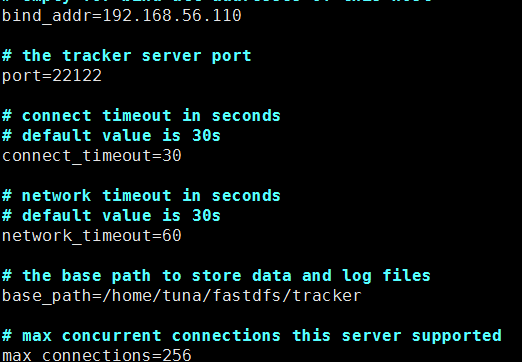

3)修改Tracker配置文件

cd  /etc/fdfs/
cp tracker.conf.sample tracker.conf
vim tracker.conf

先修改base_path即可

4）启动Tracker

/etc/init.d/fdfs_trackerd start
ps -ef |grep fdfs

5）四个storage节点修改Storage配置文件

 cd /etc/fdfs/
 cp storage.conf.sample storage.conf
 vim storage.conf

修改以下配置

disabled=false     #启用配置文件
group_name=group1 #组名，根据实际情况修改
port=23000 #设置storage的端口号
base_path=/home/tuna/data/fastdfs/storage #设置storage的日志目录（需预先创建）
store_path_count=1 #存储路径个数，需要和store_path个数匹配
store_path0=/home/tuna/data/fastdfs/storage#存储路径
tracker_server=192.168.56.113:22122
tracker_server=192.168.56.114:22122
http.server_port=8888  #设置http端口号

创建对应的目录

sudo mkdir -p  /home/tuna/data/fastdfs/storage

6）启动storage

/etc/init.d/fdfs_storaged start

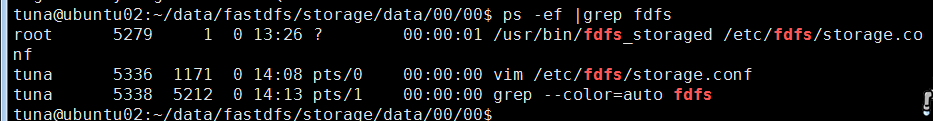

查看是否启动

ps -ef |grep fdfs

---

####1.3 配置Client

 cd /etc/fdfs/
 cp client.conf.sample client.conf
 vim client.conf

base_path/home/tuna/data/fastdfs/client
tracker_server=192.168.56.113:22122
tracker_server=192.168.18.114:22122

*  上传文件
 /usr/bin/fdfs_upload_file /etc/fdfs/client.conf ./redis.sh

在Storage节点上观察上传的文件

cd /home/tuna/data/fastdfs/storage/data/00/00

ls

---

启动storage
4. 在所有storage节点安装nginx

• 在storage上安装的nginx主要为了提供http的访问服务，同时解决group中storage服务器的同步延迟问题

两台机器都要安装nginx
storage节点安装fastdfs-nginx-module_v1.16.tar.gz
1）安装nginx
sudo wget http://nginx.org/download/nginx-1.12.0.tar.gz
tar -zxvf nginx-1.12.0.tar.gz
cd nginx-1.12.0
加入模块命令：
./configure --add-module=/home/tuna/fastdfs-nginx-module/src
sudo make&&sudo make install
复制fastdfs-ngin-module中的配置文件，到/etc/fdfs目录中
sudo cp /home/tuna/fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs/
/etc/fdfs/ 目录下，我们刚刚copy过来的mod_fastdfs.conf 文件。
vim /etc/fdfs/mod_fastdfs.conf
修改一下配置

base_path=/home/fastdfs #保存日志目录
tracker_server=192.168.56.113:22122
tracker_server=192.168.56.114:22122
storage_server_port=23000#storage服务器的端口号
group_name=group1#当前服务器的group名
url_have_group_name = true        #文件url中是否有group名
store_path_count=1                #存储路径个数，需要和store_path个数匹配
store_path0=/home/fastdfs         #存储路径
http.need_find_content_type=true#从文件扩展名查找文件类型（nginx时为true）
group_count = 2                   #设置组的个数
在末尾增加2个组的具体信息：
[group1]
group_name=group1
storage_server_port=23000
store_path_count=1
store_path0=/home/fastdfs

[group2]
group_name=group2
storage_server_port=23000
store_path_count=1
store_path0=/home/fastdfs
建立M00至存储目录的符号连接：
ln -s /home/fastdfs/data /home/fastdfs/data/M00

3） 复制FastDFS里的2个文件，到/etc/fdfs目录中

sudo cp http.conf mime.types /etc/fdfs/

4）
创建一个软连接，在/fastdfs/storage文件存储目录下创建软连接，将其链接到实际存放数据的目录

sudo ln -s /home/tuna/data/fastdfs/storage/data /home/tuna/data/fastdfs/storage/data/M00

5)修改Nginx配置文件

cd /usr/local/nginx/conf
vim  nginx.conf

做以下配置

 server {
        listen       8888;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location ~/group([0-9])/M00 {

            ngx_fastdfs_module;
        }

6)开启Nginx

/usr/local/nginx/sbin/nginx

---

5. 两个tracker和nginx整合

• 需要ngx_cache_purge-2.3.tar.gz 包
  sudo apt-get update
  sudo apt-get install libpcre3 libpcre3-dev
  sudo apt-get install openssl libssl-dev
  1）

tar -zxvf nginx-1.12.0.tar.gz
tar -zxvf ngx_cache_purge-2.3.tar.gz
cd nginx-1.12.0
./configure --prefix=/usr/local/nginx --add-module=/root/ngx_cache_purge-2.3
make
make install

2）

user  root;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;
    #设置缓存参数
    server_names_hash_bucket_size 128;
    client_header_buffer_size 32k;
    large_client_header_buffers 4 32k;
    client_max_body_size 300m;
    sendfile        on;
    tcp_nopush     on;
    proxy_redirect off;
    proxy_set_header Host $http_host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_connect_timeout 90;
    proxy_send_timeout 90;
    proxy_read_timeout 90;
    proxy_buffer_size 16k;
    proxy_buffers 4 64k;
    proxy_busy_buffers_size 128k;
    proxy_temp_file_write_size 128k;
    #设置缓存存储路径、存储方式、分配内存大小、磁盘最大空间、缓存期限
    proxy_cache_path /var/cache/nginx/proxy_cache levels=1:2 keys_zone=http-cache:500m max_size=10g inactive=30d;

    proxy_temp_path /var/cache/nginx/proxy_cache/tmp;

    keepalive_timeout  65;

    #设置group服务器
    upstream fdfs_group1 {
        server 192.168.56.114:8888 weight=1 max_fails=2 fail_timeout=30s;
        server 192.168.56.115:8888 weight=1 max_fails=2 fail_timeout=30s;
    }
    upstream fdfs_group2 {
        server 192.168.56.116:8888 weight=1 max_fails=2 fail_timeout=30s;
        server 192.168.56.117:8888 weight=1 max_fails=2 fail_timeout=30s;
    }

    server {
        listen       80;
        server_name  localhost;
        charset utf-8;
        #access_log  /usr/local/nginx/logs/localhost.access.log  main;

        location /group1/M00 {
                proxy_next_upstream http_502 http_504 error timeout invalid_header;
                proxy_cache http-cache;
                proxy_cache_valid  200 304 12h;
                proxy_cache_key $uri$is_args$args;
                proxy_pass http://fdfs_group1;
                expires 30d;
        }
        location /group2/M00 {
                proxy_next_upstream http_502 http_504 error timeout invalid_header;
                proxy_cache http-cache;
                proxy_cache_valid  200 304 12h;
                proxy_cache_key $uri$is_args$args;
                proxy_pass http://fdfs_group2;
                expires 30d;
        }
        #设置清除缓存的访问权限
        location ~ /purge(/.*) {
                allow 127.0.0.1;
                allow 172.16.1.0/24;
                deny all;
                proxy_cache_purge http-cache  $1$is_args$args;
        }
    }

}

创建缓存目录：sudo mkdir -p /var/cache/nginx/proxy_cache/tmp
3) 启动nginx
/usr/local/nginx/sbin/nginx
通过nginx做个反向代理，实现一台机器控制多个节点
