esp32s3 zbar解码测试

使用的是zbar 0.10版本,网上找下源码就行，下载下来放到工程components目录下，然后在zbar中增加一个CMakeLists.txt，内容如下

set(srcs
    zbar/config.c
    zbar/decoder.c
    zbar/decoder/qr_finder.c
    zbar/error.c
    zbar/img_scanner.c
    zbar/qrcode/bch15_5.c
    zbar/qrcode/binarize.c
    zbar/qrcode/isaac.c
    zbar/qrcode/qrdec.c
    zbar/qrcode/qrdectxt.c
    zbar/qrcode/rs.c
    zbar/qrcode/util.c
    zbar/refcnt.c
    zbar/scanner.c
    zbar/symbol.c
    zbar/image.c
  )

set(include_dirs
    .
    include
    zbar
  )

set(priv_include_dirs
    .
    include
    zbar
  )

idf_component_register(
  SRCS ${srcs}
  INCLUDE_DIRS ${include_dirs}
  REQUIRES driver
)

target_compile_options(${COMPONENT_LIB} PRIVATE -Wno-error=parentheses -Wno-error=duplicate-decl-specifier -Wno-error=logical-not-parentheses -Wno-error=format=)

测试代码，找个图片生成一个灰度数组进行测试
静态数组为240x240的灰度数据，数据太多，这里不全

uint8_t data_buf[] = {
    0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
    0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
    0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF,
    ...

#include <zbar.h>

void zbar_scan(unsigned char *image_data,int width,int height)
{
    zbar_image_t *zbar_image = zbar_image_create();
    zbar_image_set_format(zbar_image, *(int*)"Y800");
    zbar_image_set_size(zbar_image, width, height);
    uint8_t *qrcodedata = (uint8_t *)calloc(width*height, sizeof(uint8_t));
    memcpy(qrcodedata,image_data,width*height);
    //zbar_image_set_data(zbar_image, image_data, width * height, zbar_image_free_data);
    zbar_image_set_data(zbar_image, qrcodedata, width * height, zbar_image_free_data);
    // 创建图像扫描器
    zbar_image_scanner_t *scanner = zbar_image_scanner_create();
    // 配置扫描器（可选）
    zbar_image_scanner_set_config(scanner, ZBAR_QRCODE, ZBAR_CFG_ENABLE, 1);
    // 扫描图像
    int n = zbar_scan_image(scanner, zbar_image);
    if (n > 0) {
        // 处理扫描结果
        const zbar_symbol_set_t *symbols = zbar_image_scanner_get_results(scanner);
        const zbar_symbol_t *symbol = zbar_symbol_set_first_symbol(symbols);
        for (; symbol; symbol = zbar_symbol_next(symbol)) {
            // 打印二维码内容
            const char *data = zbar_symbol_get_data(symbol);
            if(data != NULL)
                printf("二维码内容: %s\n", data);
        }
    } else {
        printf("没有检测到二维码\n");
    }

    // 清理资源
    zbar_image_destroy(zbar_image);
    zbar_image_scanner_destroy(scanner);
}

在main.c中调用

zbar_scan(data_buf,240,240);

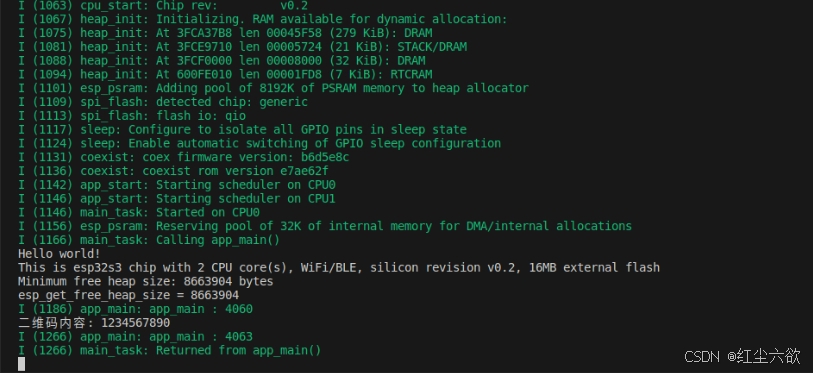

速度比quric快很多。
如果提示找不到zbar在main同级目录下的CMakeLists.txt idf_component_register中增加

PRIV_REQUIRES zbar-0.10

不同的环境错误可能不一样，只能一个个试.

8位二维码灰度数组内容1234567890
python图像转8位灰度数组脚本

======================================
