picoCTF 2022 wp

Parzival_kkm

已于 2022-03-27 15:42:53 修改

阅读量4.6k

点赞数 2

文章标签：安全

于 2022-03-26 16:56:42 首次发布

本文链接：https://blog.csdn.net/heartbewith/article/details/123758800

版权

Crypto

Very Smooth

描述

Forget safe primes… Here, we like to live life dangerously… >:)

gen.py

#!/usr/bin/python

from binascii import hexlify
from gmpy2 import *
import math
import os
import sys

if sys.version_info < (3, 9):
    math.gcd = gcd
    math.lcm = lcm

_DEBUG = False

FLAG  = open('flag.txt').read().strip()
FLAG  = mpz(hexlify(FLAG.encode()), 16)
SEED  = mpz(hexlify(os.urandom(32)).decode(), 16)
STATE = random_state(SEED)

def get_prime(state, bits):
    return next_prime(mpz_urandomb(state, bits) | (1 << (bits - 1)))

def get_smooth_prime(state, bits, smoothness=16):
    p = mpz(2)
    p_factors = [p]
    while p.bit_length() < bits - 2 * smoothness:
        factor = get_prime(state, smoothness)
        p_factors.append(factor)
        p *= factor

    bitcnt = (bits - p.bit_length()) // 2

    while True:
        prime1 = get_prime(state, bitcnt)
        prime2 = get_prime(state, bitcnt)
        tmpp = p * prime1 * prime2
        if tmpp.bit_length() < bits:
            bitcnt += 1
            continue
        if tmpp.bit_length() > bits:
            bitcnt -= 1
            continue
        if is_prime(tmpp + 1):
            p_factors.append(prime1)
            p_factors.append(prime2)
            p = tmpp + 1
            break

    p_factors.sort()

    return (p, p_factors)

e = 0x10001

while True:
    p, p_factors = get_smooth_prime(STATE, 1024, 16)
    if len(p_factors) != len(set(p_factors)):
        continue
    # Smoothness should be different or some might encounter issues.
    q, q_factors = get_smooth_prime(STATE, 1024, 17)
    if len(q_factors) != len(set(q_factors)):
        continue
    factors = p_factors + q_factors
    if e not in factors:
        break

if _DEBUG:
    import sys
    sys.stderr.write(f'p = {p.digits(16)}\n\n')
    sys.stderr.write(f'p_factors = [\n')
    for factor in p_factors:
        sys.stderr.write(f'    {factor.digits(16)},\n')
    sys.stderr.write(f']\n\n')

    sys.stderr.write(f'q = {q.digits(16)}\n\n')
    sys.stderr.write(f'q_factors = [\n')
    for factor in q_factors:
        sys.stderr.write(f'    {factor.digits(16)},\n')
    sys.stderr.write(f']\n\n')

n = p * q

m = math.lcm(p - 1, q - 1)
d = pow(e, -1, m)

c = pow(FLAG, e, n)

print(f'n = {n.digits(16)}')
print(f'c = {c.digits(16)}')

output.txt

n = e77c4035292375af4c45536b3b35c201daa5db099f90af0e87fedc480450873715cffd53fc8fe5db9ac9960867bd9881e2f0931ffe0cea4399b26107cc6d8d36ab1564c8b95775487100310f11c13c85234709644a1d8616768abe46a8909c932bc548e23c70ffc0091e2ed9a120fe549583b74d7263d94629346051154dad56f2693ad6e101be0e9644a84467121dab1b204dbf21fa39c9bd8583af4e5b7ebd9e02c862c43a426e0750242c30547be70115337ce86990f891f2ad3228feea9e3dcd1266950fa8861411981ce2eebb2901e428cfe81e87e415758bf245f66002c61060b2e1860382b2e6b5d7af0b4a350f0920e6d514eb9eac7f24a933c64a89
c = 671028df2e2d255962dd8685d711e815cbea334115c30ea2005cf193a1b972e275c163de8cfb3d0145a453fec0b837802244ccde0faf832dc3422f56d6a384fbcb3bfd969188d6cd4e1ca5b8bc48beca966f309f52ff3fc3153cccaec90d8477fd24dfedc3d4ae492769a6afefbbf50108594f18963ab06ba82e955cafc54a978dd08971c6bf735b347ac92e50fe8e209c65f946f96bd0f0c909f34e90d67a4d12ebe61743b438ccdbcfdf3a566071ea495daf77e7650f73a7f4509b64b9af2dd8a9e33b6bd863b889a69f903ffef425ea52ba1a293645cbac48875c42220ec0b37051ecc91daaf492abe0aaaf561ffb0c2b093dcdabd7863b1929f0411891f5

分析

要点在于在rsa中使用了sooth prime（光滑数）+ 1形式的素数作为n的两个素因子。

光滑数
光滑数（Smooth Number）指可以分解为小素数乘积的正整数。
题目中的 $p$ 由许多小质数乘积+1得出，故 $p - 1$ 则为许多小质数的乘积，即 $p - 1$ 是光滑数。

Pollard’s p − 1 算法
当 $p$ 是 $N$ 的因数，并且 $p - 1$ 是光滑数，可能可以使用 Pollard’s p − 1 算法来分解 $N$ 。
首先根据费马小定理：
如果 $p$ 是一个质数，而整数 $a$ 不是 $p$ 的倍数，则有 $a^{p−1}\equiv1\,mod\,p$

则
$a^{p-1}\equiv1^t\equiv 1\,mod\,p$
可改为等式：
$a^{t(p-1)}-1=k*p$
即 $a^{t(p-1)} - 1$ 是 $p$ 的倍数。
然后根据 Pollard’s p - 1 算法：

如果 $p - 1$ 是一些很小质数的乘积，那么 $n!$ 就能被 $p - 1$ 整除。即 $n! = t (p - 1)$ 。

对于每一个 $n = 2, 3, 4, . . ., N - 1$ 任意选择一个底数 $a$ （事实上，可以简单地选择为 2），并计算：
$gcd(a^{n!}-1,N)$
如果结果不为 1 或 $N$ ，那么就已成功分解 $N$ 。

但当 $n$ 较大时，直接计算 $n!$ 将会很消耗资源。在遍历 $n$ 时，可以简化运算。
因为：
$a^{n!}\, mod\, N=(a\, mod \,N)^{n!}\,mod\,N$
所以：
$a^{n!}\,mod\,N=\left\{ \begin{aligned} (a\,mod\,N)^2\,mod\,N\quad n=2\\ (a^{(n-1)!}\,mod\,N)^n\,mod\,N\quad n\geq3\\ \end{aligned} \right.$
解题脚本：

mport gmpy2
from Crypto.Util.number import *

def Pollards_p_1(N):
    a = 2
    n = 2
    while True:
        a = pow(a, n, N)
        res = gmpy2.gcd(a-1, N)
        if res != 1 and res != N:
            print 'n =', n
            print 'p =', res
            return res
        n += 1

e = 0x10001
n = ...
c = ...
p = Pollards_p_1(n)
q = n // p
assert p*q == n
d = gmpy2.invert(e, (p-1)*(q-1))
m = pow(c, d, n)
print long_to_bytes(m)

Sequences

Description

I wrote this linear recurrence function, can you figure out how to make it run fast enough and get the flag?Note that even an efficient solution might take several seconds to run. If your solution is taking several minutes, then you may need to reconsider your approach.

import math
import hashlib
import sys
from tqdm import tqdm
import functools

ITERS = int(2e7)
VERIF_KEY = "96cc5f3b460732b442814fd33cf8537c"
ENCRYPTED_FLAG = bytes.fromhex("42cbbce1487b443de1acf4834baed794f4bbd0dfb5df5e6f2ad8a2c32b")

# This will overflow the stack, it will need to be significantly optimized in order to get the answer :)
@functools.cache
def m_func(i):
    if i == 0: return 1
    if i == 1: return 2
    if i == 2: return 3
    if i == 3: return 4

    return 55692*m_func(i-4) - 9549*m_func(i-3) + 301*m_func(i-2) + 21*m_func(i-1)


# Decrypt the flag
def decrypt_flag(sol):
    sol = sol % (10**10000)
    sol = str(sol)
    sol_md5 = hashlib.md5(sol.encode()).hexdigest()

    if sol_md5 != VERIF_KEY:
        print("Incorrect solution")
        sys.exit(1)

    key = hashlib.sha256(sol.encode()).digest()
    flag = bytearray([char ^ key[i] for i, char in enumerate(ENCRYPTED_FLAG)]).decode()

    print(flag)

if __name__ == "__main__":
    sol = m_func(ITERS)
    decrypt_flag(sol)

分析

提示指出m_func函数递归太深会导致栈溢出。使用矩阵快速幂算法。

令需要计算的结果为 $a_i$ ，有：
$\left\{ \begin{aligned} &a_0=1\,,\,a_1=2\,,\,a_2=3\,,\,a_3=4\,\\ &a_{i}=55692a_{i-4} - 9549a_{i-3} + 301a_{i-2} + 21a_{i-1}\quad(i\geq3)\\ \end{aligned} \right.$

整理得到：
$\left(\begin{matrix}a_n\\a_{n-1}\\a_{n-2}\\a_{n-3}\end{matrix}\right)=\left(\begin{matrix}21&301&-9549&556992\\1&0&0&0\\0&1&0&0\\0&0&1&0\end{matrix}\right) \left(\begin{matrix}a_{n-1}\\a_{n-2}\\a_{n-3}\\a_{n-4}\end{matrix}\right)=A\left(\begin{matrix}a_{n-1}\\a_{n-2}\\a_{n-3}\\a_{n-4}\end{matrix}\right)$
递推得：
$\left(\begin{matrix}a_n\\a_{n-1}\\a_{n-2}\\a_{n-3}\end{matrix}\right)=A\left(\begin{matrix}a_{n-1}\\a_{n-2}\\a_{n-3}\\a_{n-4}\end{matrix}\right)=A^2\left(\begin{matrix}a_{n-2}\\a_{n-3}\\a_{n-4}\\a_{n-5}\end{matrix}\right)=...=A^{n-3}\left(\begin{matrix}a_3\\a_2\\a_1\\a_0\end{matrix}\right)$

利用快速幂算法计算 $A^k$ ,优化后的m_func函数如下：

matrix = [[21,301,-9549,55692],
          [ 1, 0 ,  0  ,  0  ],
          [ 0, 1 ,  0  ,  0  ],
          [ 0, 0 ,  1  ,  0  ]]

def m_func(i):
    s = quickMatrix(matrix,i - 3)
    return 4*s[0][0] + 3*s[0][1] + 2*s[0][2] + 1*s[0][3]


def mulMatrix(x,y):     #矩阵相乘
    ans = [[0 for i in range(4)]for j in range(4)]
    for i in range(4):
        for j in range(4):
            for k in range(4):
                ans[i][j] +=  x[i][k] * y[k][j] % (10**10000)
    return ans

def quickMatrix(m,n):
    E = [[0 for i in range(4)]for j in range(4)]   #单位矩阵E
    for i in range(4):
        E[i][i] = 1
    while(n):
        print(n)
        if n % 2 != 0:
            E = mulMatrix(E,m)
        m = mulMatrix(m,m)
        n >>= 1
    return E

运行得到：

picoCTF{b1g_numb3rs_a1c77d6c}

Sum-O-Primes

Description

We have so much faith in RSA we give you not just the product of the primes, but their sum as well!

#!/usr/bin/python

from binascii import hexlify
from gmpy2 import mpz_urandomb, next_prime, random_state
import math
import os
import sys

if sys.version_info < (3, 9):
    import gmpy2
    math.gcd = gmpy2.gcd
    math.lcm = gmpy2.lcm

FLAG  = open('flag.txt').read().strip()
FLAG  = int(hexlify(FLAG.encode()), 16)
SEED  = int(hexlify(os.urandom(32)).decode(), 16)
STATE = random_state(SEED)

def get_prime(bits):
    return next_prime(mpz_urandomb(STATE, bits) | (1 << (bits - 1)))

p = get_prime(1024)
q = get_prime(1024)

x = p + q
n = p * q

e = 65537

m = math.lcm(p - 1, q - 1)
d = pow(e, -1, m)

c = pow(FLAG, e, n)

print(f'x = {x:x}')
print(f'n = {n:x}')
print(f'c = {c:x}')

x = 1b1fb4b96231fe1b723d008d0e7776169ee5d4a8e3573c12c37721cee5de1d882f040d1e3f543d36a574984ad95c1e79e02de14fa136b4be7f4468cbd62773f6a4fd06effc2b845ca07424100466bdfeee652d78b25a4273ba4e950e1a8ebfe256a2f8541fe2207c41f39c2363e23064bc56bed5cf563b8dba873da3c1320256e
n = b6b2353316c7b0a6c0ecae3bd7d2191eee519551f4ed86054e6380663668e595f6f43f867caa8feda217905643d73453f3797f6096c989fd099852239e5d73c753f909d8efd172d211a4ed4a966dbcbf56b9cbadd416de0a3472a253571b4e4f1bab847a407a27eb37449488f63aedb9f5ec72d9e331ab6154fe45c8cb4e2005d124d1ac8ecd588cd2280e215b078d8ea9da438bbcb1b155a339b91f39e3d17bab112436cdbb6d104fdeb0dce1ac41a1fe8fda0490ef3124794e0383565c299df24ad8a915669469c0b0dc604ed359afb3636d5f633362d8ef9fce7a42f64d5f1f4e50911a15459f97c1b11ee44af4e8bb636895cf75da105a8d1564160ba091
c = 49e426aba3431d9bb73bfc5dd18115dcea3c78a9915e9cf65e060560015c951327f20fe5dd74bfecd9a00659d4f740e42f707e47d8f6b331d8ad1021de41e15f133cbe7c782f22168149df57a6c37095ba6877765a67d8478434a7a5eabb26097404ad464fa0388cacb97a26aaf3b83b6eb0fa73e16bc1de49b33ee64920118f8483feff3634541df97dadad88302392095059cbe56e7148453f16464da8be2b6ca4a6fc0052210f697975fd3c4f3f94bfa3bb2422124a6f0e9685f0440ed020294b6788d7ea3c002d86d86faced8e37b36673ea2b5c72726c66d1834d2dcafdf40220c41dfb3d1f07c5c0d236ce7af86b937476c5aabe33cae8d535713627de

分析

可见在通常RSA的基础上给出了 $x = p + q$ 的值，则有：
$m=\phi(n)=(p-1)(q-1)=pq-p-q+1=n-x+1$
而
$e=65537\,,\,d=e^{-1}\,mod\:m$
已知 $m\,$ ,很容易算出e

import gmpy2
from Crypto.Util.number import *
x = ...
n = ...
c = ...
e = 65537

phi = n - x + 1
d = gmpy2.invert(e, phi)

m = pow(c, d, n)
flag = long_to_bytes(m).decode()
print(flag)

picoCTF{126a94ab}

NSA Backdoor

Description

I heard someone has been sneakily installing backdoors in open-source implementations of Diffie-Hellman… I wonder who it could be… 😉

#!/usr/bin/python

from binascii import hexlify
from gmpy2 import *
import math
import os
import sys

if sys.version_info < (3, 9):
    math.gcd = gcd
    math.lcm = lcm

_DEBUG = False

FLAG  = open('flag.txt').read().strip()
FLAG  = mpz(hexlify(FLAG.encode()), 16)
SEED  = mpz(hexlify(os.urandom(32)).decode(), 16)
STATE = random_state(SEED)

def get_prime(state, bits):
    return next_prime(mpz_urandomb(state, bits) | (1 << (bits - 1)))

def get_smooth_prime(state, bits, smoothness=16):
    p = mpz(2)
    p_factors = [p]
    while p.bit_length() < bits - 2 * smoothness:
        factor = get_prime(state, smoothness)
        p_factors.append(factor)
        p *= factor

    bitcnt = (bits - p.bit_length()) // 2

    while True:
        prime1 = get_prime(state, bitcnt)
        prime2 = get_prime(state, bitcnt)
        tmpp = p * prime1 * prime2
        if tmpp.bit_length() < bits:
            bitcnt += 1
            continue
        if tmpp.bit_length() > bits:
            bitcnt -= 1
            continue
        if is_prime(tmpp + 1):
            p_factors.append(prime1)
            p_factors.append(prime2)
            p = tmpp + 1
            break

    p_factors.sort()

    return (p, p_factors)

while True:
    p, p_factors = get_smooth_prime(STATE, 1024, 16)
    if len(p_factors) != len(set(p_factors)):
        continue
    # Smoothness should be different or some might encounter issues.
    q, q_factors = get_smooth_prime(STATE, 1024, 17)
    if len(q_factors) == len(set(q_factors)):
        factors = p_factors + q_factors
        break

if _DEBUG:
    import sys
    sys.stderr.write(f'p = {p.digits(16)}\n\n')
    sys.stderr.write(f'p_factors = [\n')
    for factor in p_factors:
        sys.stderr.write(f'    {factor.digits(16)},\n')
    sys.stderr.write(f']\n\n')

    sys.stderr.write(f'q = {q.digits(16)}\n\n')
    sys.stderr.write(f'q_factors = [\n')
    for factor in q_factors:
        sys.stderr.write(f'    {factor.digits(16)},\n')
    sys.stderr.write(f']\n\n')

n = p * q
c = pow(3, FLAG, n)

print(f'n = {n.digits(16)}')
print(f'c = {c.digits(16)}')

n = 0x5bf9961e4bcfc88017e1a9a40958af5eae3b3ee3dcf25bce02e5d04858ba1754e13e86b78a098ea0025222336df6b692e14533dad7f478005b421d3287676843f9f49ffd7ebec1e8e43b96cde7cd28bd6fdf5747a4a075b5afa7da7a4e9a2ccb26342799965f3fb6e65e0bb9557c6f3a67568ccbfaaa7e3d6c5cb79dd2f9928111c3183bf58bd91412a0742bbfb3c5cebfb0b82825da0875c5ee3df208ce563f896d67287c8b9aad9943dd76e5eae1fc8abd473ec9f9e4f2b49b7897954ca77b8f00ed51949c7e4f1f09bd54b830058bd7f4da04e5228250ba062ec0e1d19fb48a05333aada60ecdfc8c62c15773ed7e077edba71621f6a6c10302cc9ed26ec9
c = 0x2475123653f5a4b842e7ac76829e896450126f7175520929a35b6a4302788ceff1a605ed30f4d01c19226e09fc95d005c61320d3bbd55cfebbc775332067ac6056c1969282091856eaa44ccaf5738ac6409e865bbd1186d69f718abd2b3a1dd3dc933a07ca687f0af9385406fd9ee4fa5f701ad46f0852bf4370264c21f775f1e15283444b3bf45af29b84bb429ed5a17adc9af78aee8c5351434491d5daf9dd3ce3cf0cd44b307eb403f0e9f482dd001b25ed284c4e6c1ba2864e5a2c4b1afe4161426cc67203f30553c88d7132aef1337eca00622b47cb7a28195f0e3a2ab934e6163b2941a4631412e13b1a72fe34e6480fada9af4dae14f2608805d61ee

分析

离散对数问题， $p$ 和 $q$ 是前面提到的光滑数， $m$ 为明文，加密方法为：
$c=3^m\,mod\,n$

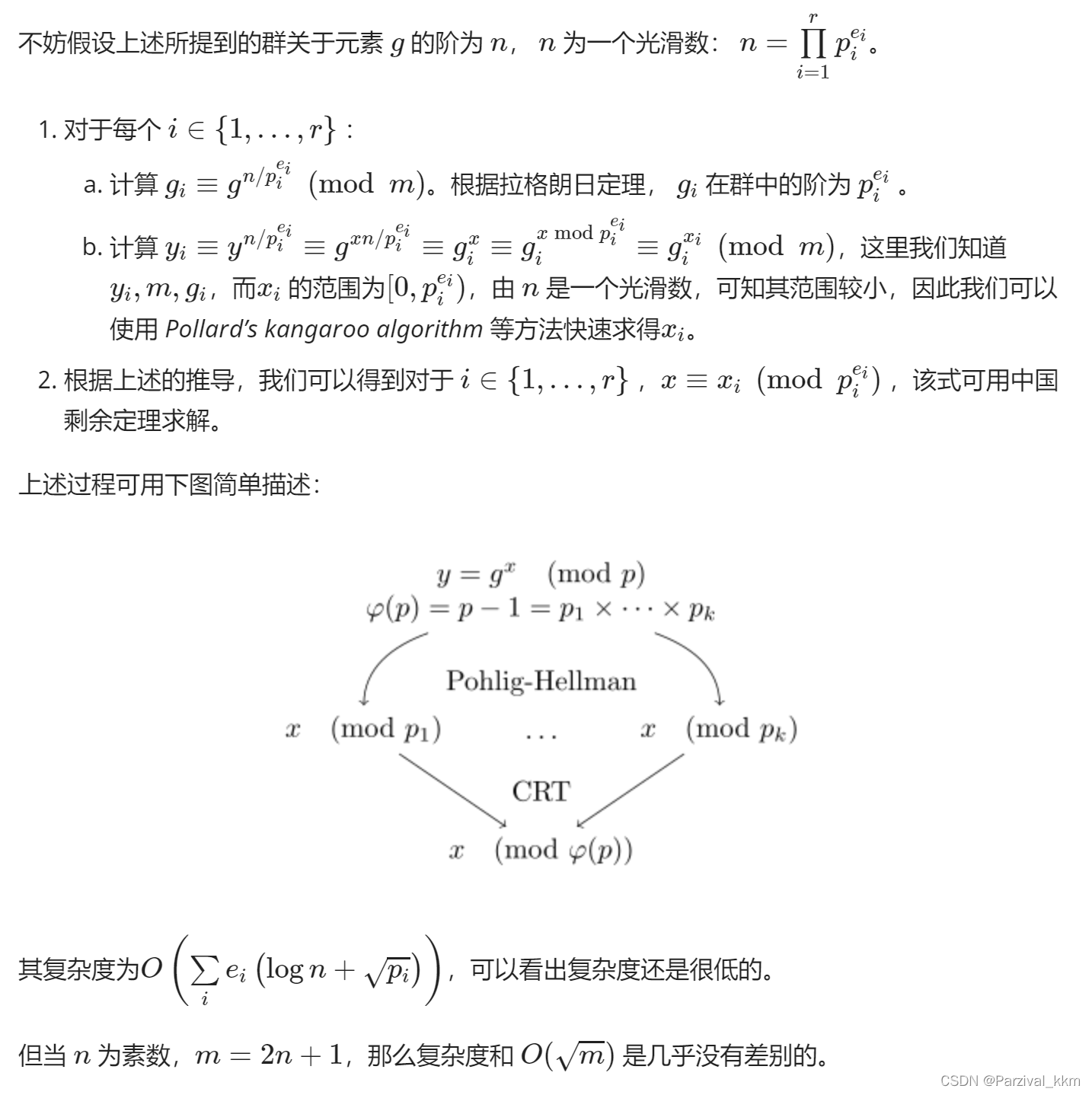

Pohlig-Hellman algorithm（没太看懂）

给定 $y\equiv g^x\,mod\,p$

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传在这里插入图片描述

首先分解出 $p$ 、 $q$ ：

import gmpy2
from Crypto.Util.number import *

def Pollards_p_1(N):
    a = 2
    n = 2
    while True:
        a = pow(a, n, N)
        res = gmpy2.gcd(a-1, N)
        if res != 1 and res != N:
            return res
        n += 1

n = ...
c = ...
p = Pollards_p_1(n)
q = n // p

p=112702077491326624035437448311528244416633038267184436467539953783623022543629307291975209668348933325006075339780165463077524233511267597550006727923822554354936896793276829740193900248027487979522143806746878229772394053610558597354876381637035909859704552979985236170415302488615161107293296362528480525723 q=103021715758784777065538393486053743054182192354548423680703519825749790456047554303092034581065984146706235372014968357870399173576106002085550048294579946475544854431226807856399757519538822807164181477730623920265727637084436385548675453295077723702870680050335729771811407346688861515254536686372633918827

使用sage求解：

创建p上的群，discrete_log会自动选择最优算法，好强）

在这里插入图片描述
