REVIEW
| 前面已经学习过： |
1. 今日摸鱼计划
| 按键启动ADC 将结果显示在数码管上 |
2. key + ADC
key.v
module key_one(
input clk ,
input reset_n,
input key,
output reg key_flag,
output reg key_state
);
// nedge_key pedge_key
reg dff_k_0 , dff_k_1 ;
reg r_key;
wire nedge_key, pedge_key;
always@(posedge clk )
dff_k_0 <= key ;
always@(posedge clk )
dff_k_1 <= dff_k_0 ;
always@(posedge clk )
r_key <= dff_k_1 ;
assign nedge_key = (r_key == 1)&&(dff_k_1 == 0);
assign pedge_key = (r_key == 0)&&(dff_k_1 == 1);
// key_now 0:IDLE 1:FILTER0 2:DOWN 3:FILTER1
// cnt 20ms/20ns = 1000000 ;
reg [1:0]key_now;
reg [19:0] cnt;
parameter cnt_N = 1000; //测试使用
always@(posedge clk or negedge reset_n )
if(!reset_n)
begin
key_now <= 0 ;
cnt <= 0;
key_flag <= 0;
key_state <= 1;
end
else
begin
key_flag <= 0;
case(key_now)
0:
if(!nedge_key) key_now <= 0;
else
begin
cnt <= 0 ;
key_now <= 1;
end
1:
if(pedge_key) key_now <= 0;
else if(cnt >= cnt_N - 1)
begin
cnt <= 0 ;
key_now <= 2;
key_flag <= 1;
key_state <= 0;
end
else cnt <= cnt + 1'b1;
2:
if(!pedge_key) key_now <= 2;
else
begin
cnt <= 0 ;
key_now <= 3;
end
3:
if(nedge_key) key_now <= 2;
else if(cnt >= cnt_N - 1)
begin
cnt <= 0 ;
key_now <= 0;
key_flag <= 1;
key_state <= 1;
end
else cnt <= cnt + 1'b1;
endcase
end
endmoduleadc128s102.v
module adc128s102(
input clk,
input reset_n,
input Conv_Go,//使能信号
input [2:0]Addr,
input ADC_DOUT,
output reg ADC_SCLK,
output reg ADC_CS_N,
output reg ADC_DIN,
output reg Conv_Done,
output reg[11:0]Data
);
parameter CLOCK_FREQ = 50_000_000;
parameter SCLK_FREQ = 12_500_000;
parameter MCNT_DIV_CNT = CLOCK_FREQ/(SCLK_FREQ * 2) - 1;
reg[7:0]DIV_CNT;
reg [5:0]LSM_CNT;
reg [11:0]Data_r;
reg [2:0]r_Addr;
always@(posedge clk)
if(Conv_Go)
r_Addr <= Addr;
else
r_Addr <= r_Addr;
reg Conv_En; //转换使能
always@(posedge clk or negedge reset_n )
if(!reset_n )
Conv_En <= 1'd0;
else if(Conv_Go)
Conv_En <= 1'd1;
else if((LSM_CNT == 6'd34) && (DIV_CNT == MCNT_DIV_CNT))
Conv_En <= 1'd0;
else
Conv_En <= Conv_En;
always@(posedge clk or negedge reset_n)
if(!reset_n)
DIV_CNT <= 0;
else if(Conv_En)
begin
if(DIV_CNT == MCNT_DIV_CNT)
DIV_CNT <= 0;
else
DIV_CNT <= DIV_CNT + 1'd1;
end
else
DIV_CNT <= 0;
always@(posedge clk or negedge reset_n)
if(!reset_n)
LSM_CNT <= 6'd0;
else if(DIV_CNT == MCNT_DIV_CNT)
begin
if(LSM_CNT == 6'd34)
LSM_CNT <= 6'd0;
else
LSM_CNT <= LSM_CNT + 1'd1;
end
else
LSM_CNT <= LSM_CNT;
always@(posedge clk or negedge reset_n )
if(!reset_n )begin
Data_r <= 12'd0;
ADC_SCLK <= 1'd1;
ADC_DIN <= 1'd1;
ADC_CS_N <= 1'd1;
end
else if(DIV_CNT == MCNT_DIV_CNT)begin
case(LSM_CNT)
0 : begin ADC_CS_N <= 1'd1; ADC_SCLK <= 1'd1;end
1 : begin ADC_CS_N <= 1'd0;end
2 : begin ADC_SCLK <= 1'd0;end
3 : begin ADC_SCLK <= 1'd1;end
4 : begin ADC_SCLK <= 1'd0;end
5 : begin ADC_SCLK <= 1'd1;end
6 : begin ADC_SCLK <= 1'd0;ADC_DIN <= r_Addr[2]; end
7 : begin ADC_SCLK <= 1'd1;end
8 : begin ADC_SCLK <= 1'd0;ADC_DIN <= r_Addr[1]; end
9 : begin ADC_SCLK <= 1'd1;end
10 :begin ADC_SCLK <= 1'd0;ADC_DIN <= r_Addr[0]; end
11: begin ADC_SCLK <= 1'd1;Data_r[11] <= ADC_DOUT; end
12: begin ADC_SCLK <= 1'd0;ADC_DIN <= 1'd1;end
//这里跟之前有一点不一样，将ADC_DIN <= 1'd1;
13: begin ADC_SCLK <= 1'd1;Data_r[10] <= ADC_DOUT; end
14: begin ADC_SCLK <= 1'd0;end
15: begin ADC_SCLK <= 1'd1;Data_r[9] <= ADC_DOUT; end
16: begin ADC_SCLK <= 1'd0;end
17: begin ADC_SCLK <= 1'd1;Data_r[8] <= ADC_DOUT; end
18: begin ADC_SCLK <= 1'd0;end
19: begin ADC_SCLK <= 1'd1;Data_r[7] <= ADC_DOUT; end
20: begin ADC_SCLK <= 1'd0;end
21: begin ADC_SCLK <= 1'd1;Data_r[6] <= ADC_DOUT; end
22: begin ADC_SCLK <= 1'd0;end
23: begin ADC_SCLK <= 1'd1;Data_r[5] <= ADC_DOUT; end
24: begin ADC_SCLK <= 1'd0;end
25: begin ADC_SCLK <= 1'd1;Data_r[4] <= ADC_DOUT; end
26: begin ADC_SCLK <= 1'd0;end
27: begin ADC_SCLK <= 1'd1;Data_r[3] <= ADC_DOUT; end
28: begin ADC_SCLK <= 1'd0;end
29: begin ADC_SCLK <= 1'd1;Data_r[2] <= ADC_DOUT; end
30: begin ADC_SCLK <= 1'd0;end
31: begin ADC_SCLK <= 1'd1;Data_r[1] <= ADC_DOUT; end
32: begin ADC_SCLK <= 1'd0;end
33: begin ADC_SCLK <= 1'd1;Data_r[0] <= ADC_DOUT; end
34: begin ADC_SCLK <= 1'd1;ADC_CS_N <= 1'd1; end
default: ADC_CS_N <= 1'd1;
endcase
end
always@(posedge clk or negedge reset_n )
if(!reset_n )
begin
Data <= 12'd0;
Conv_Done <= 0;
end
else if((LSM_CNT == 34) && (DIV_CNT == MCNT_DIV_CNT))
begin
Conv_Done <= 1'd1;
Data <= Data_r;
end
else
begin
Conv_Done <= 1'd0;
Data <= Data;
end
endmodule
key_adc.v
module key_adc(
input clk ,
input reset_n,
input key,
input [2:0]Addr,
input ADC_DOUT,
output ADC_SCLK,
output ADC_CS_N,
output ADC_DIN,
output Conv_Done,
output [11:0]Data
);
wire key_flag , key_state ;
key_one key_one_(
. clk(clk) ,
. reset_n(reset_n),
. key(key),
. key_flag(key_flag),
. key_state(key_state)
);
reg Conv_Go ;
always@(posedge clk or negedge reset_n )
if(!reset_n )
Conv_Go <= 1'b0 ;
else if((key_flag)&&(key_state==1))
//(key_flag)&&(key_state==1)代表按键按下后松开
//之前都是按下作为判定，本次有一点不同
Conv_Go <= 1'b1 ;
else
Conv_Go <= 1'b0 ;
adc128s102 adc_(
. clk(clk),
. reset_n(reset_n),
. Conv_Go(Conv_Go),//使能信号
. Addr(Addr),
. ADC_DOUT(ADC_DOUT),
. ADC_SCLK(ADC_SCLK),
. ADC_CS_N(ADC_CS_N),
. ADC_DIN(ADC_DIN),
. Conv_Done(Conv_Done),
. Data(Data)
);
endmodule
key_adc_tb.v
`timescale 1ns / 1ns
module key_adc_tb( );
reg clk;
reg reset_n;
reg key ;
reg [2:0]Addr;
reg ADC_DOUT;
wire ADC_SCLK;
wire ADC_CS_N;
wire ADC_DIN;
wire Conv_Done;
wire[11:0]Data;
key_adc key_adc_(
. clk(clk) ,
. reset_n(reset_n),
. key(key),
. Addr(Addr),
. ADC_DOUT(ADC_DOUT),
. ADC_SCLK(ADC_SCLK),
. ADC_CS_N(ADC_CS_N),
. ADC_DIN(ADC_DIN),
. Conv_Done(Conv_Done),
. Data(Data)
);
initial clk = 1;
always #10 clk = ~clk;
initial
begin
reset_n = 0;
Addr = 2;
key = 1 ;
#201;
reset_n = 1;
#200;
key_press(2);
wait(!ADC_CS_N);
//16'h0A58
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB15
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB14
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB13
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB12
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB11
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB10
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB9
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB8
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB7
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB6
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB5
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB4
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB3
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB2
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB1
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB0
wait(ADC_CS_N);
#2000;
Addr = 7;
#20;
key_press(2);
wait(!ADC_CS_N);
//16'h0893
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
wait(ADC_CS_N);
#200;
#100000;
$stop;
end
reg [13:0] rand;
task key_press;
input[3:0]seed;
begin
key = 1 ;
#100000;
repeat(10)
begin
rand = {$random(seed)} % 10000;
#rand;
key=~key;
end
key = 0 ;
#100000;
key = 1 ;
end
endtask
endmodule
分析
|
|

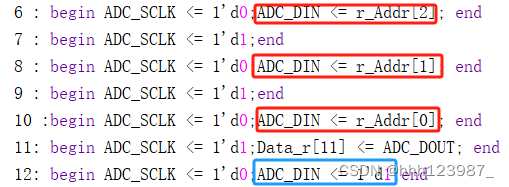

| adc中做了这样一个小改动，没什么别的作用，这个就是摸鱼怪觉得看起来好看一点。 |
|
|

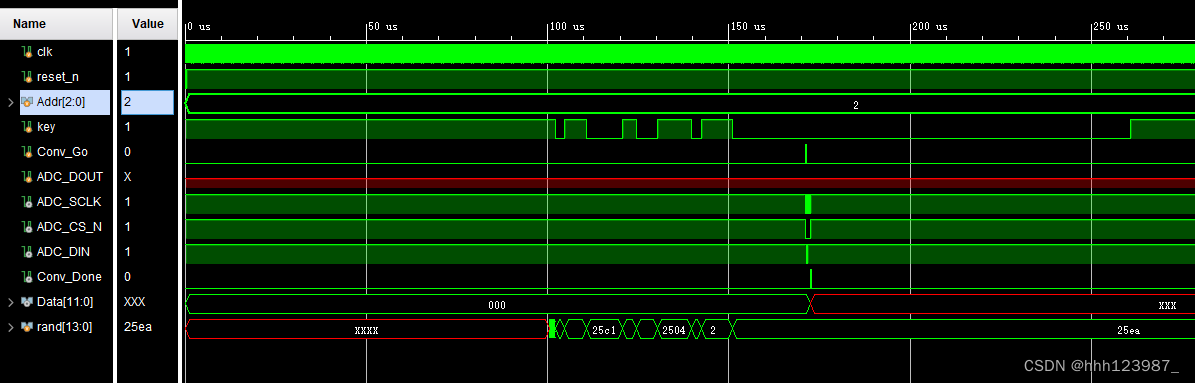

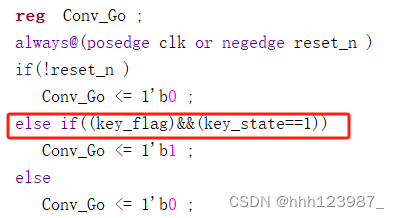

| 关于按键的判断，这里是因为在调试按键按下后，发现wait等不到CS下降沿信号，从而DOUT未触发。 测试结果如下： |
|
|
| 经过分析，测试文件一直走不到 wait(!ADC_CS_N); 是因为!ADC_CS_N 在 key_press(2);结束之前已经发生了 因此为了测试分析，本次选择使用按键松开为判定 |
|
|
|
|

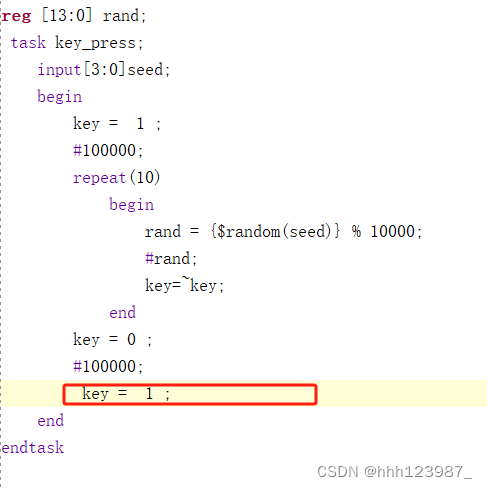

| 注意：本次测试为了可以 wait(!ADC_CS_N); 按键松开后，不要停留过长时间！ |
|
|

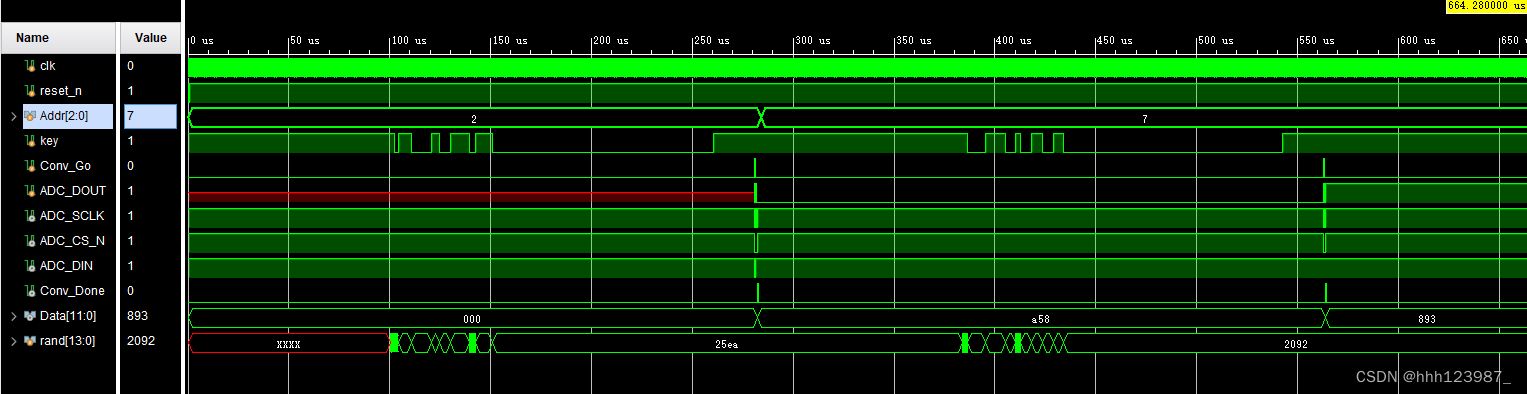

| 此时看以看出，进行了两次正常的读取。 |
3. key + ADC + 数码管
hex_8.v
module hex_8(
input clk,
input reset_n,
input [31:0]disp_data,
output reg [7:0]sel,
output reg [7:0]seg
);
//[31:0]disp_data 16hex 4*8
//[7:0]sel 位选信号
//[7:0]seg 段选信号
// 1kHz分频时钟
reg [14:0]div_clk;
always@(posedge clk or negedge reset_n)
if(!reset_n)
div_clk <= 1'b0;
else if(div_clk == 24999)
div_clk <= 1'b0;
else
div_clk <= div_clk + 1'b1;
reg disp_en;
always@(posedge clk or negedge reset_n)
if(!reset_n)
disp_en <= 1'b0;
else if(div_clk == 24999)
disp_en <= 1'b1;
else
disp_en <= 1'b0;
// 位选sel
reg[2:0]sel_num;
always@(posedge clk or negedge reset_n)
if(!reset_n)
sel_num <= 3'b000;
else if(disp_en)
sel_num <= sel_num + 1'b1;
always@(posedge clk or negedge reset_n)
if(!reset_n)
sel <= 8'b0000_0000;
else case(sel_num)
0:sel <= 8'b0000_0001;
1:sel <= 8'b0000_0010;
2:sel <= 8'b0000_0100;
3:sel <= 8'b0000_1000;
4:sel <= 8'b0001_0000;
5:sel <= 8'b0010_0000;
6:sel <= 8'b0100_0000;
7:sel <= 8'b1000_0000;
endcase
// 段选seg [31:0]disp_data 16hex 4*8
reg [3:0] dis_tmp;
always@(posedge clk )
case(sel_num) //高位放前面
7:dis_tmp <= disp_data[31:28];
6:dis_tmp <= disp_data[27:24];
5:dis_tmp <= disp_data[23:20];
4:dis_tmp <= disp_data[19:16];
3:dis_tmp <= disp_data[15:12];
2:dis_tmp <= disp_data[11:8];
1:dis_tmp <= disp_data[7:4];
0:dis_tmp <= disp_data[3:0];
endcase
always@(posedge clk )
case(dis_tmp)
0:seg <= 8'hc0;
1:seg <= 8'hf9;
2:seg <= 8'ha4;
3:seg <= 8'hb0;
4:seg <= 8'h99;
5:seg <= 8'h92;
6:seg <= 8'h82;
7:seg <= 8'hf8;
8:seg <= 8'h80;
9:seg <= 8'h90;
4'ha:seg <= 8'h88;
4'hb:seg <= 8'h83;
4'hc:seg <= 8'hc6;
4'hd:seg <= 8'ha1;
4'he:seg <= 8'h86;
4'hf:seg <= 8'h8e;
endcase
endmodulehc595_driver.v
module hc595_driver(
input clk,
input reset_n,
input [15:0]data ,
input s_en ,
output reg sh_cp ,
output reg st_cp ,
output reg ds
);
//接收到s_en才改变r_data
reg [15:0]r_data;
always@(posedge clk)
if(s_en)
r_data <= data;
//分频计数器;
parameter CNT_MAX = 2;
reg [7:0]divider_cnt;
always@(posedge clk or negedge reset_n)
if(!reset_n)
divider_cnt <= 0;
else if(divider_cnt == CNT_MAX - 1'b1)
divider_cnt <= 0;
else
divider_cnt <= divider_cnt + 1'b1;
wire sck_plus;
assign sck_plus = (divider_cnt == CNT_MAX - 1'b1);
reg [5:0]SHCP_EDGE_CNT;
always@(posedge clk or negedge reset_n)
if(!reset_n)
SHCP_EDGE_CNT <= 0;
else if(sck_plus)
begin
if(SHCP_EDGE_CNT == 6'd32)
SHCP_EDGE_CNT <= 0;
else
SHCP_EDGE_CNT <= SHCP_EDGE_CNT + 1'b1;
end
else
SHCP_EDGE_CNT <= SHCP_EDGE_CNT;
always@(posedge clk or negedge reset_n)
if(!reset_n)
begin
st_cp <= 1'b0;
ds <= 1'b0;
sh_cp <= 1'd0;
end
else
begin
case(SHCP_EDGE_CNT)
0: begin sh_cp <= 0; st_cp <= 1'd0;ds <= r_data[15];end
1: begin sh_cp <= 1; st_cp <= 1'd0;end
2: begin sh_cp <= 0; ds <= r_data[14];end
3: begin sh_cp <= 1; end
4: begin sh_cp <= 0; ds <= r_data[13];end
5: begin sh_cp <= 1; end
6: begin sh_cp <= 0; ds <= r_data[12];end
7: begin sh_cp <= 1; end
8: begin sh_cp <= 0; ds <= r_data[11];end
9: begin sh_cp <= 1; end
10: begin sh_cp <= 0; ds <= r_data[10];end
11: begin sh_cp <= 1; end
12: begin sh_cp <= 0; ds <= r_data[9];end
13: begin sh_cp <= 1; end
14: begin sh_cp <= 0; ds <= r_data[8];end
15: begin sh_cp <= 1; end
16: begin sh_cp <= 0; ds <= r_data[7];end
17: begin sh_cp <= 1; end
18: begin sh_cp <= 0; ds <= r_data[6];end
19: begin sh_cp <= 1; end
20: begin sh_cp <= 0; ds <= r_data[5];end
21: begin sh_cp <= 1; end
22: begin sh_cp <= 0; ds <= r_data[4];end
23: begin sh_cp <= 1; end
24: begin sh_cp <= 0; ds <= r_data[3];end
25: begin sh_cp <= 1; end
26: begin sh_cp <= 0; ds <= r_data[2];end
27: begin sh_cp <= 1; end
28: begin sh_cp <= 0; ds <= r_data[1];end
29: begin sh_cp <= 1; end
30: begin sh_cp <= 0; ds <= r_data[0];end
31: begin sh_cp <= 1; end
32: st_cp <= 1'd1;
default:
begin
st_cp <= 1'b0;
ds <= 1'b0;
sh_cp <= 1'd0;
end
endcase
end
endmodulekey_adc_hex8.v
module key_adc_hex8(
input clk ,
input reset_n,
input key,
input [2:0]Addr,
input ADC_DOUT,
output ADC_SCLK,
output ADC_CS_N,
output ADC_DIN,
output Conv_Done,
output sh_cp,
output st_cp,
output ds
);
wire key_flag , key_state ;
key_one key_one_(
. clk(clk) ,
. reset_n(reset_n),
. key(key),
. key_flag(key_flag),
. key_state(key_state)
);
reg Conv_Go ;
always@(posedge clk or negedge reset_n )
if(!reset_n )
Conv_Go <= 1'b0 ;
else if((key_flag)&&(key_state==1))
Conv_Go <= 1'b1 ;
else
Conv_Go <= 1'b0 ;
wire [11:0] Data;
adc128s102 adc_(
. clk(clk),
. reset_n(reset_n),
. Conv_Go(Conv_Go),//使能信号
. Addr(Addr),
. ADC_DOUT(ADC_DOUT),
. ADC_SCLK(ADC_SCLK),
. ADC_CS_N(ADC_CS_N),
. ADC_DIN(ADC_DIN),
. Conv_Done(Conv_Done),
. Data(Data)
);
reg [31:0]disp_data;
wire [7:0] sel;//数码管位选（选择当前要显示的数码管）
wire [7:0] seg;//数码管段选（当前要显示的内容)
always@(posedge clk or negedge reset_n )
if(!reset_n )
disp_data <= 0 ;
else
disp_data <= 32'h0000_0000 + Data ;
hc595_driver hc595_driver(
.clk(clk),
.reset_n(reset_n),
.data({seg,sel}), //将段选与位选信号拼接在一起
.s_en(1'b1),
.sh_cp(sh_cp),
.st_cp(st_cp),
.ds(ds)
);
hex_8 hex8(
.clk(clk),
.reset_n(reset_n),
.disp_data(disp_data),
.sel(sel),
.seg(seg)
);
endmodule
key_adc_hex8_tb.v
`timescale 1ns / 1ns
module key_adc_hex8_tb( );
reg clk;
reg reset_n;
reg key ;
reg [2:0]Addr;
reg ADC_DOUT;
wire ADC_SCLK;
wire ADC_CS_N;
wire ADC_DIN;
wire Conv_Done;
wire sh_cp,st_cp, ds;
key_adc_hex8 k_hex8(
clk ,
reset_n,
key,
Addr,
ADC_DOUT,
ADC_SCLK,
ADC_CS_N,
ADC_DIN,
Conv_Done,
sh_cp,
st_cp,
ds
);
initial clk = 1;
always #10 clk = ~clk;
initial
begin
reset_n = 0;
Addr = 2;
key = 1 ;
#201;
reset_n = 1;
#200;
key_press(2);
wait(!ADC_CS_N);
//16'h0A58
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB15
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB14
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB13
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB12
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB11
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB10
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB9
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB8
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB7
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB6
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB5
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB4
@(negedge ADC_SCLK);
ADC_DOUT = 1; //DB3
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB2
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB1
@(negedge ADC_SCLK);
ADC_DOUT = 0; //DB0
wait(ADC_CS_N);
#2000;
#1000000;
Addr = 7;
#20;
key_press(2);
wait(!ADC_CS_N);
//16'h0893
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 0;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
@(negedge ADC_SCLK);
ADC_DOUT = 1;
wait(ADC_CS_N);
#200;
#1000000;
$stop;
end
reg [13:0] rand;
task key_press;
input[3:0]seed;
begin
key = 1 ;
#100000;
repeat(10)
begin
rand = {$random(seed)} % 10000;
#rand;
key=~key;
end
key = 0 ;
#100000;
key = 1 ;
end
endtask
endmodule
.xdc
set_property IOSTANDARD LVCMOS33 [get_ports clk]
set_property IOSTANDARD LVCMOS33 [get_ports reset_n]
set_property IOSTANDARD LVCMOS33 [get_ports st_cp]
set_property IOSTANDARD LVCMOS33 [get_ports sh_cp]
set_property IOSTANDARD LVCMOS33 [get_ports ds]
set_property PACKAGE_PIN U18 [get_ports clk]
set_property PACKAGE_PIN D20 [get_ports ds]
set_property PACKAGE_PIN E19 [get_ports sh_cp]
set_property PACKAGE_PIN F17 [get_ports st_cp]
set_property IOSTANDARD LVCMOS33 [get_ports {Addr[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {Addr[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {Addr[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports ADC_CS_N]
set_property IOSTANDARD LVCMOS33 [get_ports ADC_DIN]
set_property IOSTANDARD LVCMOS33 [get_ports ADC_DOUT]
set_property IOSTANDARD LVCMOS33 [get_ports ADC_SCLK]
set_property IOSTANDARD LVCMOS33 [get_ports Conv_Done]
set_property IOSTANDARD LVCMOS33 [get_ports key]
set_property PACKAGE_PIN H18 [get_ports key]
set_property PACKAGE_PIN H20 [get_ports reset_n]
set_property PACKAGE_PIN K14 [get_ports {Addr[0]}]
set_property PACKAGE_PIN L15 [get_ports {Addr[1]}]
set_property PACKAGE_PIN G14 [get_ports {Addr[2]}]
set_property PACKAGE_PIN M19 [get_ports ADC_DIN]
set_property PACKAGE_PIN M20 [get_ports ADC_DOUT]
set_property PACKAGE_PIN L19 [get_ports ADC_SCLK]
set_property PACKAGE_PIN M18 [get_ports ADC_CS_N]
set_property PACKAGE_PIN G17 [get_ports Conv_Done]分析
|
|

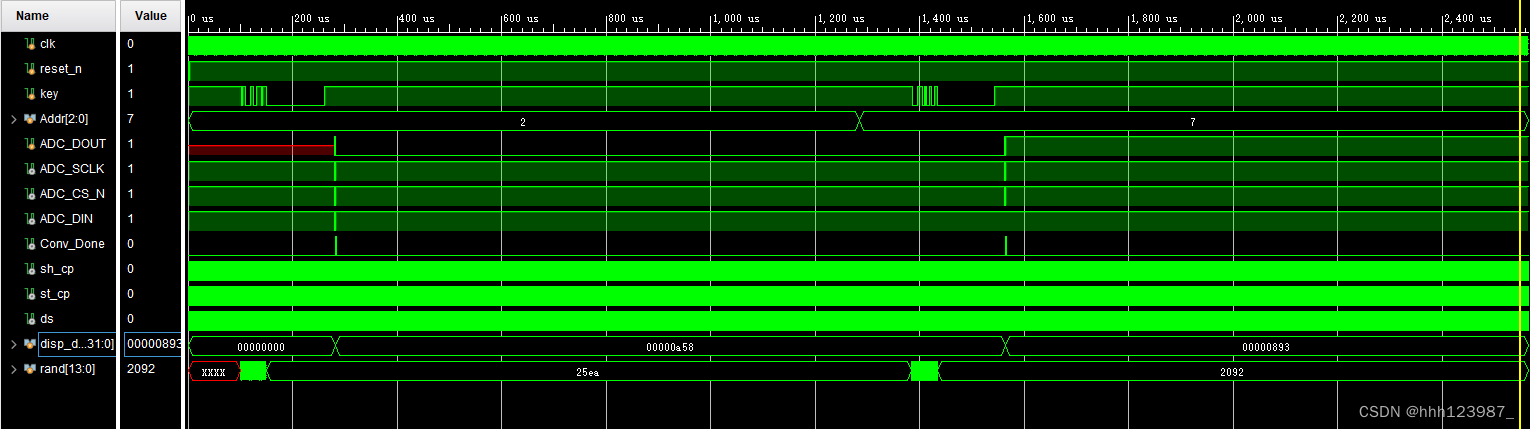

| 测试代码符合预期 |
| 板级验证： 拨码开关选取地址 测量短路时，电压为0 测量小电池，电压比较准（手边没万用表，划划水啦~） |
3095
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
