图标颜色、大小、粗细

绘图marker

参考链接

markerstyle设置的方法

TGraph *g1 = new TGraph;
g1->SetMarkerStyle(2); // g1->SetMarkerStyle(kDot);
g1->SetMarkerColor(1); // g1->SetMarkerColor(kBlack);
g1->SetMarkerSize(2); // scale the marker size

字符对应图标

Marker number	Marker shape	Marker name
1	dot	kDot
2	+	kPlus
3	*	kStar
4	o	kCircle
5	x	kMultiply
6	small dot	kFullDotSmall
7	medium dot	kFullDotMedium
8	large scalable dot	kFullDotLarge
9 -->19	large scalable dot
20	full circle	kFullCircle
21	full square	kFullSquare
22	full triangle up	kFullTriangleUp
23	full triangle down	kFullTriangleDown
24	open circle	kOpenCircle
25	open square	kOpenSquare
26	open triangle up	kOpenTriangleUp
27	open diamond	kOpenDiamond
28	open cross	kOpenCross
29	full star	kFullStar
30	open star	kOpenStar
31	*
32	open triangle down	kOpenTriangleDown
33	full diamond	kFullDiamond
34	full cross	kFullCross
35	open diamond cross	kOpenDiamondCross
36	open square diagonal	kOpenSquareDiagonal
37	open three triangle	kOpenThreeTriangles
38	octagon with cross	kOctagonCross
39	full three triangles	kFullThreeTriangles
40	open four triangleX	kOpenFourTrianglesX
41	full four triangleX	kFullFourTrianglesX
42	open double diamond	kOpenDoubleDiamond
43	full double diamond	kFullDoubleDiamond
44	open four triangle+	kOpenFourTrianglesPlus
45	full four triangle+	kFullFourTrianglesPlus
46	open cross X	kOpenCrossX
47	full cross X	kFullCrossX
48	four squares X	kFourSquaresX
49	four squares+	kFourSquaresPlus

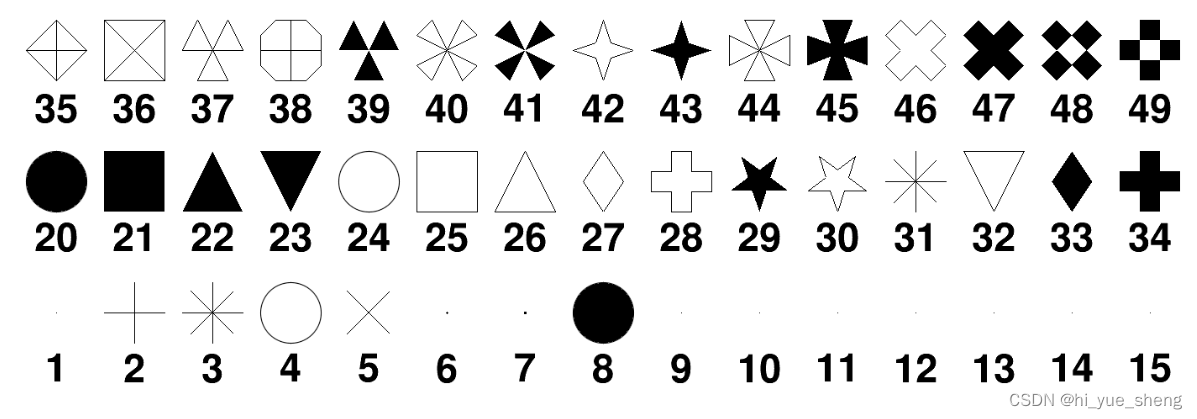

样式

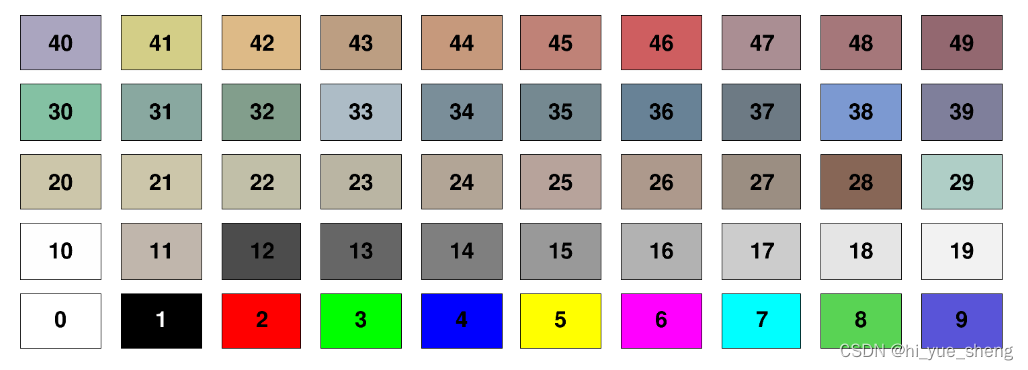

颜色

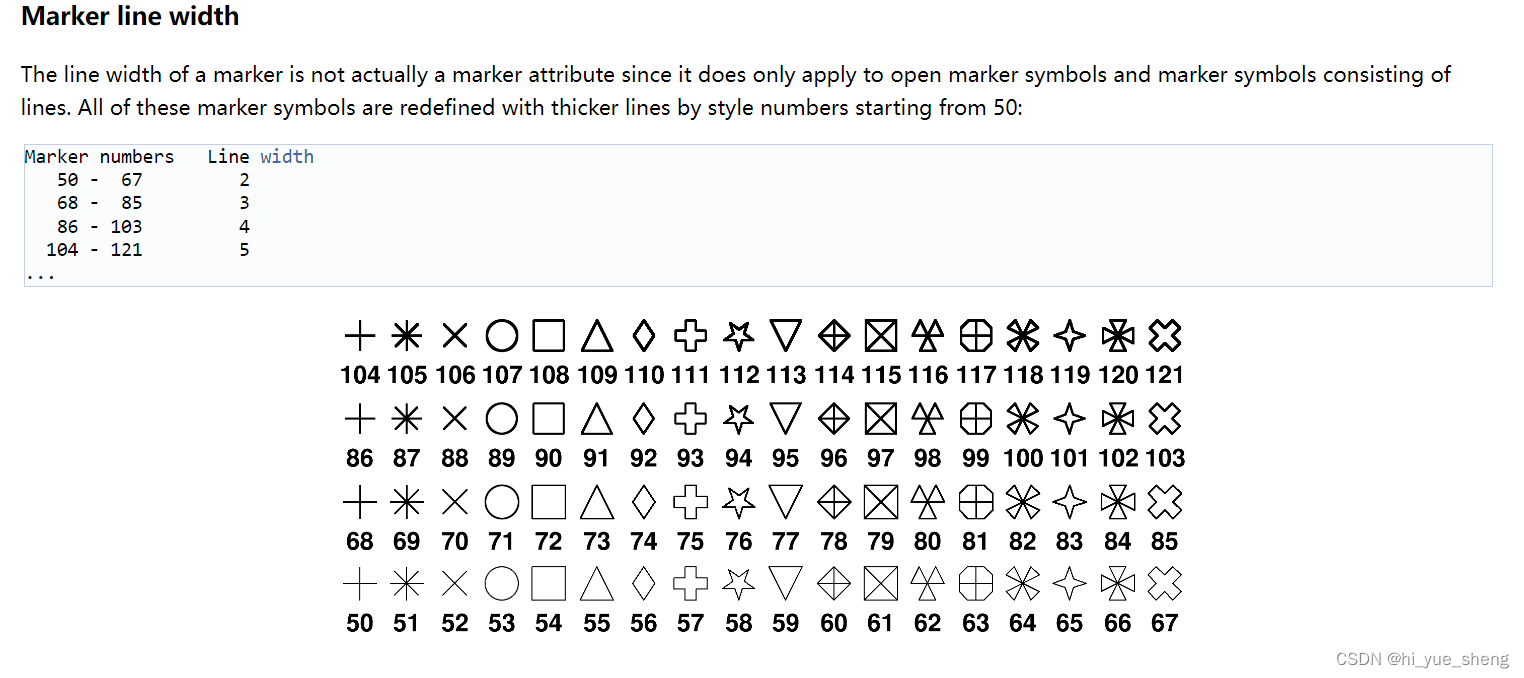

注意空心边线的粗细似乎仅能在TAttMarker::SetMarkerStyle()中设置

示意图如下
