openlayer:13在某一区县内（一定区域内）加载不同类型的坐标位置，点击后弹出overlay弹窗显示坐标点详细信息，点击弹窗上关闭按钮关闭弹窗（2）

本文介绍了如何使用OpenLayers在区县地图上加载不同颜色的坐标点，并通过点击展示详细信息。之前在12章节我们只是利用了一种办法实现了效果，现在我们通过另一种办法也可以实现相同效果。

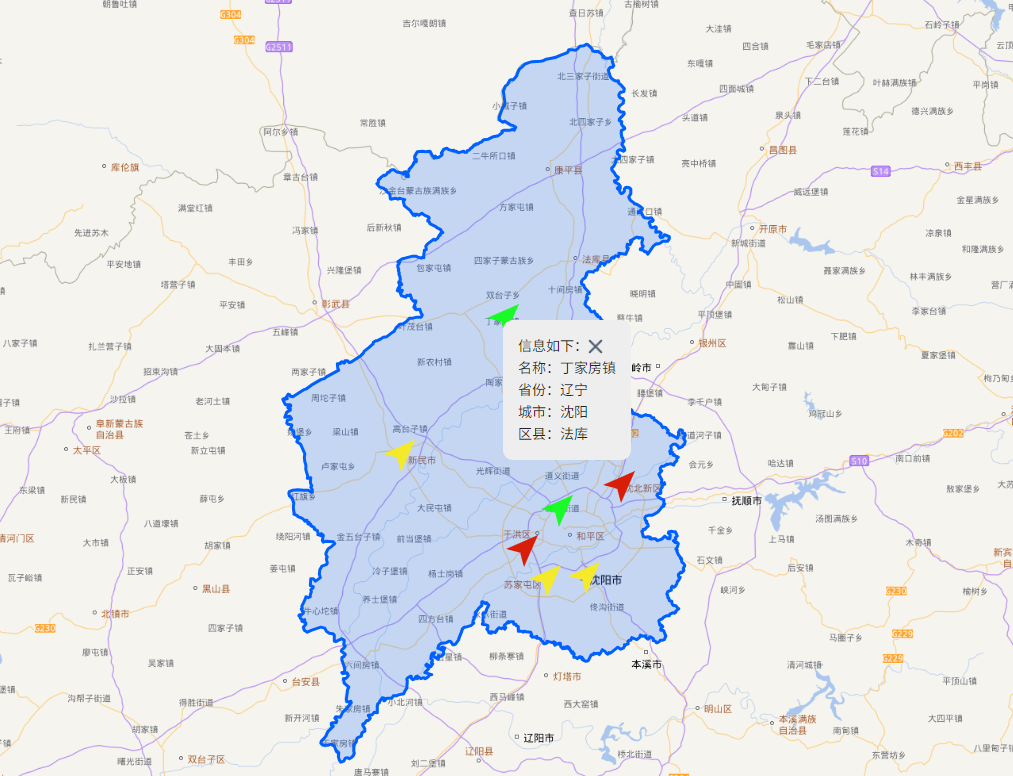

首先设置地图视图和天地图底图，然后创建三种颜色的坐标点图层（黄、红、绿），分别用不同图标表示。绿色坐标点还包含名称、省市区等属性信息。通过添加点击事件监听，当用户点击绿色点时，会弹出信息框显示该点的详细属性数据。实现过程包括：创建矢量图层、设置点样式、绑定点击事件、处理特征属性等。通过forEachFeatureAtPixel方法获取点击位置的特征信息；使用Overlay实现弹窗功能，动态显示所选点的详细信息。

 一、解释

let map=null;
let popup=null;
定义两个全局变量

const [name,setname]=useState('')
const [prov,setprov]=useState('')
const [city,setcity]=useState('')
const [distr,setdistr]=useState('')

定义state数据，用来存储相关信息

let view=new View({center:fromLonLat([123.464679, 41.677586]),zoom:9,})
定义视图和中心

let ditulayer=new TileLayer({source:new XYZ({url :"http://t5.tianditu.gov.cn/vec_w/wmts?SERVICE=WMTS&REQUEST=GetTile&VERSION=1.0.0&LAYER=vec&STYLE=default&TILEMATRIXSET=w&FORMAT=tiles&TILEMATRIX={z}&TILEROW={y}&TILECOL={x}&tk=528881a2c3d647268c04ab43dc46bd51"})})

let biaojilayer=new TileLayer({source:new XYZ({url :"http://t3.tianditu.com/DataServer?T=cva_w&tk=faf4cf166d31edcaba5de523eae8084f&x={x}&y={y}&l={z}"})})

定义底图和标注图层


let vectorlayer=new VectorLayer({
    source:new VectorSource({url:"https://geo.datav.aliyun.com/areas_v3/bound/210100.json",format:new GeoJSON()}),
    style:new Style({
      fill:new Fill({
        color:"rgba(0,96,255,0.2)"
      }),
      stroke:new Stroke({
        color:'#0060ff',
        width:3
      })
    })
  })
定义矢量图层，显示一定范围，并给出背景色和边框这两种效果

let yellowsource=new VectorSource({})
  let yellowlayer=new VectorLayer({source:yellowsource})
  let yellowpoints=[fromLonLat([123.464679, 41.677586]),fromLonLat([123.33, 41.67]),fromLonLat([122.82283, 41.99203899])]
  yellowpoints.forEach(function(coords){
    let yellowfeature = new Feature({
            geometry: new Point(coords),
        });
        yellowfeature.setStyle(
          new Style({
            image:new Icon({
              src:yellow,
            })
          })
        )
     yellowsource.addFeature(yellowfeature);
  })
显示黄色箭头

  let redsource=new VectorSource({})
  let redlayer=new VectorLayer({source:redsource})
  let redpoints=[fromLonLat([123.249151,41.748329]),fromLonLat([123.584281, 41.913100])]
  redpoints.forEach(function(coords){
    let redfeature = new Feature({
            geometry: new Point(coords),
        });
        redfeature.setStyle(
          new Style({
            image:new Icon({
              src:red,
            })
          })
        )
     redsource.addFeature(redfeature);
  })
显示红色箭头


  const greenList=[
          {lonlat:[123.184471, 42.342171],name:"丁家房镇",prov:"辽宁",city:"沈阳",distr:"法库"},
          {lonlat:[123.370625,41.852098],name:"梁山镇",prov:"辽宁",city:"沈阳",distr:"新民"},
          {lonlat:[123.370625,41.852098],name:"梁山镇",prov:"辽宁",city:"沈阳",distr:"新民"},
        ]
  const greensource=new VectorSource({})
  const greenlayer=new VectorLayer({source:greensource})
  greenList.forEach(function(item){
    let greenfeature = new Feature({
            geometry: new Point(fromLonLat(item.lonlat)),
            name: item.name,
        });
        greenfeature.setStyle(
          new Style({
            image:new Icon({
              src:green,
            })
          })
        )
     greensource.addFeature(greenfeature);
  })

显示绿色箭头

map.on('singleclick', function(evt) {
          map.forEachFeatureAtPixel(evt.pixel, function(feature, layer) {
              if (layer === greenlayer) {
                  let feature2=feature;
                  console.log(feature2);
                  let selectname=feature2.get("name");
                  let geometry=feature2.getGeometry().getCoordinates()
                  greenList.map((item,index)=>{
                    if(item.name==selectname){
                      setname(item.name);
                     setcity(item.city)
                     setprov(item.prov)
                     setdistr(item.distr)
                    }
                  })
                  popup.setPosition(geometry);
                  map.addOverlay(popup);
              }else{
                  console.log('Clicked on the tile layer');
              }
          });
      });

map点击事件获取相关数据

二、完整代码

import { useState ,useEffect} from 'react';
import Map from 'ol/Map.js';
import View from 'ol/View.js';
import TileLayer from 'ol/layer/Tile.js';
import XYZ from 'ol/source/XYZ.js';
import VectorLayer from 'ol/layer/Vector.js';
import VectorSource from 'ol/source/Vector.js';
import GeoJSON from 'ol/format/GeoJSON.js';
import Style from 'ol/style/Style.js';
import Fill from 'ol/style/Fill.js';
import Stroke from 'ol/style/Stroke.js';
import Icon from 'ol/style/Icon.js';
import Feature from 'ol/Feature.js';
import Polygon from 'ol/geom/Polygon.js';
import Point from 'ol/geom/Point.js';
import Overlay from 'ol/Overlay.js';
import {fromLonLat} from 'ol/proj';
import './System.css'
import 'ol/ol.css';
import yellow from '../../assets/yellow.png';
import red from '../../assets/red.png';
import green from '../../assets/green.png';
import close from '../../assets/close.png';
let map=null;
let popup=null;
function System() {
  const [name,setname]=useState('')
  const [prov,setprov]=useState('')
  const [city,setcity]=useState('')
  const [distr,setdistr]=useState('')
  let view=new View({center:fromLonLat([123.464679, 41.677586]),zoom:9,})
  let ditulayer=new TileLayer({source:new XYZ({url :"http://t5.tianditu.gov.cn/vec_w/wmts?SERVICE=WMTS&REQUEST=GetTile&VERSION=1.0.0&LAYER=vec&STYLE=default&TILEMATRIXSET=w&FORMAT=tiles&TILEMATRIX={z}&TILEROW={y}&TILECOL={x}&tk=528881a2c3d647268c04ab43dc46bd51"})})
  let biaojilayer=new TileLayer({source:new XYZ({url :"http://t3.tianditu.com/DataServer?T=cva_w&tk=faf4cf166d31edcaba5de523eae8084f&x={x}&y={y}&l={z}"})})
  let vectorlayer=new VectorLayer({
    source:new VectorSource({url:"https://geo.datav.aliyun.com/areas_v3/bound/210100.json",format:new GeoJSON()}),
    style:new Style({
      fill:new Fill({
        color:"rgba(0,96,255,0.2)"
      }),
      stroke:new Stroke({
        color:'#0060ff',
        width:3
      })
    })
  })

  let yellowsource=new VectorSource({})
  let yellowlayer=new VectorLayer({source:yellowsource})
  let yellowpoints=[fromLonLat([123.464679, 41.677586]),fromLonLat([123.33, 41.67]),fromLonLat([122.82283, 41.99203899])]
  yellowpoints.forEach(function(coords){
    let yellowfeature = new Feature({
            geometry: new Point(coords),
        });
        yellowfeature.setStyle(
          new Style({
            image:new Icon({
              src:yellow,
            })
          })
        )
     yellowsource.addFeature(yellowfeature);
  })

  let redsource=new VectorSource({})
  let redlayer=new VectorLayer({source:redsource})
  let redpoints=[fromLonLat([123.249151,41.748329]),fromLonLat([123.584281, 41.913100])]
  redpoints.forEach(function(coords){
    let redfeature = new Feature({
            geometry: new Point(coords),
        });
        redfeature.setStyle(
          new Style({
            image:new Icon({
              src:red,
            })
          })
        )
     redsource.addFeature(redfeature);
  })



  const greenList=[
          {lonlat:[123.184471, 42.342171],name:"丁家房镇",prov:"辽宁",city:"沈阳",distr:"法库"},
          {lonlat:[123.370625,41.852098],name:"梁山镇",prov:"辽宁",city:"沈阳",distr:"新民"},
          {lonlat:[123.370625,41.852098],name:"梁山镇",prov:"辽宁",city:"沈阳",distr:"新民"},
        ]
  const greensource=new VectorSource({})
  const greenlayer=new VectorLayer({source:greensource})
  greenList.forEach(function(item){
    let greenfeature = new Feature({
            geometry: new Point(fromLonLat(item.lonlat)),
            name: item.name,
        });
        greenfeature.setStyle(
          new Style({
            image:new Icon({
              src:green,
            })
          })
        )
     greensource.addFeature(greenfeature);
  })
  useEffect(()=>{
    map=new Map({
      target:"mapp",
      view:view,
      layers:[
        ditulayer,
        biaojilayer,
        vectorlayer,
        yellowlayer,
        redlayer,
        greenlayer
      ]
    })

    popup=new Overlay({
        element:document.getElementById("popup"),
      })
    map.addOverlay(popup)
    map.on('singleclick', function(evt) {
          map.forEachFeatureAtPixel(evt.pixel, function(feature, layer) {
              if (layer === greenlayer) {
                  let feature2=feature;
                  console.log(feature2);
                  let selectname=feature2.get("name");
                  let geometry=feature2.getGeometry().getCoordinates()
                  greenList.map((item,index)=>{
                    if(item.name==selectname){
                      setname(item.name);
                     setcity(item.city)
                     setprov(item.prov)
                     setdistr(item.distr)
                    }
                  })
                  popup.setPosition(geometry);
                  map.addOverlay(popup);

              }else{
                  console.log('Clicked on the tile layer');
              }
          });
      });
  },[])
  function closeTag(){
    popup.setPosition(undefined);
  }
  return (
    <>
      <div id="mapp" style={{width: "100%",height: "97vh"}}>
        <div id="popup">
          <div className="row_title">
            <span>信息如下：</span>
            <img className="row_title_img" src={close} onClick={closeTag}/>
          </div>
          <div className="row_content">
            <div>名称：{name}</div>
            <div>省份：{prov}</div>
            <div>城市：{city}</div>
            <div>区县：{distr}</div>
          </div>
        </div>
      </div>
    </>
  )
}

export default System
