所需环境

eNSPVirtualBoxWinPcapWireshark

0

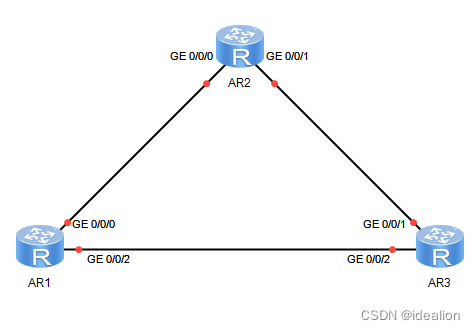

网络拓扑

1

实验步骤

设备命名

<Huawei>system-view
[Huawei]sysname R1
[R1]

<Huawei>system-view
[Huawei]sysname R2
[R2]

<Huawei>system-view
[Huawei]sysname R3
[R3]

查看路由器接口状态

[R1]display interface brief
PHY: Physical
*down: administratively down
(l): loopback
(s): spoofing
(b): BFD down
^down: standby
(e): ETHOAM down
(d): Dampening Suppressed
InUti/OutUti: input utility/output utility
Interface                   PHY   Protocol InUti OutUti   inErrors  outErrors
GigabitEthernet0/0/0        up    down        0%     0%          0          0
GigabitEthernet0/0/1        down  down        0%     0%          0          0
GigabitEthernet0/0/2        up    down        0%     0%          0          0
NULL0                       up    up(s)       0%     0%          0          0

[R1]

[R2]display interface brief
PHY: Physical
*down: administratively down
(l): loopback
(s): spoofing
(b): BFD down
^down: standby
(e): ETHOAM down
(d): Dampening Suppressed
InUti/OutUti: input utility/output utility
Interface                   PHY   Protocol InUti OutUti   inErrors  outErrors
GigabitEthernet0/0/0        up    down        0%     0%          0          0
GigabitEthernet0/0/1        up    down        0%     0%          0          0
GigabitEthernet0/0/2        down  down        0%     0%          0          0
NULL0                       up    up(s)       0%     0%          0          0

[R2]

[R3]display interface brief
PHY: Physical
*down: administratively down
(l): loopback
(s): spoofing
(b): BFD down
^down: standby
(e): ETHOAM down
(d): Dampening Suppressed
InUti/OutUti: input utility/output utility
Interface                   PHY   Protocol InUti OutUti   inErrors  outErrors
GigabitEthernet0/0/0        down  down        0%     0%          0          0
GigabitEthernet0/0/1        up    down        0%     0%          0          0
GigabitEthernet0/0/2        up    down        0%     0%          0          0
NULL0                       up    up(s)       0%     0%          0          0

[R3]

查看初始路由表

[R1]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 4        Routes : 4

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R1]

[R2]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 4        Routes : 4

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R2]

[R3]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 4        Routes : 4

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R3]

配置路由器IP地址

路由器接口IP Address/Mask
R1GigabitEthernet0/0/010.0.12.1/24
GigabitEthernet0/0/210.0.13.1/24
R2GigabitEthernet0/0/010.0.12.2/24
GigabitEthernet0/0/110.0.23.2/24
R3GigabitEthernet0/0/110.0.23.3/24
GigabitEthernet0/0/210.0.13.3/24
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet 0/0/0]ip address 10.0.12.1 24

[R1-GigabitEthernet 0/0/0]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet 0/0/2]ip address 10.0.13.1 24

[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet 0/0/0]ip address 10.0.12.2 24

[R2-GigabitEthernet 0/0/0]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet 0/0/1]ip address 10.0.23.2 24

[R3]interface GigabitEthernet 0/0/1
[R3-GigabitEthernet 0/0/1]ip address 10.0.23.3 24

[R3-GigabitEthernet 0/0/1]interface GigabitEthernet 0/0/2
[R3-GigabitEthernet 0/0/2]ip address 10.0.13.3 24

测试联通性

[R1]ping 10.0.12.2
  PING 10.0.12.2: 56  data bytes, press CTRL_C to break
    Reply from 10.0.12.2: bytes=56 Sequence=1 ttl=255 time=110 ms
    Reply from 10.0.12.2: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 10.0.12.2: bytes=56 Sequence=3 ttl=255 time=10 ms
    Reply from 10.0.12.2: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 10.0.12.2: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 10.0.12.2 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/36/110 ms

[R1]

[R2]ping 10.0.23.3
  PING 10.0.23.3: 56  data bytes, press CTRL_C to break
    Reply from 10.0.23.3: bytes=56 Sequence=1 ttl=255 time=50 ms
    Reply from 10.0.23.3: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 10.0.23.3: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 10.0.23.3: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 10.0.23.3: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 10.0.23.3 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 20/26/50 ms

[R2]

[R3]ping 10.0.13.1
  PING 10.0.13.1: 56  data bytes, press CTRL_C to break
    Reply from 10.0.13.1: bytes=56 Sequence=1 ttl=255 time=40 ms
    Reply from 10.0.13.1: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 10.0.13.1: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 10.0.13.1: bytes=56 Sequence=4 ttl=255 time=30 ms
    Reply from 10.0.13.1: bytes=56 Sequence=5 ttl=255 time=30 ms

  --- 10.0.13.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 20/28/40 ms

[R3]

查看路由表

[R1]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.0.12.0/24  Direct  0    0           D   10.0.12.1       GigabitEthernet 0/0/0
      10.0.12.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/0
    10.0.12.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/0
      10.0.13.0/24  Direct  0    0           D   10.0.13.1       GigabitEthernet 0/0/2
      10.0.13.1/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/2
    10.0.13.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/2
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R1]

[R2]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.0.12.0/24  Direct  0    0           D   10.0.12.2       GigabitEthernet 0/0/0
      10.0.12.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/0
    10.0.12.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/0
      10.0.23.0/24  Direct  0    0           D   10.0.23.2       GigabitEthernet 0/0/1
      10.0.23.2/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/1
    10.0.23.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R2]

[R3]display ip routing-table
Route Flags: R - relay, D - download to fib
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 10       Routes : 10

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

      10.0.13.0/24  Direct  0    0           D   10.0.13.3       GigabitEthernet 0/0/2
      10.0.13.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/2
    10.0.13.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/2
      10.0.23.0/24  Direct  0    0           D   10.0.23.3       GigabitEthernet 0/0/1
      10.0.23.3/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/1
    10.0.23.255/32  Direct  0    0           D   127.0.0.1       GigabitEthernet 0/0/1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0           D   127.0.0.1       InLoopBack0

[R3]

配置LoopBack地址

路由器接口IP Address/Mask
R1LoopBack 010.0.1.1/32
R2LoopBack 010.0.2.2/32
R3LoopBack 010.0.3.3/32
[R1]interface LoopBack 0
[R1-LoopBack0]ip address 10.0.1.1 32

[R2]interface LoopBack 0
[R2-LoopBack0]ip address 10.0.2.2 32

[R3]interface LoopBack 0
[R3-LoopBack0]ip address 10.0.3.3 32

测试联通性

[R1]ping 10.0.2.2
  PING 10.0.2.2: 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- 10.0.2.2 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss

[R2]ping 10.0.3.3
  PING 10.0.3.3: 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- 10.0.3.3 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss

[R2]

[R3]ping 10.0.1.1
  PING 10.0.1.1: 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- 10.0.1.1 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss

[R3]

配置静态路由

[R1]ip route-static 10.0.2.2 32 10.0.12.2

[R1]ip route-static 10.0.3.3 32 10.0.13.3

[R2]ip route-static 10.0.1.1 32 10.0.12.1

[R2]ip route-static 10.0.3.3 32 10.0.23.3

[R3]ip route-static 10.0.1.1 32 10.0.13.1

[R3]ip route-static 10.0.2.2 32 10.0.23.2

测试联通性

[R1]ping 10.0.2.2
  PING 10.0.2.2: 56  data bytes, press CTRL_C to break
    Reply from 10.0.2.2: bytes=56 Sequence=1 ttl=255 time=30 ms
    Reply from 10.0.2.2: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 10.0.2.2: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 10.0.2.2: bytes=56 Sequence=4 ttl=255 time=30 ms
    Reply from 10.0.2.2: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 10.0.2.2 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 20/24/30 ms

[R1]

[R2]ping 10.0.3.3
  PING 10.0.3.3: 56  data bytes, press CTRL_C to break
    Reply from 10.0.3.3: bytes=56 Sequence=1 ttl=255 time=20 ms
    Reply from 10.0.3.3: bytes=56 Sequence=2 ttl=255 time=10 ms
    Reply from 10.0.3.3: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 10.0.3.3: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 10.0.3.3: bytes=56 Sequence=5 ttl=255 time=30 ms

  --- 10.0.3.3 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/20/30 ms

[R2]

[R3]ping 10.0.2.2
  PING 10.0.2.2: 56  data bytes, press CTRL_C to break
    Reply from 10.0.2.2: bytes=56 Sequence=1 ttl=255 time=40 ms
    Reply from 10.0.2.2: bytes=56 Sequence=2 ttl=255 time=10 ms
    Reply from 10.0.2.2: bytes=56 Sequence=3 ttl=255 time=30 ms
    Reply from 10.0.2.2: bytes=56 Sequence=4 ttl=255 time=10 ms
    Reply from 10.0.2.2: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 10.0.2.2 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/22/40 ms

[R3]

总结

本次实验对IP地址的配置、查看路由表、配置LoopBack地址、使用ping命令测试联通性。

构建互联互通的IP网络——（实验一：IPv4编址及IPv4路由基础实验）
及时清醒，事事如意
03-18 2808
IPv4编址及IPv4路由基础实验拓扑。
HCIA-Datacom实验日志（二）——IPv4编址及IPv4路由基础实验
m0_62225586的博客
03-21 1356
IPv4编址及IPv4路由基础实验，实验步骤记录以及知识总结补充
实验二（一）：IPV4编址及IPV4路由基础实验
sjsnsvsjsm的博客
03-09 2282
1.关于本实验IPv4( Internet Protocol Version 4)是 TCP/IP 协议族中最为核心的协议之一。它工作在 TCP/IP参考模型的网际互联层，该层与 OSI参考模型的网络层相对应。网络层提供了无连接数据传输服务，即网络在发送分组时不需要先建立连接，每一个分组(也就是I 数据报文)独立发送。路由是数据通信网络中最基本的要素。路由信息就是指导正 报文发送的路径信息，路由的过程就是报文转发的过程。2.实验目的掌握接口 IPv4 地址的配置方法。
HCIA-Datacom实验_04_实验二：IPv4编址及IPv4路由基础实验
最新发布
2301_80961833的博客
03-30 360
R1R2R3。
eNSP实验一：IPv4编址及IPv4路由基础
热门推荐
You can do more than just get by.
05-03 1万+
实验目的： 1. 配置各路由器上的物理接口的IP地址并实现互联互通 2. 配置各路由器的 Loopback 的IP地址并实现互联互通（包括备份路由，默认路由） Loopback属于逻辑接口，说明在后面。
IPv4编址及IPv4基础实验拓扑
yangjiexuan6768的博客
02-08 477
华为
CCNA-IPv4静态路由的配置实验
11-17
在本实验“CCNA-IPv4静态路由的配置”中，目标是学习和掌握网络基础设备的设置、静态路由的配置、以及默认路由的配置和检验。实验涉及到的知识点包括： 1. **设置拓扑与初始化设备**： - 网络拓扑的构建，包括连接...
IPv4 静态路由汇总基本实验
weixin_34129696的博客
12-01 355
目的：使用汇总路由(summary static-route)将全网互联。 R1 Configuration: ! ! interface Loopback0 ip address 192.168.1.1 255.255.255.255 ! interface Ethernet0/0 ip address 192.168.12.1 255.2...
计算机网络实验_6_IPv4地址基础
qq_40712051的博客
05-07 1457
IPv4的地址表示 IP是一个32为的二进制地址，为了便于记忆，将其划分为4组，每组8位，由小数点分开，用四个字节表示。用小数点分开的每个字节的数值范围是0~255，如果每个字节用十进制表示，便可以得到形如202.116.64.9这样的地址表示法。 IPv4的地址结构 IPv4的IP地址由网络地址和主机地址两个部分组成，结构为NetID+HostID。其中NetID表示主机所在的网络，Ho...
计算机网络 lab3 IPv4
sectumsempra的博客
12-22 1315
计算机网络实践实验3 IPv4
山科路由交换实验二（1）-配置 IPv4 静态路由和默认路由
04-05
内容概要：配置 IPv4 静态路由和默认路由，使用相应的静态路由协议实现网络的互通，主要进行的是IPv4的静态路由配置。 适合人群：初学路由交换技术的学生、或者对路由交换与交换的人群。 通过该资源可以查看IPv4静态路由的配置思路及配置内容，有利于对该类协议的理解，尝试自己配置静态路由。 同时，该资源搭配了相应的配置过程，详细可以看资源上传者主页的博客“I[Pv4静态路由配置”。
实验二（1）-配置 IPv4 静态路由和默认路由
朔方鸟的博客
03-21 1万+
实验二的第一部分-配置 IPv4 静态路由和默认路由的配置过程，问题答案请查看我之前的博文。
5.cisco思科模拟器ipv4和ipv6编址题目练习
weixin_55631415的博客
09-25 2842
5.cisco思科模拟器ipv4和ipv6编址题目练习
【计算机网络】网络层（三）—— IPv4知识总结
haoweixl的博客
08-05 9195
分片涉及一定的计算。在不同网络中传送时，MAC帧中的源地址和目的地址要发生变化，但是网桥在转发帧时，不改变帧的源地址，请注意区分。3）若路由表中有目的地址为D的特定主机路由（对特定的目的主机指明一个特定的路由，通常是为了控制或测试网络，或出于安全考虑才采用的)，则把数据报传送给路由表中所指明的下一跳路由器:否则，执行步骤4)。因为IP数据报被封装在数据链路层数据报中，因此数据链路层的MTU严格地限制着P数据报的长度，而且在TP数据报的源与目的地路径上的各段链路可能使用不同的数据链路层协议，有不同的MTU。.
Packet Tracer - 检验 IPv4 和 IPv6 编址
傻傻的心动的博客
08-07 1304
Packet Tracer - 检验 IPv4 和 IPv6 编址
SpringBoot自动配置原理（每一步都有说明哦）
qq_40842756的博客
09-07 519
SpringBoot自动配置原理 在SpringBoot启动主配置类时，@SpringBootApplication 注解发挥作用进行自动配置。 @SpringBootApplication 注解中，比较重要的有如下两个注解，实际发挥自动配置作用作用的是 @EnableAutoConfiguration 注解 而在@EnableAutoConfiguration 中，@Import导入了一个自动配置选择器类 AutoConfigurationImportSelector。 进入这个自动配置选择器类，可
配置 IPv4 和 IPv6 的 EIGRP 手动总结路由
qq_41904061的博客
10-14 1857
IPv4-Edge(config)#int IPv4-Edge(config)#interface s IPv4-Edge(config)#interface serial 0/1/0 IPv4-Edge(config-if)#ipv IPv4-Edge(config-if)#ip sum IPv4-Edge(config-if)#ip summary-addre...
实验 – 使用 VLSM 设计和实施 IPv4 编址
Cathy___Sun的博客
04-25 5340
实验 – 使用 VLSM 设计和实施 IPv4 编址拓扑目标 第 1 部分：检查网络要求 第 2 部分：设计 VLSM 地址方案 第 3 部分：布线和配置 IPv4 网络
静态路由
weixin_33933118的博客
06-05 163
组网需求交换机各接口及主机的IP地址和掩码如 图 1-2 所示。要求采用静态路由，使图中任意两台主机之间都能互通。 2.配置静态路由如SwitchA、SwitchB、SwitchC 3.验证HostA、HostB、HostC是否ping通如HostA、HostB、HostC 转载于:https://blog.51cto.com/14223412/2405620...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

「北落」

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
