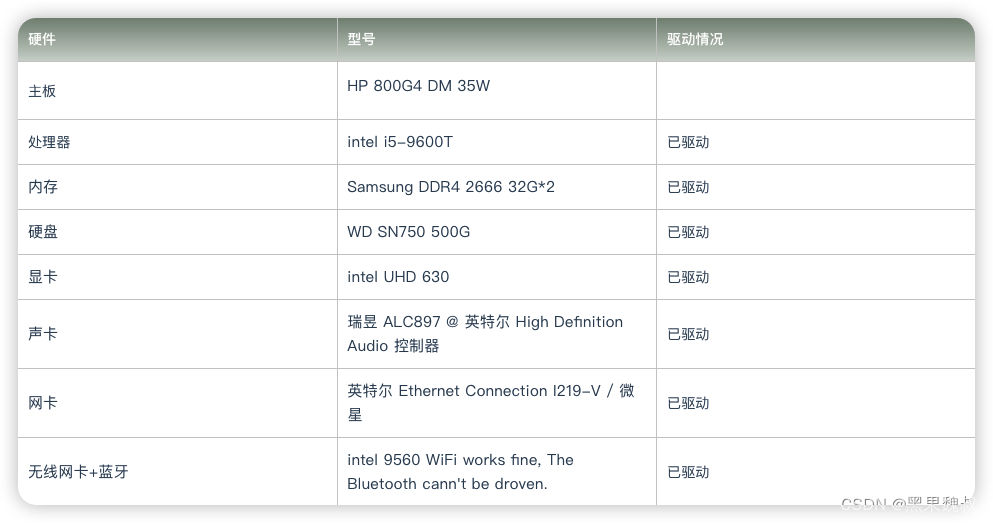

硬件型号驱动情况
主板HP 800G4 DM 35W
处理器intel i5-9600T已驱动
内存Samsung DDR4 2666 32G*2已驱动
硬盘WD SN750 500G已驱动
显卡intel UHD 630已驱动
声卡瑞昱 ALC897 @ 英特尔 High Definition Audio 控制器已驱动
网卡英特尔 Ethernet Connection I219-V / 微星已驱动
无线网卡+蓝牙intel 9560 WiFi works fine, The Bluetooth cann't be droven.已驱动
惠普专用bios设置
Security
• TPM Embedded Security
o TPM Device: Hidden
o TPM Activation Policy: No prompts
• BIOS Sure Start
o All options unchecked
• Intel SGX: Disable
Advanced
• Boot Options
o Startup Delay: 5. (useful during testing to give time for Function key presses)
o Fast Boot: unchecked
o USB Storage Boot: checked
o Network (PXE) Boot: unchecked
o Audio Alerts During Boot: unchecked (to disable beep after pressing F9 at boot)
o UEFI Boot Order
§ USB
§ Other boot drives as desired
o Legacy Boot Order
§ Unchecked
• HP Sure Recover
o Unchecked
• Secure Boot Configuration
o Legacy Support Disable and Secure Boot Disable
o Secure Boot Key Management
§ All options unchecked
• System Options
o Configure Storage Controller for RAID: unchecked
o Configure Storage Controller for Intel Optane: unchecked
o Turbo-boost: checked
o Hyperthreading: checked
o Multi-processor: checked
o Virtualization Technolgy (VTx): checked
o Virtualization Technology for Directed I/O (VTd): unchecked
o M.2 SSD 1: checked
o M.2 SSD 2: checked
o M.2 WLAN BT (unchecked if you have Intel WLAN / BT device or don’t have
WLAN / BT)
o Allow PCIe/PCI SERR# Interrupt: checked
