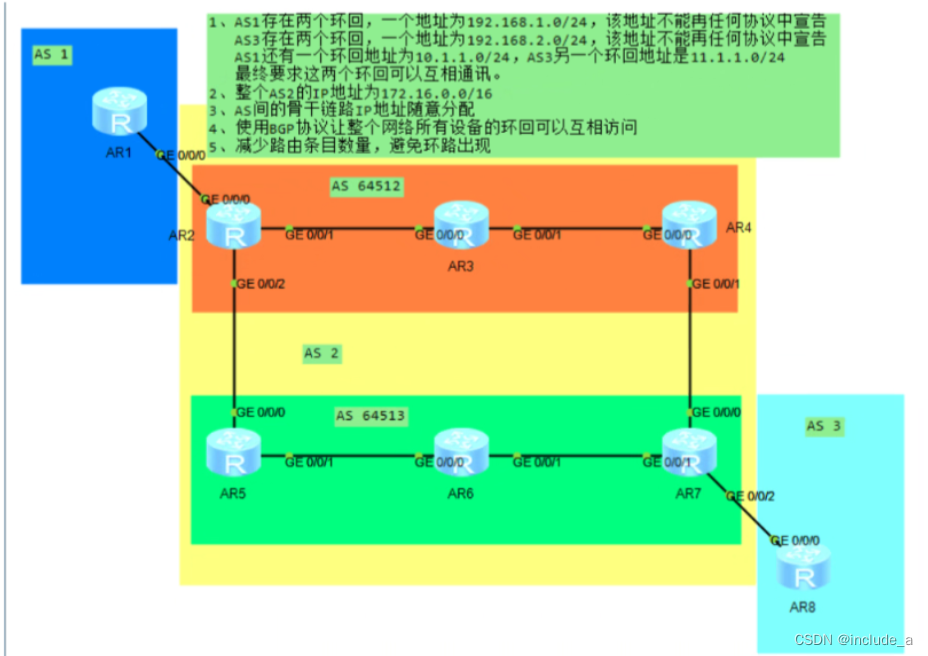

BGP综合实验

R1与R2,R7与R8建立EBGP

[r1]bgp 1
[r1-bgp]peer 2.2.2.2 as-number 2
[r1-bgp]peer 2.2.2.2 connect-interface LoopBack 1
[r1-bgp]peer 2.2.2.2 ebgp-max-hop 2
[r1]ip route-static 2.2.2.2 24 12.0.0.2

[r2]bgp 2
[r2-bgp]peer 10.1.1.1 as-number 1
[r2-bgp]peer 10.1.1.1 connect-interface LoopBack 0
[r2-bgp]peer 10.1.1.1 ebgp-max-hop 2
[r2]ip route-static 10.1.1.1 24 12.0.0.1

在AS2建立IBGP以ospf学到对方环回地址

[r2]bgp 2
[r2-bgp]peer 172.16.128.1 as-number 2
[r2-bgp]peer 172.16.128.1 connect-interface LoopBack 0
[r2-bgp]peer 172.16.144.1 as-number 2
[r2-bgp]peer 172.16.144.1 connect-interface LoopBack 0
[r2-bgp]peer 172.16.160.1 as-number 2
[r2-bgp]peer 172.16.160.1 connect-interface LoopBack 0
[r2-bgp]peer 172.16.176.1 as-number 2
[r2-bgp]peer 172.16.176.1 connect-interface LoopBack 0
[r2-bgp]peer 7.7.7.7 as-number 2
[r2-bgp]peer 7.7.7.7 connect-interface LoopBack 0

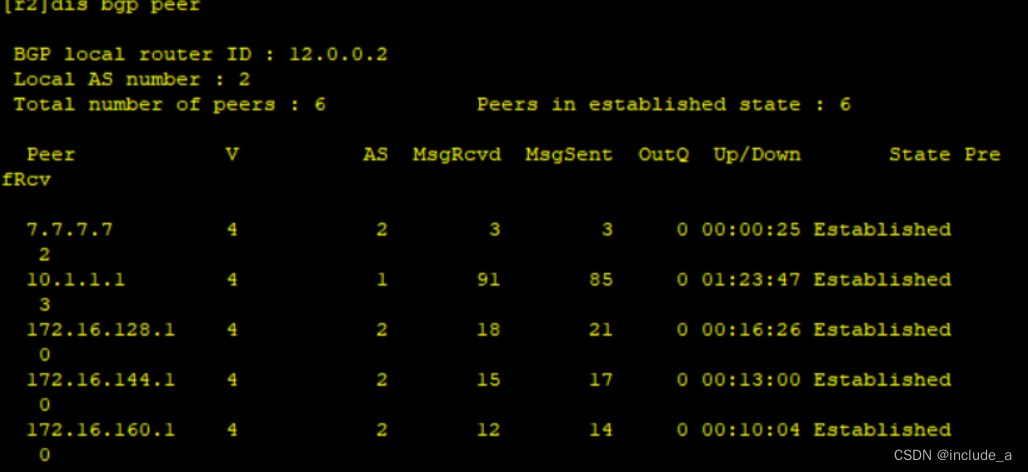

建立成功

在BGP中宣告

[r3-bgp]network 172.16.32.0 20
[r3-bgp]network 172.16.48.0 20
[r3-bgp]network 172.16.128.0 20

每个路由器宣告自己的网段
