1. 背景

这个项目之前是采用的Python的requests库以POST的方式向服务器传送json字符串的形式,这次由于合作方的变化,要采用web services的形式,按照SOAP协议,传送XML格式的数据到服务端。

本着少改动的原则,决定继续使用Python的requests库,将原来的json字符串拼成XML格式,再发送给服务端。

在改动的过程中,遇到了一些问题,并逐个进行了解决。下面是详细的过程。

2. tomcat启动问题

  1. 首先有个服务端,合作方已经部署在了tomcat上,并把压缩包发了过来;第一步肯定是先运行tomcat;

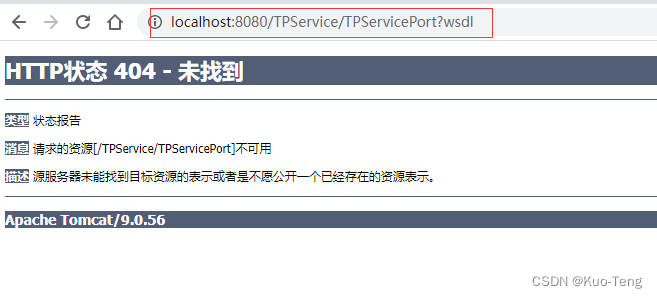

  2. 运行tomcat后,localhost:8080显示tomcat已经启动,但是服务的域名localhost:8080/TPService/TPServicePort?wsdl却显示404,如图所示:在这里插入图片描述
  3. 然后发现运行起来的tomcat是9.0版本,而合作方发来的tomcat是7.0版本;

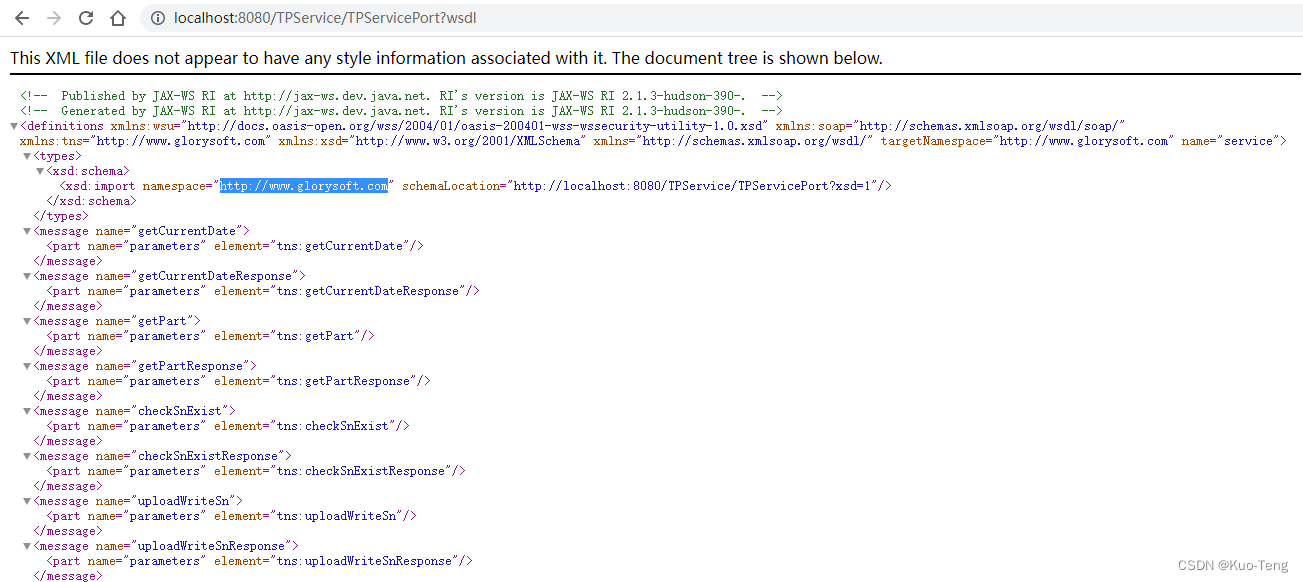

  4. 使用的是windows电脑,将环境变量中的CATALINA_HOME的值改为7.0版本的tomcat文件夹路径,即可启动7.0版本的tomcat,并能够成功访问localhost:8080/TPService/TPServicePort?wsdl在这里插入图片描述

3. 报415错误

  1. 首先并不急于将完整的数据发送给服务端,而是仅仅想把与服务端的连接成功建立。此时的代码大概如下:

    import requests
    url = 'http://localhost:8080/TPService/TPServicePort?wsdl'
    payload = {'a':'test'}
    response = requests.post(url, json=payload, timeout=5)

  2. 此时会报415错误;到服务端查看,发现如下报错信息:

    Unsupported Content-Type: application/json Supported ones are: [text/xml]
    com.sun.xml.ws.server.UnsupportedMediaException: Unsupported Content-Type: application/json Supported ones are: [text/xml]

  3. 按照提示,增加headers,将content-type的值设置为text/xml,此时代码如下:

    import requests
    from requests.structures import CaseInsensitiveDict

    url = 'http://localhost:8080/TPService/TPServicePort?wsdl'
    headers = CaseInsensitiveDict()
    headers['Content-Type'] = 'text/xml'
    payload = {'a': 'b'}
    response = requests.post(url, headers=headers, json=payload, timeout=5)
    print(response.status_code)

  4. 此时报500错误,说明通信连接已经建立了;

4. 按照SOAP格式拼装xml

  1. 一开始拼接的xml如下:

    <?xml version ="1.0" encoding="UTF-8"?>
    <S:Envelope xmlns:S='http://schemas.xmlsoap.org/soap/envelope/'>
    	<S:Body>
    		<n:uploadTestData xmlns:n="http://localhost:8080/TPService/TPServicePort?wsdl">
    			<a>test</a>
    		</n:uploadTestData>
    	</S:Body>
    </S:Envelope>

  2. 此时代码大概如下:

    import requests
    from requests.structures import CaseInsensitiveDict

    url = 'http://localhost:8080/TPService/TPServicePort?wsdl'
    headers = CaseInsensitiveDict()
    headers['Content-Type'] = 'text/xml'
    payload = ‘’‘
    <?xml version ="1.0" encoding="UTF-8"?>
    <S:Envelope xmlns:S='http://schemas.xmlsoap.org/soap/envelope/'>
    	<S:Body>
    		<n:uploadTestData xmlns:n="http://localhost:8080/TPService/TPServicePort?wsdl">
    			<a>test</a>
    		</n:uploadTestData>
    	</S:Body>
    </S:Envelope>
    ’‘’
    response = requests.post(url, headers=headers, data=payload, timeout=5)
    print(response.status_code)

  3. 然后这时会报错500如下:

    Couldn't create SOAP message due to exception: XML reader error: javax.xml.stream.XMLStreamException: ParseError at [row,col]:[2,14]
    Message: The processing instruction target matching "[xX][mM][lL]" is not allowed.
    com.sun.xml.ws.protocol.soap.MessageCreationException: Couldn't create SOAP message due to exception: XML reader error: javax.xml.stream.XMLStreamException: ParseError at [row,col]:[2,14]

  4. 按照提示,找到[2, 14]的位置,发现是xml version这里,去掉两个单词之间的空格,再次请求,报错500,但是服务端没有信息显示。

  5. 发现是请求地址写错了,请求地址应与localhost:8080/TPService/TPServicePort?wsdl中的namespace保持一致。将代码修改为:

    import requests
    from requests.structures import CaseInsensitiveDict

    url = 'http://localhost:8080/TPService/TPServicePort?wsdl'
    headers = CaseInsensitiveDict()
    headers['Content-Type'] = 'text/xml'
    payload = ‘’‘
    <?xml version ="1.0" encoding="UTF-8"?>
    <S:Envelope xmlns:S='http://schemas.xmlsoap.org/soap/envelope/'>
    	<S:Body>
    		<n:uploadTestData xmlns:n="http://www.xxxx.com">
    			<a>test</a>
    		</n:uploadTestData>
    	</S:Body>
    </S:Envelope>
    ’‘’
    response = requests.post(url, headers=headers, data=payload, timeout=5)
    print(response.status_code)

  6. 再次发起请求,返回结果如下:

    <?xml version="1.0" ?>
    <S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
    	<S:Body>
    		<ns2:uploadTestDataResponse xmlns:ns2="http://www.glorysoft.com">
    			<return>														{&quot;responseDate&quot;:&quot;20210420114103554&quot;,&quot;resultCode&quot;:&quot;OK&quot;,&quot;resultMessage&quot;:&quot;success&quot;}
    			</return>
         </ns2:uploadTestDataResponse>
       </S:Body>
     </S:Envelope>


    说明成功进行了通信。
