一、启动流程
1.s5pv210的启动过程

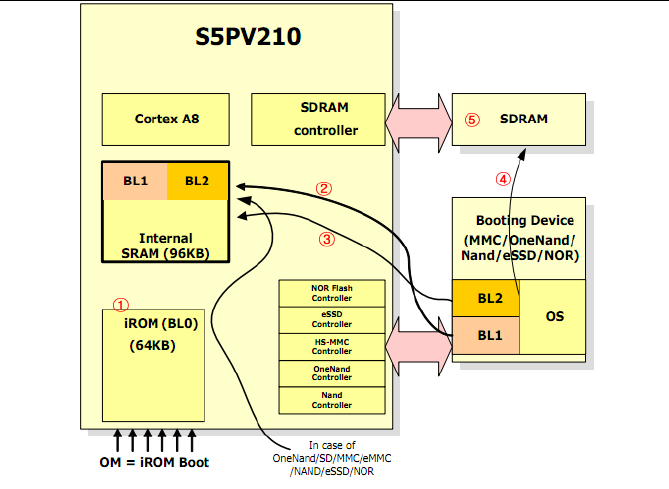

根据三星公司的《S5PV210_UM_REV1.1》手册可知,S5PV210 启动过程主要可 分为 3 个阶段
S5PV210 上电复位后将从 IROM 处执行已固化的启动代码 -------BL0
在 BL0 里初始化过程中对启动设备进行判断,并从启动设备拷贝 BL1(最大16KB ) 到 IRAM 处 , 即 刚 才 所 说 的 0xD0020000 开 始 的 地 址 , 其 中0xD0020000~0xD0020010 的 16 字节为 BL1 的校验信息和 BL1 尺寸,并对 BL1进行校验,校验通过转入 BL1 进行执行,BL1 继续初始化,并拷贝 BL2(最大80KB)到 IRAM 中并对其校验,通过后转入 BL2。
BL2 完成一些比较复杂的初始化,包括 DRAM 的初始化,完成后将 OS 代码拷贝到 DRAM 中,并跳到 OS 中执行并完成启动引导。

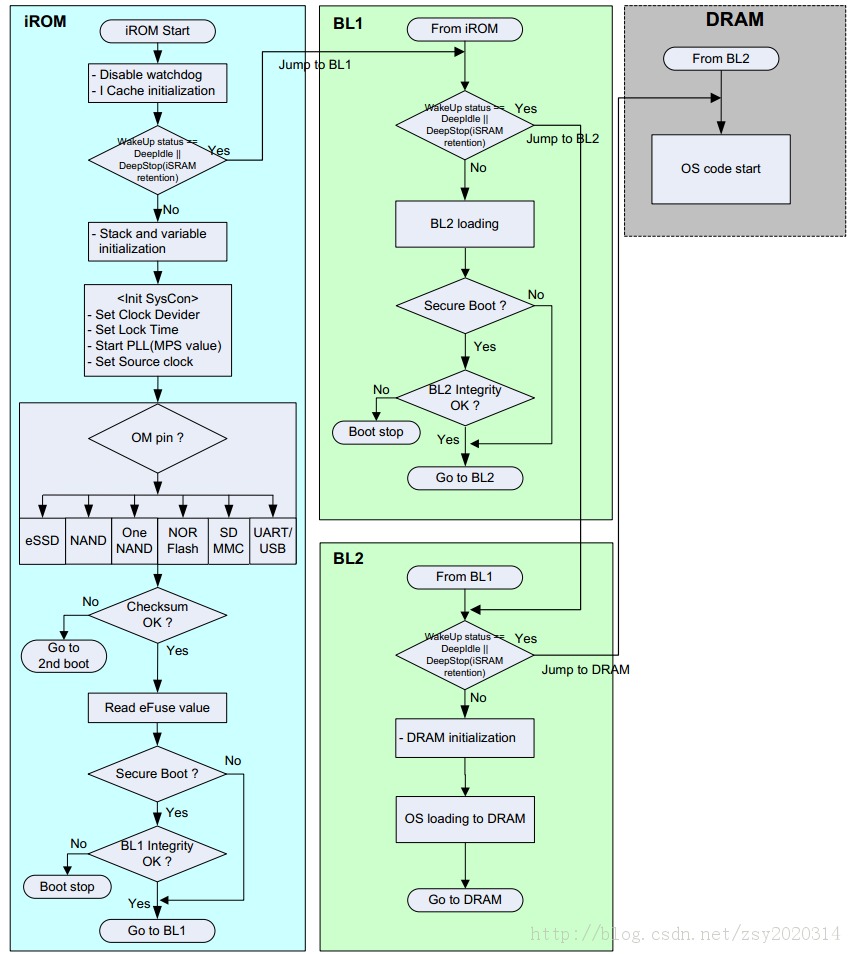

BL0 固化代码主要完成以下初始化:
关闭看门狗;
初始化 icache;
初始化栈;
初始化堆;
初始化块设备拷贝功能;
设置系统时钟;
拷贝 BL1 到 iRAM;
检查 BL1 的校验和,如果失败则第二启动模式(安全启动模式),校验成功则跳到 0xD0020000(IRAM)处执行。
其中 0xD0020000 ~ 0xD0020010 里的 16 字节头部信息是什么呢?这 16 字节信息用户是不能随便设置的.在《S5PV210_iROM_ApplicationNote_Preliminary_20091126》文档中规定
2.uboot中s5pv210的启动
2.1 uboot启动流程简介
BL0是出厂的时候就固化在IROM里的,所以我们的uboot就要实现BL1和BL2,BL1在uboot里叫做u-boot-spl.bin,BL2就是我们很熟悉的u-boot.bin.上面的三个阶段对应于uboot启动,他们的功能如下:
BL0:出厂的时候就固化在irom中一段代码,主要负责拷贝8kb的bl1到s5pv210的一个96kb大小内部sram(Internal SRAM)中运行。值得注意的是s5pv210的Internal SRAM支持的bl1的大小可以达到16kb,容量的扩增是为了适应bootloder变得越来复杂而做的。虽然如此,但目前我们制作出来的bl1的大小仍然可以保持在8kb以内,同样能满足需求。
BL1:u-boot的前8kb代码(s5pv210也支持16kb大小,原因上一点提过了),除了初始化系统时钟和一些基本的硬件外,主要负责完成代码的搬运工作(我设计成搬运bl1+bl2,而不仅仅是bl2),也就是将完整的u-boot代码(bl1+bl2)从nand flash或者mmcSD等的存储器中读取到内存中,然后跳转到内存中运行u-boot
BL2:完成全面的硬件初始化和加载OS到内存中,接着运行OS。上述几个阶段的流程描述在s5pv210_irom_application手册中有详细描述.
在实际的编译中会生成两个uboot.bin。拿webee210的uboot来说,最后在根目录下生成了uboot.bin和webee210-uboot.bin连个.bin文件。其中webee210-uboot.bin是通过/board/samsung/webee210/tools目录下的mkwebee210spl.bin对uboot.bin处理 生成的。主要是为其添加16k的头文件信息。
首先把启动部分的代码分为3部分,以start.S为主,另外还有lowlevel_init.S,mem_setup.S,ctr0.S。
lowlevel_init.S:主要是一部分硬件的初始化,尤其是系统时钟和DRAM的初始化。如果u-boot一旦被搬运到内存中运行,那么是必须要跳过时钟和DRAM的初始化的,因为这在搬运之前已经做过了。并且如果代码在内存中运行的时侯你却去初始化DRAM,那必然导致崩溃!
mem_setup.S:DRAM初始化代码和MMU相关代码放在这个文件中。
ctr0.S:u-boot自带的代码文件,存放汇编函数main。
2.2 启动过程

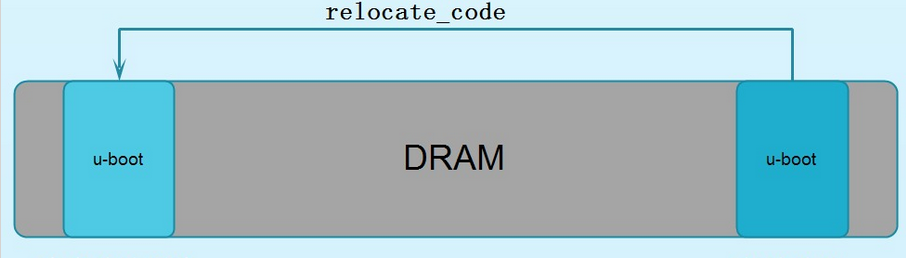

必须要明白的一点是,当代码从存储介质(nand flash,SD,norflash,onenand等)中搬运到了DRAM中后随即会跳转到内存中运行u-boot,接着会有一个重定位(relocate_code)的过程,relocate_code子函数在start.S中,而给relocate_code子函数传参数的是crt0.S中的main子函数。当判断到当前u-boot在内存的低地址处,那么relocate_code就会工作,把u-boot代码从低地址处再搬运到内存地址的顶端,然后跳转到新的位置去继续运行u-boot。而搬运的目标地址是在board_init_f()函数(此函数在/arch/arm/lib/board.c中)中计算出来的
2.2.1 start.S
#include <asm-offsets.h>
#include <config.h>
#include <version.h>
#include <common.h>
#include <configs/smart210.h>
#include <s5pc110.h>
.globl _start
_start: b reset
ldr pc, _undefined_instruction /*未定义指令异常,0x04*/
ldr pc, _software_interrupt /*软中断异常,0x08*/
ldr pc, _prefetch_abort /*内存操作异常,0x0c*/
ldr pc, _data_abort /*数据异常,0x10*/
ldr pc, _not_used /*未适用,0x14*/
ldr pc, _irq /*慢速中断异常,0x1c*/
ldr pc, _fiq /*快速中断异常,0x1c*/
#ifdef CONFIG_SPL_BUILD
_undefined_instruction: .word _undefined_instruction
_software_interrupt: .word _software_interrupt
_prefetch_abort: .word _prefetch_abort
_data_abort: .word _data_abort
_not_used: .word _not_used
_irq: .word _irq
_fiq: .word _fiq
_pad: .word 0x12345678 /* now 16*4=64 */
#else
_undefined_instruction: .word undefined_instruction
_software_interrupt: .word software_interrupt
_prefetch_abort: .word prefetch_abort
_data_abort: .word data_abort
_not_used: .word not_used
_irq: .word irq
_fiq: .word fiq
_pad: .word 0x12345678 /* now 16*4=64 */
#endif /* CONFIG_SPL_BUILD */
.global _end_vect
_end_vect:
.balignl 16,0xdeadbeef //所以意思就是,接下来的代码,都要16字节对齐,不知之处,用0xdeadbeef填充。
/*************************************************************************
*
* Startup Code (reset vector)
*
* do important init only if we don't start from memory!
* setup Memory and board specific bits prior to relocation.
* relocate armboot to ram
* setup stack
*
*************************************************************************/
/*
此地址中是一个word类型的变量,变量名
是TEXT_BASE,此值见名知意,是text的base,即代码的基地址,
在include/configs/webee210.h
#define CONFIG_SYS_TEXT_BASE 0x23E00000*/
.globl _TEXT_BASE
_TEXT_BASE:
.word CONFIG_SYS_TEXT_BASE
#ifdef CONFIG_TEGRA2
/*
* Tegra2 uses 2 separate CPUs - the AVP (ARM7TDMI) and the CPU (dual A9s).
* U-Boot runs on the AVP first, setting things up for the CPU (PLLs,
* muxes, clocks, clamps, etc.). Then the AVP halts, and expects the CPU
* to pick up its reset vector, which points here.
*/
.globl _armboot_start
_armboot_start:
.word _start //*(_armboot_start) = _start
#endif
/*
* These are defined in the board-specific linker script.
*/
.globl _bss_start_ofs
_bss_start_ofs:
.word __bss_start - _start
.global _image_copy_end_ofs
_image_copy_end_ofs:
.word __image_copy_end - _start
.globl _bss_end_ofs
_bss_end_ofs:
.word __bss_end__ - _start
.globl _end_ofs
_end_ofs:
.word _end - _start
#ifdef CONFIG_USE_IRQ
/* IRQ stack memory (calculated at run-time) */
.globl IRQ_STACK_START
IRQ_STACK_START:
.word 0x0badc0de
/* IRQ stack memory (calculated at run-time) */
.globl FIQ_STACK_START
FIQ_STACK_START:
.word 0x0badc0de
#endif
/* IRQ stack memory (calculated at run-time) + 8 bytes */
.globl IRQ_STACK_START_IN
IRQ_STACK_START_IN:
.word 0x0badc0de
reset函数里主要是设置了cpu的模式,然后就跳转到cpu_init_crit函数.
/*
* the actual reset code
*/
reset:
bl save_boot_params //其不做任何事情,直接返回
/*
* set the cpu to SVC32 mode //设置CPU模式为SVC32
*/
mrs r0, cpsr
bic r0, r0, #0x1f
orr r0, r0, #0xd3
msr cpsr,r0
#ifndef CONFIG_SKIP_LOWLEVEL_INIT
bl cpu_init_crit //
#endif
/*************************************************************************
*
* CPU_init_critical registers
*
* setup important registers
* setup memory timing
*
*************************************************************************/
cpu_init_crit:
/*
* Invalidate L1 I/D
*/
mov r0, #0 @ set up for MCR
mcr p15, 0, r0, c8, c7, 0 @ invalidate TLBs
mcr p15, 0, r0, c7, c5, 0 @ invalidate icache
mcr p15, 0, r0, c7, c5, 6 @ invalidate BP array
mcr p15, 0, r0, c7, c10, 4 @ DSB
mcr p15, 0, r0, c7, c5, 4 @ ISB
/*
* disable MMU stuff and caches
*/
mrc p15, 0, r0, c1, c0, 0
bic r0, r0, #0x00002000 @ clear bits 13 (--V-)
bic r0, r0, #0x00000007 @ clear bits 2:0 (-CAM)
orr r0, r0, #0x00000002 @ set bit 1 (--A-) Align
or
