本文链接：https://blog.csdn.net/java_Murcielago/article/details/102776182

本文介绍了如何利用docker-compose来部署Redis集群。首先从官方源下载redis.conf文件，然后进行配置修改，接着创建docker-compose.yaml文件，通过执行docker-compose up -d启动Redis集群。最后，使用redis Desktop Manager连接集群，并验证了节点间的切换成功。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1.下载官方 redis.conf

http://download.redis.io/redis-stable/redis.conf

2.修改redis.conf

# bind 127.0.0.1 //加上注释#
protected-mode no //关闭保护模式
port 6061  //绑定自定义端口
#daemonize yes //禁止redis后台运行
pidfile /var/run/redis_6061.pid
cluster-enabled yes //开启集群 把注释#去掉
cluster-config-file nodes_6061.conf //集群的配置 配置文件首次启动自动生成

2.docker-compose.yaml

version: '3.4'
services:
  node1:
    image: redis:5.0.5
    container_name: redis-node1
    restart: always
    ports:
      - 6061:6061
      - 16061:16061
    volumes:
      - /home/smb/data/redis-cluster/node1:/data
      - /home/smb/config/redis-cluster/node1:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf

  node2:
    image: redis:5.0.5
    container_name: redis-node2
    restart: always
    ports:
      - 6062:6062
      - 16062:16062
    volumes:
      - /home/smb/data/redis-cluster/node2:/data
      - /home/smb/config/redis-cluster/node2:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf


  node3:
    image: redis:5.0.5
    container_name: redis-node3
    restart: always
    ports:
      - 6063:6063
      - 16063:16063
    volumes:
      - /home/smb/data/redis-cluster/node3:/data
      - /home/smb/config/redis-cluster/node3:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf

  node4:
    image: redis:5.0.5
    container_name: redis-node4
    restart: always
    ports:
      - 6064:6064
      - 16064:16064
    volumes:
      - /home/smb/data/redis-cluster/node4:/data
      - /home/smb/config/redis-cluster/node4:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf

  node5:
    image: redis:5.0.5
    container_name: redis-node5
    restart: always
    ports:
      - 6065:6065
      - 16065:16065
    volumes:
      - /home/smb/data/redis-cluster/node5:/data
      - /home/smb/config/redis-cluster/node5:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf

  node6:
    image: redis:5.0.5
    container_name: redis-node6
    restart: always
    ports:
      - 6066:6066
      - 16066:16066
    volumes:
      - /home/smb/data/redis-cluster/node6:/data
      - /home/smb/config/redis-cluster/node6:/usr/local/etc/redis
    command:
      redis-server /usr/local/etc/redis/redis.conf

4. docker-compose up -d 启动redis-cluster

5. 链接集群

docker run --rm -it zvelo/redis-trib create --replicas 1 ip:6061 ip:6062 ip:6063 ip:6064 ip:6065 ip:6066

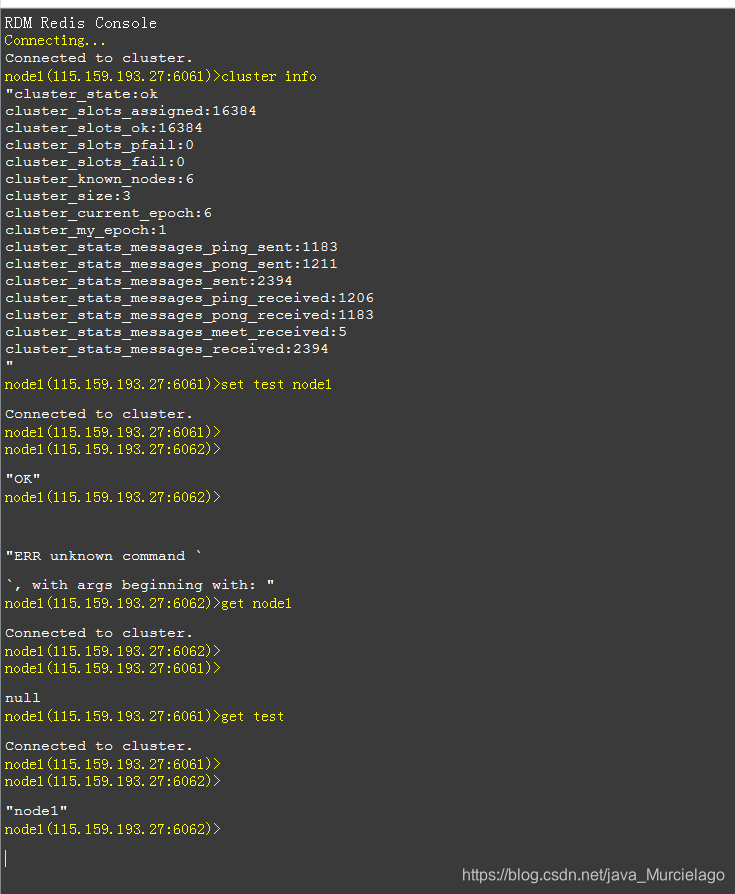

6.测试 redis Desktop Manager 链接 6061 node1 ，node已经切换成功
