SpringBoot使用Kaptcha验证码

Kaptcha 是一个可高度配置的实用验证码生成工具。个人认为还是挺好用的，虽然现有更加安全的验证方式。

此次是使用springboot+ssm，使用maven管理。直接上步骤：

1. pom文件添加jar包依赖：

   		<!-- kaptcha验证码 -->

      	<dependency>
               <groupId>com.github.penggle</groupId>
               <artifactId>kaptcha</artifactId>
               <version>2.3.2</version>
           </dependency>



2. 配置Kaptcha验证码的样式：在src/main/resources编写一个kaptchaXML.xml（文件名自创）

   <?xml version="1.0" encoding="UTF-8"?>
   <beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xmlns:task="http://www.springframework.org/schema/task" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:gfe="http://www.springframework.org/schema/gemfire"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd
           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
           http://www.springframework.org/schema/gemfire http://www.springframework.org/schema/gemfire/spring-gemfire.xsd"
       default-lazy-init="true">

       <bean id="captchaProducer" class="com.google.code.kaptcha.impl.DefaultKaptcha">
           <property name="config">
               <bean class="com.google.code.kaptcha.util.Config">
                   <constructor-arg>
                       <props>
                           <!-- 验证码宽度 -->
                           <prop key="kaptcha.image.width">150</prop>
                           <!-- 验证码高度 -->
                           <prop key="kaptcha.image.height">40</prop>
                           <!-- 生成验证码内容范围 -->
                           <prop key="kaptcha.textproducer.char.string">0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ</prop>
                           <!-- 验证码个数 -->
                           <prop key="kaptcha.textproducer.char.length">5</prop>
                           <!-- 是否有边框 -->
                           <prop key="kaptcha.border">no</prop>
                           <!-- 边框颜色 -->
                           <prop key="kaptcha.border.color">105,179,90</prop>
                           <!-- 边框厚度 -->
                           <prop key="kaptcha.border.thickness">1</prop>
                           <!-- 验证码字体颜色 -->
                           <prop key="kaptcha.textproducer.font.color">black</prop>
                           <!-- 验证码字体大小 -->
                           <prop key="kaptcha.textproducer.font.size">30</prop>
                           <!-- 验证码所属字体样式 -->
                           <prop key="kaptcha.textproducer.font.names">微软雅黑</prop>
                           <!-- 干扰线颜色 -->
                           <prop key="kaptcha.noise.color">black</prop>
                           <!-- 验证码文本字符间距 -->
                           <prop key="kaptcha.textproducer.char.space">5</prop>
                           <!-- 图片样式 :阴影-->
                           <prop key="kaptcha.obscurificator.impl">com.google.code.kaptcha.impl.ShadowGimpy</prop>
                           <!--  -->
                       </props>
                   </constructor-arg>
               </bean>
           </property>
       </bean>

   </beans>




3. 在启动类用@ImportResource来导入xml配置文件

   @SpringBootApplication
   @ImportResource(locations = { "classpath:KaptchaXML.xml" })
   @MapperScan("com.p.mapper")
   public class MyPApplication {

   	public static void main(String[] args) {
   		SpringApplication.run(MyPApplication.class, args);
   	}

   }



4. 生成验证码

   package com.p.controller;

   import java.awt.image.BufferedImage;
   import java.io.ByteArrayOutputStream;
   import javax.imageio.ImageIO;
   import javax.servlet.ServletOutputStream;
   import javax.servlet.http.HttpServletRequest;
   import javax.servlet.http.HttpServletResponse;
   import javax.servlet.http.HttpSession;

   import org.springframework.beans.factory.annotation.Autowired;
   import org.springframework.stereotype.Controller;
   import org.springframework.web.bind.annotation.RequestMapping;
   import org.springframework.web.bind.annotation.RequestParam;
   import org.springframework.web.bind.annotation.ResponseBody;

   import com.google.code.kaptcha.impl.DefaultKaptcha;

   @Controller
   @RequestMapping("/code")
   public class Codecontroller {



   	@Autowired
   	private DefaultKaptcha captchaProducer;
   	/**
   	 * @Title: defaultKaptcha
   	 * @Description: 生成验证码，并存到session中
   	 * @param @param httpServletRequest
   	 * @param @param httpServletResponse
   	 * @param @throws Exception    参数
   	 * @return void    返回类型
   	 * @throws
   	 */

   	@RequestMapping("/defaultKaptcha")
       public void defaultKaptcha(HttpServletRequest httpServletRequest,HttpServletResponse httpServletResponse) throws Exception{
               byte[] captchaChallengeAsJpeg = null;
                ByteArrayOutputStream jpegOutputStream = new ByteArrayOutputStream();
                try {
                //生产验证码字符串并保存到session中
                String createText = captchaProducer.createText();
                //打印验证码
                System.out.println(createText);
                httpServletRequest.getSession().setAttribute("code", createText);
                //使用生产的验证码字符串返回一个BufferedImage对象并转为byte写入到byte数组中
                BufferedImage challenge = captchaProducer.createImage(createText);
                ImageIO.write(challenge, "jpg", jpegOutputStream);
                } catch (IllegalArgumentException e) {
                    httpServletResponse.sendError(HttpServletResponse.SC_NOT_FOUND);
                    return;
                }

                //定义response输出类型为image/jpeg类型，使用response输出流输出图片的byte数组
                captchaChallengeAsJpeg = jpegOutputStream.toByteArray();
                httpServletResponse.setHeader("Cache-Control", "no-store");
                httpServletResponse.setHeader("Pragma", "no-cache");
                httpServletResponse.setDateHeader("Expires", 0);
                httpServletResponse.setContentType("image/jpeg");
                ServletOutputStream responseOutputStream = httpServletResponse.getOutputStream();
                responseOutputStream.write(captchaChallengeAsJpeg);
                responseOutputStream.flush();
                responseOutputStream.close();
       }


   }




5. 在前端使用：

   	  <div class="layui-tab-content" >
   		    <div class="layui-tab-item layui-show">
   		           <form class="layui-form hidePage" id="form2" action="" method="post">
   					  <div class="layui-form-item">
   					    <label class="layui-form-label">用户名</label>
   					    <div class="layui-input-block">
   					      <input type="text" name="username" required  lay-verify="required" placeholder="请输入用户名" autocomplete="off" class="layui-input un">
   					    </div>
   					  </div>
   					  <div class="layui-form-item">
   					    <label class="layui-form-label">密 &nbsp;&nbsp;码</label>
   					    <div class="layui-input-inline">
   					      <input type="password" name="password" required lay-verify="required" placeholder="请输入密码" autocomplete="off" class="layui-input pw">
   					    </div>
   					  </div>
   					   <div class="layui-form-item">
   						    <label class="layui-form-label">验证码</label>
   					      <input type="text" id="login-code" name="code" required  lay-verify="required" placeholder="请输入验证码" autocomplete="off" class="layui-input verity" style="display: inline-block;">
   					   	  <img alt="验证码" onclick = "this.src='/code/defaultKaptcha?d='+new Date()*1" th:src="@{./code/defaultKaptcha}" id="l-changeimgId" class="v-code"/>

   					  </div>

   					  <div class="layui-form-item">
   					    <div class="layui-input-block">
   					      <button class="layui-btn login" lay-submit lay-filter="login_submit">登陆</button>
   					    </div>
   					  </div>
   					  <!--  <a href="" class="font-set">忘记密码?</a>  <a href="javascript:;" class="font-set reg-show">立即注册</a> -->
   				</form>

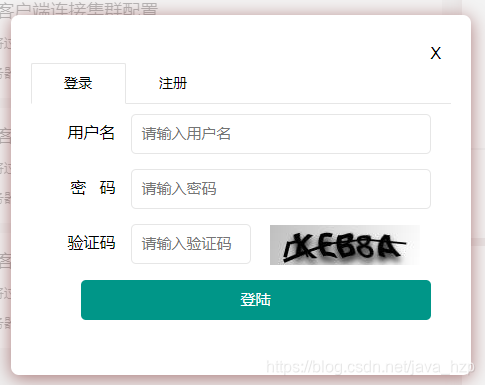

6. 效果图样

最后就此完成Kaptcha生成验证码的整个过程了。
