CATIA宏程序，一键隐藏/显示所有点，线，平面等，便于查阅视图

新建CATvba文件，插入模块，复制粘贴以下代码，运行宏即可。

Sub CATmain()
    On Error Resume Next
        Set catia = GetObject(, "CATIA.Application")
        If Err.Number <> 0 Then
            Set catia = CreateObject("CATIA.Application")
            catia.Visible = True
        End If
  dim oActDoc as object
    Set oActDoc = catia.ActiveDocument
    On Error GoTo 0

    Dim iStatus As String
    Dim i As Integer

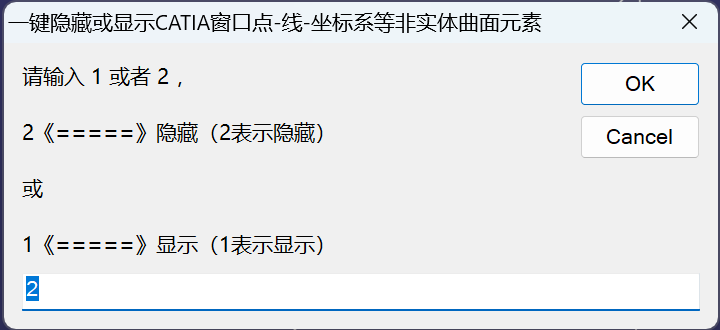

    iStatus = InputBox("请输入 1 或者 2 ，" & Chr(13) & Chr(13) & "2《=====》隐藏（2表示隐藏）" & Chr(13) & Chr(13) & "或" & Chr(13) & Chr(13) & "1《=====》显示（1表示显示）", "一键隐藏或显示CATIA窗口点-线-坐标系等非实体曲面元素", 2)

    If StrPtr(iStatus) = 0 Then '判断输入框中的【取消】按钮
        MsgBox "你点击了“取消”，或按了“ESC” 键"
        Exit Sub
    End If

    If Len(iStatus) = 0 Then '判断输入框中的“空值”
        MsgBox ("非法输入，请输入“1”或“2”。" & Chr(13) & Chr(13) & "你输入的是：空值 ")
        Exit Sub
    End If

    If Asc(CVar(iStatus)) <> 49 and Asc(CVar(iStatus)) <> 50 Then
        MsgBox ("非法输入，请输入“1”或“2”。" & Chr(13) & Chr(13) & "你输入的是： " & iStatus)
        Exit Sub
    End If

    i = CVar(iStatus) - 1

HideDatumsConstraints oActDoc, i

MsgBox ("CATIA窗口点-线-坐标系-平面等非实体元素，操作已完成。")

End Sub

Sub HideDatumsConstraints(prodoc As Document, intshow As Integer)

On Error Resume Next

Dim selection1 As selection
Set selection1 = prodoc.selection
selection1.Clear

selection1.Search "(((CATStFreeStyleSearch.Plane + CATPrtSearch.Plane) + CATGmoSearch.Plane) + CATSpdSearch.Plane),all"

selection1.VisProperties.SetShow intshow

selection1.Clear

selection1.Search "(((CATStFreeStyleSearch.AxisSystem + CATPrtSearch.AxisSystem) + CATGmoSearch.AxisSystem) + CATSpdSearch.AxisSystem),all"

selection1.VisProperties.SetShow intshow

selection1.Clear

selection1.Search "((((((CATStFreeStyleSearch.Point + CAT2DLSearch.2DPoint) + CATSketchSearch.2DPoint) + CATDrwSearch.2DPoint) + CATPrtSearch.Point) + CATGmoSearch.Point) + CATSpdSearch.Point),all"
selection1.VisProperties.SetShow intshow

selection1.Clear

selection1.Search "((((((CATStFreeStyleSearch.Curve + CAT2DLSearch.2DCurve) + CATSketchSearch.2DCurve) + CATDrwSearch.2DCurve) + CATPrtSearch.Curve) + CATGmoSearch.Curve) + CATSpdSearch.Curve),all"
selection1.VisProperties.SetShow intshow

selection1.Clear

'selection1.Search "(((CATStFreeStyleSearch.Surface + CATPrtSearch.Surface) + CATGmoSearch.Surface) + CATSpdSearch.Surface),all"
'selection1.VisProperties.SetShow intshow

'selection1.Clear

selection1.Search "(((((((CATProductSearch.MfConstraint + CATStFreeStyleSearch.MfConstraint) + CATAsmSearch.MfConstraint) + CAT2DLSearch.MfConstraint) + CATSketchSearch.MfConstraint) + CATDrwSearch.MfConstraint) + CATPrtSearch.MfConstraint) + CATSpdSearch.MfConstraint),all"
selection1.VisProperties.SetShow intshow

selection1.Clear

Err.Clear

End Sub
