MSChart使用导航之开发

介绍过基础的MSchart知识后，大家应该容易上手写代码了，最起码搞几个饼图柱状图什么的不在话下了。下面我们看看如何在实际项目中写代码。

1. 柱状图


    1:

   string strSQL;

    2:

   DataSet ds = new DataSet();

    3:

   Chart1.ChartAreas[0].Name = "chartArea1";

    4:

   Chart1.Titles.Add("chartArea1");

    5:

   Chart1.Titles[0].Font = new Font("????", 14, FontStyle.Bold);

    6:

   strSQL = "select col1,col2 from Report";

    7:

   ds.Tables.Add(DBSQL.Query(strSQL, 300).Tables[0].Copy());

    8:

   ds.Tables[0].TableName = "chartArea1";

    9:

   if(ds.Tables[0].Rows.Count > 0)

   10:

   {

   11:

       Chart1.Series[0].Name = "chartArea1";

   12:

       Series ser_qqgzjz = Chart1.Series[0];

   13:

       ser_qqgzjz.ChartArea = "chartArea1";

   14:

        ser_qqgzjz.Points.DataBind(ds.Tables["qqgzjz"].Rows, "col2", "col1", "");

   15:

       ser_qqgzjz.IsValueShownAsLabel = true;

   16:

       Chart1.ChartAreas["chartArea1"].AxisY.Title = "Person";

   17:

       Chart1.ChartAreas["chartArea1"].AxisX.MinorGrid.LineWidth = 0;

   18:

       Chart1.ChartAreas["chartArea1"].AxisX.LabelStyle.Angle = -45;

   19:

       Chart1.ChartAreas["chartArea1"].AxisX.MajorGrid.LineDashStyle = ChartDashStyle.NotSet;

   20:

       Chart1.ChartAreas["chartArea1"].AxisY.MajorGrid.LineDashStyle = ChartDashStyle.Dash;

   21:

   }



2. 双纵坐标（含百分比）

3.  1:

   // chart is your mschart control,srcSeriesName is the name of source series name,destSeriesName

    2:

   // is the name of series you want to add,which is percent series,totalCount is the number

    3:

   // which to caculator the percent

    4:

   protected void TowGrid(Chart chart, string srcSeriesName, string destSeriesName, double totalCount)

    5:

   {

    6:

       string strChartArea = chart.Series[srcSeriesName].ChartArea;

    7:

       chart.Series[srcSeriesName].ChartType = SeriesChartType.Column;

    8:

       double total = totalCount;

    9:

       Series destSeries = new Series(destSeriesName);

   10:

       chart.Series.Add(destSeries);

   11:

       destSeries.ChartType = SeriesChartType.Line;

   12:

       destSeries.BorderWidth = 3;

   13:

       destSeries.ChartArea = chart.Series[srcSeriesName].ChartArea;

   14:

       destSeries.YAxisType = AxisType.Secondary;

   15:

       chart.ChartAreas[strChartArea].AxisY2.Maximum = 100;

   16:

       chart.ChartAreas[strChartArea].AxisY2.Title = "??????%??";

   17:

       chart.ChartAreas[strChartArea].AxisY2.TitleFont = new Font("??????", 10);

   18:

       destSeries.LabelFormat = "P1";

   19:

       chart.ChartAreas[strChartArea].AxisY2.MajorGrid.LineDashStyle = ChartDashStyle.NotSet;

   20:

       chart.ChartAreas[strChartArea].AxisX.LabelStyle.IsEndLabelVisible = false;

   21:

       double percentage = 0.0;

   22:

       foreach (DataPoint pt in chart.Series[srcSeriesName].Points)

   23:

       {

   24:

         percentage = (pt.YValues[0] * 100.0 / total);

   25:

         destSeries.Points.Add(Math.Round(percentage, 2));

   26:

       }

   27:

       chart.Series[destSeriesName].IsValueShownAsLabel = true;

   28:

       chart.Series[destSeriesName].MarkerColor = Color.Red;

   29:

       chart.Series[destSeriesName].MarkerBorderColor = Color.MidnightBlue;

   30:

       chart.Series[destSeriesName].MarkerStyle = MarkerStyle.Circle;

   31:

       chart.Series[destSeriesName].MarkerSize = 8;

   32:

       chart.Series[destSeriesName].LabelFormat = "0.#";

   33:

     }

   34:

   }

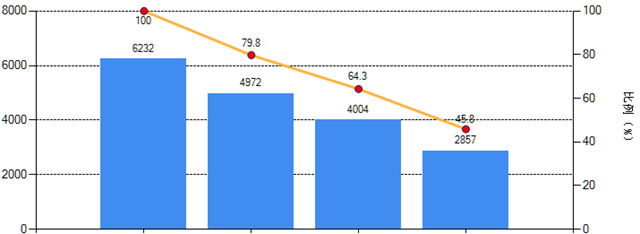

   通过以上代码的结合，就能制作出如下效果的图表：



 PS：不少网友遇到横坐标值不能完全显示的问题，只需要修改横坐标的间隔值即可。如：

 chart_ser.ChartAreas[0].AxisX.Interval = 1;
 chart_ser.ChartAreas[0].AxisX.IntervalOffset = 1;
