ESXi主机通过IPMI工具设置iDRAC、iBMC地址

    ESXi主机安装好后发现BMC地址、iDRAC(服务器硬件管理口)地址没配...想想还得跑机房，一声无耐的叹气！于是偷懒想通过ssh工具连接ESXi主机来配置服务器的管理口地址。

前提条件：

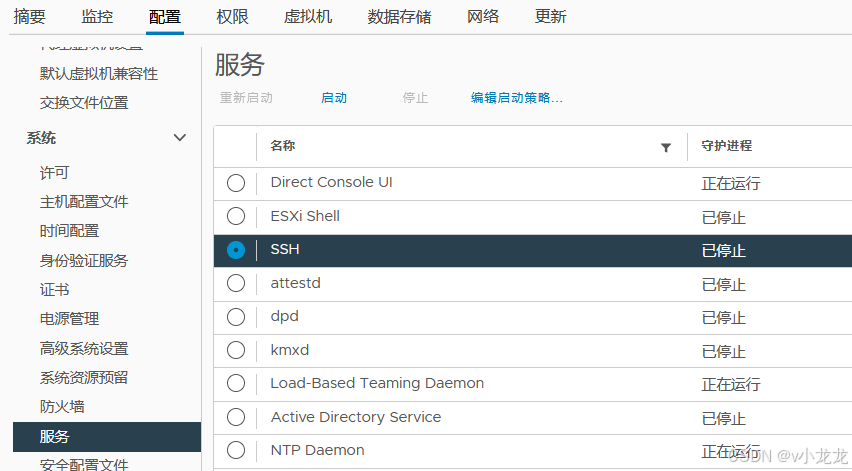

        ESXi主机开启ssh服务，选中某台主机，配置，服务，找到ssh，点击启动如下图：

通过root账户登录ESXi主机后，需要安装一个ipmi工具

ipmitool vib for ESXi It will work on ESXi 6.x and 7.x hosts only.

下载地址：

https://vswitchzero.files.wordpress.com/2019/08/ipmitool-esxi-vib-1.8.11-2.zip

1、安装

esxcli software acceptance set --level=CommunitySupported

esxcli software vib install -v /tmp/ipmitool-1.8.11-2.x86_64.vib

2、使用

/opt/ipmitool/ipmitool

3、常见用法

查询BMC地址：

esxcli hardware ipmi bmc get

4、修改IP地址、网关等操作

To get the current IPMI IP Details
#/ipmitool lan print 1
[root@esxi]# /opt/ipmitool/ipmitool lan set 1 ipsrc static
[root@esxi]# /opt/ipmitool/ipmitool lan set 1 ipaddr x.x.x.x
Setting LAN IP Address to x.x.x.x
[root@esxi]# /ipmitool lan set 1 netmask x.x.x.x
Setting LAN Subnet Mask to x.x.x.x
[root@esxi]# /ipmitool lan set 1 defgw ipaddr x.x.x.x
Setting LAN Default Gateway IP to x.x.x.x
[root@esxi]# /ipmitool lan set 1 defgw macaddr xx:xx:xx:xx:xx:xx
Setting LAN Default Gateway MAC to xx:xx:xx:xx:xx:xx
[root@esxi]# /ipmitool lan set 1 arp respond on
Enabling BMC-generated ARP responses
[root@esxi]# /ipmitool lan set 1 snmp public
Setting LAN SNMP Community String to public
root@esxi]# /ipmitool user list (Note down the user ID in mycase it is 2)
[root@esxi]# /ipmitool user set password 2
[root@esxi]# /ipmitool lan set 1 access on
