nebular的安装和使用

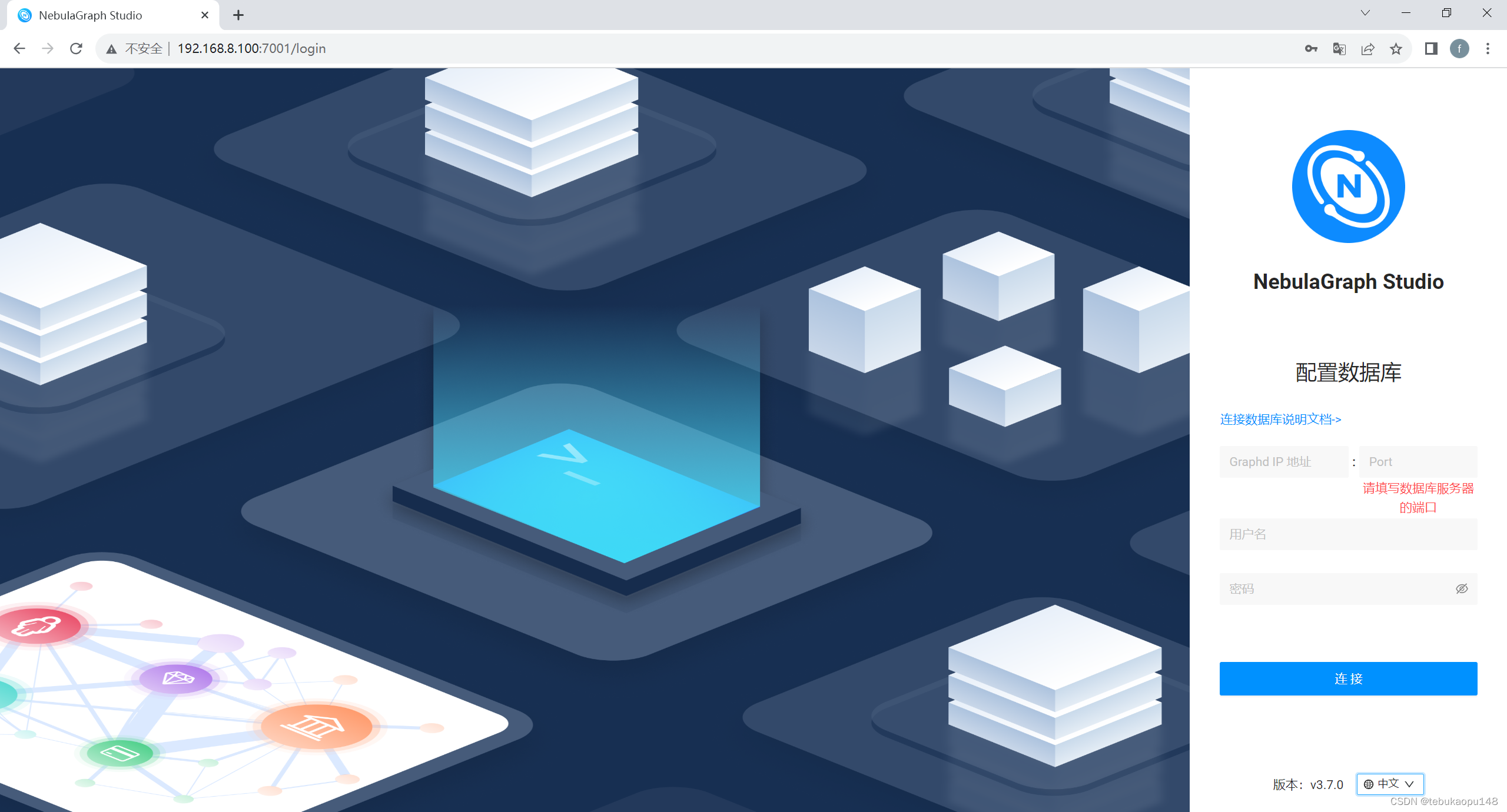

nebula-graph-studio 访问界面

在这里插入图片描述

docker-compose.yml

version: '3.5'
services:
  metad0:
    image: vesoft/nebula-metad:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=metad0
      - --ws_ip=metad0
      - --port=9559
      - --ws_http_port=19559
      - --data_path=/data/meta
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://metad0:19559/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9559
      - 19559
      - 19560
    volumes:
      - ./data/meta0:/data/meta
      - ./logs/meta0:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  metad1:
    image: vesoft/nebula-metad:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=metad1
      - --ws_ip=metad1
      - --port=9559
      - --ws_http_port=19559
      - --data_path=/data/meta
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://metad1:19559/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9559
      - 19559
      - 19560
    volumes:
      - ./data/meta1:/data/meta
      - ./logs/meta1:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  metad2:
    image: vesoft/nebula-metad:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=metad2
      - --ws_ip=metad2
      - --port=9559
      - --ws_http_port=19559
      - --data_path=/data/meta
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://metad2:19559/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9559
      - 19559
      - 19560
    volumes:
      - ./data/meta2:/data/meta
      - ./logs/meta2:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  storaged0:
    image: vesoft/nebula-storaged:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=storaged0
      - --ws_ip=storaged0
      - --port=9779
      - --ws_http_port=19779
      - --data_path=/data/storage
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - metad0
      - metad1
      - metad2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://storaged0:19779/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9779
      - 19779
      - 19780
    volumes:
      - ./data/storage0:/data/storage
      - ./logs/storage0:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  storaged1:
    image: vesoft/nebula-storaged:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=storaged1
      - --ws_ip=storaged1
      - --port=9779
      - --ws_http_port=19779
      - --data_path=/data/storage
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - metad0
      - metad1
      - metad2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://storaged1:19779/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9779
      - 19779
      - 19780
    volumes:
      - ./data/storage1:/data/storage
      - ./logs/storage1:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  storaged2:
    image: vesoft/nebula-storaged:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --local_ip=storaged2
      - --ws_ip=storaged2
      - --port=9779
      - --ws_http_port=19779
      - --data_path=/data/storage
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - metad0
      - metad1
      - metad2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://storaged2:19779/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9779
      - 19779
      - 19780
    volumes:
      - ./data/storage2:/data/storage
      - ./logs/storage2:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  graphd:
    image: vesoft/nebula-graphd:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --port=9669
      - --local_ip=graphd
      - --ws_ip=graphd
      - --ws_http_port=19669
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - storaged0
      - storaged1
      - storaged2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://graphd:19669/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - "9669:9669"
      - 19669
      - 19670
    volumes:
      - ./logs/graph:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  graphd1:
    image: vesoft/nebula-graphd:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --port=9669
      - --local_ip=graphd1
      - --ws_ip=graphd1
      - --ws_http_port=19669
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - storaged0
      - storaged1
      - storaged2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://graphd1:19669/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9669
      - 19669
      - 19670
    volumes:
      - ./logs/graph1:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  graphd2:
    image: vesoft/nebula-graphd:v3.5.0
    environment:
      USER: root
      TZ:   "${TZ}"
    command:
      - --meta_server_addrs=metad0:9559,metad1:9559,metad2:9559
      - --port=9669
      - --local_ip=graphd2
      - --ws_ip=graphd2
      - --ws_http_port=19669
      - --log_dir=/logs
      - --v=0
      - --minloglevel=0
    depends_on:
      - storaged0
      - storaged1
      - storaged2
    healthcheck:
      test: ["CMD", "curl", "-sf", "http://graphd2:19669/status"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 20s
    ports:
      - 9669
      - 19669
      - 19670
    volumes:
      - ./logs/graph2:/logs
    networks:
      - nebula-net
    restart: on-failure
    cap_add:
      - SYS_PTRACE

  console:
    image: vesoft/nebula-console:v3.5.0
    entrypoint: ""
    command:
      - sh
      - -c
      - |
        for i in `seq 1 60`;do
          var=`nebula-console -addr graphd -port 9669 -u root -p nebula -e 'ADD HOSTS "storaged0":9779,"storaged1":9779,"storaged2":9779'`;
          if [[ $$? == 0 ]];then
            break;
          fi;
          sleep 1;
          echo "retry to add hosts.";
        done && tail -f /dev/null;

    depends_on:
      - graphd
    networks:
      - nebula-net

networks:
  nebula-net:

nebula-graph-studio的 docker-compose.yml

version: '3.4'
services:
  web:
    image: vesoft/nebula-graph-studio:v3.7.0
    environment:
      USER: root
    ports:
      - 7001:7001
    networks:
      - nebula-web

networks:
  nebula-web:
