springsecurity核心源码解析

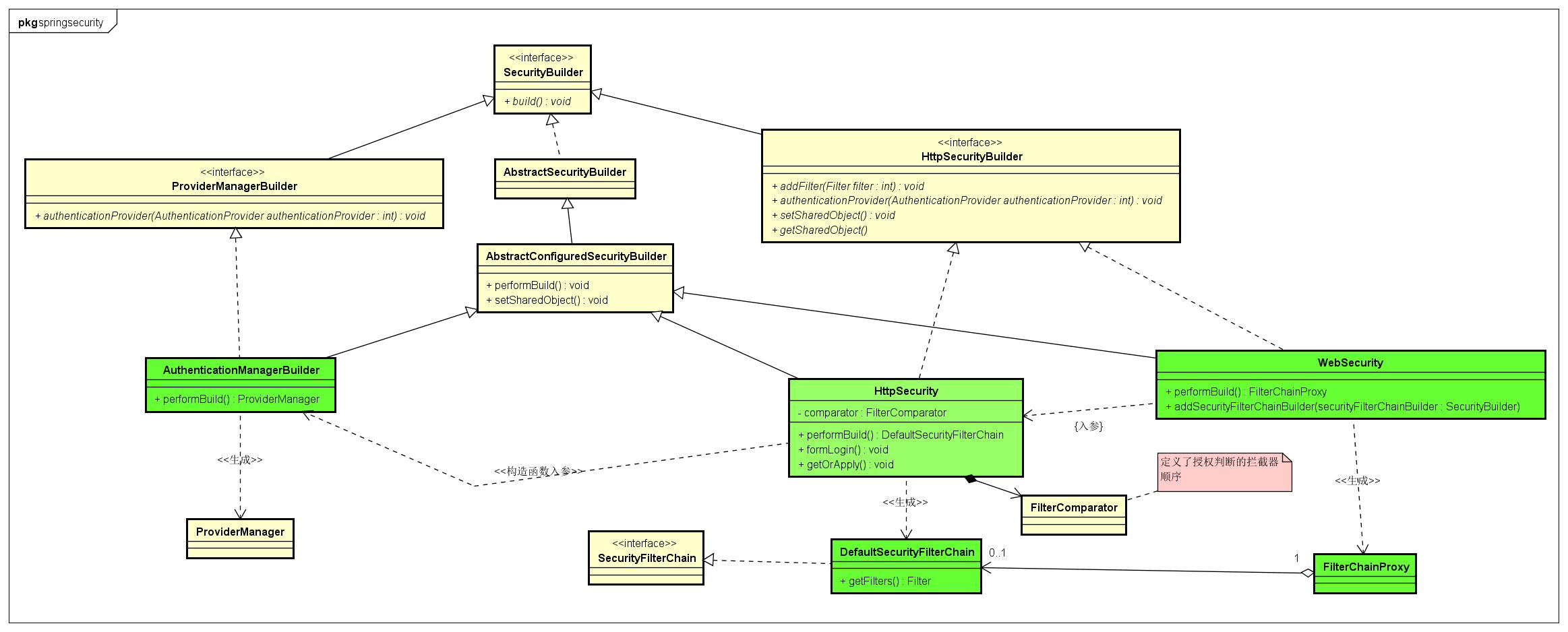

1.FilterChainProxy构造过程

2.WebSecurityConfiguration将FilterChainProxy添加到spring容器

	@Bean(name = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME)
	public Filter springSecurityFilterChain() throws Exception {
		boolean hasConfigurers = webSecurityConfigurers != null
				&& !webSecurityConfigurers.isEmpty();
		if (!hasConfigurers) {
			WebSecurityConfigurerAdapter adapter = objectObjectPostProcessor
					.postProcess(new WebSecurityConfigurerAdapter() {
					});
			webSecurity.apply(adapter);
		}
		return webSecurity.build();
	}

3.WebSecurity生成器构建FilterChainProxy的过程，其他细节见第一部分的类图

@Override
	protected Filter performBuild() throws Exception {
		Assert.state(
				!securityFilterChainBuilders.isEmpty(),
				"At least one SecurityBuilder<? extends SecurityFilterChain> needs to be specified. Typically this done by adding a @Configuration that extends WebSecurityConfigurerAdapter. More advanced users can invoke "
						+ WebSecurity.class.getSimpleName()
						+ ".addSecurityFilterChainBuilder directly");
		int chainSize = ignoredRequests.size() + securityFilterChainBuilders.size();
		List<SecurityFilterChain> securityFilterChains = new ArrayList<SecurityFilterChain>(
				chainSize);
		for (RequestMatcher ignoredRequest : ignoredRequests) {
			securityFilterChains.add(new DefaultSecurityFilterChain(ignoredRequest));
		}
		for (SecurityBuilder<? extends SecurityFilterChain> securityFilterChainBuilder : securityFilterChainBuilders) {
			securityFilterChains.add(securityFilterChainBuilder.build());
		}
		FilterChainProxy filterChainProxy = new FilterChainProxy(securityFilterChains);
		if (httpFirewall != null) {
			filterChainProxy.setFirewall(httpFirewall);
		}
		filterChainProxy.afterPropertiesSet();

		Filter result = filterChainProxy;
		if (debugEnabled) {
			logger.warn("\n\n"
					+ "********************************************************************\n"
					+ "**********        Security debugging is enabled.       *************\n"
					+ "**********    This may include sensitive information.  *************\n"
					+ "**********      Do not use in a production system!     *************\n"
					+ "********************************************************************\n\n");
			result = new DebugFilter(filterChainProxy);
		}
		postBuildAction.run();
		return result;
	}

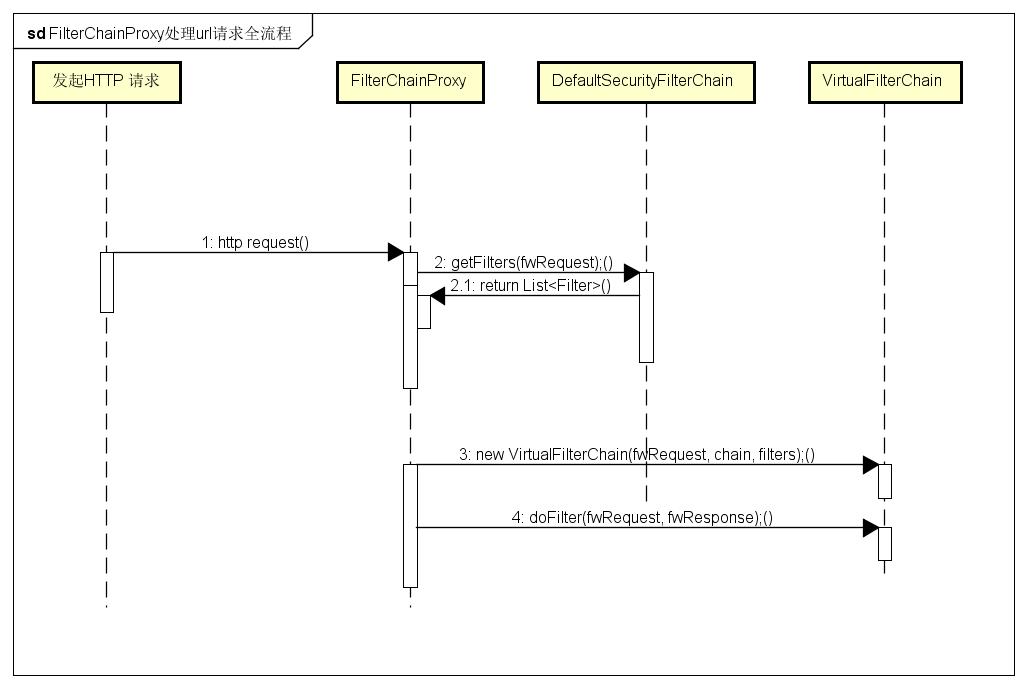

4.FilterChainProxy拦截请求的过程

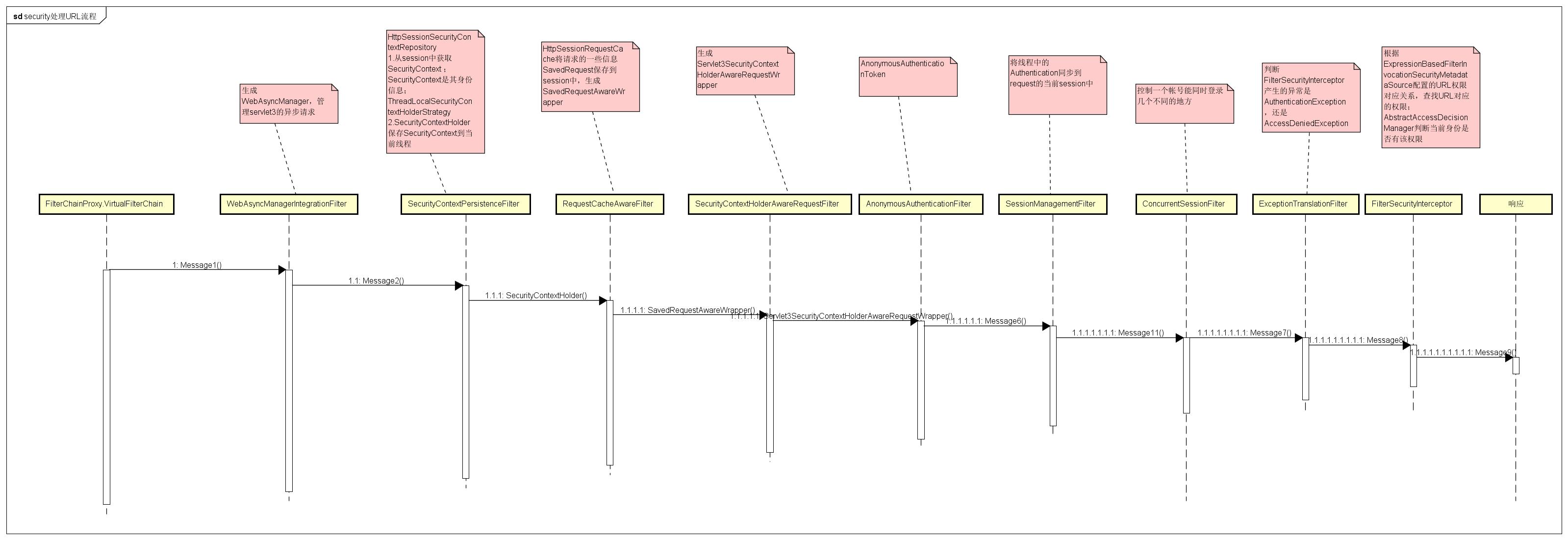

5.springsecurity4使用FilterChainProxy.VirtualFilterChain拦截请求的过程

6.FilterChainProxy.VirtualFilterChain采用责任链模式（责任链上每个节点都会处理请求，细节可以百度），源码如下：

private static class VirtualFilterChain implements FilterChain {
		private final FilterChain originalChain;
		private final List<Filter> additionalFilters;
		private final FirewalledRequest firewalledRequest;
		private final int size;
		private int currentPosition = 0;

		private VirtualFilterChain(FirewalledRequest firewalledRequest,
				FilterChain chain, List<Filter> additionalFilters) {
			this.originalChain = chain;
			this.additionalFilters = additionalFilters;
			this.size = additionalFilters.size();
			this.firewalledRequest = firewalledRequest;
		}

		public void doFilter(ServletRequest request, ServletResponse response)
				throws IOException, ServletException {
			if (currentPosition == size) {
				if (logger.isDebugEnabled()) {
					logger.debug(UrlUtils.buildRequestUrl(firewalledRequest)
							+ " reached end of additional filter chain; proceeding with original chain");
				}

				// Deactivate path stripping as we exit the security filter chain
				this.firewalledRequest.reset();

				originalChain.doFilter(request, response);
			}
			else {
				currentPosition++;

				Filter nextFilter = additionalFilters.get(currentPosition - 1);

				if (logger.isDebugEnabled()) {
					logger.debug(UrlUtils.buildRequestUrl(firewalledRequest)
							+ " at position " + currentPosition + " of " + size
							+ " in additional filter chain; firing Filter: '"
							+ nextFilter.getClass().getSimpleName() + "'");
				}

				nextFilter.doFilter(request, response, this);
			}
		}
	}
