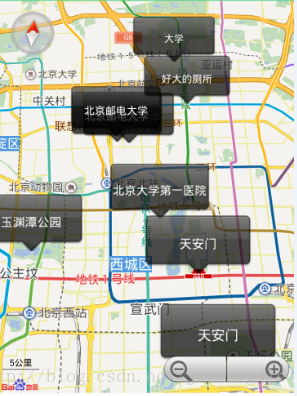

前一段时间搞地图要显示周围房源信息,之前搜索的都是使用2.x的,现在百度地图官方新出了3.0版本由于之前思维局限一直没有实现图文并茂,今天看了别人2.0的实现方式,把它用到3.0上成功显示,下面看一下效果
现在3.0显示覆盖物mBaiduMap.addOverlay(OverlayOptions arg0),有两个类可以添加MarkerOptions和TextOptions,分别对应图片和文字,但是两个无法合在一起,换一个思路就是我们自定义覆盖物大多数都是自定义布局,但是查看官方文档没有现成的接口,所以我们可以把布局文件view转换成bitmap,然后通过BitmapDescriptorFactory.fromBitmap来获取BitmapDescriptor,这样就可以自定义图文并茂的覆盖物了,下面是如何将View转换成Bitmap的方法:
<span style="font-size:14px;">/**
* 从view 得到图片
* @param view
* @return
*/
public static Bitmap getBitmapFromView(View view) {
view.destroyDrawingCache();
view.measure(View.MeasureSpec.makeMeasureSpec(0, View.MeasureSpec.UNSPECIFIED),
View.MeasureSpec.makeMeasureSpec(0, View.MeasureSpec.UNSPECIFIED));
view.layout(0, 0, view.getMeasuredWidth(), view.getMeasuredHeight());
view.setDrawingCacheEnabled(true);
Bitmap bitmap = view.getDrawingCache(true);
return bitmap;
}</span>
我做的是云检索显示内容,具体的可以查看官方的demo,我这里只写出用到的主要函数的方法:
<span style="font-size:14px;">@Override
public void onGetSearchResult(CloudSearchResult result, int error) {
if (result != null && result.poiList != null
&& result.poiList.size() > 0) {
mBaiduMap.clear();
LatLng ll;
BitmapDescriptor bd;
LatLngBounds.Builder builder = new Builder();
for (CloudPoiInfo info : result.poiList) {
TextView textView = new TextView(UElivesRentsRoom.this);
textView.setGravity(Gravity.CENTER);
textView.setBackgroundResource(R.drawable.icon_gcoding);
textView.setTextColor(getResources().getColor(android.R.color.white));
ll = new LatLng(info.latitude, info.longitude);
if (info.title != null) {
textView.setText(info.title);
}else {
textView.setText("未知");
}
bd = BitmapDescriptorFactory.fromBitmap(BMapUtil.getBitmapFromView(textView));
OverlayOptions oo = new MarkerOptions().icon(bd).
position(ll);
mBaiduMap.addOverlay(oo);
builder.include(ll);
bd.recycle();
}
LatLngBounds bounds = builder.build();
MapStatusUpdate u = MapStatusUpdateFactory.newLatLngBounds(bounds);
mBaiduMap.animateMapStatus(u);
}
}</span>
我上面是使用TextView,如果要显示其他的内容自己可以使用布局文件。
