Prometheus添加邮件告警和企业微信机器人告警

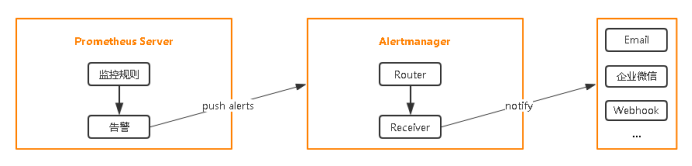

我们将在 Prometheus 服务器上编写警报规则 ，这些规则将使用我们收集的指标并在指定的阈值或标准上触发警报，收到警报后， Alertmanager 会处理警报并根据其标签进行路由。一旦路径确定，它们将由Alertmanager发送到外部目的地，如电子邮件、短信或聊天工具

邮件告警（注意如果用qq的需要开启smtp协议）

~]# vim alertmanager.yml
global:
  resolve_timeout: 5m
  smtp_smarthost: 'smtp.qq.com:465'        # 邮箱的url和端口
  smtp_from: 'xxxxxxx@qq.com'              # 发送邮箱
  smtp_auth_username: 'xxxxxxxx@qq.com'    # 发送邮箱
  smtp_auth_password: 'xxxxxxxxxxxx'       # 授权码（也可以叫密码）
  smtp_require_tls: false
  smtp_hello: 'qq.com'

templates:                                  # 自定义模板
   - '/etc/alertmanager/template/*.tmpl'

route:
  group_by: ['alertname','alarmPolicyName','version']
  group_wait: 10s
  group_interval: 10s
  repeat_interval: 40m
  receiver: 'email'

receivers:
- name: 'email'
  email_configs:                            # 自己的邮箱
  - to: 'xxxxxx@qq.com'
    html: '{{ template "email.html" . }}'
    headers: { Subject: "[WARN]CPU告警" }
    send_resolved: true

企业微信机器人

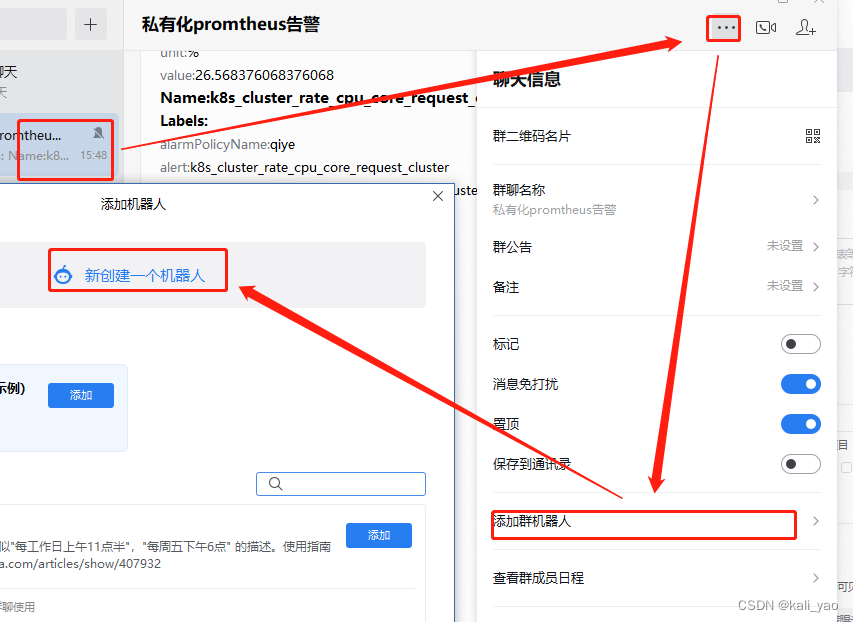

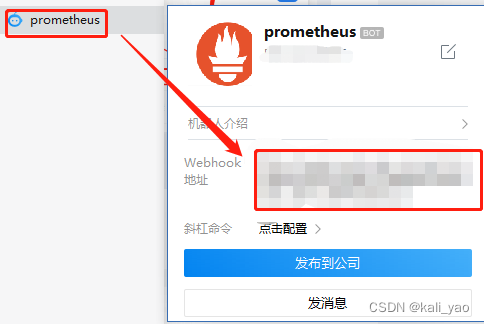

1.先创建机器



 2.创建webhook服务

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    run: prometheus-webhook-dingtalk
  name: prometheus-webhook-dingtalk
  namespace: kube-system
spec:
  selector:
    matchLabels:
      run: prometheus-webhook-dingtalk
  template:
    metadata:
      labels:
        run: prometheus-webhook-dingtalk
    spec:
      containers:
      - args:
        - --adapter=/app/prometheusalert/wx.js=/adapter/wx=https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key={}  # 这里的key按刚刚创建的
        image: registry.cn-hangzhou.aliyuncs.com/guyongquan/webhook-adapter
        name: prometheus-webhook-dingtalk
        ports:
        - containerPort: 80
          protocol: TCP

---
apiVersion: v1
kind: Service
metadata:
  labels:
    run: prometheus-webhook-dingtalk
  name: prometheus-webhook-dingtalk
  namespace: kube-system
spec:
  ports:
  - port: 8060
    protocol: TCP
    targetPort: 80
  selector:
    run: prometheus-webhook-dingtalk
  type: ClusterIP

3.告警方式书写

~]# vim alertmanager.yaml

    global:
       resolve_timeout: 5m

    templates:
        - '/etc/alertmanager/template/*.tmpl'

    route:
      group_by: ['alertname']
      group_wait: 10s
      group_interval: 10s
      repeat_interval: 100m
      receiver: 'web.hook'

    receivers:
    - name: 'web.hook'
      webhook_configs:
      - url: 'http://prometheus-webhook-dingtalk.kube-system.svc.cluster.local:8060/adapter/wx'               # 刚刚创建的webhook地址
        send_resolved: false

    inhibit_rules:
      - source_match:
           severity: 'critical'
        target_match:
           severity: 'warning'
        equal: ['alertname', 'dev', 'instance']

注：配置企业微信机器人告警时需要先安装webhook；最后重启

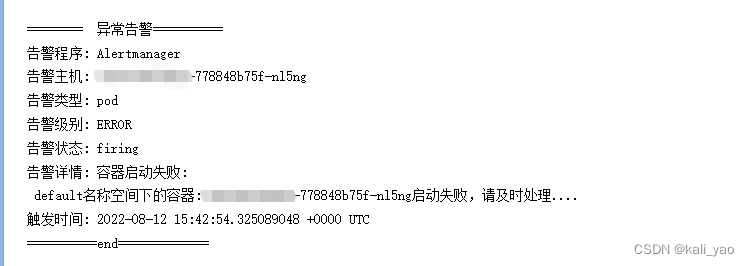

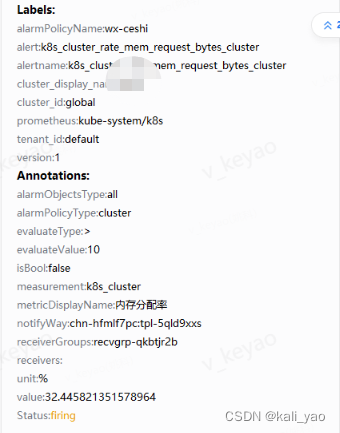

4.查看
