Storm之——Storm+Kafka+Flume+Zookeeper+MySQL实现数据实时分析(程序案例篇)

版权声明:本文为博主原创文章,未经博主允许不得转载。 https://blog.csdn.net/l1028386804/article/details/79441007

转载请注明出处:http://blog.csdn.net/l1028386804/article/details/79441007

一、前言

本博文是基于《Storm之——Storm+Kafka+Flume+Zookeeper+MySQL实现数据实时分析(环境搭建篇)》,请先阅读《Storm之——Storm+Kafka+Flume+Zookeeper+MySQL实现数据实时分析(环境搭建篇)

首先我们启动服务器上的Storm、Kafka、Flume、Zookeeper和MySQL,具体参见博文《Storm之——Storm+Kafka+Flume+Zookeeper+MySQL实现数据实时分析(环境搭建篇)》。

二、简单介绍

为了方便,这里我们只是简单的向/home/flume/log.log中追加单词,每行一个单词,利用Storm接收每个单词,将单词计数更新到数据库,具体的逻辑为,如果数据库中没有相关单词,则将数据插入数据库,如果存在相关单词,则更新数据库中的计数。具体SQL逻辑参见博文《MySQL之——实现无数据插入,有数据更新

三、程序实现

1、创建项目

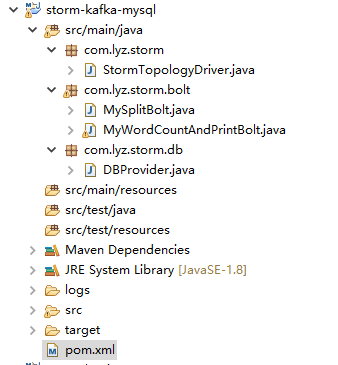

创建Maven项目结构如下:


2、配置pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.lyz</groupId>
    <artifactId>storm-kafka-mysql</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-core</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-kafka</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>2.7.3</version>
        </dependency>

         <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.28</version>
        </dependency>

        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1.2</version>
        </dependency>

        <dependency>
		    <groupId>org.apache.kafka</groupId>
		    <artifactId>kafka_2.12</artifactId>
		    <version>1.0.0</version>
		       <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>log4j</groupId>
                    <artifactId>log4j</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
		</dependency>

		<dependency>
		    <groupId>org.apache.kafka</groupId>
		    <artifactId>kafka-clients</artifactId>
		    <version>1.0.0</version>
		</dependency>

    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-assembly-plugin</artifactId>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            <!--告诉运行的主类是哪个,注意根据自己的情况,下面的包名做相应的修改-->
                            <mainClass>com.lyz.storm.StormTopologyDriver</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

3、实现单词分割计数的MySplitBolt类

package com.lyz.storm.bolt;

import org.apache.storm.topology.BasicOutputCollector;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseBasicBolt;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;

/**
 * 这个Bolt模拟从kafkaSpout接收数据,并把数据信息发送给MyWordCountAndPrintBolt的过程。
 * @author liuyazhuang
 *
 */
public class MySplitBolt extends BaseBasicBolt {

	private static final long serialVersionUID = 4482101012916443908L;

	@Override
    public void execute(Tuple input, BasicOutputCollector collector) {
        //1、数据如何获取
        //如果StormTopologyDriver中的spout配置的是MyLocalFileSpout,则用的是declareOutputFields中的juzi这个key
        //byte[] juzi = (byte[]) input.getValueByField("juzi");
        //2、这里用这个是因为StormTopologyDriver这个里面的spout用的是KafkaSpout,而KafkaSpout中的declareOutputFields返回的是bytes,所以下面用bytes,这个地方主要模拟的是从kafka中获取数据
        byte[] juzi = (byte[]) input.getValueByField("bytes");
        //2、进行切割
        String[] strings = new String(juzi).split(" ");
        //3、发送数据
        for (String word : strings) {
            //Values对象帮我们生成一个list
            collector.emit(new Values(word,1));
        }
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("word","num"));
    }
}

4、实现入库操作的MyWordCountAndPrintBolt类

package com.lyz.storm.bolt;

import java.sql.Connection;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.Map;

import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.BasicOutputCollector;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.base.BaseBasicBolt;
import org.apache.storm.tuple.Tuple;

import com.lyz.storm.db.DBProvider;


/**
 * 用于统计分析,并且把统计分析的结果存储到mysql中。
 * @author liuyazhuang
 *
 */
public class MyWordCountAndPrintBolt extends BaseBasicBolt {

	private static final long serialVersionUID = 5564341843792874197L;
	private DBProvider provider;
    @Override
    public void prepare(Map stormConf, TopologyContext context) {
        //连接redis---代表可以连接任何事物
    	provider = new DBProvider();
        super.prepare(stormConf,context);
    }

    @Override
    public void execute(Tuple input, BasicOutputCollector collector) {
        String word = (String) input.getValueByField("word");
        Integer num = (Integer) input.getValueByField("num");
        Connection conn = null;
        Statement stmt = null;
        try {
        	conn = provider.getConnection();
        	stmt = conn.createStatement() ;
        	stmt.executeUpdate("INSERT INTO word_count (word, count) VALUES ('" + word + "', " + num + ")  ON DUPLICATE KEY UPDATE count = count + " + num) ;
		} catch (SQLException e) {
			e.printStackTrace();
		}finally{
			if(stmt != null){
				try {
					stmt.close();
					stmt = null;
				} catch (Exception e2) {
					e2.printStackTrace();
				}
			}
			if(conn != null){
				try {
					conn.close();
					conn = null;
				} catch (Exception e2) {
					e2.printStackTrace();
				}
			}
		}
    }

    @Override
    public void declareOutputFields(OutputFieldsDeclarer outputFieldsDeclarer) {
        //todo 不需要定义输出的字段
    }
}

5、实现操作数据库的DBProvider类

package com.lyz.storm.db;

import java.beans.PropertyVetoException;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

import com.mchange.v2.c3p0.ComboPooledDataSource;

/**
 * JDBC操作数据库
 * @author liuyazhuang
 *
 */
public class DBProvider {

    private static ComboPooledDataSource source ;
    private static final String DB_DRIVER = "com.mysql.jdbc.Driver";
    private static final String DB_URL = "jdbc:mysql://127.0.0.1:3306/sharding_0?useUnicode=true&characterEncoding=UTF-8&useOldAliasMetadataBehavior=true";
    private static final String USER = "root";
    private static final String PASSWORD = "root";
    private static Connection connection;

    static{
        try {
            source = new ComboPooledDataSource();
            source.setDriverClass(DB_DRIVER);
            source.setJdbcUrl(DB_URL);
            source.setUser(USER);
            source.setPassword(PASSWORD);
            source.setInitialPoolSize(10);
            source.setMaxPoolSize(20);
            source.setMinPoolSize(5);
            source.setAcquireIncrement(1);
            source.setMaxIdleTime(3);
            source.setMaxStatements(3000);
            source.setCheckoutTimeout(2000);
        }  catch (PropertyVetoException e) {
            e.printStackTrace();
        }
    }

    /**
     * 获取数据库连接
     *
     * @return 数据库连接
     */
    public Connection getConnection() throws SQLException {
        connection = source.getConnection();
        return connection;
    }


    //关闭操作
    public static void closeConnection(Connection con){
        if(con!=null){
            try {
                con.close();
            } catch (SQLException e) {
                e.printStackTrace();
            }
        }
    }

    public static void closeResultSet(ResultSet rs){
        if(rs!=null){
            try {
                rs.close();
            } catch (SQLException e) {
                e.printStackTrace();
            }
        }
    }

    public static void closePreparedStatement(PreparedStatement ps){
        if(ps!=null){
            try {
                ps.close();
            } catch (SQLException e) {
                e.printStackTrace();
            }
        }
    }
}

6、实现程序的入口类StormTopologyDriver

package com.lyz.storm;

import org.apache.storm.Config;
import org.apache.storm.LocalCluster;
import org.apache.storm.StormSubmitter;
import org.apache.storm.generated.StormTopology;
import org.apache.storm.kafka.KafkaSpout;
import org.apache.storm.kafka.SpoutConfig;
import org.apache.storm.kafka.ZkHosts;
import org.apache.storm.topology.TopologyBuilder;

import com.lyz.storm.bolt.MySplitBolt;
import com.lyz.storm.bolt.MyWordCountAndPrintBolt;

/**
 * 这个Driver使Kafka、strom、mysql进行串联起来。
 *
 * 这个代码执行前需要创建kafka的topic,创建代码如下:
 * [root@liuyazhuang kafka]# bin/kafka-topics.sh --create --zookeeper liuyazhuang1:2181 --replication-factor 1 -partitions 3 --topic wordCount
 *
 * 接着还要向kafka中传递数据,打开一个shell的producer来模拟生产数据
 * [root@liuyazhuang kafka]# bin/kafka-console-producer.sh --broker-list liuyazhuang:9092 --topic wordCount
 * 接着输入数据
 *
 * @author liuyazhuang
 */
public class StormTopologyDriver {

    public static void main(String[] args) throws Exception {
        //1、准备任务信息
        TopologyBuilder topologyBuilder = new TopologyBuilder();
        SpoutConfig spoutConfig = new SpoutConfig(new ZkHosts("192.168.209.121:2181"),"wordCount","/wordCount","wordCount");
		topologyBuilder.setSpout("KafkaSpout",new KafkaSpout(spoutConfig),2);
        topologyBuilder.setBolt("bolt1",new MySplitBolt(),4).shuffleGrouping("KafkaSpout");
        topologyBuilder.setBolt("bolt2",new MyWordCountAndPrintBolt(),2).shuffleGrouping("bolt1");

        //2、任务提交
        Config config = new Config();
        config.setNumWorkers(2);
        StormTopology stormTopology = topologyBuilder.createTopology();

        if(args != null && args.length > 0){
        	StormSubmitter.submitTopology(args[0], config, topologyBuilder.createTopology());
        }else{
            //本地模式
            LocalCluster localCluster = new LocalCluster();
            localCluster.submitTopology("wordcount",config,stormTopology);
        }

    }
}

7、创建数据库

执行如下脚本创建数据库

create database sharding_0;
CREATE TABLE `word_count` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `word` varchar(255) DEFAULT '',
  `count` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `word` (`word`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=233 DEFAULT CHARSET=utf8;

至此,我们的程序案例编写完成。

四、温馨提示

大家可以到链接http://download.csdn.net/download/l1028386804/10269075下载完整的Storm+Kafka+Flume+Zookeeper+MySQL实现数据实时分析(程序案例篇)源代码
