【设计模式】笔记之【组合模式】

组合模式

组合模式是一种结构型设计模式， 你可以使用它将对象组合成树状结构， 并且能像使用独立对象一样使用它们。
该模式的最大优点在于你无需了解构成树状结构的对象的具体类。 你也无需了解对象是简单的产品还是复杂的盒子。 你只需调用通用接口以相同的方式对其进行处理即可。 当你调用该方法后， 对象会将请求沿着树结构传递下去。
说明：文章插图与代码均引用自 refactoringguru.com 网站，但代码解释为原创中文翻译，转载请注明来源。

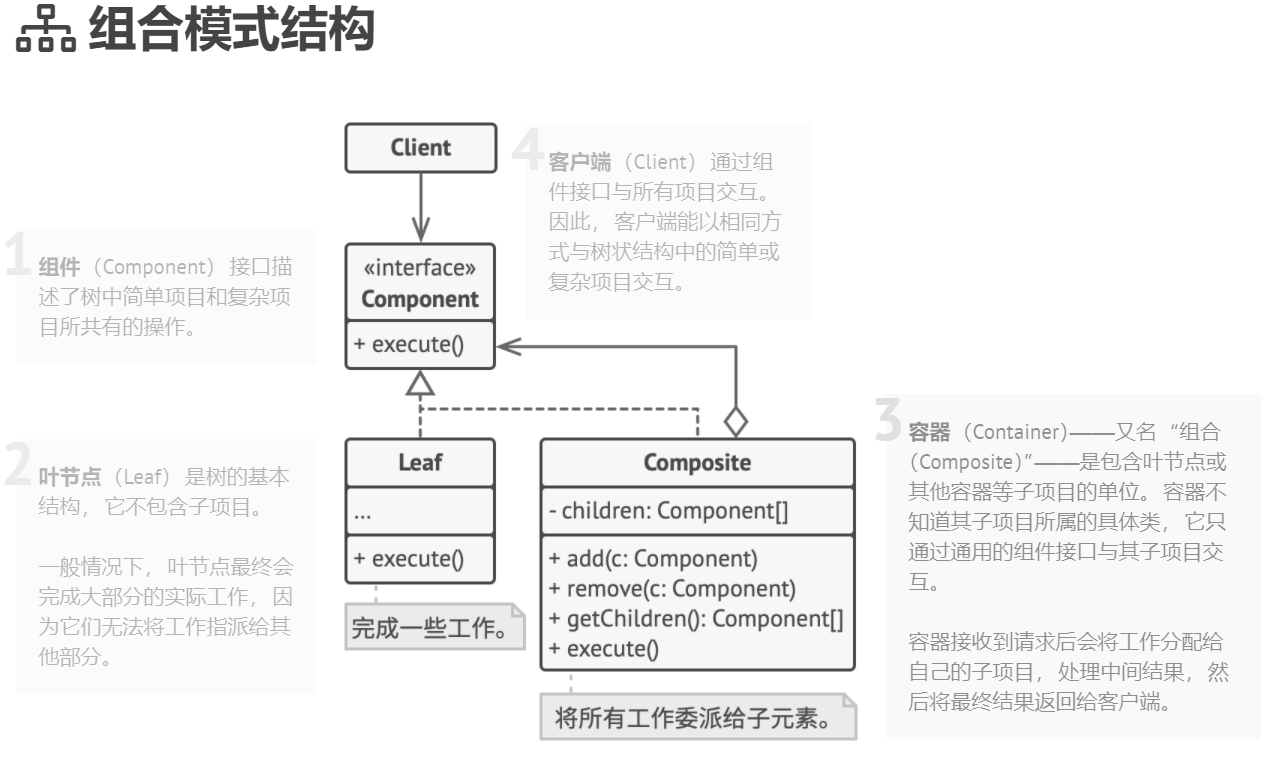

UML 示意图

组合模式适用场景的一个特点是树状结构，另外为了方便客户端，组合模式中定义的所有元素共用同一个接口。

实现方式

确保应用的核心模型能够以树状结构表示。 尝试将其分解为简单元素和容器。 记住， 容器必须能够同时包含简单元素和其他容器。

1. 声明组件接口及其一系列方法， 这些方法对简单和复杂元素都有意义。
2. 创建一个叶节点类表示简单元素。 程序中可以有多个不同的叶节点类。
3. 创建一个容器类表示复杂元素。 在该类中， 创建一个数组成员变量来存储对于其子元素的引用。 该数组必须能够同时保存叶节点和容器， 因此请确保将其声明为组合接口类型。
4. 实现组件接口方法时， 记住容器应该将大部分工作交给其子元素来完成。
5. 最后， 在容器中定义添加和删除子元素的方法。

这些操作可在组件接口中声明。 这将会违反 接口隔离原则， 因为叶节点类中的这些方法为空。 但是， 这可以让客户端无差别地访问所有元素， 即使是组成树状结构的元素。

C++ 代码实现

#include <algorithm>
#include <iostream>
#include <list>
#include <string>
/**
 * The base Component class declares common operations for both simple and
 * complex objects of a composition.
 * 基类 Component 声明了组合的简单对象和复杂对象的操作方式
 */
class Component {
  /**
   * @var Component
   */
 protected:
  Component *parent_;
  /**
   * Optionally, the base Component can declare an interface for setting and
   * accessing a parent of the component in a tree structure. It can also
   * provide some default implementation for these methods.
   * 基类 Component 可以选择性地生命一个树形结构中设置和获取component父节点地接口给，
   * 也可以提供这些方法的默认实现。
   */
 public:
  virtual ~Component() {}
  void SetParent(Component *parent) {
    this->parent_ = parent;
  }
  Component *GetParent() const {
    return this->parent_;
  }
  /**
   * In some cases, it would be beneficial to define the child-management
   * operations right in the base Component class. This way, you won't need to
   * expose any concrete component classes to the client code, even during the
   * object tree assembly. The downside is that these methods will be empty for
   * the leaf-level components.
   * 某些情况下，在基类中定义子节点管理操作有益处的，这种方式你就不需要将具体component类暴露给客户端，
   * 即使是树对象组装期间。不好的方面是，叶子层级的 componenets 它们的这些方法会是空的。
   */
  virtual void Add(Component *component) {}
  virtual void Remove(Component *component) {}
  /**
   * You can provide a method that lets the client code figure out whether a
   * component can bear children.
   * 你可以提供一个让客户端代码指出一个 component 是否能够产生子 component
   */
  virtual bool IsComposite() const {
    return false;
  }
  /**
   * The base Component may implement some default behavior or leave it to
   * concrete classes (by declaring the method containing the behavior as
   * "abstract").
   * 基类可以实现一些默认你的行为或者让具体的类区实现它
   */
  virtual std::string Operation() const = 0;
};
/**
 * The Leaf class represents the end objects of a composition. A leaf can't have
 * any children.
 * Leaf 类代表了 composition 的最末的对象。一个 Leaf 不能有任何孩子
 *
 * Usually, it's the Leaf objects that do the actual work, whereas Composite
 * objects only delegate to their sub-components.
 * 通常是 Leaf 对象做实际的工作，Composit只是指派给它的子组件去做事情
 */
class Leaf : public Component {
 public:
  std::string Operation() const override {
    return "Leaf";
  }
};
/**
 * The Composite class represents the complex components that may have children.
 * Usually, the Composite objects delegate the actual work to their children and
 * then "sum-up" the result.
 * Composit 类表示复杂的 components 集合，components可能有孩子。通常Composit对象将具体的工作指派给
 * 他们的孩子，然后汇总结果。
 */
class Composite : public Component {
  /**
   * @var \SplObjectStorage
   */
 protected:
  std::list<Component *> children_;

 public:
  /**
   * A composite object can add or remove other components (both simple or
   * complex) to or from its child list.
   * composite 对象可以从孩子列表增加或者移除掉 component(简单的复杂的component都可以)
   */
  void Add(Component *component) override {
    this->children_.push_back(component);
    component->SetParent(this);
  }
  /**
   * Have in mind that this method removes the pointer to the list but doesn't
   * frees the
   *     memory, you should do it manually or better use smart pointers.
   */
  void Remove(Component *component) override {
    children_.remove(component);
    component->SetParent(nullptr);
  }
  bool IsComposite() const override {
    return true;
  }
  /**
   * The Composite executes its primary logic in a particular way. It traverses
   * recursively through all its children, collecting and summing their results.
   * Since the composite's children pass these calls to their children and so
   * forth, the whole object tree is traversed as a result.
   * Composite 用特定的方式执行它的基本逻辑。它递归地遍历了它的所有孩子，收集并且汇总他们的结果。
   * 因为 composite 的孩子将这些调用又传给了他们的孩子等等，所以最终整个对象树被遍历了。
   */
  std::string Operation() const override {
    std::string result;
    for (const Component *c : children_) {
      if (c == children_.back()) {
        result += c->Operation();
      } else {
        result += c->Operation() + "+";
      }
    }
    return "Branch(" + result + ")";
  }
};
/**
 * The client code works with all of the components via the base interface.
 * 客户端代码通过基本接口和所有 components 一起工作
 */
void ClientCode(Component *component) {
  // ...
  std::cout << "RESULT: " << component->Operation();
  // ...
}

/**
 * Thanks to the fact that the child-management operations are declared in the
 * base Component class, the client code can work with any component, simple or
 * complex, without depending on their concrete classes.
 * 由于子节点管理操作已经在基类 Component中定义好，客户端代码可以与简单或者复杂的任意component
 * 工作，而不依赖他们的具体的类。
 */
void ClientCode2(Component *component1, Component *component2) {
  // ...
  if (component1->IsComposite()) {
    component1->Add(component2);
  }
  std::cout << "RESULT: " << component1->Operation();
  // ...
}

/**
 * This way the client code can support the simple leaf components...
 * 这种方式下，客户端代码可以支持简单的叶子component
 */

int main() {
  Component *simple = new Leaf;
  std::cout << "Client: I've got a simple component:\n";
  ClientCode(simple);
  std::cout << "\n\n";
  /**
   * ...as well as the complex composites.
   */

  Component *tree = new Composite;
  Component *branch1 = new Composite;

  Component *leaf_1 = new Leaf;
  Component *leaf_2 = new Leaf;
  Component *leaf_3 = new Leaf;
  branch1->Add(leaf_1);
  branch1->Add(leaf_2);
  Component *branch2 = new Composite;
  branch2->Add(leaf_3);
  tree->Add(branch1);
  tree->Add(branch2);
  std::cout << "Client: Now I've got a composite tree:\n";
  ClientCode(tree);
  std::cout << "\n\n";

  std::cout << "Client: I don't need to check the components classes even when managing the tree:\n";
  ClientCode2(tree, simple);
  std::cout << "\n";

  delete simple;
  delete tree;
  delete branch1;
  delete branch2;
  delete leaf_1;
  delete leaf_2;
  delete leaf_3;

  return 0;
}

运行结果

Client: I've got a simple component:
RESULT: Leaf

Client: Now I've got a composite tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf))

Client: I don't need to check the components classes even when managing the tree:
RESULT: Branch(Branch(Leaf+Leaf)+Branch(Leaf)+Leaf)
