使用 Route 命令,可以查看并配置计算机的 IP 路由表。
Route 命令和语法如下所示:
xxha@PAF4:~$ route -vn
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.8.1 0.0.0.0 UG 0 0 0 eth1
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 eth1
192.168.0.0 0.0.0.0 255.255.0.0 U 1 0 0 eth1
2. 添加指定路由:
xxha@PAF4:~$ sudo route add 1.1.1.1 gw 192.168.9.1 dev eth1
xxha@PAF4:~$ sudo route -vn
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.8.1 0.0.0.0 UG 0 0 0 eth1
1.1.1.1 192.168.9.1 255.255.255.255 UGH 0 0 0 eth1
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 eth1
192.168.0.0 0.0.0.0 255.255.0.0 U 1 0 0 eth1
这样就添加了网关为192.168.9.1的, 目的地址是1.1.1.1的路径。
如果网关是默认值:0.0.0.0,可以用如下命令添加路由。
xxha@PAF4:~$ sudo route add 2.2.2.2 dev eth1
xxha@PAF4:~$ sudo route -vn
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.8.1 0.0.0.0 UG 0 0 0 eth1
1.1.1.1 192.168.9.1 255.255.255.255 UGH 0 0 0 eth1
2.2.2.2 0.0.0.0 255.255.255.255 UH 0 0 0 eth1
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 eth1
192.168.0.0 0.0.0.0 255.255.0.0 U 1 0 0 eth1
3. 删除指定路由:
xxha@PAF4:~$ sudo route del 1.1.1.1 gw 192.168.9.1 dev eth1
xxha@PAF4:~$ sudo route -vn
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.8.1 0.0.0.0 UG 0 0 0 eth1
2.2.2.2 0.0.0.0 255.255.255.255 UH 0 0 0 eth1
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 eth1
192.168.0.0 0.0.0.0 255.255.0.0 U 1 0 0 eth1
也可以:
xxha@PAF4:~$ sudo route del 2.2.2.2 dev eth1
xxha@PAF4:~$ sudo route -vn
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.8.1 0.0.0.0 UG 0 0 0 eth1
169.254.0.0 0.0.0.0 255.255.0.0 U 1000 0 0 eth1
192.168.0.0 0.0.0.0 255.255.0.0 U 1 0 0 eth1
Gateway 是指网络目标地址集可以到达的前进或下一跃点 IP 地址。

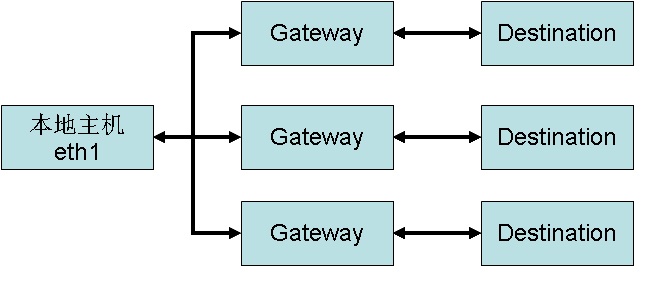

route 实现的架构 如下图所示:
linux下添加路由的方法: 一:使用 route 命令添加 使用route 命令添加的路由,机器重启或者网卡重启后路由就失效了,方法: //添加到主机的路由 # route add –host 192.168.168.110 dev eth0 # route add –host 192.168.168.119 gw 192.168.168.1 //添加到网络的路由 # route add –net IP netmask MASK eth0 # route add –net IP netmask MASK gw IP # route add –net IP/24 eth1 //添加默认网关 # route add default gw IP //删除路由 # route del –host 192.168.168.110 dev eth0 二:在linux下设置永久路由的方法: 1.在/etc/rc.local里添加 方法: route add -net 192.168.3.0/24 dev eth0 route add -net 192.168.2.0/24 gw 192.168.3.254 2.在/etc/sysconfig/network里添加到末尾 方法:GATEWAY=gw-ip 或者 GATEWAY=gw-dev 3./etc/sysconfig/static-router : any net x.x.x.x/24 gw y.y.y.y
