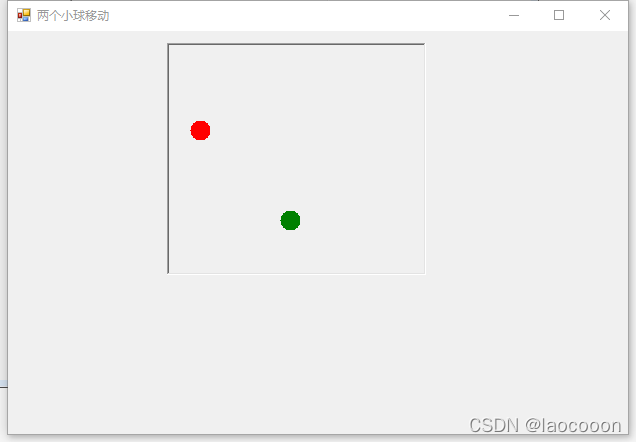

这个博客展示了如何使用C#实现两个小球在窗口中移动并进行碰撞检测及边缘处理的程序。小球在遇到边界时会改变方向，相撞后也会交换运动方向。程序通过`Ball`类定义了小球的属性和行为，`Form1`类中包含了主窗口的事件处理和绘图逻辑。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace 两个小球移动
{

    public partial class Form1 : Form
    {
        Ball b1 = new Ball(10, Color.Red), b2 = new Ball(10, Color.Green);
        Graphics g;
        Rectangle r;
        const int step = 3;

        public Form1()
        {
            InitializeComponent();
        }

        private void Form1_Load(object sender, EventArgs e)
        {
            g = p1.CreateGraphics();
            r.X =0;
            r.Y =0;
            r.Width = p1.Width;
            r.Height = p1.Height;

            b1.Move(10,10);
            b2.Move(100, 100);

            if (b1.IsContact(b2)) b2.Move(b2.X + 2*b2.R, b2.Y + 2*b2.R);
            if (b1.DirectionX == b2.DirectionX && b1.DirectionY == b2.DirectionY) b1.DirectionX *= -1;
        }

        private void timer1_Tick(object sender, EventArgs e)
        {
            g.Clear(BackColor);

            b1.EdgeProcessing(r);
            b2.EdgeProcessing(r);
            b1.Analysis(b2);

            b1.Move(b1.X + b1.DirectionX * step, b1.Y + b1.DirectionY * step);
            b2.Move(b2.X + b2.DirectionX * step, b2.Y + b2.DirectionY * step);

            g.FillEllipse(new SolidBrush(b1.Color), new Rectangle(b1.X - b1.R, b1.Y - b1.R, 2 * b1.R, 2 * b1.R));
            g.FillEllipse(new SolidBrush(b2.Color), new Rectangle(b2.X - b2.R, b2.Y - b2.R, 2 * b2.R, 2 * b2.R));



        }
    }

    public class Ball
    {
        public int X { set; get; }
        public int Y { set; get; }
        public int DirectionX { set; get; }
        public int DirectionY { set; get; }
        public int R { set; get; }
        public Color Color { set; get; }
        public void Move(int a, int b) { X = a; Y = b; }
        public Ball(int r, Color color)
        {
            R = r;
            Color = color;
            Random random = new Random((int)DateTime.Now.Ticks);
            //开始的方向
            if (random.Next() % 2 == 0) DirectionX = -1; else DirectionX = 1;
            if (random.Next() % 2 == 0) DirectionY = -1; else DirectionY = 1;

        }
        public bool EdgeProcessing(Rectangle r)//边缘处理
        {
            bool b = false;
            if (DirectionX == -1)//如果方向是向左
                if (this.X - this.R <= r.X)//如果超出边界
                {
                    DirectionX *= -1;//方向取反
                    b = true;
                }


            if (DirectionX == 1)//如果方向是向右
                if (this.X + this.R >= r.X + r.Width)//如果超出边界
                {
                    DirectionX *= -1;//方向取反
                    b = true;
                }



            if (DirectionY == -1)//如果方向是向上
                if (this.Y - this.R <= r.Y)//如果超出边界
                { DirectionY *= -1;//方向取反
                    b = true;
                }

            if (DirectionY == 1)//如果方向是向下
                if (this.Y + this.R >= r.Y + r.Height)//如果超出边界
                {
                    DirectionY *= -1;//方向取反
                    b = true;
                }

            return b;
        }
        public bool IsContact(Ball b)
        {
            double distance;
            distance = Math.Sqrt((this.X - b.X) * (this.X - b.X) + (this.Y - b.Y) * (this.Y - b.Y));
            if (distance <= this.R+b.R )
                return true;
            else
                return false;
        }

        public void Analysis(Ball b)//如果相碰改方向
        {
            if (IsContact(b))
            {
                this.DirectionX *= -1;
                this.DirectionY *= -1;
                b.DirectionX *= -1;
                b.DirectionY *= -1;
            }
        }
    }
}
