软件九宫格解锁之逻辑以及界面控制

其实九宫格解锁在Android上不是什么新鲜的东西，至今还有不少人的锁屏界面的解锁方式是九宫格解锁，但至于app九宫格解锁的要求，本人至今只使用支付宝的九宫格解锁

最近在做一个app的时候有一个需求，与支付宝有点类似 ，是牵涉到金钱支付的项目 所以有需求在app上加一个九宫格解锁（跟钱有关，小心为上或者说是避免其他人使用你的app），具体需求如下：

1、界面

具体说来可以归类为4类：splash界面、login界面、九宫格界面、主界面（包括应用的其它界面）

2、要求【程序从后台进入前台、手机熄屏后打开、点击app图标进入】

2.1、splash界面不显示解锁界面

2.2、登陆界面不显示解锁界面

2.3、其它界面需要显示解锁界面

2.4、当前app处于锁屏界面，推送消息来了，打开通知需要显示解锁界面，解锁后显示推送具体的页面，在该页面返回不需要显示解锁，直接显示以前的界面

2.5、app未启动，推送消息来时，显示解锁界面，解锁后显示推送界面，在推送界面返回，进入程序splash界面

2.6、程序第一次进入主界面时需要设置九宫格解锁，设置成功后即可进入主界面，后面只需要解锁

2.7、四次解锁失败后，程序被锁住60分钟，当然可以通过登陆界面直接登陆进入

2.8、其它地方暂定

由于Android的每个界面生命周期是单独控制的，所以统一监听程序后台进前台以及实现上面的逻辑有点晕，如下是我的实现代码，本人技术有限，代码肯定有一些逻辑误区以及不足处，请谅解

解锁画布【网上扒的，具体此处已经找不到了，自己也修改了一些】‘

package com.lockdemo.view;

import java.util.ArrayList;
import java.util.List;
import java.util.Timer;
import java.util.TimerTask;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;

/**
 * 自定义锁屏View
 */
public class GestureLockView extends View {
	/** 解锁密码key */
	private String key = "";
	private OnGestureFinishListener onGestureFinishListener;

	/** 解锁圆点数组 */
	private LockCircle[] cycles;
	/** 存储触碰圆的序列 */
	private List<Integer> linedCycles = new ArrayList<Integer>();

	// 画笔
	/** 空心外圆 */
	private Paint paintNormal;
	/** 点击后内部圆 */
	private Paint paintInnerCycle;
	/** 画路径 */
	private Paint paintLines;
	private Path linePath = new Path();

	/** 当前手指X,Y位置 */
	private int eventX, eventY;

	/** 能否操控界面绘画 */
	private boolean canContinue = true;

	/** 能否操控界面绘画 */
	private boolean unlockable = true;

	/** 设置密码模式 */
	private boolean setlockmode = false;

	/** 错误解锁的次数 */
	public static int LockErrorTime = 5;
	/** 验证结果 */
	private boolean result;
	private Timer timer;

	/** 未选中颜色 */
	private final int NORMAL_COLOR = Color.parseColor("#959BB4");
	/** 错误颜色 */
	private final int ERROE_COLOR = Color.parseColor("#FF2525"); // 正常外圆颜色
	/** 选中时颜色 */
	private final int TOUCH_COLOR = Color.parseColor("#409DE5"); // 选中内圆颜色
	/** 设置时颜色 */
	private final int SET_COLOR = Color.parseColor("#7CCD7C"); // 选中内圆颜色

	// =================================start=构造方法========================
	public GestureLockView(Context context, AttributeSet attrs, int defStyle) {
		super(context, attrs, defStyle);
		init();
	}

	public GestureLockView(Context context, AttributeSet attrs) {
		this(context, attrs, 0);
	}

	public GestureLockView(Context context) {
		this(context, null);
	}

	// ===============================end=构造方法========================

	/** 初始化 */
	public void init() {
		paintNormal = new Paint();
		paintNormal.setAntiAlias(true);
		paintNormal.setStrokeWidth(5);
		paintNormal.setStyle(Paint.Style.STROKE);

		paintInnerCycle = new Paint();
		paintInnerCycle.setAntiAlias(true);
		paintInnerCycle.setStyle(Paint.Style.FILL);

		paintLines = new Paint();
		paintLines.setAntiAlias(true);
		paintLines.setStyle(Paint.Style.STROKE);
		paintLines.setStrokeWidth(10);

	}

	@Override
	protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
		int specMode = MeasureSpec.getMode(widthMeasureSpec);
		int spceSize = MeasureSpec.getSize(widthMeasureSpec);
		heightMeasureSpec = MeasureSpec.makeMeasureSpec((int) (spceSize * 0.85 + 0.5f), specMode);
		super.onMeasure(widthMeasureSpec, heightMeasureSpec);
	}

	@Override
	protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
		super.onLayout(changed, left, top, right, bottom);
		int perWidthSize = getWidth() / 7;
		int perHeightSize = getHeight() / 6;
		/** 初始化圆的参数 */
		if (cycles == null && (perWidthSize > 0) && (perHeightSize > 0)) {
			cycles = new LockCircle[9];
			for (int i = 0; i < 3; i++) {
				for (int j = 0; j < 3; j++) {
					LockCircle lockCircle = new LockCircle();
					lockCircle.setNum(i * 3 + j);
					lockCircle.setOx(perWidthSize * (j * 2 + 1.5f) + 0.5f);
					lockCircle.setOy(perHeightSize * (i * 2 + 1) + 0.5f);
					lockCircle.setR(perWidthSize * 0.6f);
					cycles[i * 3 + j] = lockCircle;
				}
			}
		}

	}

	public void setKey(String key) {
		this.key = key;
	}

	public void setUnlock(boolean unlockable) {
		this.unlockable = unlockable;
	}

	public void setLockMode(boolean setlockmode) {
		this.setlockmode = setlockmode;
	}

	public void setOnGestureFinishListener(OnGestureFinishListener onGestureFinishListener) {
		this.onGestureFinishListener = onGestureFinishListener;
	}

	/** 手势输入完成后回调接口 */
	public interface OnGestureFinishListener {
		/** 手势输入完成后回调函数 */
		public void OnGestureFinish(boolean success, String key);
	}

	/** 监听手势 */
	@Override
	public boolean onTouchEvent(MotionEvent event) {
		if (canContinue && unlockable) {
			switch (event.getAction()) {
			case MotionEvent.ACTION_DOWN:
			case MotionEvent.ACTION_MOVE:
				eventX = (int) event.getX();
				eventY = (int) event.getY();
				for (int i = 0; i < cycles.length; i++) {
					if (cycles[i].isPointIn(eventX, eventY)) {
						cycles[i].setOnTouch(true);
						if (!linedCycles.contains(cycles[i].getNum())) {
							linedCycles.add(cycles[i].getNum());
						}
					}
				}
				break;
			case MotionEvent.ACTION_UP:
				// 手指离开暂停触碰
				canContinue = false;
				StringBuffer stringBuffer = new StringBuffer();
				for (int i = 0; i < linedCycles.size(); i++) {
					stringBuffer.append(linedCycles.get(i));
				}
				result = key.equals(stringBuffer.toString());
				if (onGestureFinishListener != null && linedCycles.size() > 0) {
					onGestureFinishListener.OnGestureFinish(result, stringBuffer.toString());
				}
				timer = new Timer();
				timer.schedule(new TimerTask() {
					@Override
					public void run() {
						eventX = eventY = 0;
						for (int i = 0; i < 9; i++) {
							cycles[i].setOnTouch(false);
						}
						linedCycles.clear();
						linePath.reset();
						canContinue = true;
						postInvalidate();// 在非ui线程刷新界面
					}
				}, 1000);
				break;
			}
			invalidate();
		}
		return true;
	}

	@Override
	protected void onDraw(Canvas canvas) {
		super.onDraw(canvas);
		int cycleSize = cycles.length;
		for (int i = 0; i < cycleSize; i++) {
			// 画完并且错误
			if (!canContinue && !result) {
				if (cycles[i].isOnTouch()) {
					if (setlockmode) {
						drawInnerCycle(cycles[i], canvas, SET_COLOR);
						drawOutsideCycle(cycles[i], canvas, SET_COLOR);
					} else {
						drawInnerCycle(cycles[i], canvas, ERROE_COLOR);
						drawOutsideCycle(cycles[i], canvas, ERROE_COLOR);
					}
				} else
					drawOutsideCycle(cycles[i], canvas, NORMAL_COLOR);
			}
			// 绘画中
			else {
				if (cycles[i].isOnTouch()) {
					drawInnerCycle(cycles[i], canvas, TOUCH_COLOR);
					drawOutsideCycle(cycles[i], canvas, TOUCH_COLOR);
				} else
					drawOutsideCycle(cycles[i], canvas, NORMAL_COLOR);
			}
		}

		if (!canContinue && !result) {
			if (setlockmode) {
				drawLine(canvas, SET_COLOR);
			} else {
				drawLine(canvas, ERROE_COLOR);
			}
		} else {
			drawLine(canvas, TOUCH_COLOR);
		}
	}

	/** 画空心圆 */
	private void drawOutsideCycle(LockCircle lockCircle, Canvas canvas, int color) {
		paintNormal.setColor(color);
		canvas.drawCircle(lockCircle.getOx(), lockCircle.getOy(), lockCircle.getR(), paintNormal);
	}

	/** 画横线 */
	private void drawLine(Canvas canvas, int color) {
		// 构建路径
		linePath.reset();
		if (linedCycles.size() > 0) {
			int size = linedCycles.size();
			for (int i = 0; i < size; i++) {
				int index = linedCycles.get(i);
				float x = cycles[index].getOx();
				float y = cycles[index].getOy();
				if (i == 0) {
					linePath.moveTo(x, y);
				} else {
					linePath.lineTo(x, y);
				}
			}
			if (canContinue) {
				linePath.lineTo(eventX, eventY);
			} else {
				linePath.lineTo(cycles[linedCycles.get(linedCycles.size() - 1)].getOx(), cycles[linedCycles.get(linedCycles.size() - 1)].getOy());
			}
			paintLines.setColor(color);
			canvas.drawPath(linePath, paintLines);
		}
	}

	/** 画中心圆圆 */
	private void drawInnerCycle(LockCircle myCycle, Canvas canvas, int color) {
		paintInnerCycle.setColor(color);
		canvas.drawCircle(myCycle.getOx(), myCycle.getOy(), myCycle.getR() / 3f, paintInnerCycle);
	}

	/**
	 * 每个圆点类
	 */
	class LockCircle {
		/** 圆心横坐标 */
		private float ox;
		/** 圆心纵坐标 */
		private float oy;
		/** 半径长度 */
		private float r;
		/** 代表数值 */
		private Integer num;
		/** 是否选择:false=未选中 */
		private boolean onTouch;

		public float getOx() {
			return ox;
		}

		public void setOx(float ox) {
			this.ox = ox;
		}

		public float getOy() {
			return oy;
		}

		public void setOy(float oy) {
			this.oy = oy;
		}

		public void setOy(int oy) {
			this.oy = oy;
		}

		public float getR() {
			return r;
		}

		public void setR(float r) {
			this.r = r;
		}

		public Integer getNum() {
			return num;
		}

		public void setNum(Integer num) {
			this.num = num;
		}

		public boolean isOnTouch() {
			return onTouch;
		}

		public void setOnTouch(boolean onTouch) {
			this.onTouch = onTouch;
		}

		/** 判读传入位置是否在圆心内部 */
		public boolean isPointIn(int x, int y) {
			double distance = Math.sqrt((x - ox) * (x - ox) + (y - oy) * (y - oy));
			return distance < r;
		}
	}

	public void minusErrorTime() {
		LockErrorTime--;
	}

	public int getLockErrorTime() {
		return LockErrorTime;
	}

	public void resetErrorTime() {
		LockErrorTime = 5;
	}
}

LockActivity：

package com.lockdemo.activity;

import com.lidroid.xutils.ViewUtils;
import com.lidroid.xutils.util.PreferencesUtils;
import com.lidroid.xutils.util.StringUtils;
import com.lidroid.xutils.view.annotation.ViewInject;
import com.lockdemo.application.LockApplication;
import com.lockdemo.view.GestureLockView;
import com.lockdemo.view.GestureLockView.OnGestureFinishListener;

import android.content.Intent;
import android.graphics.Color;
import android.os.Bundle;
import android.os.CountDownTimer;
import android.text.Html;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.animation.Animation;
import android.view.animation.TranslateAnimation;
import android.widget.TextView;

public class LockActivity extends BaseActivity {

	@ViewInject(R.id.gesture_tv_tips)
	private TextView gesture_tv_tips;
	@ViewInject(R.id.gestureLockView)
	private GestureLockView gestureLockView;
	@ViewInject(R.id.gesture_tv_forget)
	private TextView gesture_tv_forget;
	@ViewInject(R.id.gesture_btn_reset)
	private TextView gesture_btn_reset;

	private Animation animation;
	private boolean flag = false;
	private String key;
	private String keystore;
	private int count = 0;
	private MyCount counttime;

	@Override
	protected void onCreate(Bundle arg0) {
		super.onCreate(arg0);
		setContentView(R.layout.activity_lock);
		LockApplication.getInstance().addActivity(this);
		ViewUtils.inject(this);

		init();
	}

	@Override
	protected void onDestroy() {
		super.onDestroy();
		gestureLockView.resetErrorTime();
		stopCountTime();
		LockApplication.isShowLock = false;
	}

	@Override
	protected void onResume() {
		super.onResume();
		LockApplication.isShowLock = true;
	}

	private void init() {
		animation = new TranslateAnimation(-20, 20, 0, 0);
		animation.setDuration(50);
		animation.setRepeatCount(2);
		animation.setRepeatMode(Animation.REVERSE);

		key = PreferencesUtils.getString(LockActivity.this, PreferencesUtils.getString(LockActivity.this, "UserUid") + "_Lockkey", "");
		if (!StringUtils.isEmpty(key)) {
			flag = true;
			// 设置密码
			gestureLockView.setKey(key);
			startCountTime(countTimeBollean());
		} else {
			gesture_tv_tips.setTextColor(Color.parseColor("#FFFFFF"));
			gesture_tv_tips.setVisibility(View.VISIBLE);

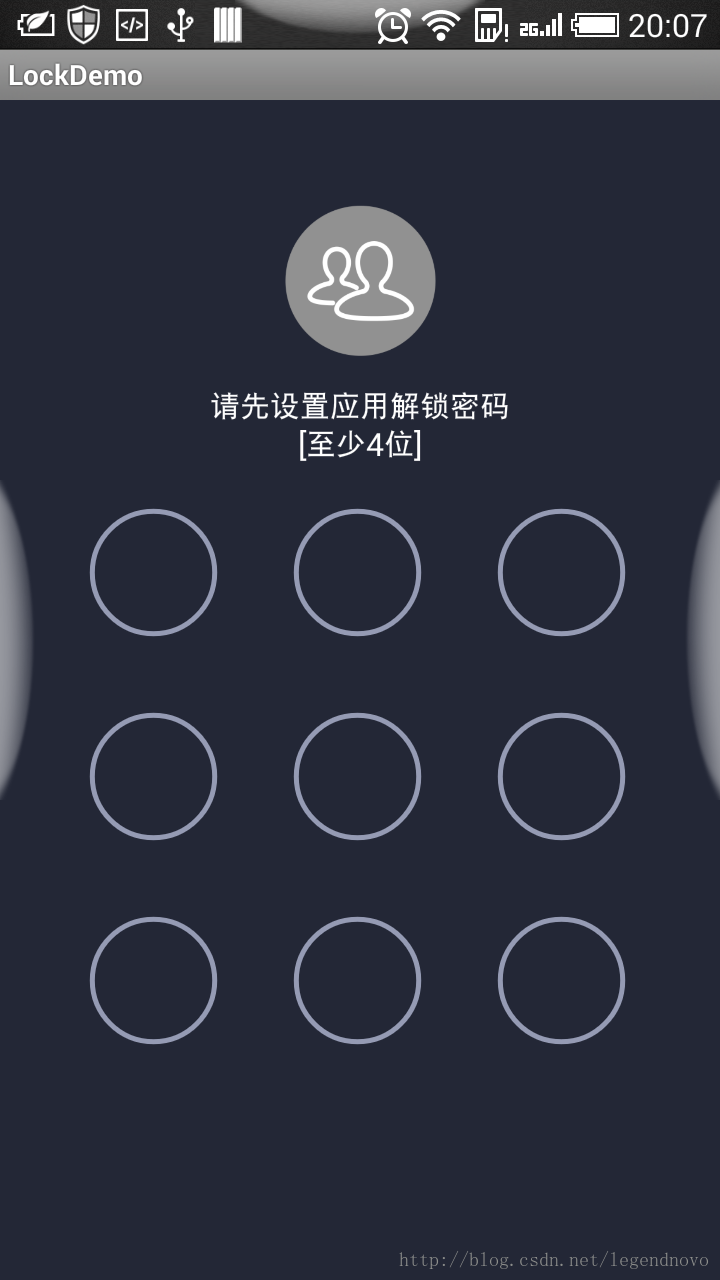

			gesture_tv_tips.setText("请先设置应用解锁密码\n[至少4位]");
			gesture_tv_forget.setVisibility(View.GONE);
			gestureLockView.setLockMode(true);
		}
		// 手势完成后回调
		gestureLockView.setOnGestureFinishListener(new OnGestureFinishListener() {
			@Override
			public void OnGestureFinish(boolean success, String key) {
				if (flag) {
					if (success) {
						LockApplication.getInstance().toFinish(LockActivity.class);
						finish();
					} else {
						gestureLockView.minusErrorTime();
						if (gestureLockView.getLockErrorTime() > 0) {
							gesture_tv_tips.setTextColor(Color.parseColor("#FF2525"));
							gesture_tv_tips.setVisibility(View.VISIBLE);

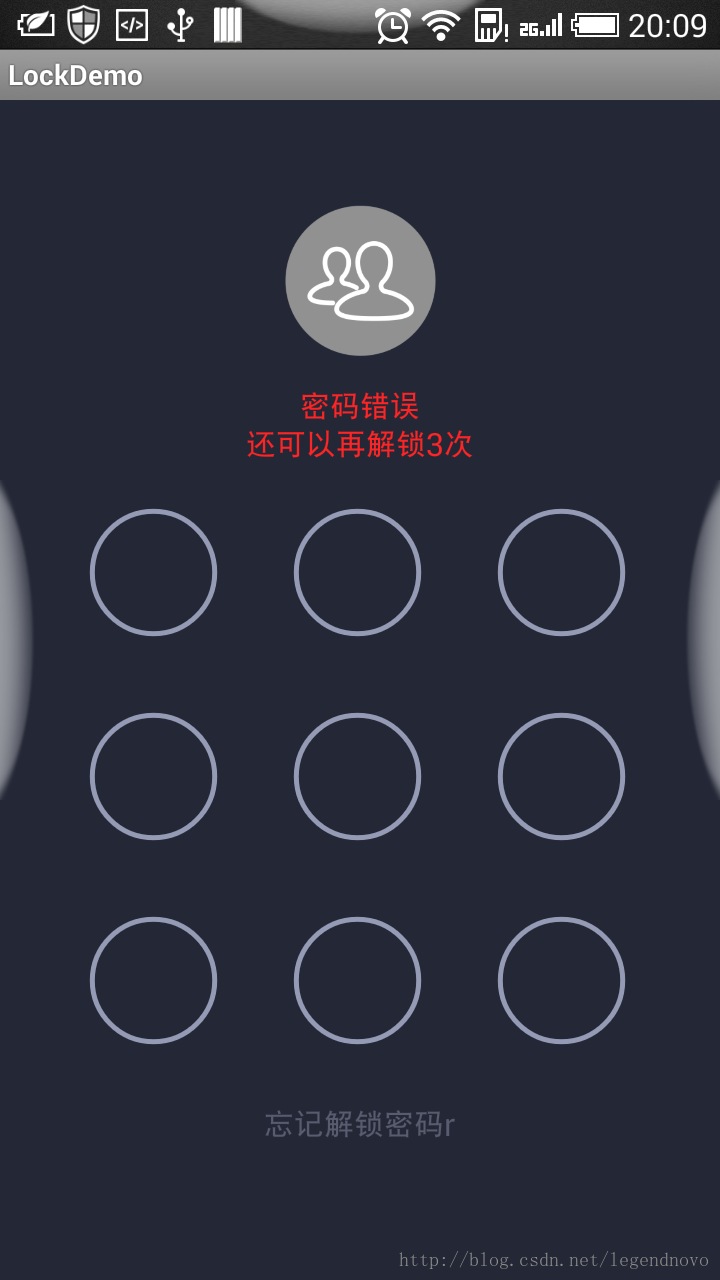

							gesture_tv_tips.setText("密码错误\n还可以再解锁" + gestureLockView.getLockErrorTime() + "次");
							gesture_tv_tips.startAnimation(animation);
						} else {
							setLockTime(System.currentTimeMillis());
							startCountTime((long) 3600000);
						}
					}
				} else {
					if (key.length() > 3) {
						count++;
						if (count == 1) {
							keystore = key;
							gesture_tv_tips.setTextColor(Color.parseColor("#FFFFFF"));

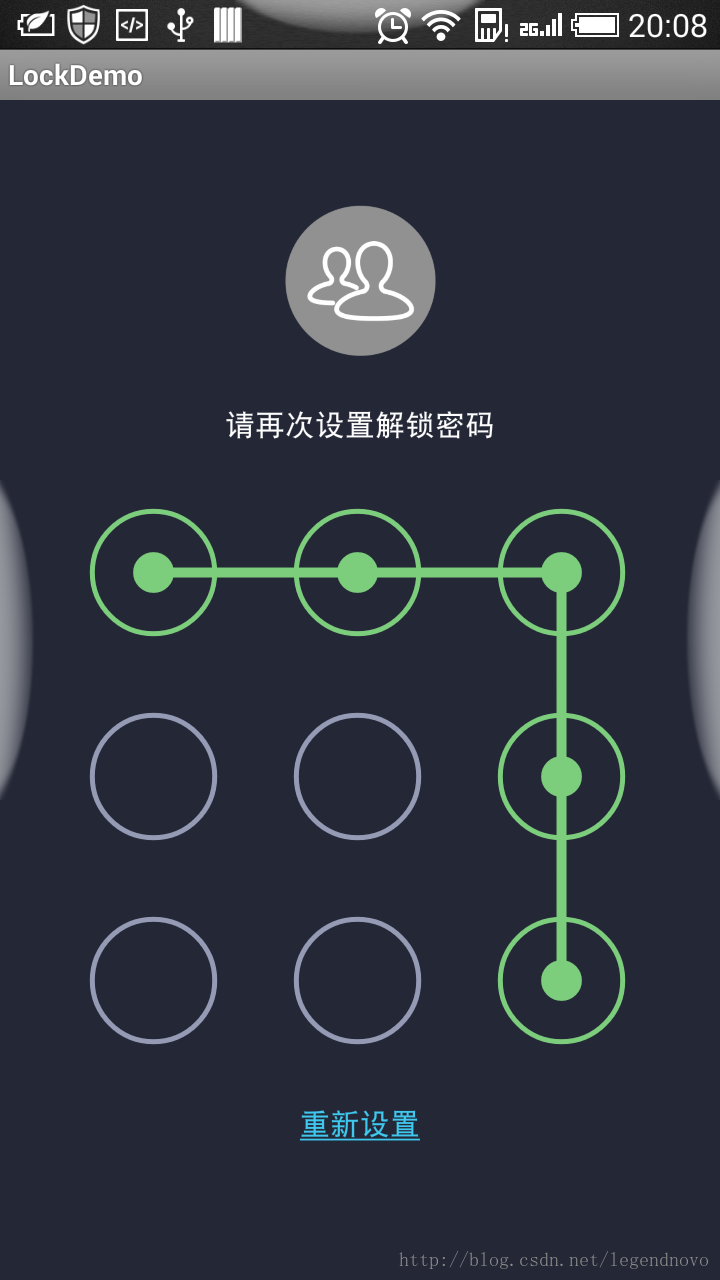

							gesture_tv_tips.setText("请再次设置解锁密码");
							gesture_btn_reset.setText(Html.fromHtml("<u>" + "重新设置" + "</u>"));
							gesture_btn_reset.setVisibility(View.VISIBLE);

						} else if (count == 2) {
							if (keystore.equals(key)) {
								showToast("解锁密码设置成功");
								// 此处密码请自行加密
								PreferencesUtils.putString(LockActivity.this, PreferencesUtils.getString(LockActivity.this, "UserUid") + "_Lockkey", keystore);
								LockApplication.getInstance().toFinish(LockActivity.class);
								finish();
							} else {
								count = 0;
								gesture_tv_tips.setText("请先设置应用解锁密码\n[至少4位]");
								gesture_tv_tips.startAnimation(animation);
								showToast("两次密码设置不一致，请重新设置");
								gesture_btn_reset.setVisibility(View.GONE);
							}
						}
					} else {
						if (count == 1) {
							count = 0;
							gesture_tv_tips.setText("请先设置应用解锁密码\n[至少4位]");
							gesture_tv_tips.startAnimation(animation);
							showToast("两次密码设置不一致，请重新设置");
							gesture_btn_reset.setVisibility(View.GONE);
						} else {
							count = 0;
							gesture_tv_tips.setText("请先设置应用解锁密码\n[至少4位]");
							gesture_tv_tips.startAnimation(animation);
							showToast("解锁密码太短，请重新设置");
						}
					}
				}
			}
		});
		gesture_tv_forget.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View view) {
				Intent intent = new Intent(LockActivity.this, LoginActivity.class);
				startActivity(intent);
				finish();
			}
		});
		gesture_btn_reset.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View view) {
				keystore = null;
				count = 0;
				gesture_tv_tips.setText("请先设置应用解锁密码\n[至少4位]");
				gesture_tv_tips.startAnimation(animation);
				gesture_btn_reset.setVisibility(View.GONE);
			}
		});
	}

	/**
	 * 开始计时工作
	 */
	private void startCountTime(Long count) {
		if (count != 0) {
			gestureLockView.setUnlock(false);
			gesture_tv_tips.setTextColor(Color.parseColor("#ED6C00"));
			gesture_tv_tips.setVisibility(View.VISIBLE);
			counttime = new MyCount(count, 1000);
			counttime.start();
		}
	}

	/**
	 * 停止计时
	 */
	private void stopCountTime() {
		if (counttime != null) {
			counttime.cancel();
			counttime = null;
		}
	}

	/**
	 *
	 * @Title: countTimeBollean
	 * @Description: TODO(计算解锁时间)
	 * @param @return 设定文件
	 * @return long 返回类型
	 * @throws
	 */
	private long countTimeBollean() {
		long cnt = PreferencesUtils.getLong(LockActivity.this, PreferencesUtils.getString(LockActivity.this, "UserUid") + "_DataNum", 0);
		if (cnt == 0) {
			return 0;
		} else {
			long spass = System.currentTimeMillis() - cnt;
			if (spass < 0 || spass > 3600000) {
				return 0;
			} else {
				return (3600000 - spass);
			}
		}
	}

	private class MyCount extends CountDownTimer {

		public MyCount(long millisInFuture, long countDownInterval) {
			super(millisInFuture, countDownInterval);
		}

		@Override
		public void onFinish() {
			gestureLockView.setUnlock(true);
			gestureLockView.resetErrorTime();
			gesture_tv_tips.setTextColor(Color.parseColor("#FFFFFF"));
			gesture_tv_tips.setText("请解锁应用");
			setLockTime(0);
		}

		@Override
		public void onTick(long millisUntilFinished) {
			long minutes = millisUntilFinished / (60 * 1000);
			long seconds = (millisUntilFinished % (60 * 1000)) / 1000;
			if (minutes > 0) {
				if (seconds > 0) {
					gesture_tv_tips.setText("请" + minutes + "分" + seconds + "秒后尝试解锁");
				} else {
					gesture_tv_tips.setText("请" + minutes + "分后尝试解锁");
				}
			} else {
				gesture_tv_tips.setText("请" + seconds + "秒后尝试解锁");
			}
		}
	}

	private void setLockTime(long time) {
		PreferencesUtils.putLong(LockActivity.this, PreferencesUtils.getString(LockActivity.this, "UserUid") + "_DataNum", time);
	}

	private void back() {
		LockApplication.getInstance().exit();
	}

	@Override
	public void onBackPressed() {
		back();
	}
}

LockApplication：

package com.lockdemo.application;

import java.util.ArrayList;
import java.util.List;

import com.lockdemo.recall.ScreenListener;

import android.app.Activity;
import android.app.Application;

public class LockApplication extends Application {

	public static LockApplication instance = null;
	/** 程序活动列表 */
	private List<Activity> activityList = new ArrayList<Activity>();

	public static LockApplication getInstance() {
		if (instance == null) {
			instance = new LockApplication();
		}
		return instance;
	}

	@Override
	public void onCreate() {
		super.onCreate();
	}

	/** 程序在前台 */
	public static boolean isActive = false;
	/** 程序从后台到前台 */
	public static boolean isBtoF = false;
	/** 正在显示lock界面 */
	public static boolean isShowLock = false;
	/** 不显示显示lock界面【splash界面和login界面】 */
	public static boolean notShowLock = false;
	/** 显示亮屏的次数 */
	public static int ligthCount = 0;
	/** main界面resume次数 */
	public static int mainCount = 0;
	/** 屏幕锁屏监听 */
	public static ScreenListener sl;

	public void addActivity(Activity activity) {
		activityList.add(activity);
	}

	public void exit() {
		sl.unregisterListener();
		for (Activity activity : activityList) {
			activity.finish();
		}
		System.exit(0);
	}

	public void finishAll() {
		for (Activity activity : activityList) {
			activity.finish();
		}
		activityList.clear();
	}

	@SuppressWarnings("rawtypes")
	public void finishOthers(Class clazz) {
		for (int i = 0; i < activityList.size(); i++) {
			if (!clazz.getName().equals(activityList.get(i).getClass().getName())) {
				activityList.get(i).finish();
				activityList.remove(i);
			}
		}
	}

	@SuppressWarnings("rawtypes")
	public void toFinish(Class clazz) {
		for (int i = 0; i < activityList.size(); i++) {
			if (clazz.getName().equals(activityList.get(i).getClass().getName())) {
				activityList.get(i).finish();
				activityList.remove(i);
			}
		}
	}

	@SuppressWarnings("rawtypes")
	public boolean hasClazz(Class clazz) {
		boolean flag = false;
		for (int i = 0; i < activityList.size(); i++) {
			if (clazz.getName().equals(activityList.get(i).getClass().getName())) {
				flag = true;
			}
		}
		return flag;
	}

}

Activity基类：

package com.lockdemo.activity;

import java.util.List;

import com.lidroid.xutils.util.LogUtils;
import com.lockdemo.application.LockApplication;
import com.lockdemo.recall.ScreenListener;
import com.lockdemo.recall.ScreenListener.ScreenStateListener;

import android.app.ActivityManager;
import android.app.ActivityManager.RunningAppProcessInfo;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.support.v4.app.FragmentActivity;
import android.widget.Toast;

public class BaseActivity extends FragmentActivity {

	private final static int TOASTTIME = 1000;
	private Intent intent = null;

	@Override
	public void onBackPressed() {
		super.onBackPressed();
	}

	@Override
	protected void onCreate(Bundle arg0) {
		super.onCreate(arg0);
	}

	@Override
	protected void onDestroy() {
		super.onDestroy();
	}

	@Override
	protected void onPause() {
		super.onPause();
	}

	@Override
	protected void onResume() {
		super.onResume();
		if (!LockApplication.isActive) {
			// app 从后台唤醒，进入前台
			LockApplication.isActive = true;
			if (LockApplication.isBtoF) {
				LockApplication.isBtoF = false;
				if (!LockApplication.isShowLock && !LockApplication.notShowLock) {
					intent = new Intent(getApplicationContext(), LockActivity.class);
					intent.addFlags(Intent.FLAG_ACTIVITY_SINGLE_TOP);
					startActivity(intent);
				}
			}
		}
		if (LockApplication.sl == null) {
			LockApplication.sl = new ScreenListener(this);
			LockApplication.sl.begin(new ScreenStateListener() {

				@Override
				public void onUserPresent() {
					LogUtils.d("onUserPresent");
				}

				@Override
				public void onScreenOn() {
					LogUtils.d("onScreenOn");
					/** 排除第一次监听 显示亮屏 */
					LockApplication.ligthCount++;
					if (LockApplication.isActive && !LockApplication.isShowLock && (LockApplication.ligthCount > 1) && !LockApplication.notShowLock) {
						intent = new Intent(getApplicationContext(), LockActivity.class);
						intent.addFlags(Intent.FLAG_ACTIVITY_SINGLE_TOP);
						startActivity(intent);
					}
				}

				@Override
				public void onScreenOff() {
					LogUtils.d("onScreenOff");
				}
			});
		}
	}

	@Override
	protected void onStart() {
		super.onStart();
	}

	@Override
	protected void onStop() {
		super.onStop();
		if (!isAppOnForeground()) {
			// app 进入后台
			LockApplication.isActive = false;
			LockApplication.isBtoF = true;
		}
	}

	@Override
	public void startActivityForResult(Intent intent, int requestCode) {
		super.startActivityForResult(intent, requestCode);
	}

	@Override
	protected void onRestart() {
		super.onRestart();
	}

	public void showToast(String msg) {
		Toast.makeText(getApplicationContext(), msg, TOASTTIME).show();
	}

	/**
	 * 程序是否在前台运行
	 *
	 * @return
	 */
	public boolean isAppOnForeground() {
		ActivityManager activityManager = (ActivityManager) getApplicationContext().getSystemService(Context.ACTIVITY_SERVICE);
		String packageName = getApplicationContext().getPackageName();
		List<RunningAppProcessInfo> appProcesses = activityManager.getRunningAppProcesses();
		if (appProcesses == null)
			return false;
		for (RunningAppProcessInfo appProcess : appProcesses) {
			if (appProcess.processName.equals(packageName) && appProcess.importance == RunningAppProcessInfo.IMPORTANCE_FOREGROUND) {
				return true;
			}
		}
		return false;
	}

}

 demo下载地址：http://download.csdn.net/detail/u011566000/8391257
