中医门诊电子病历xml文档数据读入数据库实验流程演示

IT|软件|程序 专栏收录该内容
4 篇文章 0 订阅

前言:

本次实验老师要求我们用java程序实现,其整个实现流程也满足了老师提出的实验要求。由于绝大部分都是在课堂上完成的,写得有误的地方还请大家包涵。

1.下载所需的jar包并通过项目Build Path选项添加进来

这次实验用到了两个外部jar包,分别是解析xml的dom4j包和jdbc连接mysql数据库的驱动包。

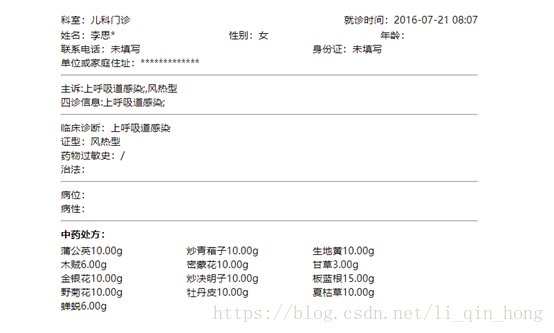

中医门诊电子病历单参考:

(图1.1)

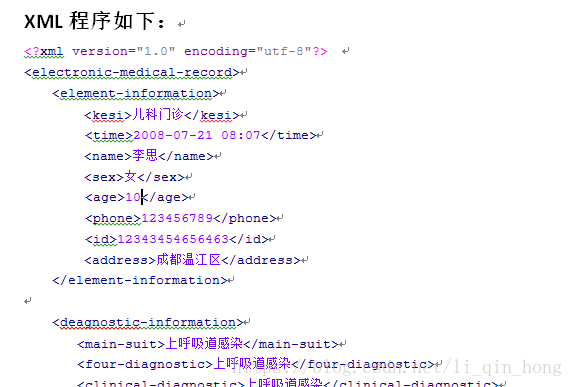

2.根据以上图片信息编写xml文档

(图1.2)

编写的比较简易,没有添加任何约束和其他必要条件。

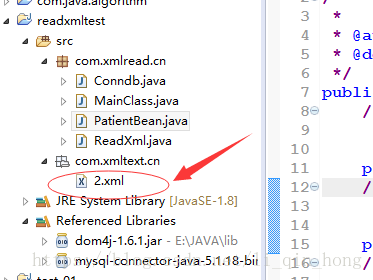

将编写好的xml文件放到工程文件夹下,如下图所示:

(图1.3)



3.建数据库和表

这次实验用到的是mysql数据库。

4.编写java代码

一共建了4个类,如上图1.3,ReadXml类用于读取工程下的2.xml数据,PatientBean类用于封装图1.1的字段信息,Conndb类用于连接mysql数据库,MainClass类为运行主类。部分代码如下所示:

ReadXml类

package com.xmlread.cn;
/**
 *
 * @author 李钦弘
 * @description 读取xml的java类
 */
import java.io.File;

import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Element;
import org.dom4j.io.SAXReader;

public class ReadXml {
	protected static void readText() {
		//1.获得Document
		SAXReader saxReader = new SAXReader();
		Document document = null;
		try {
			document = saxReader.read(new File("src/com/xmltext/cn/2.xml"));
		} catch (DocumentException e) {
			e.printStackTrace();
		}
		//2.获得根节点
		Element rootElement = document.getRootElement();
		//3.节点导航
		Element e_info = rootElement.element("element-information");
		//3.1节点导航
		Element d_info = rootElement.element("deagnostic-information");
		//4.封装属性值
		PatientBean p = new PatientBean();
		 p.setApartment(e_info.elementText("kesi"));
		 p.setVisittime(e_info.elementText("time"));
		 p.setP_name(e_info.elementText("name"));
		 p.setP_gender(e_info.elementText("sex"));
		 p.setP_age(e_info.elementText("age"));
		 p.setP_tel(e_info.elementText("phone"));
		 p.setP_ID(e_info.elementText("id"));
		 p.setP_addr(e_info.elementText("address"));
		 p.setP_zhushu(d_info.elementText("main-suit"));
		 p.setP_sizhen(d_info.elementText("four-diagnostic"));
		 p.setP_clinical_diagnosis(d_info.elementText("clinical-diagnostic"));
		 p.setP_syndrome(d_info.elementText("zhengxing"));
		 p.setP_history_allergy(d_info.elementText("drug-allergy"));
		 p.setP_treatmethod(d_info.elementText("therapy"));
		 p.setP_location_disease(d_info.elementText("bingwei"));
		 p.setP_nature_disease(d_info.elementText("bingxing"));
		 p.setP_chinese_medicine(rootElement.elementText("prescription"));
		 try {
			Conndb.insertData(p);
		} catch (Exception e) {
			e.printStackTrace();
		}
		System.out.println(p.toString());
	}

}

PatientBean类

package com.xmlread.cn;
/**
 *
 * @author 李钦弘
 * @description 电子病历实体
 */
public class PatientBean {
	/**
	 * 科室
	 */
	private String apartment;
	/**
	 * 就诊时间
	 */
	private String visittime;
	/**
	 * 姓名
	 */
	private String p_name;
	/**
	 * 性别
	 */
	private String p_gender;
	/**
	 * 年龄
	 */
	private String p_age;
	/**
	 * 联系电话
	 */
	private String p_tel;
	/**
	 * 身份证号
	 */
	private String p_ID;
	/**
	 * 家庭住址
	 */
	private String p_addr;
	/**
	 * 主诉
	 */
	private String p_zhushu;
	/**
	 * 四诊信息
	 */
	private String p_sizhen;
	/**
	 * 临床诊断
	 */
	private String p_clinical_diagnosis;
	/**
	 * 证型
	 */
	private String p_syndrome;
	/**
	 * 药物过敏史
	 */
	private String p_history_allergy;
	/**
	 * 治法
	 */
	private String p_treatmethod;
	/**
	 * 病位
	 */
	private String p_location_disease;
	/**
	 * 病性
	 */
	private String p_nature_disease;
	/**
	 * 中药处方
	 */
	private String p_chinese_medicine;
	public String getApartment() {
		return apartment;
	}
	public void setApartment(String apartment) {
		this.apartment = apartment;
	}
	public String getVisittime() {
		return visittime;
	}
	public void setVisittime(String visittime) {
		this.visittime = visittime;
	}
	public String getP_name() {
		return p_name;
	}
	public void setP_name(String p_name) {
		this.p_name = p_name;
	}
	public String getP_gender() {
		return p_gender;
	}
	public void setP_gender(String p_gender) {
		this.p_gender = p_gender;
	}
	public String getP_age() {
		return p_age;
	}
	public void setP_age(String p_age) {
		this.p_age = p_age;
	}
	public String getP_tel() {
		return p_tel;
	}
	public void setP_tel(String p_tel) {
		this.p_tel = p_tel;
	}
	public String getP_ID() {
		return p_ID;
	}
	public void setP_ID(String p_ID) {
		this.p_ID = p_ID;
	}
	public String getP_addr() {
		return p_addr;
	}
	public void setP_addr(String p_addr) {
		this.p_addr = p_addr;
	}
	public String getP_zhushu() {
		return p_zhushu;
	}
	public void setP_zhushu(String p_zhushu) {
		this.p_zhushu = p_zhushu;
	}
	public String getP_sizhen() {
		return p_sizhen;
	}
	public void setP_sizhen(String p_sizhen) {
		this.p_sizhen = p_sizhen;
	}
	public String getP_clinical_diagnosis() {
		return p_clinical_diagnosis;
	}
	public void setP_clinical_diagnosis(String p_clinical_diagnosis) {
		this.p_clinical_diagnosis = p_clinical_diagnosis;
	}
	public String getP_syndrome() {
		return p_syndrome;
	}
	public void setP_syndrome(String p_syndrome) {
		this.p_syndrome = p_syndrome;
	}
	public String getP_history_allergy() {
		return p_history_allergy;
	}
	public void setP_history_allergy(String p_history_allergy) {
		this.p_history_allergy = p_history_allergy;
	}
	public String getP_treatmethod() {
		return p_treatmethod;
	}
	public void setP_treatmethod(String p_treatmethod) {
		this.p_treatmethod = p_treatmethod;
	}

	public String getP_location_disease() {
		return p_location_disease;
	}
	public void setP_location_disease(String p_location_disease) {
		this.p_location_disease = p_location_disease;
	}
	public String getP_nature_disease() {
		return p_nature_disease;
	}
	public void setP_nature_disease(String p_nature_disease) {
		this.p_nature_disease = p_nature_disease;
	}
	public String getP_chinese_medicine() {
		return p_chinese_medicine;
	}
	public void setP_chinese_medicine(String p_chinese_medicine) {
		this.p_chinese_medicine = p_chinese_medicine;
	}

	@Override
	public String toString() {
		return "patientBean [apartment=" + apartment + ", visittime=" + visittime + ", p_name=" + p_name + ", p_gender="
				+ p_gender + ", p_age=" + p_age + ", p_tel=" + p_tel + ", p_ID=" + p_ID + ", p_addr=" + p_addr
				+ ", p_zhushu=" + p_zhushu + ", p_sizhen=" + p_sizhen + ", p_clinical_diagnosis=" + p_clinical_diagnosis
				+ ", p_syndrome=" + p_syndrome + ", p_history_allergy=" + p_history_allergy + ", p_treatmethod="
				+ p_treatmethod + ", p_location_disease=" + p_location_disease + ", p_nature_disease="
				+ p_nature_disease + ", p_chinese_medicine=" + p_chinese_medicine + "]";
	}

}

Conndb类

package com.xmlread.cn;
/**
 *
 * @author 李钦弘
 * @description 连接数据库的java类
 */
import java.sql.DriverManager;
import java.sql.SQLException;

import com.mysql.jdbc.Connection;
import com.mysql.jdbc.Statement;

public class Conndb {
	protected static void  insertData(PatientBean rx) throws ClassNotFoundException, SQLException {
		// 1.加载驱动
		Class.forName("com.mysql.jdbc.Driver");
		// 2.获取Connection对象取
		Connection con = (Connection) DriverManager.getConnection("jdbc:mysql:///表所在数据库名","你的数据库登录名", "登录密码");
		// 3.获取Statement对象
		Statement st = (Statement) con.createStatement();
		// 4.添加操作
		String sql = "insert into patientdata(apartment,visittime,p_name,"
				+ "p_gender,p_age,p_tel,"
				+ "p_ID,p_addr,p_zhushu,"
				+ "p_sizhen,p_clinical_diagnosis,p_syndrome,"
				+ "p_history_allergy,p_treatmethod,p_location_disease,"
				+ "p_nature_disease,p_chinese_medicine) values('"+rx.getApartment()+"','"+rx.getVisittime()+"','"+rx.getP_name()+"',"
				+ "'"+rx.getP_gender()+"','"+rx.getP_age()+"',"
				+ "'"+rx.getP_tel()+"','"+rx.getP_ID()+"','"+rx.getP_addr()+"',"
				+ "'"+rx.getP_zhushu()+"','"+rx.getP_sizhen()+"','"+rx.getP_clinical_diagnosis()+"',"
				+ "'"+rx.getP_syndrome()+"','"+rx.getP_history_allergy()+"','"+rx.getP_treatmethod()+"',"
				+ "'"+rx.getP_location_disease()+"','"+rx.getP_nature_disease()+"','"+rx.getP_chinese_medicine()+"')";
		int row = st.executeUpdate(sql);
		if (row != 0) {
			System.out.println("添加成功");
		}
		// 5.关闭资源
		st.close();
		con.close();
	}

}
表所在数据库名","你的数据库登录名", "登录密码");
		// 3.获取Statement对象
		Statement st = (Statement) con.createStatement();
		// 4.添加操作
		String sql = "insert into patientdata(apartment,visittime,p_name,"
				+ "p_gender,p_age,p_tel,"
				+ "p_ID,p_addr,p_zhushu,"
				+ "p_sizhen,p_clinical_diagnosis,p_syndrome,"
				+ "p_history_allergy,p_treatmethod,p_location_disease,"
				+ "p_nature_disease,p_chinese_medicine) values('"+rx.getApartment()+"','"+rx.getVisittime()+"','"+rx.getP_name()+"',"
				+ "'"+rx.getP_gender()+"','"+rx.getP_age()+"',"
				+ "'"+rx.getP_tel()+"','"+rx.getP_ID()+"','"+rx.getP_addr()+"',"
				+ "'"+rx.getP_zhushu()+"','"+rx.getP_sizhen()+"','"+rx.getP_clinical_diagnosis()+"',"
				+ "'"+rx.getP_syndrome()+"','"+rx.getP_history_allergy()+"','"+rx.getP_treatmethod()+"',"
				+ "'"+rx.getP_location_disease()+"','"+rx.getP_nature_disease()+"','"+rx.getP_chinese_medicine()+"')";
		int row = st.executeUpdate(sql);
		if (row != 0) {
			System.out.println("添加成功");
		}
		// 5.关闭资源
		st.close();
		con.close();
	}

}

MainClass类

package com.xmlread.cn;
/**
 *
 * @author 李钦弘
 * @description 开始执行的主类
 */
public class MainClass {
public static void main(String[] args) {
	ReadXml.readText();
	}
}

控制台输出结果:

数据库表数据:

5.总结

以上就是整个实验的解答过程,快速完成了老师布置的试验任务,解答思路也得到了老师的表扬,为此,留作纪念。

6.题外话

这是学生第一次使用CSDN发表博客,自己喜欢应用编程也有两三年了,实在羞愧。
