什么是自动注入？
我们在property中注入属于手动注入
如果配置autowire="byName" / autowire="byType"/ autowire="constructor"/ autowire="default" 属于自动注入
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
">
<bean class="com.jack.ascp.purchase.app.test.spring.getbean.BoyAndGirlPostProcessor"/>
<bean class="com.jack.ascp.purchase.app.test.spring.getbean.Boy" id="boy" autowire="byName">
<!--<property name="girl" ref="girl"/>-->
</bean>
<bean class="com.jack.ascp.purchase.app.test.spring.getbean.Girl" id="girl">
<property name="boy" ref="boy"/>
</bean>
</beans>在前面分析createBean的链路时看到，bean的属性赋值是在AbstractAutowireCapableBeanFactory#populateBean中完成的。
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
if (bw == null) {
if (mbd.hasPropertyValues()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
// Skip property population phase for null instance.
return;
}
}
// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the
// state of the bean before properties are set. This can be used, for example,
// to support styles of field injection.
boolean continueWithPropertyPopulation = true;
// 这里又会调用一次post-processors 在实例化之后的调用
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
// 这里获取到我们xml手动注入的属性
PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// Add property values based on autowire by name if applicable.
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
// 通过名称注入
autowireByName(beanName, mbd, bw, newPvs);
}
// Add property values based on autowire by type if applicable.
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
// 通过类型注入
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);
if (hasInstAwareBpps || needsDepCheck) {
if (pvs == null) {
pvs = mbd.getPropertyValues();
}
PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
// 这里又会调用一次post-processors @Autowired注解的属性注入就是在这里完成的
if (hasInstAwareBpps) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvs == null) {
return;
}
}
}
}
if (needsDepCheck) {
checkDependencies(beanName, mbd, filteredPds, pvs);
}
}
if (pvs != null) {
// 前面处理都是为了拿到pvs, 这里最后Spring容器开始处理PropertyValues
applyPropertyValues(beanName, mbd, bw, pvs);
}
}autowireByName
以对象上的属性的属性名作为beanName, 去容器中属性名相同的进行注入。
protected void autowireByName(
String beanName, AbstractBeanDefinition mbd, BeanWrapper bw, MutablePropertyValues pvs) {
// 获取非简单类型的需要被注入的属性名
String[] propertyNames = unsatisfiedNonSimpleProperties(mbd, bw);
for (String propertyName : propertyNames) {
// 判断容器当中是否有这个bean
if (containsBean(propertyName)) {
// 如果有, 则getBean
Object bean = getBean(propertyName);
// 将bean 加入到pvs中
pvs.add(propertyName, bean);
registerDependentBean(propertyName, beanName);
if (logger.isDebugEnabled()) {
logger.debug("Added autowiring by name from bean name '" + beanName +
"' via property '" + propertyName + "' to bean named '" + propertyName + "'");
}
}
else {
if (logger.isTraceEnabled()) {
logger.trace("Not autowiring property '" + propertyName + "' of bean '" + beanName +
"' by name: no matching bean found");
}
}
}
}unsatisfiedNonSimpleProperties：
protected String[] unsatisfiedNonSimpleProperties(AbstractBeanDefinition mbd, BeanWrapper bw) {
Set<String> result = new TreeSet<>();
// 获取手动注入的属性
PropertyValues pvs = mbd.getPropertyValues();
// 通过反射获取对象的属性
PropertyDescriptor[] pds = bw.getPropertyDescriptors();
for (PropertyDescriptor pd : pds) {
/**
1、有set方法的属性
2、不在排除之外的属性
3、没有被手动注入的属性
4、不是一个简单类型
*/
if (pd.getWriteMethod() != null && !isExcludedFromDependencyCheck(pd) && !pvs.contains(pd.getName()) &&
!BeanUtils.isSimpleProperty(pd.getPropertyType())) {
result.add(pd.getName());
}
}
return StringUtils.toStringArray(result);
}统一加入到pvs中最后调用applyPropertyValues(beanName, mbd, bw, pvs);进行set。
autowireByType
按照类型注入，其实也是在按照名称基础之上做的，先按照type遍历找到其beanName，再按照beanName进行注入。
它会先从容器中singletonObjects中进行匹配，如果匹配不上则根据beanDefiniton的targetType进行匹配。
这个过程相当复杂和漫长，但是会维护一个缓存帮助寻找。

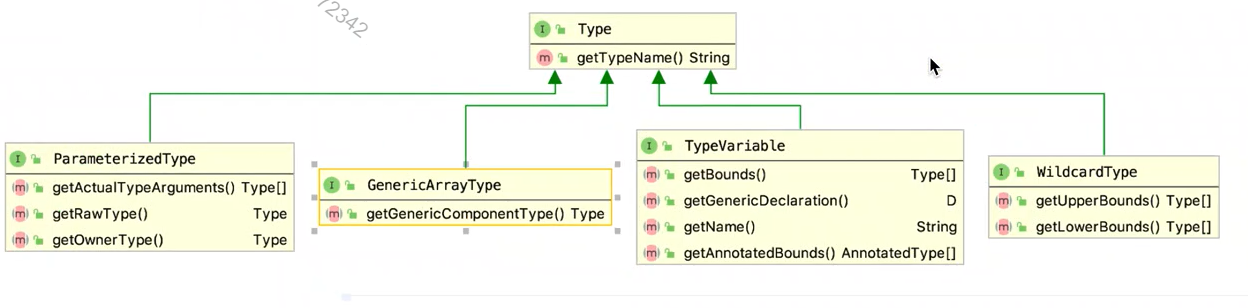

关于java 的Type，请查看我转载的一篇文章
先过链路：
protected void autowireByType(
String beanName, AbstractBeanDefinition mbd, BeanWrapper bw, MutablePropertyValues pvs) {
// 获取类型转换器
TypeConverter converter = getCustomTypeConverter();
if (converter == null) {
converter = bw;
}
Set<String> autowiredBeanNames = new LinkedHashSet<>(4);
// 获取非简单类型的需要被注入的属性名
String[] propertyNames = unsatisfiedNonSimpleProperties(mbd, bw);
for (String propertyName : propertyNames) {
try {
// 获取属性的描述者，主要描述是它的get，set方法和它的type
PropertyDescriptor pd = bw.getPropertyDescriptor(propertyName);
// Don't try autowiring by type for type Object: never makes sense,
// even if it technically is a unsatisfied, non-simple property.
if (Object.class != pd.getPropertyType()) {
MethodParameter methodParam = BeanUtils.getWriteMethodParameter(pd);
// Do not allow eager init for type matching in case of a prioritized post-processor.
boolean eager = !PriorityOrdered.class.isInstance(bw.getWrappedInstance());
// desc 属性描述：申明的class,参数类型,set方法,set方法描述
DependencyDescriptor desc = new AutowireByTypeDependencyDescriptor(methodParam, eager);
// 根据类型, 获取autowiredArgument，这个过程很复杂
Object autowiredArgument = resolveDependency(desc, beanName, autowiredBeanNames, converter);
if (autowiredArgument != null) {
// 将获取到的autowiredArgument加入到属性列表当中
pvs.add(propertyName, autowiredArgument);
}
for (String autowiredBeanName : autowiredBeanNames) {
registerDependentBean(autowiredBeanName, beanName);
if (logger.isDebugEnabled()) {
logger.debug("Autowiring by type from bean name '" + beanName + "' via property '" +
propertyName + "' to bean named '" + autowiredBeanName + "'");
}
}
autowiredBeanNames.clear();
}
}
catch (BeansException ex) {
throw new UnsatisfiedDependencyException(mbd.getResourceDescription(), beanName, propertyName, ex);
}
}
}DefaultListableBeanFactory#resolveDependency:
public Object resolveDependency(DependencyDescriptor descriptor, @Nullable String requestingBeanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
descriptor.initParameterNameDiscovery(getParameterNameDiscoverer());
if (Optional.class == descriptor.getDependencyType()) {
return createOptionalDependency(descriptor, requestingBeanName);
}
else if (ObjectFactory.class == descriptor.getDependencyType() ||
ObjectProvider.class == descriptor.getDependencyType()) {
return new DependencyObjectProvider(descriptor, requestingBeanName);
}
else if (javaxInjectProviderClass == descriptor.getDependencyType()) {
return new Jsr330ProviderFactory().createDependencyProvider(descriptor, requestingBeanName);
}
else {
// 注解模式下会用到
Object result = getAutowireCandidateResolver().getLazyResolutionProxyIfNecessary(
descriptor, requestingBeanName);
if (result == null) {
// 进入依赖解析
result = doResolveDependency(descriptor, requestingBeanName, autowiredBeanNames, typeConverter);
}
return result;
}
}DefaultListableBeanFactory#doResolveDependency: 这里可能会获取到多个候选者，这个后面介绍
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
try {
Object shortcut = descriptor.resolveShortcut(this);
if (shortcut != null) {
return shortcut;
}
Class<?> type = descriptor.getDependencyType();
// 判断是否有一个建议值
Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
if (value != null) {
if (value instanceof String) {
String strVal = resolveEmbeddedValue((String) value);
BeanDefinition bd = (beanName != null && containsBean(beanName) ? getMergedBeanDefinition(beanName) : null);
value = evaluateBeanDefinitionString(strVal, bd);
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
return (descriptor.getField() != null ?
converter.convertIfNecessary(value, type, descriptor.getField()) :
converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
}
Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
if (multipleBeans != null) {
return multipleBeans;
}
// 获取匹配的自动注入的候选者们
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
// 判断返回结果是不是空的, 如果空，且必要则抛出异常：expected at least 1 bean which qualifies as autowire candidate. Dependency annotations。
// 比如@Autowired注解的属性required == true(默认)
if (matchingBeans.isEmpty()) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
return null;
}
String autowiredBeanName;
Object instanceCandidate;
// 当匹配到多个，进行处理，这是xml模式下的处理，如果是基于注解的，除了这里还会在AutowireCandidateResolver中处理
if (matchingBeans.size() > 1) {
autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
if (autowiredBeanName == null) {
if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
return descriptor.resolveNotUnique(type, matchingBeans);
}
else {
// In case of an optional Collection/Map, silently ignore a non-unique case:
// possibly it was meant to be an empty collection of multiple regular beans
// (before 4.3 in particular when we didn't even look for collection beans).
return null;
}
}
instanceCandidate = matchingBeans.get(autowiredBeanName);
}
else {
// 如果只有一个则直接可以拿到beanName
Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
autowiredBeanName = entry.getKey();
instanceCandidate = entry.getValue();
}
if (autowiredBeanNames != null) {
autowiredBeanNames.add(autowiredBeanName);
}
if (instanceCandidate instanceof Class) {
// 这里面会调用 beanFactory.getBean(beanName) 获取属性的实例
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
Object result = instanceCandidate;
if (result instanceof NullBean) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
result = null;
}
if (!ClassUtils.isAssignableValue(type, result)) {
throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
}
return result;
}
finally {
ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
}
}findAutowireCandidates
protected Map<String, Object> findAutowireCandidates(
@Nullable String beanName, Class<?> requiredType, DependencyDescriptor descriptor) {
//根据类型获取beanName的候选者们
String[] candidateNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
this, requiredType, true, descriptor.isEager());
Map<String, Object> result = new LinkedHashMap<>(candidateNames.length);
// 遍历resolvableDependencies, 这里放置了beanFactory, applicationContext,resourceLoader,等。
// 这些也是可以通过类型被注入到我们的bean当中的
for (Class<?> autowiringType : this.resolvableDependencies.keySet()) {
if (autowiringType.isAssignableFrom(requiredType)) {
Object autowiringValue = this.resolvableDependencies.get(autowiringType);
autowiringValue = AutowireUtils.resolveAutowiringValue(autowiringValue, requiredType);
if (requiredType.isInstance(autowiringValue)) {
result.put(ObjectUtils.identityToString(autowiringValue), autowiringValue);
break;
}
}
}
// 又遍历获取候选者的类型 (result key = beanName, value = classType), 这段代码有点重复
for (String candidate : candidateNames) {
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, descriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
if (result.isEmpty() && !indicatesMultipleBeans(requiredType)) {
// Consider fallback matches if the first pass failed to find anything...
DependencyDescriptor fallbackDescriptor = descriptor.forFallbackMatch();
for (String candidate : candidateNames) {
if (!isSelfReference(beanName, candidate) && isAutowireCandidate(candidate, fallbackDescriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
if (result.isEmpty()) {
// Consider self references as a final pass...
// but in the case of a dependency collection, not the very same bean itself.
for (String candidate : candidateNames) {
if (isSelfReference(beanName, candidate) &&
(!(descriptor instanceof MultiElementDescriptor) || !beanName.equals(candidate)) &&
isAutowireCandidate(candidate, fallbackDescriptor)) {
addCandidateEntry(result, candidate, descriptor, requiredType);
}
}
}
}
// 将 result( key = beanName, value = classType)方法
return result;
}
BeanFactoryUtils#beanNamesForTypeIncludingAncestors(org.springframework.beans.factory.ListableBeanFactory, java.lang.Class<?>, boolean, boolean)
public static String[] beanNamesForTypeIncludingAncestors(
ListableBeanFactory lbf, Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {
Assert.notNull(lbf, "ListableBeanFactory must not be null");
String[] result = lbf.getBeanNamesForType(type, includeNonSingletons, allowEagerInit);
if (lbf instanceof HierarchicalBeanFactory) {
HierarchicalBeanFactory hbf = (HierarchicalBeanFactory) lbf;
if (hbf.getParentBeanFactory() instanceof ListableBeanFactory) {
String[] parentResult = beanNamesForTypeIncludingAncestors(
(ListableBeanFactory) hbf.getParentBeanFactory(), type, includeNonSingletons, allowEagerInit);
result = mergeNamesWithParent(result, parentResult, hbf);
}
}
return result;
}
DefaultListableBeanFactory#getBeanNamesForType(java.lang.Class<?>, boolean, boolean)
public String[] getBeanNamesForType(@Nullable Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {
if (!isConfigurationFrozen() || type == null || !allowEagerInit) {
return doGetBeanNamesForType(ResolvableType.forRawClass(type), includeNonSingletons, allowEagerInit);
}
// 这个过程很漫长，所以先尝试从缓存中获取
Map<Class<?>, String[]> cache =
(includeNonSingletons ? this.allBeanNamesByType : this.singletonBeanNamesByType);
String[] resolvedBeanNames = cache.get(type);
if (resolvedBeanNames != null) {
return resolvedBeanNames;
}
// 进入解析方法
resolvedBeanNames = doGetBeanNamesForType(ResolvableType.forRawClass(type), includeNonSingletons, true);
if (ClassUtils.isCacheSafe(type, getBeanClassLoader())) {
cache.put(type, resolvedBeanNames);
}
return resolvedBeanNames;
}doGetBeanNamesForType：
private String[] doGetBeanNamesForType(ResolvableType type, boolean includeNonSingletons, boolean allowEagerInit) {
List<String> result = new ArrayList<>();
// 遍历所有definitions.
for (String beanName : this.beanDefinitionNames) {
// Only consider bean as eligible if the bean name
// is not defined as alias for some other bean.
if (!isAlias(beanName)) {
try {
RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
// Only check bean definition if it is complete.
if (!mbd.isAbstract() && (allowEagerInit ||
(mbd.hasBeanClass() || !mbd.isLazyInit() || isAllowEagerClassLoading()) &&
!requiresEagerInitForType(mbd.getFactoryBeanName()))) {
// In case of FactoryBean, match object created by FactoryBean.
boolean isFactoryBean = isFactoryBean(beanName, mbd);
BeanDefinitionHolder dbd = mbd.getDecoratedDefinition();
boolean matchFound =
(allowEagerInit || !isFactoryBean ||
(dbd != null && !mbd.isLazyInit()) || containsSingleton(beanName)) &&
(includeNonSingletons ||
(dbd != null ? mbd.isSingleton() : isSingleton(beanName))) &&
// 主要这里, 查看这个type和beanName是不是匹配的
isTypeMatch(beanName, type);
if (!matchFound && isFactoryBean) {
// In case of FactoryBean, try to match FactoryBean instance itself next.
beanName = FACTORY_BEAN_PREFIX + beanName;
matchFound = (includeNonSingletons || mbd.isSingleton()) && isTypeMatch(beanName, type);
}
if (matchFound) {
// 如果匹配到则加入到结果列表当中
result.add(beanName);
}
}
}
catch (CannotLoadBeanClassException ex) {
if (allowEagerInit) {
throw ex;
}
// Probably a class name with a placeholder: let's ignore it for type matching purposes.
if (logger.isDebugEnabled()) {
logger.debug("Ignoring bean class loading failure for bean '" + beanName + "'", ex);
}
onSuppressedException(ex);
}
catch (BeanDefinitionStoreException ex) {
if (allowEagerInit) {
throw ex;
}
// Probably some metadata with a placeholder: let's ignore it for type matching purposes.
if (logger.isDebugEnabled()) {
logger.debug("Ignoring unresolvable metadata in bean definition '" + beanName + "'", ex);
}
onSuppressedException(ex);
}
}
}
// Check manually registered singletons too.
for (String beanName : this.manualSingletonNames) {
try {
// In case of FactoryBean, match object created by FactoryBean.
if (isFactoryBean(beanName)) {
if ((includeNonSingletons || isSingleton(beanName)) && isTypeMatch(beanName, type)) {
result.add(beanName);
// Match found for this bean: do not match FactoryBean itself anymore.
continue;
}
// In case of FactoryBean, try to match FactoryBean itself next.
beanName = FACTORY_BEAN_PREFIX + beanName;
}
// Match raw bean instance (might be raw FactoryBean).
if (isTypeMatch(beanName, type)) {
result.add(beanName);
}
}
catch (NoSuchBeanDefinitionException ex) {
// Shouldn't happen - probably a result of circular reference resolution...
if (logger.isDebugEnabled()) {
logger.debug("Failed to check manually registered singleton with name '" + beanName + "'", ex);
}
}
}
return StringUtils.toStringArray(result);
}AbstractBeanFactory#isTypeMatch(java.lang.String, org.springframework.core.ResolvableType)
public boolean isTypeMatch(String name, ResolvableType typeToMatch) throws NoSuchBeanDefinitionException {
String beanName = transformedBeanName(name);
// 不允许早期依赖的情况下获取beanInstance。
Object beanInstance = getSingleton(beanName, false);
if (beanInstance != null && beanInstance.getClass() != NullBean.class) {
// 判断是不是一个FactoryBean, FactoryBean不能作为最后类型, 要根据FactoryBean.getObjectType
if (beanInstance instanceof FactoryBean) {
if (!BeanFactoryUtils.isFactoryDereference(name)) {
Class<?> type = getTypeForFactoryBean((FactoryBean<?>) beanInstance);
return (type != null && typeToMatch.isAssignableFrom(type));
}
else {
return typeToMatch.isInstance(beanInstance);
}
}
else if (!BeanFactoryUtils.isFactoryDereference(name)) {
// 判断beanInstance是否是typeToMatch的实例， 如果是的直接返回true
if (typeToMatch.isInstance(beanInstance)) {
// Direct match for exposed instance?
return true;
}
// 如果不是，则处理在泛型的情况下
else if (typeToMatch.hasGenerics() && containsBeanDefinition(beanName)) {
// 不可能只匹配代理上的泛型，处理代理的情况
RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
Class<?> targetType = mbd.getTargetType();
if (targetType != null && targetType != ClassUtils.getUserClass(beanInstance) &&
typeToMatch.isAssignableFrom(targetType)) {
// Check raw class match as well, making sure it's exposed on the proxy.
Class<?> classToMatch = typeToMatch.resolve();
return (classToMatch == null || classToMatch.isInstance(beanInstance));
}
}
}
return false;
}
else if (containsSingleton(beanName) && !containsBeanDefinition(beanName)) {
// null instance registered
return false;
}
// 到父工厂里面去找
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// No bean definition found in this factory -> delegate to parent.
return parentBeanFactory.isTypeMatch(originalBeanName(name), typeToMatch);
}
// 最后实在不行就分析beanDefinition了
RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
Class<?> classToMatch = typeToMatch.resolve();
if (classToMatch == null) {
classToMatch = FactoryBean.class;
}
Class<?>[] typesToMatch = (FactoryBean.class == classToMatch ?
new Class<?>[] {classToMatch} : new Class<?>[] {FactoryBean.class, classToMatch});
// 判断是不是factorybean对其进行处理
BeanDefinitionHolder dbd = mbd.getDecoratedDefinition();
if (dbd != null && !BeanFactoryUtils.isFactoryDereference(name)) {
RootBeanDefinition tbd = getMergedBeanDefinition(dbd.getBeanName(), dbd.getBeanDefinition(), mbd);
Class<?> targetClass = predictBeanType(dbd.getBeanName(), tbd, typesToMatch);
if (targetClass != null && !FactoryBean.class.isAssignableFrom(targetClass)) {
return typeToMatch.isAssignableFrom(targetClass);
}
}
// 获取beanDefinition的class
Class<?> beanType = predictBeanType(beanName, mbd, typesToMatch);
if (beanType == null) {
return false;
}
// 得到类型，仍然判断是不是FactoryBean
if (FactoryBean.class.isAssignableFrom(beanType)) {
if (!BeanFactoryUtils.isFactoryDereference(name) && beanInstance == null) {
// If it's a FactoryBean, we want to look at what it creates, not the factory class.
beanType = getTypeForFactoryBean(beanName, mbd);
if (beanType == null) {
return false;
}
}
}
// 判断name是都待&符号。&符号代表FactoryBean
else if (BeanFactoryUtils.isFactoryDereference(name)) {
// Special case: A SmartInstantiationAwareBeanPostProcessor returned a non-FactoryBean
// type but we nevertheless are being asked to dereference a FactoryBean...
// Let's check the original bean class and proceed with it if it is a FactoryBean.
beanType = predictBeanType(beanName, mbd, FactoryBean.class);
if (beanType == null || !FactoryBean.class.isAssignableFrom(beanType)) {
return false;
}
}
ResolvableType resolvableType = mbd.targetType;
if (resolvableType == null) {
resolvableType = mbd.factoryMethodReturnType;
}
if (resolvableType != null && resolvableType.resolve() == beanType) {
return typeToMatch.isAssignableFrom(resolvableType);
}
// 最后判断beanType和typeToMatch是不是派生关系
return typeToMatch.isAssignableFrom(beanType);
}predictBeanType: 拿到beanDefinition的Class
protected Class<?> predictBeanType(String beanName, RootBeanDefinition mbd, Class<?>... typesToMatch) {
// 取TargetType
Class<?> targetType = mbd.getTargetType();
if (targetType != null) {
return targetType;
}
// 是否是工厂方法
if (mbd.getFactoryMethodName() != null) {
return null;
}
return resolveBeanClass(mbd, beanName, typesToMatch);
}
回到DefaultListableBeanFactory#doResolveDependency: 看看如果又多个候选者的情况：
public Object doResolveDependency(DependencyDescriptor descriptor, @Nullable String beanName,
@Nullable Set<String> autowiredBeanNames, @Nullable TypeConverter typeConverter) throws BeansException {
InjectionPoint previousInjectionPoint = ConstructorResolver.setCurrentInjectionPoint(descriptor);
try {
Object shortcut = descriptor.resolveShortcut(this);
if (shortcut != null) {
return shortcut;
}
Class<?> type = descriptor.getDependencyType();
// 判断是否有一个建议值
Object value = getAutowireCandidateResolver().getSuggestedValue(descriptor);
if (value != null) {
if (value instanceof String) {
String strVal = resolveEmbeddedValue((String) value);
BeanDefinition bd = (beanName != null && containsBean(beanName) ? getMergedBeanDefinition(beanName) : null);
value = evaluateBeanDefinitionString(strVal, bd);
}
TypeConverter converter = (typeConverter != null ? typeConverter : getTypeConverter());
return (descriptor.getField() != null ?
converter.convertIfNecessary(value, type, descriptor.getField()) :
converter.convertIfNecessary(value, type, descriptor.getMethodParameter()));
}
Object multipleBeans = resolveMultipleBeans(descriptor, beanName, autowiredBeanNames, typeConverter);
if (multipleBeans != null) {
return multipleBeans;
}
// 获取匹配的自动注入的候选者们
Map<String, Object> matchingBeans = findAutowireCandidates(beanName, type, descriptor);
// 判断返回结果是不是空的, 如果空，且必要则抛出异常：expected at least 1 bean which qualifies as autowire candidate. Dependency annotations。
// 比如@Autowired注解的属性required == true(默认)
if (matchingBeans.isEmpty()) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
return null;
}
String autowiredBeanName;
Object instanceCandidate;
// 当匹配到多个，进行处理，这是xml模式下的处理，如果是基于注解的，除了这里还会在AutowireCandidateResolver中处理
if (matchingBeans.size() > 1) {
autowiredBeanName = determineAutowireCandidate(matchingBeans, descriptor);
if (autowiredBeanName == null) {
if (isRequired(descriptor) || !indicatesMultipleBeans(type)) {
return descriptor.resolveNotUnique(type, matchingBeans);
}
else {
// In case of an optional Collection/Map, silently ignore a non-unique case:
// possibly it was meant to be an empty collection of multiple regular beans
// (before 4.3 in particular when we didn't even look for collection beans).
return null;
}
}
instanceCandidate = matchingBeans.get(autowiredBeanName);
}
else {
// 如果只有一个则直接可以拿到beanName
Map.Entry<String, Object> entry = matchingBeans.entrySet().iterator().next();
autowiredBeanName = entry.getKey();
instanceCandidate = entry.getValue();
}
if (autowiredBeanNames != null) {
autowiredBeanNames.add(autowiredBeanName);
}
if (instanceCandidate instanceof Class) {
// 这里面会调用 beanFactory.getBean(beanName) 获取属性的实例
instanceCandidate = descriptor.resolveCandidate(autowiredBeanName, type, this);
}
Object result = instanceCandidate;
if (result instanceof NullBean) {
if (isRequired(descriptor)) {
raiseNoMatchingBeanFound(type, descriptor.getResolvableType(), descriptor);
}
result = null;
}
if (!ClassUtils.isAssignableValue(type, result)) {
throw new BeanNotOfRequiredTypeException(autowiredBeanName, type, instanceCandidate.getClass());
}
return result;
}
finally {
ConstructorResolver.setCurrentInjectionPoint(previousInjectionPoint);
}
}如果有多个候选者，会判断哪个候选者是primary="true"。选取primary="true"的bean，如果有多个primary="true"则抛异常。如果大家都没有primary="true"，则看这些bean是否可以优先级排序，取优先级最高的。最后如果无法从多个中选取一个则抛异常
构造器注入
<!-- <bean class="com.jack.ascp.purchase.app.test.spring.getbean.BoyAndGirlPostProcessor"/> -->
<bean class="com.jack.ascp.purchase.app.test.spring.getbean.Boy" id="boy" autowire="constructor">
<constructor-arg index="0" value="jpl"/>
</bean>
<bean class="com.jack.ascp.purchase.app.test.spring.getbean.Girl" id="girl">
<property name="boy" ref="boy"/>
</bean>原则上基于有参构造器方式注入的bean是不允许循环依赖的，
如果构造器注入有循环引用，我们想解决的话，可以通过lazy注解。
@Lazy
public Boy(@Lazy Girl girl) {
this.girl = girl;

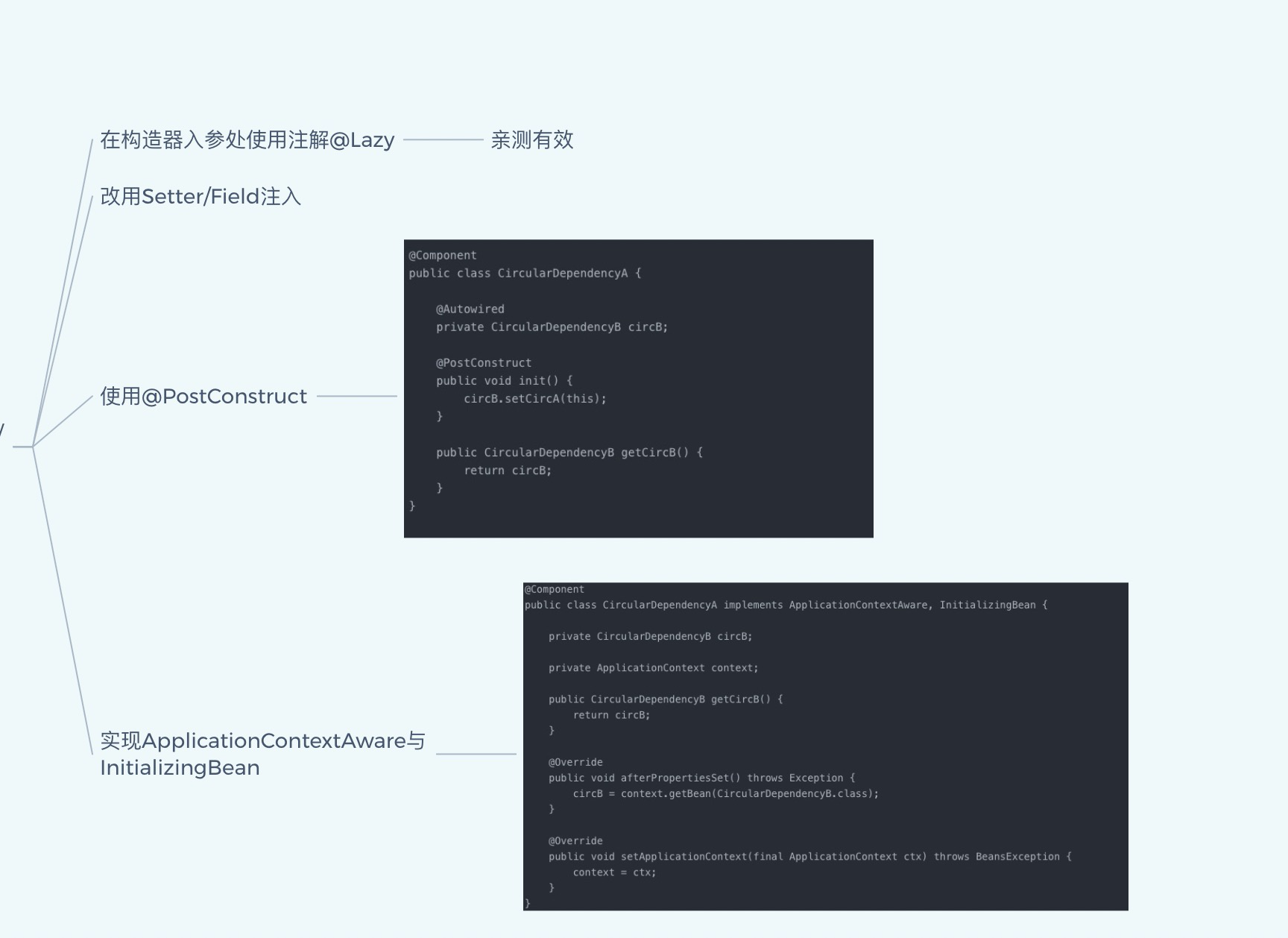

}下图，有四种解决循环依赖问题，其中1在xml形式下不生效，其中2、3其实是无参构造，3其实在AOP代理情况下无法解决循环依赖问题。
Spring构造器注入的源码：如果配置autowire="constructor" 则进入autowireConstructor
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args);
}
补充：
https://www.jianshu.com/p/a74707581ffa
121
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
